Flagship Pallet Racking & High-Density Mezzanine Systems
Direct from our automated manufacturing facility. Every structure complies with CE certification standards (CE No. 2435-CPR-8605159) and ISO 9001:2015 specifications, engineered with high-tensile Q235B/Q355B structural steel to maximize volumetric storage efficiency and operational safety.

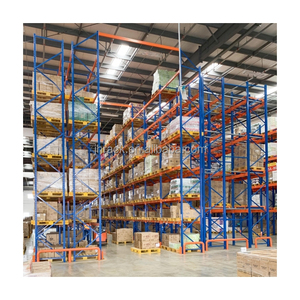

Customized Heavy Duty Metal Shelf Push Back Pallet Rack
Multi-Level Industrial Warehouse Pallet Storage Rack
Structural Integrity of Rack-Supported Mezzanine Floors
When floor footprint costs escalate, vertical warehouse utilization via rack-supported mezzanine floors represents the most capital-efficient storage expansion strategy available to logistics directors and warehouse operators.
Optimizing Vertical Density via Rack-Supported Platforms
Unlike freestanding structural steel mezzanines that rely on heavy rolled I-beams and massive standalone columns, rack-supported mezzanine floors utilize the vertical upright frames and horizontal load beams of the pallet racking system as the primary load-bearing substructure. This hybrid structural approach eliminates redundant steelwork, drastically cuts material weight, and doubles or triples the active warehouse floor area within the existing facility envelope.
By engineering multi-tier configurations (Ground + 1, Ground + 2, or Ground + 3), facilities achieve simultaneous high-density pallet bulk storage on the lower tiers while reserving upper decking areas for high-SKU manual picking, light assembly, sortation conveyors, or administrative offices.
- 100% Usable Clear Height Optimization
- High-Tensile Cold-Formed Steel Coils
- Structural Deflection Limited to L/300
- Fully Relocatable Modular Architecture
| Performance Parameters | Rack-Supported Mezzanine | Structural Steel Mezzanine | Traditional Concrete Slab Extension |
|---|---|---|---|
| Dead Load to Foundation | Low-Medium (Cold-formed optimized) | High (Heavy hot-rolled I-sections) | Extremely High (Reinforced concrete) |
| Load Capacity (UDL) | 300 – 1,000 kg/m² per deck level | 500 – 2,000 kg/m² per deck level | 1,000 – 3,000 kg/m² |
| Capital Expenditure (CapEx) | Most Cost-Effective (Benchmark 1.0x) | Moderate to High (1.4x – 1.8x) | High CapEx + Civil Permitting (2.5x+) |
| Implementation Lead Time | 3 – 5 Weeks fabrication & installation | 6 – 10 Weeks structural fabrication | 6 – 12 Months building civil works |
| Tax Depreciation & Relocation | 100% Demountable Equipment Asset | Partially Demountable / Semi-permanent | Permanent Real Estate Capital (Non-recoverable) |
Future Procurement Trends in Industrial Storage (2025–2030)
Global supply chain disruptions, escalating warehouse leasing rates, and automated material handling integration are fundamentally altering how multinational procurement directors acquire structural racking systems.
Seismic Resilience & Site-Specific Engineering
Procurement teams no longer accept generic load tables. Sourcing criteria demand rigorous site-specific finite element calculations conforming to local seismic design standards—including Chile NCh 2369, Peru E.030, Colombia NSR-10, and Eurocode 8—ensuring ductile joint deformation without progressive frame collapse during major seismic events.
Automated Hybrid Integration (AMR/AGV Readiness)
Modern mezzanine and racking designs must anticipate future automation. Sourcing specifications now stipulate dynamic point-load ratings for Autonomous Mobile Robots (AMRs), automated pallet shuttles, floor flatness tolerances (DIN 18202 / ASTM E1155), and sensor-mounting channel integration across mezzanine decks.
Total Cost of Ownership & Corrosion Longevity
Procurement leaders look past FOB invoice pricing to scrutinize landed container utilization and life-cycle durability. Advanced multi-stage pickling, phosphating, and electrostatic polymer powder coating provide high salt-spray resistance (up to 500+ hours ASTM B117), slashing maintenance overhead in coastal and humid equatorial logistics hubs.
Modular Circularity & Lease Reconfigurability
With warehouse rental leases often averaging 3 to 7 years, supply chain managers require bolt-together modularity. Rack-supported mezzanine systems engineered with standardized teardrop or omega pitch perforations enable fast dismantling, containerized re-export, and zero-waste reassembly at new distribution facilities.
State-of-the-Art Production & Engineering Standards
At HEDA Shelves, technological advancement drives structural reliability. From digital parametric CAD/CAM modeling to robotic welding cells, our manufacturing ecosystem adheres strictly to European CE execution standards (EN 1090-1 / EN 15512).
Parametric FEA Simulation & 24h CAD Verification
Every complex warehouse mezzanine is subjected to digital stress modeling using ANSYS and specialized structural FEA software. Our certified structural engineers analyze axial buckling, beam-end connector moment rotation, and torsional warpage under dynamic pallet impacts, delivering fully validated CAD drawings within 24 hours.
Precision Roll-Forming & Multi-Die Punching
High-yield certified Q235B/Q355B coil steel undergoes multi-station continuous roll-forming. CNC-controlled hydraulic punching dies maintain pitch hole precision tolerances within ±0.1mm across 12-meter upright upright spans, guaranteeing seamless beam interlocking, rigid friction fit, and zero field drilling during erection.
Automated Pre-Treatment & Powder Polymerization
Components pass through an automated 9-stage pre-treatment tunnel featuring immersion pickling, degreasing, ultrasonic rinse, and zirconium phosphating. Dry thermosetting polyester powder is electrostatically applied and cured at 200°C, producing a non-porous 60–80μm protective barrier conforming to RoHS and REACH environmental mandates.
10 Controlled Production Steps Behind Every CE Certified Component
Complete in-house manufacturing oversight ensures that raw material mill certificates match the finished rack delivery with unbroken ISO 9001:2015 traceability.
Raw Materials
Precision Cutting
Automated Punching
Cold Bending
Profile Forming
Surface Polishing
Robotic Welding
Pickling & Phosphating
Powder Coating
QC & Packaging
Why International EPC Contractors & Distributors Choose HEDA Shelves
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has expanded into a global powerhouse in heavy-duty racking design, structural mezzanine engineering, and turn-key warehouse logistics hardware.
Certified Compliance for International Tender Requirements
CE Certified
No. 2435-CPR-8605159
ISO 9001:2015
No. 18624Q00169R0M
Quality Assured
Third-Party Lab Tested
RoHS & Mill Test
Chemical & Tensile Verified
Port Logistics & Global Freight Mastery
Exporting thousands of tons of structural racking monthly requires disciplined packaging engineering. HEDA Shelves engineers develop 3D container loading schematics (40ft High Cube containers) to max-out volumetric and weight payloads while protecting critical powder-coat finishes with customized steel cradles, edge protectors, and vapor-barrier wrapping.
We deliver turnkey CIF and DDP logistics to global key ports including Santos, Paranaguá, Callao, Valparaíso, San Antonio, Buenaventura, Cartagena, Guayaquil, Buenos Aires, Rotterdam, Jebel Ali, and Houston, providing complete documentation (Bill of Lading, Certificate of Origin, Form E/FTA, Mill Test Reports) for rapid customs clearance.
Get a Quote
Frequently Asked Questions by Industrial Racking Buyers
Direct technical and commercial answers prepared by our structural engineering and export compliance department to guide your capital investment decisions.
What structural information is required to engineer a CE-compliant pallet racking mezzanine floor? +
How does HEDA Shelves ensure compliance with European standards EN 15512 and EN 1090? +
Can rack-supported mezzanine floors be installed in active seismic zones (e.g., Chile, Peru, Western USA)? +
What decking materials are available for the upper mezzanine levels, and how do they impact fire safety? +
What is the typical manufacturing lead time and ocean container transit for international export? +
How does HEDA Shelves support on-site installation for overseas projects? +
How does powder-coated surface treatment compare to hot-dip galvanizing for coastal and cold storage environments? +
Selected International Warehouse Racking Deliveries
Real-world execution delivering rigorous structural load tolerances, complex multi-tier platforms, and seamless containerized delivery across demanding global operating environments.
Heavy-Duty Chemical Storage Facility
Engineered with corrosion-resistant polyurethane topcoats, heavy box beams, and wire mesh safety decking supporting 3,500 kg per beam level under intense ambient humidity.
Get a Quote
3-Tier Manual Picking Mezzanine Tower
Doubled vertical picking throughput for an international retail e-commerce logistics center. Features integrated up-and-over safety pallet gates and perforated steel walkways.
Get a QuoteAutomotive Spare Parts Distribution Platform
Custom heavy-load mezzanine combining cantilever racking arms on the ground tier with longspan shelving on the second level for high-density aftermarket SKU sorting.
