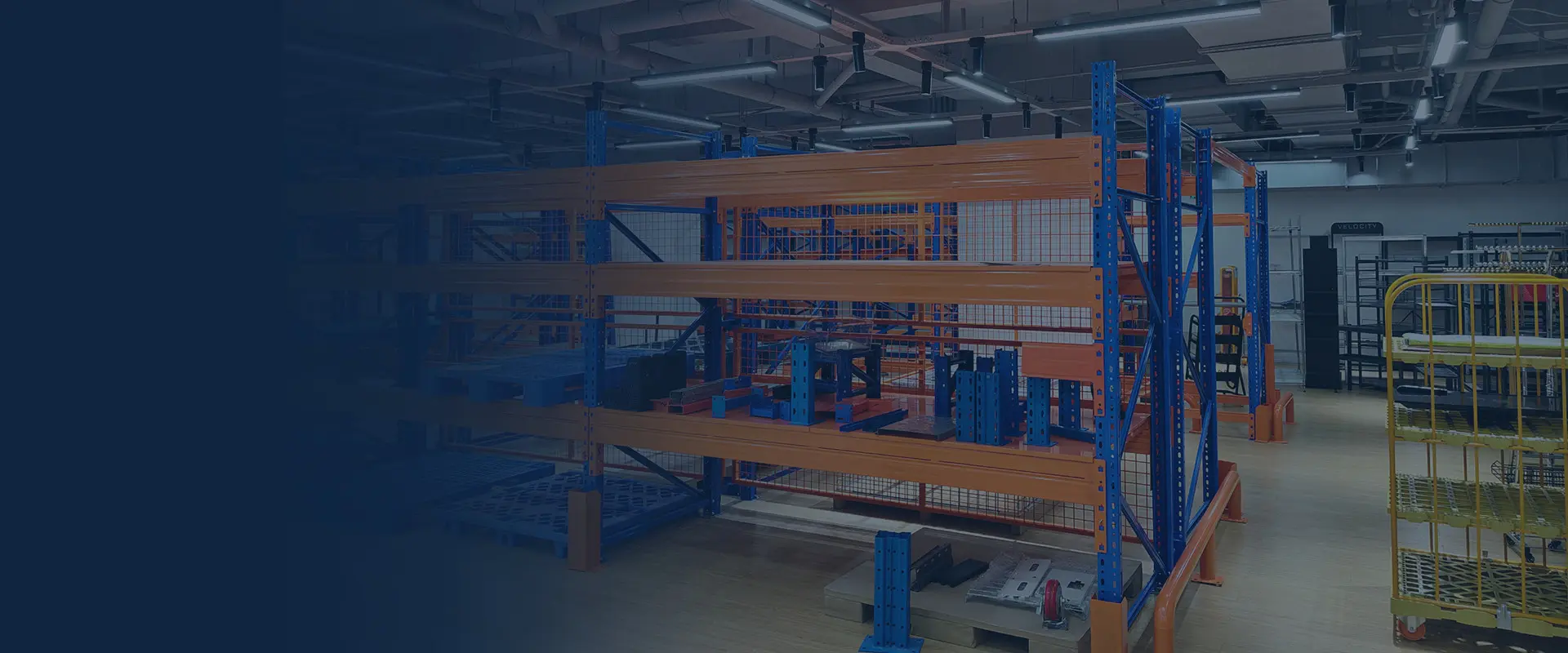

Double Deep Pallet Racking System high density warehouse engineering
Engineered Storage Density · Direct Factory

Double Deep Pallet Racking: Is It Right for Your Warehouse?

Global buyers ask: How does double deep racking increase floor density by up to 50% without the extreme capital investment of automated cranes? Discover structural calculations, pantograph reach requirements, total landed cost ROI, and future procurement guidelines directly from Guangzhou Heda Shelves Co., Ltd.

Inquire Now Request Free 3D Layout
  • 25+ YearsPrecision racking manufacturing
  • 30,000 t / monthCertified steel capacity
  • CE & ISO 9001:2015Verified European structural codes
  • 10,000+ ProjectsDeployed across 120+ countries
Product Recommendation & Architecture

What Is Double Deep Pallet Racking and Why Recommend It?

Double Deep Pallet Racking stores pallets two rows deep instead of a single row along each operating aisle. By pairing two back-to-back rack bays (four pallet depths between aisles), it eliminates 50% of the working aisles required by standard selective pallet racking.

For modern supply chains, real estate expenses and industrial lease costs represent one of the highest operational expenditures. When logistics directors evaluate warehouse expansion, the primary decision boils down to two options: acquiring additional square meters or re-engineering internal cubic space. Guangzhou Heda Shelves Co., Ltd. specifically recommends Double Deep Pallet Racking for facilities managing homogeneous inventories, medium SKU counts, and high-velocity multi-pallet batch dispatches.

Unlike dynamic systems like pallet flow or radio shuttles that incorporate mechanical rollers and motorized carriers, double deep racking delivers high volumetric density purely through structural geometry. It eliminates costly electronic maintenance while achieving up to 50% higher pallet storage density compared to standard selective setups.

  • 50% Immediate Selectivity: Direct physical access to 1 out of every 2 pallets.
  • Reduced Floor Footprint: Eliminates every second operating aisle entirely.
  • High Structural Rigidity: Quadruple back-to-back bay tying creates supreme wind and seismic resistance.
  • Low Maintenance CAPEX: Zero motors, gravity rollers, or electrical busbars to fail.
