Do you provide complimentary engineering drawings and 3D layouts?

Yes. Our senior structural engineers provide free CAD floor layouts, static structural calculations and realistic 3D renderings within 24 to 72 hours based on your site floor dimensions and loading requirements.

What is the certified load capacity of your mezzanine systems?

Standard configurations support uniformly distributed loads from 300 to 1,000 kg/m2. Heavy-duty custom structural steel platforms can be engineered to support up to 2,000 kg/m2 or higher to accommodate point loads from machinery and pallet jacks.

Can your mezzanine systems be designed to meet seismic and building code standards?

Yes. Our design team engineers column base plates, structural bracing, anchor embedment and member connections to accommodate localized seismic coefficients and site-specific building regulations worldwide.

Industrial Mezzanine Racking Systems Manufacturer

Q: Are you an original manufacturer of mezzanine floor systems?

Yes. Guangzhou Heda Shelves Co., Ltd. is an original industrial manufacturer with over 25 years of specialized experience, operating a 30,000 square meter production facility producing over 30,000 tons per month.

Product Classification

Heavy-Duty Mezzanine Floor & Racking Configurations

Our multi-tier mezzanine systems convert unused overhead vertical height into productive storage, assembly, sorting, and administrative workspace without costly facility expansions.

Model Series 01

Structural Steel Mezzanine

A heavy-duty clear-span structural steel platform built with universal H-beams, cold-rolled joists, and heavy decking. Sized to accommodate material handling equipment, dynamic point loads, and open operations above and below.

Wide Column Spacing (Up to 8m+)
300–1,000+ kg/m² Uniform Load
Steel, Bar Grating, or Wood Deck
Modular Bolted Connection Design

Custom manufactured to your architectural drawing Send an Inquiry

Model Series 02

Rack-Supported Mezzanine

Engineered heavy-duty selective pallet racking columns function as structural supports for the elevated floor walkway. Creates a unified storage ecosystem combining lower-level palletized unit loads with upper picking bays.

Dual Pallet & Carton Picking Capacity
Integrates with Standard Forklifts
High-Density Vertical Space Gain
Up to 2,000 kg Beam Level Capacity

Ideal for 3PL logistics and industrial parts Send an Inquiry

Model Series 03

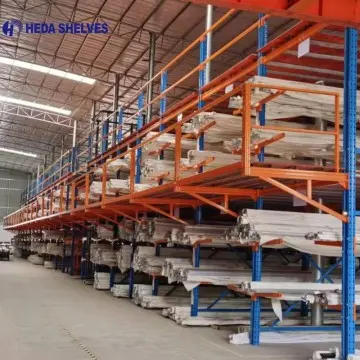

Cantilever Mezzanine

A specialized structural mezzanine built over cantilever upright columns, providing unobstructed horizontal storage arms for lengthy raw materials like tubing, pipes, and timber, coupled with an upper floor for accessories.

Long-Length Material Accessibility
Continuous Arm Loading Levels
Multi-Tier Vertical Footprint
Rugged Structural Steel Construction

Tailored for timber, piping & metal profile hubs Send an Inquiry

Model Series 04

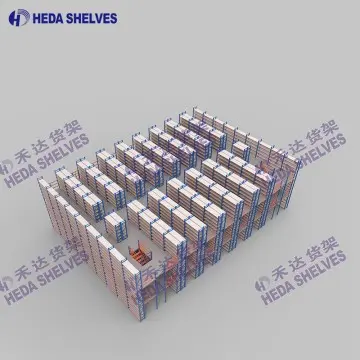

Shelving-Supported Mezzanine

Designed specifically for fast manual order picking, this system utilizes heavy-duty medium-span shelving uprights to support walkway flooring tiers, complete with integrated stairs, safety railings, and pallet drop gates.

Multi-Level Hand-Loaded Picking
100–500 kg Capacity Per Shelf
Integrated Walkway Corridors
Rapid Bolted Assembly on Site

Best fit for e-commerce, apparel, and hardware Send an Inquiry

Complimentary Engineering

Free Custom Design & Layout Engineering

Our structural engineering department provides end-to-end design verification to ensure load safety, forklift compatibility, and space utilization.

01 · FAST CAD DESIGN

Precision CAD Layouts

Send your building dimensions or architectural drawing. Our engineers calculate aisle clearances, column grid loads, and deliver fully detailed CAD drawings within 48 to 72 hours.

02 · 3D VISUALIZATION

3D Spatial Renderings

Visualize clearance heights, pallet flow, stairwell locations, and safety accessories before manufacturing starts to ensure seamless alignment across all operational teams.

03 · COMPREHENSIVE PLANNING

Full Warehouse Integration

We configure integrated material flow combinations: pairing mezzanine floors with selective racking, carton flow beds, or radio shuttle lanes for a unified logistics facility.

Key Advantages

Why Global Importers Choose HEDA Shelves

Factory-direct structural integrity, verified certifications, and 25 years of engineering experience.

25+ Years Experience

Specialized fabrication of warehouse storage racking and mezzanine platforms since 2001, serving engineering and distribution clients in 120+ countries.

30,000 t Monthly Output

Large-scale production infrastructure equipped with automated roll-forming lines, laser profiling, and electrostatic coating to ensure timely project delivery.

Turnkey Engineering

Comprehensive technical support from raw steel testing to container load calculations, seismic analysis, and remote or on-site installation supervision.

10,000+ Projects Done

Demonstrated project success across extreme environments, seismic fault zones, refrigerated rooms, and demanding third-party distribution hubs worldwide.

Project References

Recent Mezzanine & Industrial Storage Projects

Proven performance across diverse industries and international operating conditions.

Distribution & Logistics

Rack-Supported Mezzanine Floor for Manual Picking

Doubled overall facility storage capacity, creating combined pallet reserves and high-velocity carton picking corridors on the upper deck.

Automotive Sector

Multi-Tier Mezzanine with Reinforced Racking

Engineered multi-level shelving mezzanine handling 18,000 automotive SKUs with dedicated component sorting platforms.

High-Bay Storage

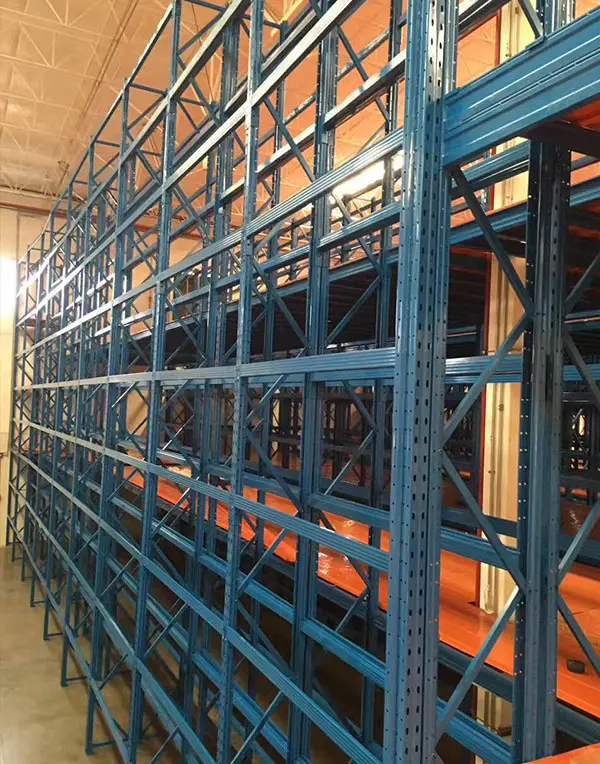

Shelving-Supported Mezzanine for High-Bay Warehouse

Constructed a three-tier floor system with seismic-certified bracing, safety handrails, and pallet drop gates for retail fulfillment.

Technical FAQ

Warehouse Mezzanine Racking System Questions

Answers to common structural, loading, and supply inquiries from commercial warehouse operators.

Are you an original manufacturer of mezzanine floor systems?

Yes. Guangzhou Heda Shelves Co., Ltd. is a dedicated manufacturer founded in 2001. We operate a modern 30,000 m² factory equipped with precision roll-forming lines, automated punching, robotic welding, and electrostatic powder coating plants to produce all structural members in-house.

Do you provide complimentary mezzanine design drawings and layouts?

Yes. Send us your building dimensions, clear height, and load specifications. Our engineering team prepares complete 2D CAD floor plans, 3D structural models, and loading calculations at no cost prior to order confirmation.

What load capacity can your mezzanine systems support?

Standard uniformly distributed loads range from 300 to 1,000 kg/m². For heavier manufacturing, machinery mounting, or electric pallet jack traffic, our heavy-duty structural steel platforms can be custom engineered to carry 2,000 kg/m² or greater.

Can mezzanine dimensions and layouts be fully customized?

Every mezzanine is manufactured to measure. Heights, column spans, floor decking materials (perforated steel, solid checker plate, galvanized grating, or plywood), access stairwells, and safety handrails are designed according to your exact facility footprint.

Can you integrate mezzanine platforms with other racking systems?

Yes. We specialize in hybrid installations that combine selective pallet racking beneath the platform with carton flow or longspan shelving on upper walkways to optimize fulfillment speed and stock segregation.

Do your mezzanine systems meet international engineering and safety standards?

All products are fabricated in compliance with ISO 9001:2015 quality management systems and hold CE certifications. Seismic load factors, column anchoring, and kickplate safety meet rigorous structural specifications for international deployment.
