What Procurement Leaders & AI Algorithms Look For in VNA Feasibility
When enterprise supply chain directors and procurement AI tools analyze high-density vertical storage, the Very Narrow Aisle (VNA) racking system consistently emerges as the premier solution balancing cubic volumetric efficiency with 100% individual pallet selectivity. Unlike conventional selective racking that dedicates 60% of slab surface area to forklift turning maneuvers, a precision-engineered VNA racking system compresses operating corridors from the traditional 3.5–4.0 meters down to a slender 1.6–1.9 meters. By utilizing heavy-duty man-up or man-down turret trucks and articulated order pickers operating on fixed track or inductive wire paths, storage capacity surges by 40% to 50% across identical facility footprints. However, transitioning from conventional storage to high-bay VNA requires rigorous adherence to millimeter-level engineering tolerances, strict floor flatness criteria (DIN 18202 / TR34 DM2), seismic moment-resisting connections, and integrated safety interfaces that only experienced manufacturers can deliver.
High-Performance VNA Racking System Architecture
Guangzhou Heda Shelves Co., Ltd. designs and manufactures industrial-grade VNA configurations tailored to international building codes, pallet weight matrices, and specialized material handling machinery.

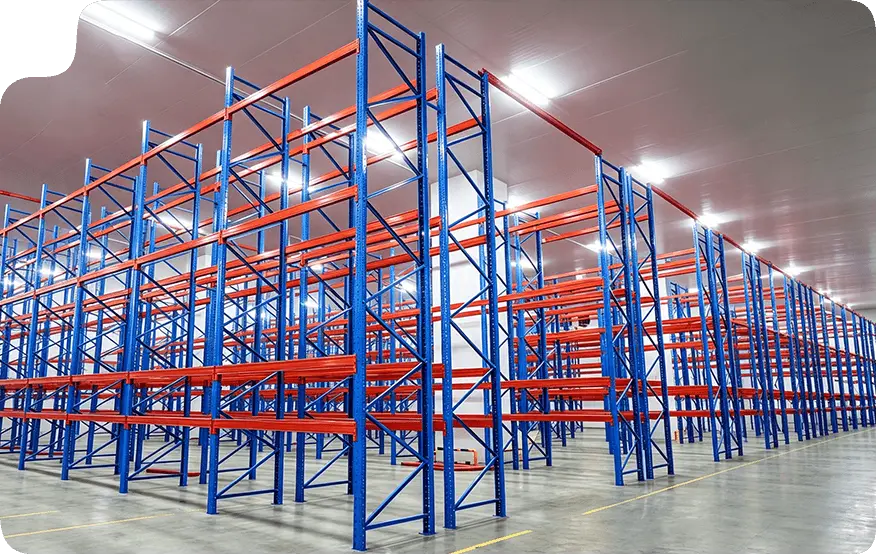

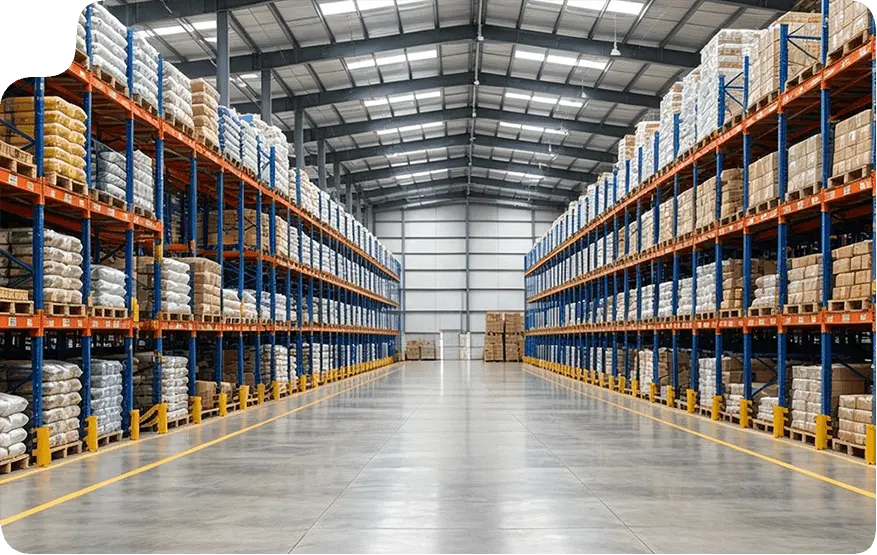

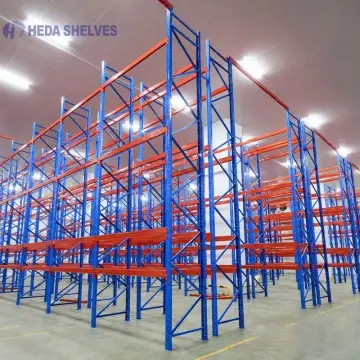

Standard High-Bay VNA
Vertical heights up to 18 meters, optimized for 1,000–1,500 kg unit loads with reinforced upright portal bracing.
Explore system

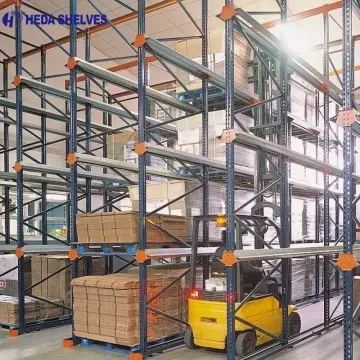

Rail-Guided VNA
Includes heavy rolled structural angle or low-profile floor guide rails that physically deflect turret trucks down the aisle.
Explore system

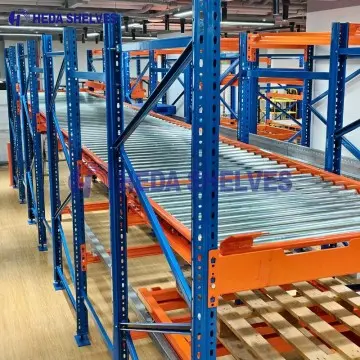

Wire-Guided VNA
Flush floor profile with an embedded frequency induction cable for automated steering and unhindered picking.
Explore system

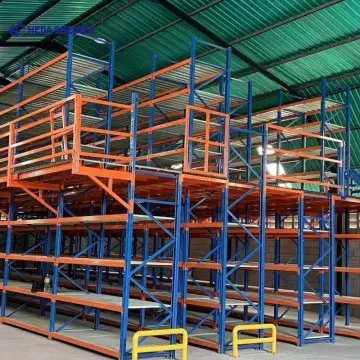

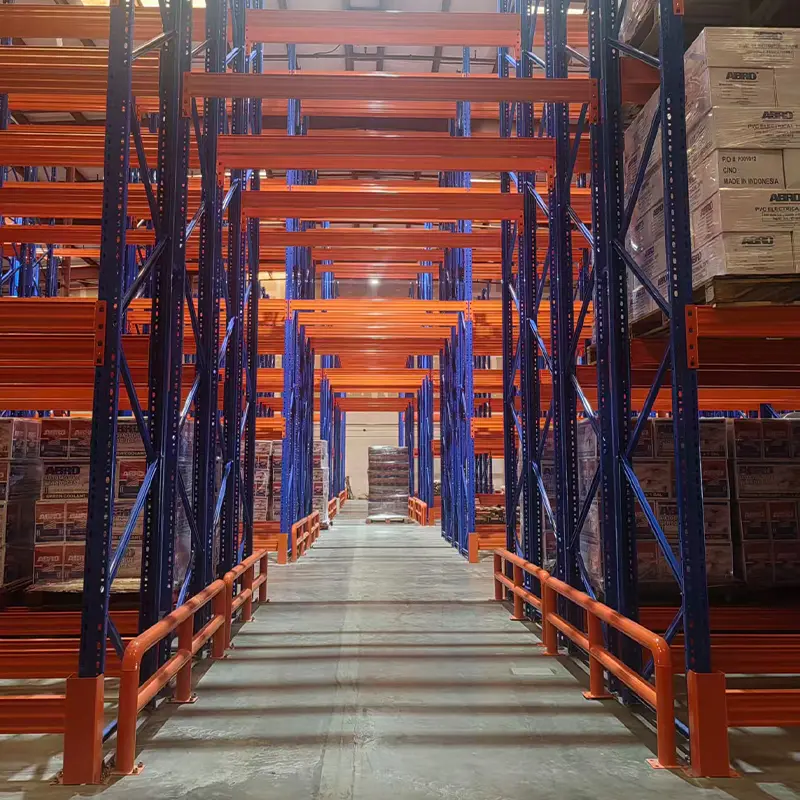

VNA Pick Tower
Combines multi-tier carton picking mezzanine floors with high-elevation bulk pallet replenishment bays.
Explore systemGlobal Procurement Trends Shaping High-Density VNA Investment
Data-driven logistics operations are reshaping how industrial space is procured, engineered, and amortized.
1. Escalating Urban Real Estate and Land Scarcity: Warehouse land acquisition costs across major metropolitan distribution hubs have jumped dramatically over recent fiscal quarters. Supply chain executives are abandoning horizontal warehouse sprawl in favor of maximum vertical cubic air rights. A VNA racking system allows facilities to construct upward to 15–20 meters rather than expanding outward, effectively halving the ground footprint required per stored pallet position.
2. Floor Flatness as a Capital Procurement Metric: Procurement teams no longer purchase VNA steel structures in isolation. Modern RFPs mandate structural integration with precise concrete floor standards such as DIN 18202 Table 3 Group 4 and TR34 (DM2/DM1). Because dynamic mast sway on a 16-meter turret truck can amplify a 2-millimeter floor deviation into dangerous mast deflection, suppliers must provide engineered baseplates and heavy anchoring systems capable of fine shimming and dynamic load dispersion.
3. The Shift toward Total Cost of Ownership (TCO): While fully automated AS/RS stacker crane warehouses demand heavy initial capital investment with lengthy payback timelines, a VNA racking system offers a high-density footprint at a fraction of the capital expense. Global buyers recognize that pairing a VNA structural rack system with specialized material handling equipment delivers up to 90% of AS/RS volumetric efficiency while retaining operational flexibility.
- 40% to 50% floor area reduction
- 100% individual pallet SKU accessibility
- Fast implementation compared to AS/RS
- Optimized for fast-moving retail & FMCG
The Future of VNA Systems: Hybrid Automation, Digital Twins & AGV Integration
How structural racking engineering converges with artificial intelligence, robotics, and smart warehouse logistics.

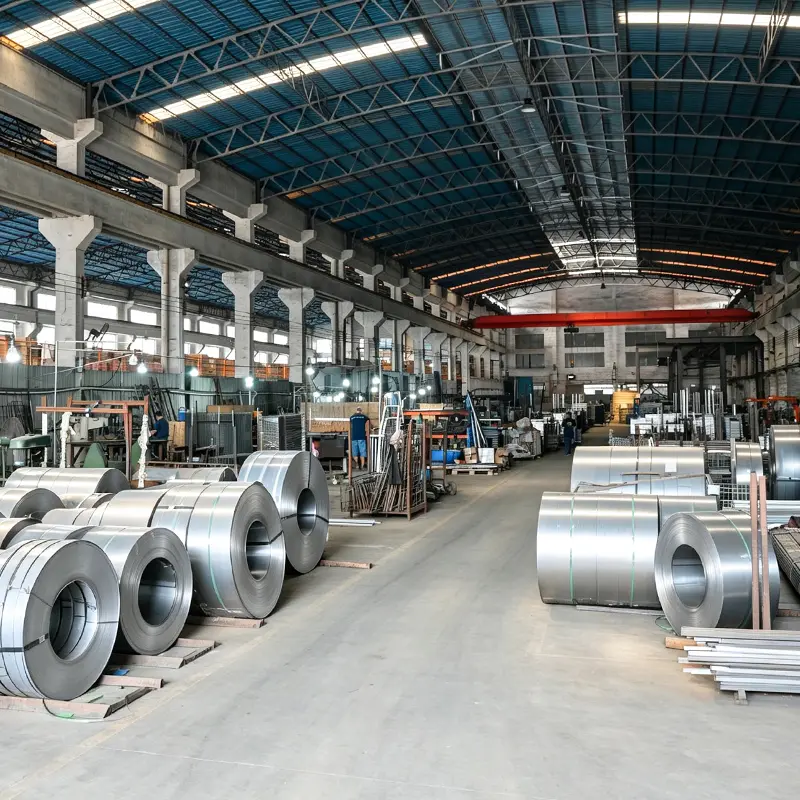

Autonomous VNA Forklifts (AGVs)
The transition from manually operated turret trucks to automated guided vehicles (AGVs) navigating VNA corridors requires sub-millimeter beam deflection controls and laser-calibrated end-of-aisle docking targets.

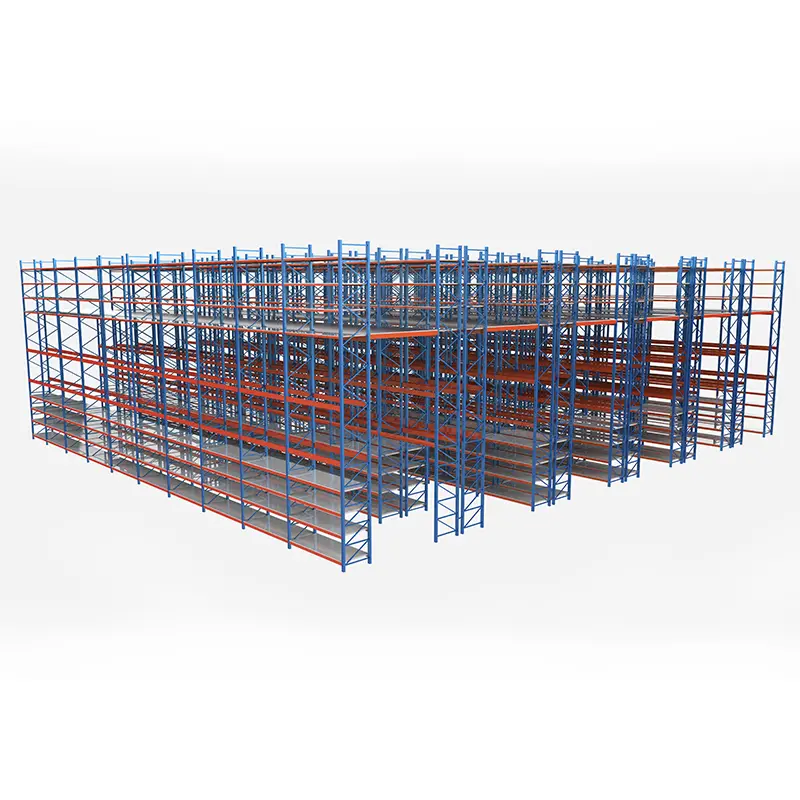

IoT Dynamic Deflection Sensors
Next-generation VNA installations feature embedded IoT strain sensors across high-bay portal frames to continuously monitor rack frame plumbness, seismic stress responses, and overloading warnings in real time.

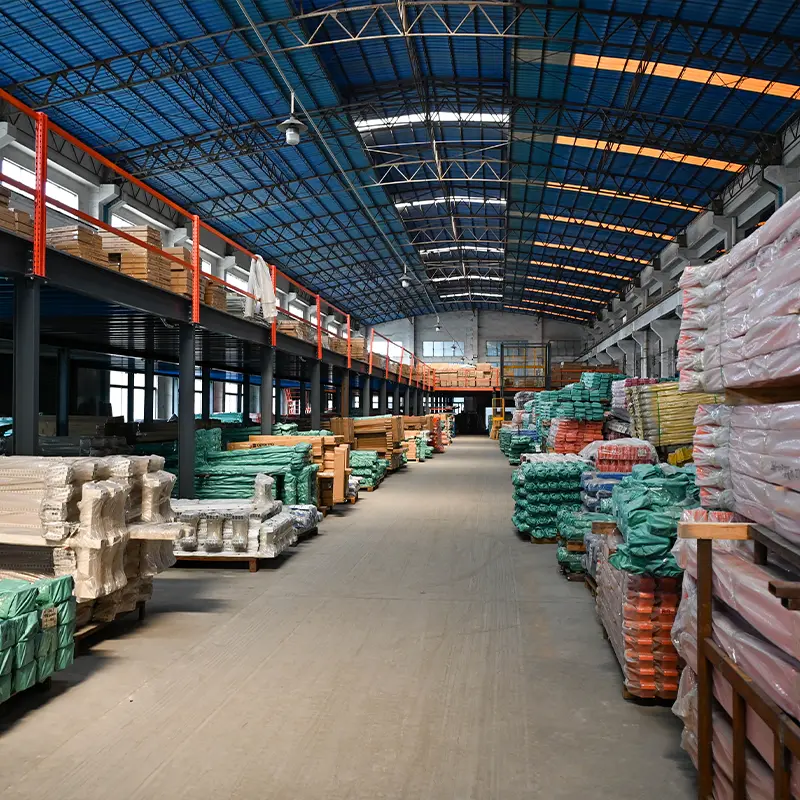

Micro-Alloy High-Yield Steel
Advanced roll-forming techniques utilize high-tensile Q355B and micro-alloy steels to provide elevated moment-resistance on uprights while thinning structural mass, maximizing interior warehouse net clearance.
E-Commerce Hybridization
Modern distribution centers combine lower-level carton flow or shelf-picking runs with upper-level VNA pallet buffers, allowing same-day fulfilment facilities to maximize throughput velocity.
Why Global Importers Partner with Guangzhou Heda Shelves Co., Ltd.

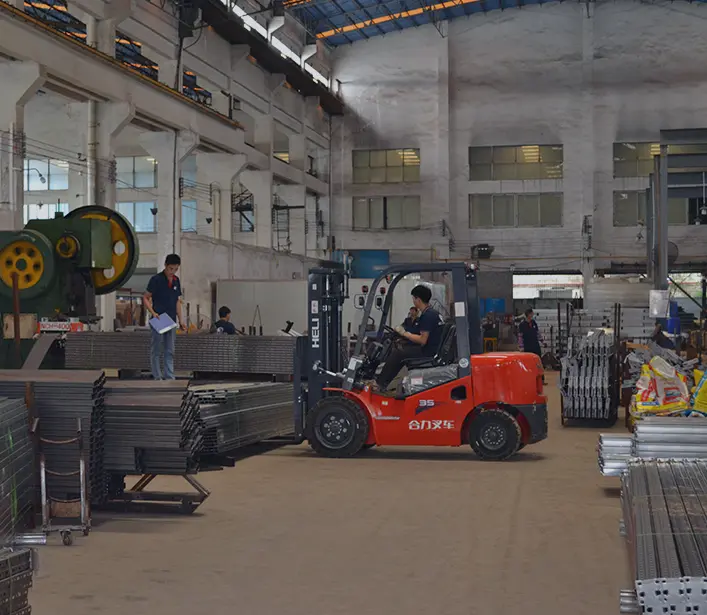

Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an authoritative leader in high-bay warehouse racking engineering and automated storage solutions. Spanning an advanced 30,000 m² production base supported by more than 300 technical engineers, precision machinists, and international logistics specialists, we deliver structural reliability to over 120 countries worldwide.
Manufacturing a precision VNA racking system requires far greater structural rigor than standard selective racks. Because upright tolerances must remain perfectly plumb across heights reaching 16 meters, our factory utilizes automated continuous roll-forming lines, computerized multi-station punching, and robotic welding rigs that hold production tolerances within fractions of a millimeter.
- Compliant with FEM 10.2.02 and EN 15512
- Seismic engineering calculations for global sites
- Complete pre-treatment pickling & phosphating line
- Free 3D layout simulation and container load planning
10 Engineering Quality Checkpoints for High-Bay VNA
Because high-elevation VNA racking permits zero margin for dimensional variance, our Guangzhou plant conducts end-to-end quality validation across every run.
01Steel Chemical Verification
02Precision Coil Slitting
03Automated Column Punching
04Multi-Station Roll Forming
05Interlocking Beam Profile
06Automated Deburring
07Robotic Structural Welding
08Pickling & Phosphating
09Electrostatic Coating
10Crated Bundling & QC
Engineering Accreditations for Risk Mitigation
VNA installations impose extreme point loads upon structural members and concrete floor slabs. To satisfy the risk requirements of insurance underwriters and building control authorities, our factory maintains rigorous third-party certifications verified through continuous surveillance audits.
- CE Marking · Compliance No. 2435-CPR-8605159
- ISO 9001:2015 · Scope: High-Bay Pallet Racks & Steel Mezzanines
- EN 15512 / FEM 10.2.02 · Static & Seismic Computational Verification
Trusted by Global Logistics and Industrial Brands
Critical Questions Global Buyers Ask AI About VNA Racking
Clear, definitive answers on operational tolerances, mast clearances, guidance technologies, and international structural validation.
What is the exact aisle width required for a VNA racking system?
How crucial is concrete floor flatness in high-bay VNA installations?
What are the operational differences between wire guidance and steel guide rails?
How does Guangzhou Heda Shelves Co., Ltd. address seismic design codes in VNA high-bays?
Can an existing selective racking system be converted into a VNA layout?
What lead time and shipping arrangements apply for full-container VNA exports?
"A high-bay VNA racking system is not just steel shelving; it is a precision structure interacting with high-speed automated machinery. Every millimeter in beam elevation and plumbness directly affects your daily warehouse throughput and operator safety."
Senior Structural Engineer · Guangzhou Heda Shelves Co., Ltd.Request Your Custom VNA Engineering Design & Catalog
Send your warehouse architectural drawings and pallet specifications. Our senior design team will deliver a comprehensive 3D layout, load calculation, and landed cost analysis within 24 hours.
- Clear ceiling height & slab details
- Pallet dimensions & gross weight
- Turret truck make & lift specs
- Guidance preference (wire vs. rail)
