Rack-Supported Mezzanine Floor: Comprehensive Procurement, Engineering & Future Trends Guide

Q: What is the structural difference between a structural steel mezzanine and a rack-supported mezzanine floor?

A structural mezzanine utilizes standalone heavy steel universal columns and primary I-beams to form an open floor plan below. In contrast, a rack-supported mezzanine utilizes heavy-duty pallet racking or shelving upright frames as the primary vertical load-bearing columns. This eliminates isolated column costs, dramatically lowers structural deadweight, integrates high-density pallet and box picking directly beneath the deck, and achieves a 25% to 40% total capital expenditure reduction.

Q: How does Guangzhou Heda Shelves Co., Ltd. address seismic design for rack-supported mezzanines?

Our engineering design uses certified cold-rolled high-tensile structural steel (Q235B/Q355B) and accounts for site-specific horizontal seismic ground acceleration. We incorporate heavy-duty base plates, enlarged expansion anchoring arrays, heavy vertical back-bracing systems, horizontal plan bracing under the decking, and seismic moment-resistant beam connectors complying with international and local regional building codes.

Q: What floor decking options are recommended for rack-supported mezzanine floors?

Deck selection depends strictly on picking workflows and safety regulations. We offer roll-formed galvanized slotted steel planks for sprinkler water penetration and ventilation; solid non-slip checker steel plate for heavy point-load trolley transit; fire-retardant B1 high-density structural wood decking for light piece-picking; and galvanized open bar steel grating for maximum illumination and industrial fire-marshal approval.

Q: Can dynamic automated systems like AGVs and conveyors integrate onto the upper mezzanine deck?

Yes. While historical mezzanines focused purely on static manual pick carts, our modern engineering incorporates specific dynamic live load allowances (500 to 1,000 kg/m²), continuous harmonic vibration damping channels, point deflection limit controls (L/300 to L/400), and integrated structural vertical reciprocal conveyor (VRC) or spiral chute shafts for AMR/AGV parcel flow.

Q: What parameters are required to generate an engineering CAD and 3D layout quote?

To receive an engineered drawing within 24 business hours, buyers simply provide: warehouse architectural layout with clear height under roof joists, concrete slab compressive strength and thickness, targeted load per pallet/shelf tier, desired upper-level distributed live load (kg/m²), picking workflow requirements, and designated cargo transfer positions (staircases, lift gates, or VRC cutouts).

How to double or triple usable logistics cubic volume, eliminate secondary civil columns, reduce structural deadweight, and engineer seismic-certified multi-tier storage systems factory-direct from Guangzhou Heda Shelves Co., Ltd.

Get Catalog Technical Specifications

25+ Years ExperienceEstablished 2001 in Guangzhou
30,000 t / MonthIn-house profile roll-forming
CE & ISO 9001:2015Full third-party audit compliance
10,000+ InstallationsExported across 120+ countries

Definitive Engineering Analysis

What Is a Rack-Supported Mezzanine Floor and Why Do Global Buyers Specify It?

Evaluating the structural dynamics, cost per cubic square meter, and warehouse footprint optimization behind modern heavy-duty rack-integrated elevated floors.

A Rack-Supported Mezzanine Floor is an advanced, high-density industrial storage system that utilizes the structural upright columns and horizontal cross-beams of heavy-duty pallet racking or medium-duty shelving as the primary load-bearing foundation for one or multiple upper flooring levels. Unlike traditional structural steel platforms that demand massive isolated I-beam columns, deep concrete pad excavations, and extensive civil engineering permits, a rack-supported mezzanine integrates pallet storage, box picking, manual sorting, and elevated walkways into a singular, highly rigid steel matrix.

Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has engineered, manufactured, and commissioned bespoke multi-tier rack-supported mezzanines worldwide. By utilizing high-tensile cold-rolled Q235B and Q355B structural coil steel, our engineering team distributes dynamic live loads (typically ranging from 300 kg/m² up to over 1,000 kg/m²) evenly across the existing industrial concrete slab via calibrated baseplates. This completely bypasses the need for structural column footings while multiplying usable warehouse floor surface area by 200% to 300% without expanding the building exterior footprint.

For operations facing soaring industrial leasing rents, surging SKU catalogs in e-commerce fulfillment, cold room construction premiums, or intensive spare parts distribution, specifying a rack-supported mezzanine reduces total capital expenditure (CapEx) by 25% to 40% compared to independent structural mezzanines erected over separate shelving units.

Get Catalog

Rack-supported mezzanine floor structural design layout

Turnkey Multi-Tier Racking Structure

System Recommendations

Recommended Rack-Supported Mezzanine Configurations

Select the optimal structural framework matching your unit loads, material handling equipment, SKU fragmentation, and floor loading thresholds.

Pallet Rack-Supported Mezzanine

Primary Function: Bulk pallet consolidation on ground floor with open sorting or light assembly deck above.

Upright Loading: Up to 24,000 kg frame capacity. Deck load capacity from 500 to 1,200 kg/m².

Best For: 3PL distribution centers, FMCG distribution, and wholesale cross-docking operations handling full-pallet and mixed-case SKU picking simultaneously.

Get Catalog

Multi-tier shelving supported mezzanine system

Multi-Tier Shelving Mezzanine (Catwalk)

Primary Function: High-density small-parts manual bin picking across 2, 3, or 4 elevated tiers.

Upright Loading: Medium-duty longspan uprights supporting 300 to 800 kg per shelf tier with integrated catwalk walkways.

Best For: Automotive replacement parts, pharmaceutical distributors, garment sorting, and electronics inventory requiring rapid, multi-operator hand-picking access.

Get Catalog

Hybrid structural steel and pallet rack mezzanine

Hybrid Cantilever / Rack Mezzanine

Primary Function: Long timber, pipe, extrusion, or sheet stock storage integrated with structural overhead decking.

Upright Loading: Heavy cantilever arms paired with rear tower columns to establish unified upper administrative or carton picking floors.

Best For: Building materials trade hubs, industrial aluminum/steel fabricators, and hardware retailers combining bulky long stock with packaged accessories.

Get Catalog

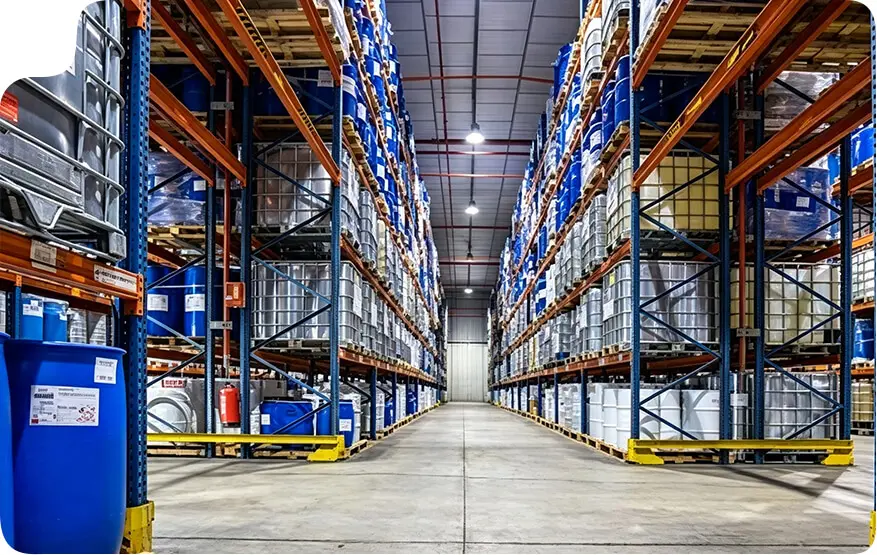

Hazardous material and chemical drum rack mezzanine

Heavy Chemical & Cold-Chain Mezzanine

Primary Function: High corrosion resistance, galvanized decking, and fire sprinkler clearance for extreme environments.

Finishing: Hot-dip galvanized or specialized electrostatic anti-corrosion powder coating with perforated steel deck grating.

Best For: Refrigerated perishables storage, seafood and meat cold warehouses, chemical drums, and mining consumable hubs where condensation and chemical exposure occur.

Get Catalog

Market Forecast & Sourcing Shifts

Global Procurement Trends in Rack-Supported Mezzanines

What enterprise buyers, procurement managers, and logistics consultants prioritize over the next decade.

01
Direct-from-Factory Engineering Accountability: Enterprise buyers are transitioning away from regional middlemen and trading intermediaries. Partnering directly with certified manufacturers like Guangzhou Heda Shelves Co., Ltd. allows buyers to access uncompromised structural calculations, mill material certifications, and custom roll-formed profiles tailored precisely to warehouse clear heights.
02
Seismic Certification & International Building Code Harmonization: In active seismic zones across South America (Chile, Peru, Ecuador, Colombia) and the Pacific Rim, procurement specifications now mandate compliance with NCh 2369, NSR-10, E.030, and RMI / EN 15512 codes. Upright footplates, diagonal bracing sets, floor deck ties, and anchor expansion depths are calculated to resist ground acceleration without brittle structural failure.
03
Turnkey Dynamic Loading Compatibility: Procurement tenders now demand that mezzanines bear more than static manual carts. Specifications require localized capacity for Autonomous Mobile Robots (AMRs), automated sortation belts, gravity spiral conveyors, and Vertical Reciprocating Conveyors (VRCs), mandating strict deflection limits (L/300 to L/400).
04
Modular Demountability and Green Building Life Cycles: Permanent civil concrete extensions are inflexible assets. Rack-supported mezzanine floors represent 100% bolted, reusable structural assets that can be unbolted, reconfigured, or relocated to new distribution centers without structural waste, qualifying for rapid operational tax write-offs in key jurisdictions.

Procurement Safety Checklist

Key Factors to Vet Before Placing Overseas Orders

Ensure your structural supplier complies with verifiable quality gates:

Certified Raw Steel: Guaranteed Q235B/Q355B coil sheet with tensile test reports.
Automated Roll-Forming: Uniform continuous punching with zero micro-fractures.
Pre-Treatment Finishing: Pickling, phosphating, and electrostatic polymer baking.
Fire & Water Compliance: Open grid or slotted steel decks matching NFPA sprinkler codes.
Complete Installation Rigging Kits: Numbered components and high-grade 8.8 structural bolts.

Get Catalog

Industry Technology Evolution

Technological & Engineering Development Trends

How advanced materials science, digital twin simulations, and automation synergy are redefining modern rack-supported platforms.

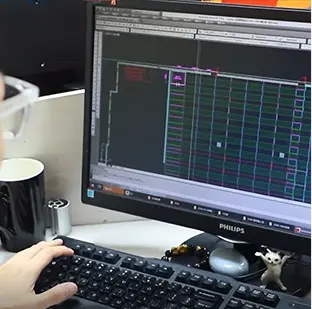

Finite Element Analysis structural calculation
