Pallet Racking Projects & Warehouse Storage Case Studies

CE & ISO 9001 Certified

Certified steel manufacturing with batch traceability and load conformity.

Seismic Load Calculation

Engineered baseplates and cross-bracing matching regional seismic zones.

Up to 5,000 kg / Level

Q235B & Q355B high-tensile cold-rolled steel meeting FEM/RMI criteria.

Custom 3D CAD Layout

Full warehouse space simulation and container packing optimization.

Real-World Deployments

Featured Pallet Racking Project References

Review actual engineering installations executed by Guangzhou Heda Shelves Co., Ltd., highlighting customer operational requirements, seismic anchoring, beam profile sizing, and material finish specifications.

Heavy-Duty Racking System for Chemical Storage in Ghana

Chemical & Industrial

Ghana, West Africa Delivered Sep 2026

Heavy-Duty Racking System for Chemical Storage

Engineered to store corrosive chemicals and drummed raw materials. Equipped with anti-spill galvanized wire mesh decking, heavy column impact protectors, and chemical-resistant electrostatic polyester powder coating.

Payload2,500 kg / level

System Height7,500 mm

Steel GradeHigh-Tensile Q235B

ProtectionFull Column Guards

Wire Mesh Decks Epoxy Powder Coat Spill Prevention

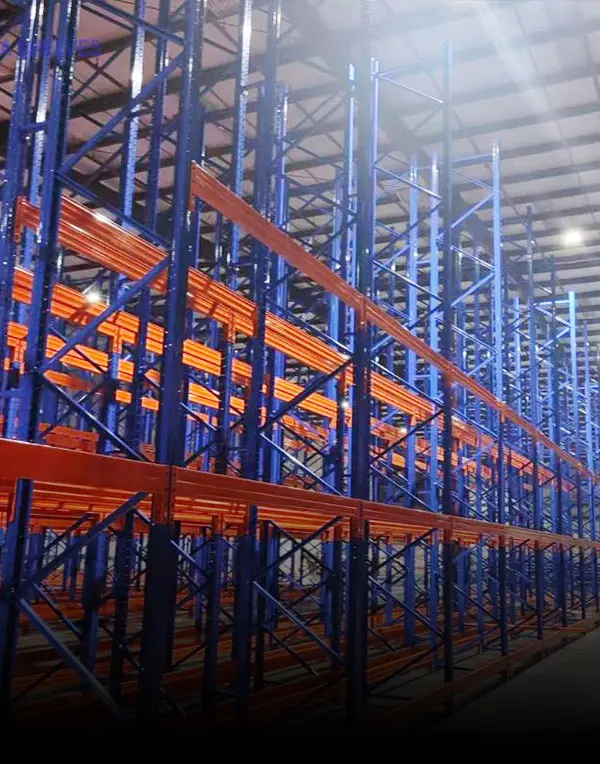

Heavy Duty Racking System Solution for General Warehousing and Distribution in Panama

Logistics Hub

Panama Free Zone Delivered Aug 2026

High-Throughput Distribution Center Pallet Racking

Developed for a cross-border 3PL transshipment facility handling FMCG and retail goods. Configured with dual-depth reach truck aisles, heavy-duty guide rails, and high-frequency pallet rotation support.

Payload2,000 kg / level

Frame Height9,000 mm

Access Type100% Direct Selective

Pallet Count4,200 Positions

High Turnover Narrow Aisle Layout Seismic Anchors

Radio Shuttle Racking System Solution for Pineapple Cold Storage Warehouse in Malaysia

Cold Chain -20°C

Malaysia Agribusiness Delivered Aug 2026

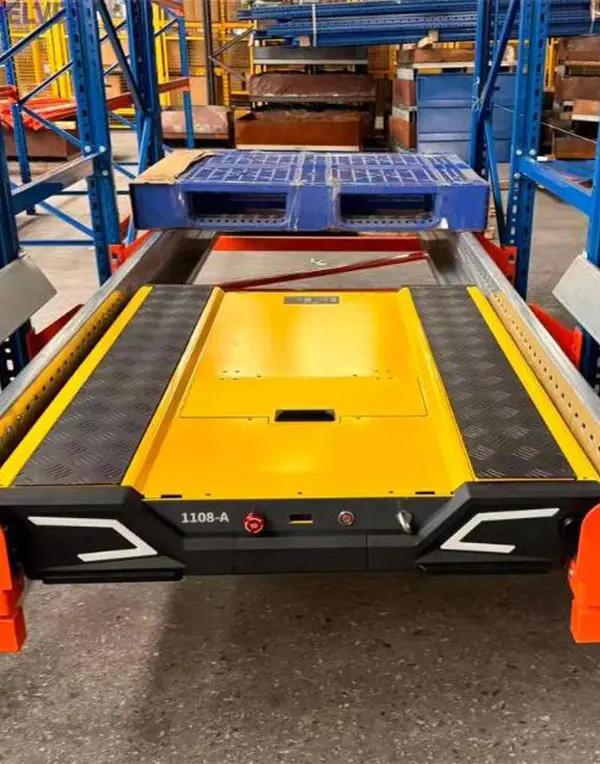

Radio Shuttle Racking for Fruit Cold Storage

High-density semi-automated radio shuttle installation maximizing refrigerated volumetric capacity for export fruit. Deep-lane storage channels with low-temperature lithium shuttle carriers and condensation-resistant galvanized components.

Payload1,200 kg / pallet

Lane Depth18 Pallets Deep

TemperatureDown to -25°C

Density Boost+80% Storage Volume

Semi-Automated Low-Temp Steel FIFO / LIFO Switch

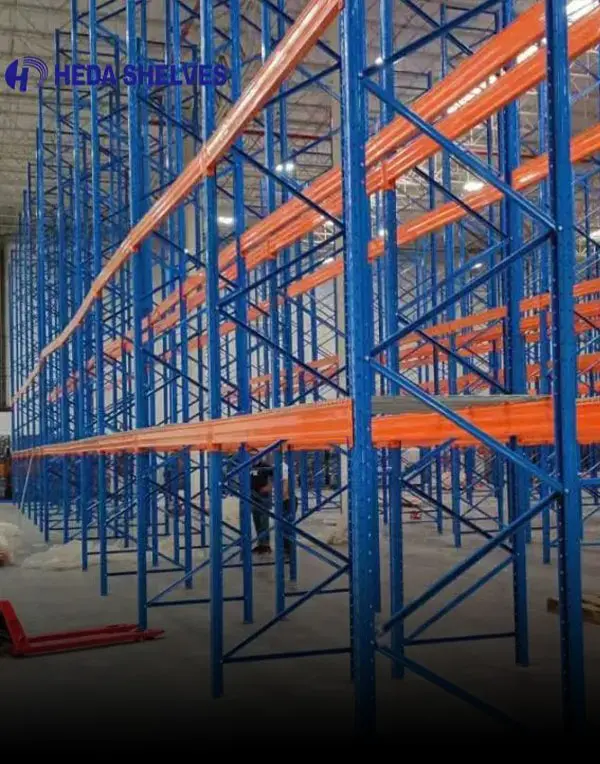

1500kg Capacity Selective Pallet Racking System for General Warehouse in Mexico

Manufacturing

Monterrey, Mexico Delivered Jul 2026

1,500 kg Selective Pallet Racking System

Designed for industrial component manufacturing inventory. Features roll-formed teardrop and omega column uprights, adjustable 75mm beam pitch, and rigid seismic baseplates anchored into reinforced slab foundations.

Payload1,500 kg / level

Aisle Width3,100 mm (Counterbalance)

SurfaceSafety Orange & Blue

ComplianceRMI / FEM 10.2.02

Heavy Pallets Adjustable Levels Forklift Guides

Building Materials

Managua, Nicaragua Delivered Jul 2026

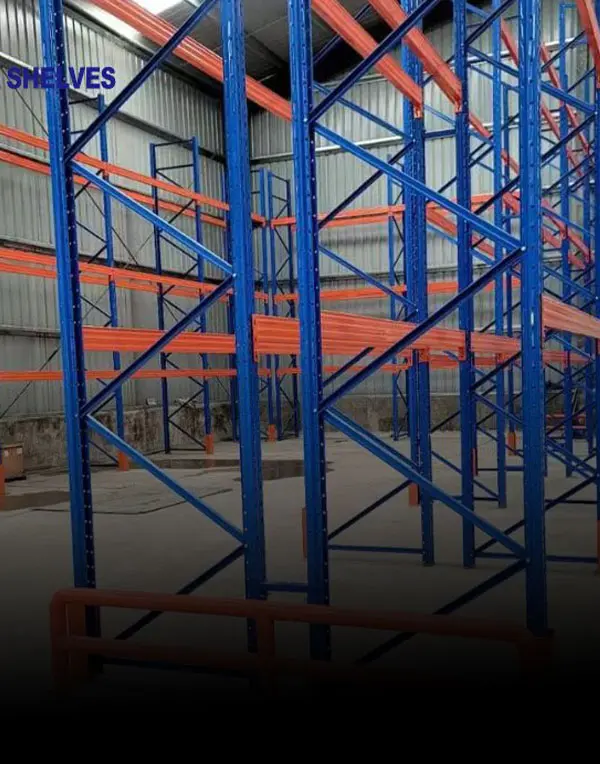

Reinforced Pallet Racking for Building Materials

Built to endure dense structural products including cement sacks, ceramic tiles, and hardware. Reinforced box beams with welded 4-claw connectors ensure minimal deflection under heavy continuous loads.

Payload1,500 kg / level

Frame Depth1,100 mm Standard

Connector4-Hook Locking Claw

DeckingSteel Hat Channels

Heavy Deflection Check Tough Wear Finish Batch QC Inspected

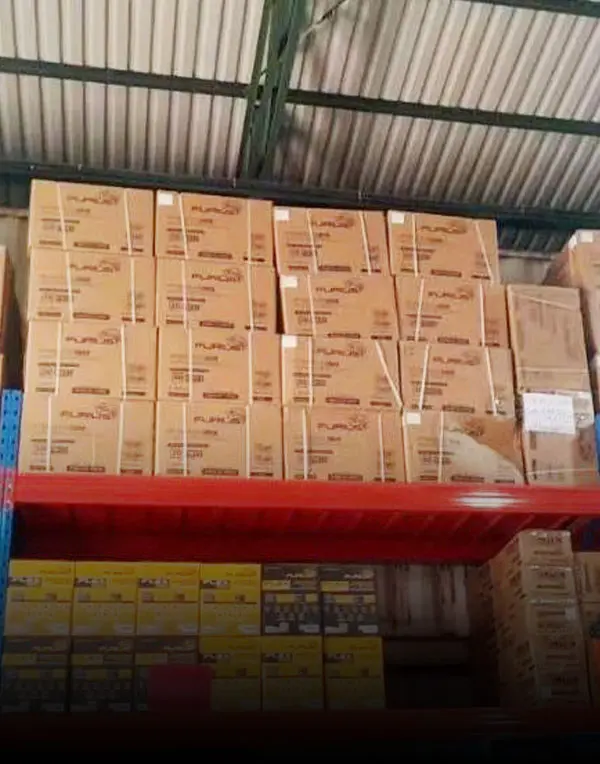

1000kg Capacity Selective Pallet Racking System in Nicaragua

Commercial Wholesale

Nicaragua Retail Supply Delivered Jul 2026

1,000 kg Standard Pallet Racking Installation

Designed for rapid SKU reorganization in a high-density consumer goods depot. Modular frame heights, clear bay labeling, safety back stops, and pre-drilled holes for rapid future expansion without hot-work welding.

Payload1,000 kg / level

System Length120 Linear Meters

AssemblyBoltless Hook-In

SafetyFrame End Barriers

Rapid Assembly Modular Expansion Full Traceability

Factory Inspection & Delivery Evidence

Quality Control & Client Installation Reviews

Take a visual tour through actual quality assurance milestones, factory pre-assembly testing, and on-site client verification performed by Guangzhou Heda Shelves Co., Ltd.

Warehouse pallet racking trial installation

Upright Column Alignment Trial

Beam Connector Deflection Check

Baseplate Anchor Hole Positioning

Full Row Pre-Dispatch Inspection

Trial Assembly & Dimensional Verification

Before any container departs our Guangzhou facility, randomly sampled frames, beams, and diagonal braces undergo full physical mockup. This guarantees hole-pitch accuracy, connector engagement tolerance under 0.5mm, and zero installation delays for local South American teams.

Strict laser caliper tolerance testing across 55-point criteria

Verification of safety locking pin retention forces

Comprehensive load distribution verification on sample spans

Robotic Seam Welding Quality

Beam End-Claw Welded Joint

Baseplate Full Penetration Weld

Batch Stress Analysis Documentation

Robotic Precision Welding

Our workshop employs automated multi-axis welding robots ensuring uniform penetration and void-free seams on all beam connectors and baseplates. Every weld withstands rigorous dynamic cyclic stress tests, conforming with international structural standards.

Shielded gas continuous robotic fillet welding

Ultrasonic spot testing for zero metallurgical fissures

Enhanced gusset plates on extreme heavy-duty bays

Multi-Stage Phosphating Wash

Coating Film Thickness Gauge

High Gloss & Scratch Resistance

Finished racking beams ready for packing

Export Sea Freight Packaging

Anti-Corrosion Surface Finish

To resist humid maritime transit and tropical South American warehouse conditions (such as Brazil, Ecuador, and Colombia), all components undergo pickling, phosphating, and 60–80 micron electrostatic powder coating cured at 180°C.

500-hour salt spray corrosion resistance

Non-toxic RoHS-compliant epoxy polyester powder

Color customization matching your corporate identity

125% Overload Proof Testing

Deflection Limit Check (<L/200)

Upright Buckling Resistance Check

Structural Lab Certificate Issued

Physical Load & Safety Factors

Every beam section and upright size is engineered with safety factors exceeding 1.5 according to European FEM 10.2.02 and American RMI MH16.1 specifications. Proof testing validates zero permanent plastic deformation after sustained maximum capacity loading.

Verified vertical deflection within L/200 safety threshold

Upright stub compression test reports provided

Safety factor ≥ 1.5 for static and live warehouse loads

Client Acceptance Walkthrough

Aisle Turn Clearance Verification

Chemical Floor Anchor Torquing

Operational warehouse racking installation

Final Handover to Logistics Team

Turnkey Commissioning & Handover

Our commitment extends until your operations are smoothly running. Every batch is shipped with color-coded part numbers, detailed CAD erection blueprints, bolt torque specifications, and remote engineer video guidance to expedite local mechanical installation.

Part-by-part labeled bundles matching CAD schematics

Remote live engineering guidance for local installers

10-year warranty on prime structural steel components

Pallet Racking Projects
