Industrial Warehouse Racking & Storage Systems

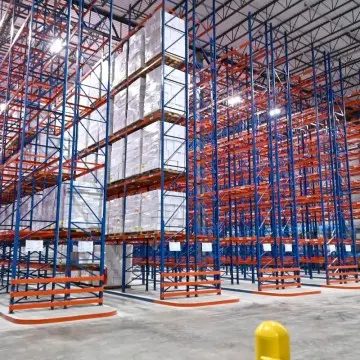

A high-density variation of selective racking manufactured to tighter deflection tolerances. Designed for dedicated guided turret trucks operating in 1.5m to 1.8m aisles up to 18m tall, increasing floor area utilization by over 40% while preserving 100% direct pallet access.

• 100% Direct Pallet Selectivity
• Vertical Storage up to 18 Meters
• Floor Space Savings ≥ 40%
• CE & ISO 9001 Certified Quality
• Compatible with Wire or Rail Guidance
• Monthly Capacity: 30,000 Tons

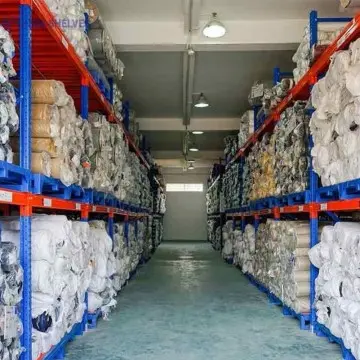

Engineered cradle and spindle supports designed for secure horizontal storage of paper rolls, carpet rolls, rubber, textile spools, and industrial cylindrical materials. Eliminates point loading on roll surfaces and prevents deformation during long-term storage.

• V-Cradle & Axle Shaft Saddles
• Heavy-Duty Welded Frame Structure
• Custom Diameters & Core Widths
• Prevents Rolling & Surface Creep
• Full Overhead Hoist / Crane Access
• Electrostatic Powder Coat Protection

The global benchmark for multi-SKU warehousing. Provides immediate accessibility to every single pallet position without moving others. Built with adjustable beam connectors, safety lock pins, and high-strength roll-formed uprights suited for fast FMCG distribution.

• 100% Unrestricted Pallet Picking
• Adjustable Levels (50mm / 75mm Pitch)
• Single or Double-Deep Options
• Up to 4,500 kg Load Per Level
• Standard Counterbalance Compatibility
• Seismic Footplates & Heavy Shims

Engineered for high-volume, low-SKU inventory profiles operating under Last-In-First-Out (LIFO) or continuous drive-through (FIFO). Eliminates operating aisles by guiding forklifts directly into structural storage lanes, maximizing cold storage efficiency.

• Up to 80% Space Utilization
• Structural Floor Guide Rails
• Heavy Continuous Cantilever Arms
• Optimized for Refrigerated Storage
• Eliminates Honeycombing Loss
• Full Column Base Guarding Included

Self-propelled gravity roller beds inclined at 3–4% to transport pallets automatically from loading face to discharge face. Delivers absolute First-In-First-Out (FIFO) stock sequencing with centrifugal brake rollers to guarantee controlled descend velocities.

• Strict FIFO Inventory Circulation
• Split Loading & Picking Aisles
• Integrated Speed Brake Rollers
• Automatic Pallet Separator Units
• Zero Energy Consumption Transport
• Ideal for Food, Beverage & Pharma

A semi-automated high-density solution combining custom racking channels with intelligent battery-powered shuttle carriers. Forklifts deposit pallets at lane entries; shuttles independently index loads into lane depths up to 50m without trucks driving into bays.

• Semi-Autonomous Material Transfer
• Configurable for Both FIFO & LIFO
• Eliminates Racking Impact Damage
• Fast Lithium-Ion Power Modules
• Remote Control / Tablet Operation
• Rated for Down to -28°C Cold Storage

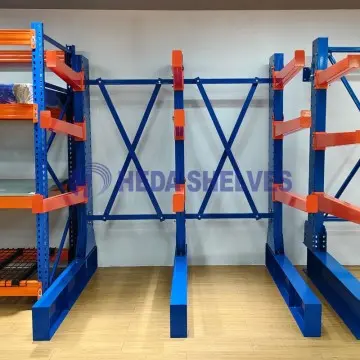

Designed specifically to handle long, bulky, and irregular materials without restrictive front upright columns. Ideal for pipes, structural tubing, bar stock, lumber packs, sheet metals, and construction extrusions with capacities reaching 3,000 kg per load arm.

• Up to 3,000 kg Load Capacity Per Arm
• Single-Sided & Double-Sided Columns
• Unobstructed Horizontal Loading Span
• Bolt-on Adjustable Arm Pitch
• Heavy-Duty Welded Base Frame
• Hot-Dip Galvanized Outdoor Finish

Combines high-density storage with enhanced SKU selectivity by nesting low-profile carts on inclined rails 2 to 6 pallets deep. When loading, the forklift pushes earlier pallets back; during picking, gravity glides the next pallet forward to the picking aisle.

• 2 to 6 Pallets Deep Per Level
• Independent Aisle Load & Pick Access
• High-Visibility Nesting Cart Design
• Requires No Special Forklift Masts
• Eliminates Truck Bay Entry Risks
• Ideal for Staged Consolidation
