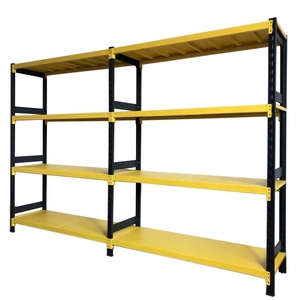

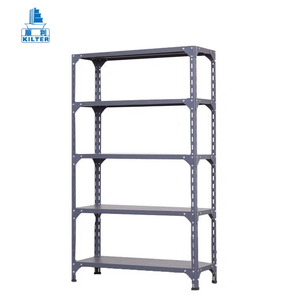

Featured Industrial Pallet Racking & Storage Architectures
Precision roll-formed components manufactured from high-yield Q235B and Q355B structural steel, tailored for cold chains, high-bay automated hubs, and intensive manual picking platforms.
Strategic Engineering Realities of Sourcing Pallet Racks from China
How supply-chain integration, steel metallurgy mastery, and automated cold-roll forming enable Tier-1 Chinese manufacturers to slash total cost of ownership (TCO) without structural compromise.
The Paradigm Shift in Global Intralogistics Sourcing
Modern global logistics hubs, cold chain distribution networks, and industrial manufacturing plants face intense pressures: surging industrial real estate rents, tight construction timelines, and heightened safety compliance mandates (including EN 15512, RMI MH16.1, and AS 4084-2023). For chief procurement officers (CPOs), supply chain directors, and warehouse architects, evaluating China best pallet shelf rack manufacturers & factories transcends mere initial FOB quote comparison. It requires an exhaustive, technical analysis of metallurgical integrity, seismic-zone engineering adaptability, container loading density factors, and long-term surface passivation.
As the international supply ecosystem matures, leading manufacturers like Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) have transformed from regional fabrication shops into comprehensive intralogistics engineering providers. By coupling certified steel supplies (hot-rolled Q235B and cold-formed high-strength Q355B coils) with automated continuous CNC roll-forming lines, automated electrostatic coating lines, and integrated 3D finite element structural analysis (FEA), HEDA delivers heavy-duty pallet systems that rival European and North American rack brands at a 30% to 45% structural capital cost advantage.
Pallet Storage Architecture Engineering Selection Guide
Compare technical load distributions, volumetric space efficiencies, handling speeds, and budgetary metrics across major industrial racking configurations.
| Racking Configuration | Space Utilization | SKU Selectivity | Max Height | Payload Range / Level | Forklift Compatibility | Primary Application Profile |
|---|---|---|---|---|---|---|

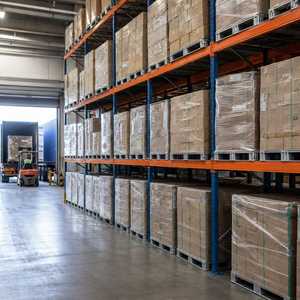

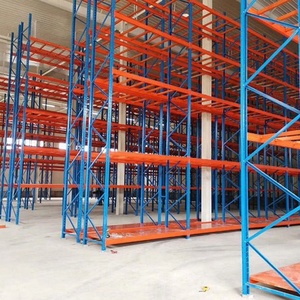

| Selective Pallet Racking | 40% – 50% | 100% Direct Access | Up to 12m | 1,000 – 4,500 kg | Standard Counterbalance / Reach | Fast-moving FMCG, 3PLs, High-SKU Hubs |

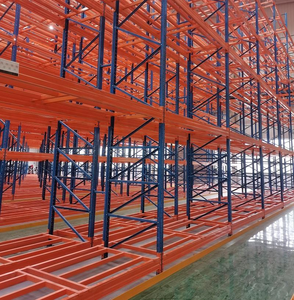

| Very Narrow Aisle (VNA) | 65% – 75% | 100% Direct Access | Up to 18m | 1,000 – 3,500 kg | Man-up / Man-down VNA Turret | High-density logistics, e-commerce centers |
| Drive-In / Drive-Through | 70% – 85% | Low (LIFO / FIFO) | Up to 11m | 1,000 – 2,000 kg | Counterbalance / Reach (Restricted) | Cold storage, beverage bulk, seasonal batch |
| Radio Shuttle System | 80% – 90% | Batch Selective (LIFO/FIFO) | Up to 24m | 500 – 2,000 kg | Standard Forklift + Automated Shuttle | Meat/seafood cold chain, agrochemicals |
| Push-Back Rack (Carts) | 60% – 70% | Moderate (2–6 Deep LIFO) | Up to 9m | 1,000 – 1,500 kg | Standard Reach Truck | Medium batch rotation, buffer staging |
| Rack-Supported Mezzanine | 150% – 250% | High (Multi-tier access) | Up to 15m | 300 – 1,000 kg/m² | Manual, Conveyors, Goods Lifts | Auto parts, fashion fulfillment, manual pick |
| Heavy-Duty Cantilever | Variable (Linear) | 100% Longitudinal | Up to 10m | 500 – 3,000 kg/arm | Side-loader / Standard Multi-directional | Steel pipes, timber packs, aluminum coils |
Metallurgy, Pre-treatment, and Fabrication Rigor
Structural pallet racking failure is not an option. HEDA Shelves runs a fully audited, ten-stage in-house production lifecycle certified under CE (Certificate No. 2435-CPR-8605159) and ISO 9001:2015.
Certified Q235B / Q355B coils with mill test certificates (MTC).
Automated strip leveling and precision edge uncoiling slitters.
High-speed progressive presses punch teardrop/hex holes with ±0.1mm tolerance.
Multi-pass continuous cold-forming rolls form multi-ribbed upright profiles.
Interlocking box beams are rolled and seam-welded to prevent twisting.
Centrifugal descaling removes rust and mill scale to Sa 2.5 standard.
Automated robotic arms attach beam end-connectors with argon-shielded MIG.
Immersion acid pickling, ultrasonic degreasing, and dense zinc phosphating.
Electrostatic spray with curing at 180°C–200°C gives 60–90µm DFT thickness.
Deflection testing, dimensional audits, steel bundling, and container dunnage.
Pallet Racking Procurement Trends: Preparing for the Next Decade
How forward-looking warehouse operators and procurement teams are specifying systems to survive automation retrofits, climate shifts, and carbon accounting.
1. Automation-Ready Engineering
Procuring static pallet racks without automated interface capabilities risks early obsolescence. Facilities are increasingly specifying tighter tolerance manufacturing (Class 100/200 deflection criteria) that allows plug-and-play retrofitting with Autonomous Mobile Robots (AMRs), automated pallet shuttles, and overhead crane pickers without structural replacement.
2. Dynamic Seismic Load Engineering
Global logistics hubs along the Pacific Rim, the Andes, and Mediterranean fracture zones now reject generic load tables. Engineering specs mandate site-specific non-linear response spectrum analysis adhering to Chile NCh 2369, Peru E.030, US RMI MH16.1, and Eurocode 8. Upgraded heavy base-plates, oversized chemical anchors, and portal frame bracing are becoming standard baselines.
3. Cold-Chain Condensation Passivation
With pharmaceutical cold storage and temperature-controlled food logistics expanding rapidly, standard surface paints fail under condensation cycles. Buyers are prioritizing duplex coating strategies: continuous hot-dip galvanizing (HDG) for subterranean base plates and high-durability epoxy-polyester powder coats formulated for zero embrittlement down to -30°C.
4. Carbon Footprint Auditing
Multinational warehouse developers are imposing Scope 3 emissions reporting on structural steel. Chinese manufacturers with EAF (Electric Arc Furnace) sourcing routes, zero-VOC powder formulations, and optimal nesting software that guarantees 95%+ maritime container utilization provide clear landed-cost and ESG advantages during corporate tenders.
5. Hybrid Mezzanine-Racking Integration
Rather than erecting standalone structural buildings, operators are turning to high-bay rack-supported mezzanines. By utilizing the racking frames as primary structural columns to support multiple deck levels, warehouses gain up to 250% more floor space for packing and e-commerce picking while shaving 40% off civil construction times.
6. Digital Twin Layout Verification
The standard procurement process now moves beyond static 2D DWG files. Modern engineering validation relies on full 3D BIM integration and parametric digital twins. Every clear ceiling clearance, sprinkler head, forklift turning radius, and column encasement is verified before the first roll-forming die touches the steel coil.
Why Global Supply Chains Partner with Guangzhou Heda Shelves
A proven, 25-year track record supplying industrial distributors, third-party logistics operators, and global brands across 120+ countries.
Engineering Depth Since 2001
Over two decades dedicated to pallet racking innovation, warehouse optimization, and structural steel manufacturing, serving thousands of global installations.
Scalable Factory Output
With our 30,000 m² Guangzhou production facility and 300+ trained specialists, we comfortably fulfill rapid 2-to-4 week turnaround times on standard heavy-duty volume orders.
Documented Compliance
Full regulatory documentation: CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 registration No. 18624Q00169R0M, and comprehensive third-party mill test traceability.
Full Layout Engineering
Our dedicated engineering team turns around 3D parametric renderings, structural load calculations, and AutoCAD floor plans within 24 hours at zero upfront cost.
Industrial Pallet Racking Procurement FAQ
Direct, rigorous answers to the critical engineering, regulatory, metallurgical, and logistics questions asked by structural consultants and international procurement directors.
What is the structural difference between Q235B and Q355B steel in pallet rack manufacturing? +
The distinction lies primarily in yield strength ($f_y$), tensile strength, and cold-forming behavior. Q235B offers a guaranteed yield strength of $\ge 235 \text{ MPa}$ and elongation of $\ge 26\%$, making it the global standard for selective pallet rack uprights, beams, and bracing under standard operating temperatures. Q355B (comparable to European S355 or ASTM A572 Grade 50) delivers a significantly higher yield strength of $\ge 355 \text{ MPa}$.
By engineering with Q355B, HEDA Shelves can reduce component wall thickness while increasing ultimate load capacities, which decreases overall steel deadweight by 12% to 18%. This produces measurable freight savings on 40ft HQ export containers. Furthermore, "B" grade steel specifies guaranteed Charpy V-notch impact energy at +20°C, ensuring structural resistance to brittle fracture during seismic acceleration or accidental forklift impacts.
How does HEDA calculate pallet rack safety factors under international codes (FEM, RMI, AS4084)? +
Our engineering division designs according to the destination market's mandatory structural standard:
- Europe (FEM 10.2.02 / EN 15512): Employs Limit State Design (LSD) incorporating partial safety factors ($\gamma_M$) for material resistance, permanent deadweight ($\gamma_G = 1.35$), and variable pallet actions ($\gamma_Q = 1.4$). Beam deflection limits are held strictly to $L/200$ for standard operations or $L/300$ for automated environments.
- North America (ANSI/RMI MH16.1): Follows Load and Resistance Factor Design (LRFD) or Allowable Stress Design (ASD) methodologies, calculating allowable bending stress and effective column lengths ($KL/r$) with a safety margin generally between 1.67 and 1.92 on critical yield limits.
- Australia (AS 4084-2023): Imposes strict shear testing protocols on beam-to-column connector lock tabs and torsional stiffness criteria.
Full third-party engineering calculations and PE stamps can be coordinated for local municipal permitting.
What surface finish parameters are implemented to prevent corrosion in humid coastal or cold storage sites? +
Surface longevity is determined by pre-treatment chemistry, not merely paint thickness. HEDA Shelves runs an automated 7-stage pre-treatment immersion line: alkaline degreasing, twin water cascades, hydrochloric acid pickling (complete mill scale removal), surface activation, zinc-manganese phosphating, and deionized water rinsing.
Following drying, components undergo electrostatic application of thermosetting polyester or epoxy-polyester hybrid powder, baked in an automated curing oven at 180°C–200°C. Total dry film thickness (DFT) is maintained at 60 to 90 microns. Finished coatings routinely surpass 500 hours of continuous neutral salt spray testing (ASTM B117) without blistering, as well as Class 5B cross-hatch adhesion tests (ASTM D3359). For extreme sub-zero condensation or outdoor storage, continuous hot-dip galvanizing to ISO 1461 (yielding 55–85 μm of protective zinc metallurgically bonded to the steel) is standard practice.
How are export container packing and freight load factors optimized to lower landed costs? +
Ocean freight represents a substantial portion of imported racking procurement budgets. Unoptimized loading results in freighting empty air. HEDA Shelves employs specialized 3D packing software to simulate and execute container stuffing plans prior to production:
- Upright Frames: Shipped either pre-assembled or knocked-down (KD). Knocked-down uprights allow horizontal nesting of posts and bolted bracing, increasing container utilization from 14 tons up to 25–27 metric tons per 40ft High Cube container (matching maximum highway weight regulations).
- Step & Box Beams: Stacked with interlocking timber dunnage, banded with heavy-gauge PET straps, and wrapped in waterproof polyethylene sheeting to prevent metal-on-metal transit abrasion.
- Small Hardware: High-tensile bolts, safety locking pins, and seismic anchor plates are packed in labeled corrugated export cartons stacked on reinforced wooden pallets for quick dock unloading via standard forklifts.
Can HEDA Shelves customize upright punching pitches to match existing racking systems (OEM/ODM)? +
Yes. As an OEM and ODM specialist, HEDA Shelves engineers and manufactures custom hole patterns to match legacy racking installations worldwide. Our CNC high-speed progressive punching lines accommodate:
- Standard 50mm and 75mm European pitch (diamond and teardrop patterns).
- North American 2-inch (50.8mm) industrial teardrop patterns compatible with major US brands.
- Australian 76.2mm (3-inch) pitch heavy-duty hook configurations.
We can stamp client brand logos, custom part numbers, and rated load warnings directly into upright faces and beam connector plates during roll-forming.
What data is required from our engineering team to generate a free layout and structural proposal? +
To deliver an optimized, free 3D CAD layout, load capacity calculation, and formal quotation within 24 hours, our engineering department needs:
- Warehouse Architectural DWG or PDF: Building dimensions, clear ceiling height under trusses or sprinkler pipes, column grid spacing, floor slab thickness, floor flatness rating (e.g., DIN 18202 or ASTM E1155), and egress doorway positions.
- Pallet & Unit Load Specifications: Total pallet dimensions ($W \times D \times H$ including cargo overhang), maximum gross weight per pallet position, and pallet entry orientation.
- Material Handling Equipment (MHE): Forklift make, model, mast collapsed height, maximum lift height, and minimum required right-angle stacking aisle width (AST).
- Environmental Parameters: Operating temperatures (ambient vs. refrigerated), site location city, and seismic zone rating if available.
Accelerate Your Warehouse Project with Certified Engineering
Eliminate intermediary trading margins. Connect directly with Guangzhou Heda Shelves' senior structural engineers to receive customized 3D layout designs, seismic calculations, and competitive factory-direct pricing within 24 hours.
