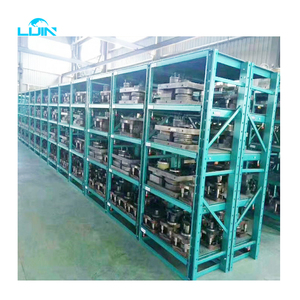

Multi-Functional Heavy Duty Mould Storage Rack
Selective Pallet Rack 1000-4500kg Load Capacity

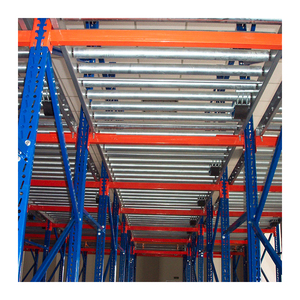

High-Density FIFO Gravity Pallet Flow Rack
Industrial Heavy-Duty Adjustable Beam Pallet Rack

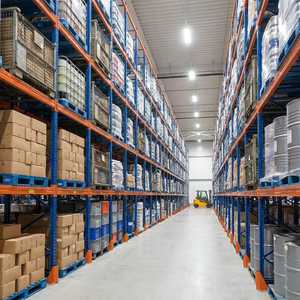

Warehouse Steel Selective Pallet Storage Rack

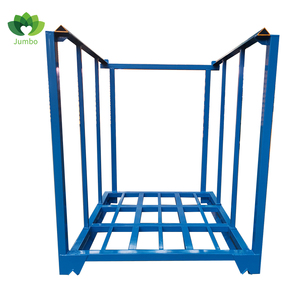

Multi-Level Corrosion-Proof Industrial Steel Shelving
Guangzhou HEDA Shelves Co., Ltd.
Founded in 2001, HEDA Shelves operates a state-of-the-art 30,000 m² heavy-industrial manufacturing base. We integrate automated continuous cold-roll forming, robotic laser cutting, multi-station automatic punching, and closed-loop electrostatic powder coating to engineer high-load storage racking with micron-level structural accuracy.
Structural Metallurgy, Beam Deflection & Omega Column Profiles
Industrial pallet racks are critical structural assets subjected to static dead loads, dynamic live pallet loads, and lateral impact forces from material handling equipment (MHE). As China's premier manufacturer and exporter, HEDA Shelves implements certified prime structural steels with complete Mill Test Certificates (MTR) according to GB/T 700 and EN 10025.
- Q235B vs. Q355B Hot-Rolled Coils: We select optimal yield strengths (σs ≥ 235 MPa to 355 MPa) to optimize weight-to-load ratios and resist column torsional buckling.
- Cold-Rolled Omega Column Sections: Featuring up to 13 continuous bending radii per profile, maximizing the cross-sectional moment of inertia (Ix, Iy).
- Calculated Deflection Limits: All load-bearing horizontal beams are engineered to remain within a maximum vertical deflection limit of L/200 (or L/300 for sensitive automated systems) under total nominal design capacity.
| Mechanical Parameter | Standard Q235B Steel | Heavy-Duty Q355B High-Tensile |
|---|---|---|
| Yield Strength (ReH) | ≥ 235 N/mm² | ≥ 355 N/mm² |
| Tensile Strength (Rm) | 370 - 500 N/mm² | 470 - 630 N/mm² |
| Elongation at Fracture (A) | ≥ 26% | ≥ 21% |
| Charpy V-Notch Impact (20°C) | ≥ 27 Joules | ≥ 34 Joules |
| Recommended Application | Standard Warehousing / Selective | High-Bay AS/RS & Seismic Zones |
The 10-Step Precision Fabrication & Finishing Process
To maintain strict dimensional tolerances across million-pound rack export consignments, every component traverses our fully integrated in-house manufacturing ecosystem.
Global Procurement & Technological Trends in Steel Pallet Racking
Logistics managers face escalating urban land costs, higher labor expenses, and tighter sustainability mandates. Modern steel pallet rack manufacturing is evolving to address these structural shifts.
1. Hybrid Automation & ASRS Adaptability
Traditional static selective racks are rapidly converting into semi-automated 4-way radio shuttle lanes and Autonomous Mobile Robot (AMR) high-bay storage. Racking tolerances must contract from millimeters to sub-millimeter precision to ensure flawless robotic pallet handling.
2. High-Yield Metallurgy & Deadweight Reduction
Global supply chain leaders prioritize lighter, high-yield steel chemistry (such as Q355B and micro-alloyed cold-rolled coils). This cuts steel weight by 12% to 18% without diminishing frame buckling thresholds, directly lowering international ocean freight per pallet location.
3. Seismic Engineering & Extreme Zone Codes
In seismic belts (e.g., the Pacific Rim, Chile, Peru, Colombia, Japan, and Western USA), warehouse owners demand FEA-backed seismic structural calculations. Baseplates, anchor bolts, and frame horizontal/diagonal bracings are engineered to absorb dynamic kinetic shock without progressive collapse.
4. Zero-VOC Finishing & Cold-Chain Metallurgy
Procurement teams require non-toxic, RoHS-compliant thermoset powder coatings that emit zero volatile organic compounds during application and curing. In -30°C cold-chain blast freezers, customized steel chemistries eliminate the risk of ductile-to-brittle failure under repeated heavy forklift operations.
Industrial Steel Pallet Racking Procurement FAQ
Critical technical, engineering, and logistics considerations addressable before issuing an international purchase order.
Every structural design utilizes Finite Element Analysis (FEA) corroborated by physical destructive and non-destructive load tests in accordance with EN 15512 and ANSI MH16.1. We supply stamped engineering calculations proving that safety factors exceed 1.5 to 1.67 times the rated working load limit (WLL).
An Omega section features up to 13 distinct cold-bent returns and ribbed flanges. This geometric configuration shifts the shear center and drastically elevates the cross-sectional torsional and flexural buckling resistance, allowing tall high-bay racks (up to 12-15 meters) to remain stable without excessive raw material mass.
Our containerization engineers create specialized 3D packing layouts for 40ft High-Cube (HC) containers. Upright frames are stacked with non-abrasive closed-cell polyethylene separators, while beams are banded in structural steel stillages. Heavy parts rest on corrugated dunnage to eliminate transit vibration abrasion, container moisture rust, and physical deformation.
Yes. We engineer racking systems to align with regional seismic acceleration spectra (such as NCh 433 / NCh 2369 in Chile, NSR-10 in Colombia, E.030 in Peru, Eurocode 8 in Europe, and ASCE 7 in the Americas). Our engineering department upgrades baseplate thickness, anchor bolt diameters, and horizontal-to-diagonal bracing cross-sections to match your geotechnical site class.
For standard climate-controlled facilities, our multi-stage acid pickling, zinc phosphating, and electrostatic epoxy-polyester powder coating (70-90μm) provides over 500 hours of salt spray resistance (ASTM B117). For sub-zero freezers with continuous condensation, we provide hot-dip galvanized components (ISO 1461) delivering permanent electrochemical zinc protection.
Our structural engineering team requires: (1) Warehouse architectural CAD drawing showing clear ceiling heights, column grids, and doors; (2) Pallet dimensions (W × D × H including overhang); (3) Gross weight per pallet; (4) Forklift model, turning radius, and maximum reach height; and (5) Inventory turnover model (FIFO or LIFO).
Design Your High-Efficiency Warehouse Storage Architecture
Eliminate intermediaries and import high-precision, structural-grade steel pallet racking directly from Guangzhou HEDA Shelves Co., Ltd. Get complimentary 3D CAD modeling, seismic structural calculations, and factory-direct price estimates within 24 hours.
