Engineered Roller Racks for High-Throughput Intralogistics
As China's leading industrial roller rack factory and global exporter, Guangzhou HEDA Shelves Co., Ltd. produces precision gravity-fed storage racking systems. Designed specifically for dynamic warehousing, first-in-first-out (FIFO) inventory control, lean assembly lines, and high-density distribution centers, our certified roller racks reduce picking travel times by up to 65% and eliminate aisle waste.
TER Professional Textile Industry Fabric Roll Rack Customized Heavy Duty Stackable Foldable Storage Solution
Stackable, modular structural cradle system engineered for high-density textile rolls, composite coils, and cylindrical materials with zero creasing.
Industrial Storage Shelves Roller Track Large Load Capacity Rolling Rails Aluminium Fluent Strip Flow Rack
High-rigidity extruded aluminum tracks with engineering polymer low-friction rollers for rapid line-side assembly and kanban picking systems.
Hot Sale Gravity Flow Roller Racking Systems Customized Heavy Duty Carton Flow Racks
Adjustable incline slope bed roller system designed for split-case picking, retail replenishment, and automatic gravity-assisted box feeding.
Wholesale Selective Warehouse Storage Gravity Carton Flow Racking Roller Rack/shelves System
Heavy-gauge upright columns coupled with modular multi-tier roller beds, providing ergonomic access and automated separation of loading and picking.

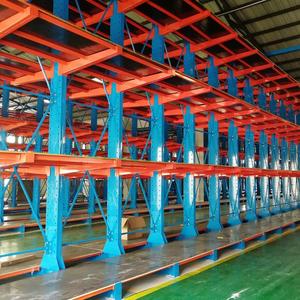

High Quality Cantilever Racking Warehouse Racking Cantilever Rack
Engineered uninhibited horizontal storage arms holding up to 3,000 kg per level, designed for non-standard pipe, bar stock, timber, and cylindrical profiles.
New Condition Nylon Sliding Roller Shelf Langle Carton Flow Rack System for Warehouse Storage Slide Warehouse Rack
High-impact wear-resistant nylon rollers fitted onto slotted angle frames, delivering quiet, maintenance-free sliding tracks for consumer goods fulfillment.
DJ Heavy Duty Pallet Racking Storage System Steel Warehouse Gravity Push Back Roller Sliding Rack with Corrosion Protection
Deep-lane push-back roller rail configuration featuring anti-corrosion finishes, heavy dynamic brake rollers, and safety backstops for palletized SKU consolidation.
Direct Factory Metal Free Layout Design High-Density Drive-In Pallet Storage Rack for Warehouse Steel Narrow Lane Rack High Iron
Continuous block lane storage that maximizes warehouse cube space by up to 85%, custom manufactured from Q235B cold-rolled structural steel.
Engineering Excellence in Gravity Roller Rack Manufacturing: An Technical White Paper
Roller rack systems—incorporating carton flow beds, live pallet gravity lanes, and push-back roller tracks—represent the pinnacle of passive dynamic intralogistics. Unlike motorized conveyors, gravity roller racks harness kinetic gravitational forces across a calibrated slope (typically between 2.5% to 4.5% grade) to advance loaded items automatically from the replenishment side to the order picking front. This architecture completely decouples stocking traffic from retrieval pathways, mitigating forklift accidents and providing uninterrupted inventory streams.
Core Structural Integrity: At Guangzhou Heda Shelves, every roller track assembly utilizes continuous cold-formed Q235B structural steel profiles, high-precision stainless steel bearings, and impact-resistant polyurethane or virgin nylon wheel clusters engineered for over 1.2 million rotational cycles under rated loads.
When selecting a roller rack manufacturer and exporter in China, enterprise procurement teams must evaluate structural dynamics beyond mere steel gauge. Load acceleration dynamics require custom-matched mechanical speed controllers (brake rollers) placed at calculated pitch intervals. These braking mechanisms regulate the descent terminal velocity of heavy pallets (up to 1,500 kg per pallet), preventing terminal impacts that cause frame fatigue, pallet splintering, or payload destabilization. Furthermore, entry ramp guides and integrated load-separator splitters ensure the front pallet is isolated from dynamic back-pressure, allowing forklifts or pickers to extract units smoothly and safely.
Technical Specification Matrix: Carton Flow vs. Heavy-Duty Pallet Roller Racking
| Engineering Parameter | Carton Flow Roller Rack | Pallet Gravity Flow Roller Rack | Push-Back Roller System |
|---|---|---|---|
| Load Handling Capacity | 20 kg – 150 kg per lane / box | 500 kg – 1,800 kg per pallet | 500 kg – 1,500 kg per pallet |
| Roller Track Profiles | Extruded Aluminum / Galvanized Steel | Heavy Hex-Axle Welded Carbon Steel | Multi-Cart Low Profile Rolling Tracks |
| Standard Lane Incline | 3.0% – 5.5% Gradient Slope | 2.5% – 3.5% Continuous Gradient | 2.0% – 3.0% Gentle Reverse Slope |
| Inventory Rotation Logic | FIFO (First-In, First-Out) | Strict FIFO Rotation Guaranteed | LIFO (Last-In, First-Out) |
| Speed & Safety Controls | Mechanical End Stops & Lane Dividers | Centrifugal Brake Rollers & Separators | Rubber Buffer Stops & Nested Wheel Carts |
| Surface Protection Finish | Pickling, Phosphating + Electrostatic Powder | Epoxy Powder / Hot-Dip Galvanizing | Heavy Electrostatic Thermal Resin |
Product Evolution & Future Sourcing Trends in Dynamic Racking
Global supply chains are transitioning towards automated fulfillment, climate-resilient installations, and hybrid human-robot collaborative logistics. Explore the critical engineering paradigms transforming roller rack procurement worldwide.
1. Integration with Autonomous Mobile Robots (AMR)
Future roller rack procurement is rapidly moving away from purely manual picking. Modern carton flow and pallet flow beds now incorporate sensor-ready photoelectric brackets and pneumatic lane escapements that interface directly with autonomous sorting shuttles and AMRs, providing automated replenishment without human forklift intervention.
2. Eco-Friendly Polyurethane & Low-Decibel Rollers
Operational health and ESG compliance mandate quieter, energy-conserving warehouses. Next-generation roller tracks utilize reinforced self-lubricating nylon resins and high-grade polyurethane running wheels, bringing running acoustics below 55 dBA while dramatically eliminating rolling friction and plastic particulate shredding.
3. Modular Cold-Chain & High-Humidity Resilience
With massive growth in perishable distribution, cryogenic grocery fulfillment, and tropical coastal warehousing, cold-resistant roller tracks featuring hot-dip galvanized rails, sealed low-temp bearings (-35°C rated), and self-draining aluminum frames have become the new industry procurement baseline.
Direct Manufacturing Advantages of HEDA Shelves
Leveraging 25 years of structural fabrication heritage, a 30,000 m² state-of-the-art facility, and complete in-house robotic lines, we engineer turnkey storage solutions tailored to global seismic codes and severe operating environments.
25+ Years Racking Expertise
Founded in 2001, our team of over 300 technical engineers possesses deep domain knowledge in calculating load paths, pallet dynamics, and structural deflection for demanding distribution centers.
Free 3D Layout & Engineering
We deliver comprehensive 3D layout renderings, structural CAD schematics, and finite element stress analyses within 24 hours at zero cost, ensuring precise clearance for forklifts and workflows.
Certified Production & QC
Our operations are ISO 9001:2015 and CE certified (Cert No. 2435-CPR-8605159). We maintain a 10-step quality control regimen from raw cold-rolled steel profiling to automatic powder coating.
Complete Custom OEM/ODM
From custom roller pitches, column heights, and specialized braking accessories to project-specific color schemes, our production lines fabricate bespoke systems directly aligned with your specifications.
Frequently Asked Questions for Roller Rack Sourcing
Key structural, logistical, and technical questions answered by our engineering and export team.
