Featured Wholesale Pallet Racking Systems & Configurations
Explore our precision-fabricated heavy-duty warehouse storage catalog. Every double-deep and selective system is rolled from premium Q235B/Q355B structural coil steel, tested under rigorous FEM 10.2.02 and EN 15512 static load calculations.
The Mechanics of Double Deep Pallet Racking: Engineering Balance Between Density & Accessibility
Double Deep Pallet Racking systems occupy a critical performance envelope within modern intralogistics. By placing two pallet loads back-to-back along every aisle face, the system eliminates 50% of the access aisles required by traditional selective pallet racking, increasing overall warehouse volumetric storage density by up to 30% to 40%.
Volumetric Density vs. Selectivity Ratio
Unlike conventional 100% selective systems that require an operational aisle for every single pallet bay, double deep racking deploys two pallet depths per bay face (a 4-pallet depth per back-to-back run). This configuration yields an immediate 50% pallet selectivity ratio under a Last-In, First-Out (LIFO) inventory operational rhythm per channel.
- Floor Space Utilization: 60% – 65% of net slab
- Direct Accessibility: 50% immediate pick face
- SKU Profile Suitability: 2 to 4 pallets per SKU threshold
Material Metallurgy & Structural Yield
Our upright frames and step/box load beams are roll-formed exclusively from certified high-tensile hot-rolled pickled and oiled (HRPO) coil steel (GB Q235B and Q355B, equivalent to EN 10025 S235JR and S355JR; ASTM A36 / A572 Grade 50). Minimum yield strength benchmarks guarantee structural compliance under peak seismic and live-load deflection thresholds.
- Upright Profile Tensile: ≥ 355 N/mm² (Q355B Grade)
- Beam Maximum Deflection: Strict L/200 engineering limit
- Safety Factor Ratio: 1.5 to 1.67 over elastic limit
Pantograph Reach & Material Handling
Double deep infrastructure mandates specialized material handling equipment (MHE). Facilities utilize specialized pantograph reach trucks (scissor mechanism extending forks) or telescopic fork attachments. Beam layouts must incorporate bottom guide rails to align MHE chassis precisely within narrow operating aisles (typically 2.8m to 3.2m clear aisle).
- Required MHE: Deep-reach truck with camera mast
- Lower Beam Configuration: Guide rails + Pallet stops
- Capacity Deration: Mast tilt allowance at >9m elevation
| Storage System Type | Floor Footprint Utilization | Pallet Selectivity | Typical MHE Requirement | Relative Cost per Pallet Position | Ideal Logistics Application |
|---|---|---|---|---|---|
| Double Deep Pallet Racking | 60% – 65% (High) | 50% (Semi-Direct, 2-deep) | Pantograph Reach Truck / Telescopic Forks | Medium-Low (Optimal ROI) | Cold Storage, FMCG, Beverage, Medium-SKU Distribution |

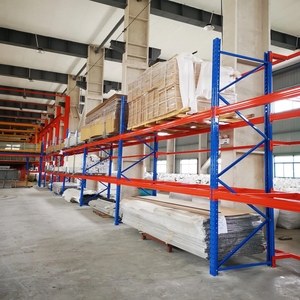

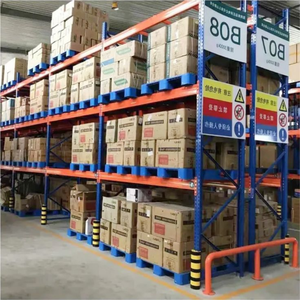

| Standard Selective Racking | 40% – 45% (Standard) | 100% (Instant Direct Access) | Standard Counterbalance / Reach Truck | Low baseline | High-SKU E-commerce, Retail fulfillment, 3PL Warehousing |
| Drive-In / Drive-Through Racking | 70% – 75% (Ultra-Dense) | <15% (Strict LIFO / FIFO per bay) | Counterbalance / Narrow Cab MHE | Medium | Seasonal produce, Homogeneous batch manufacturing, High-cube raw materials |

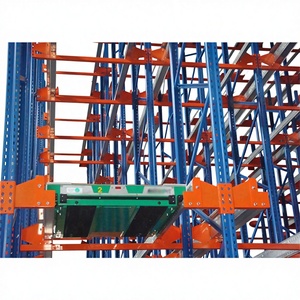

| Radio Shuttle Cart Racking | 80% – 85% (Maximum Static) | Channel-Dependent (Automated LIFO/FIFO) | Standard Forklift + Automated 48V Shuttles | High (Electromechanical) | Mega-Cold Logistics, Frozen food export facilities, Heavy pallet buffers |
Structural Load Safety Dynamics Under EN 15512 & RMI MH16.1
In double deep arrays, horizontal forces, beam torsional stress, and frame column buckling risks are significantly altered compared to single-depth selective racks. Because reach truck pantographs exert amplified dynamic impact moments when picking or placing pallets in the rear slot, Guangzhou HEDA Shelves engineers our rear horizontal support beams with widened structural flanges (80mm to 120mm flange width) and reinforced 4-claw or 5-claw high-moment beam end connectors.
Every beam-to-column node utilizes dual heavy-gauge spring safety pins with automatic locking mechanisms capable of resisting vertical dislodgement forces exceeding 5,000 N. For high-seismic zones across South America, the Pacific Rim, and the Mediterranean Basin, frame baseplates are widened to minimum dimensions of 180mm x 150mm x 10mm, anchored with chemical resin or M12/M16 grade 8.8 expansion anchors calibrated for concrete slab shear dynamics.
Why Global Importers Source Double Deep Pallet Racking from Guangzhou HEDA Shelves

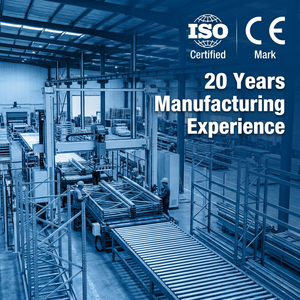

Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates a high-capacity 30,000 m² production complex equipped with continuous automated roll-forming lines, 16-station CNC punch presses, robotic welding stations, and an advanced automated continuous electrostatic powder coating line.
25+ Years Industrial Mastery
Over two decades of structural engineering execution, solving heavy slab loading and tight cubic challenges for multi-national supply chain operators.
Engineering CAD & 3D Modeling
Complimentary CAD layout blueprints, pallet load distribution calculations, and FEM structural checks provided prior to steel rolling.
CE & ISO 9001:2015 Audited
Strict third-party tested certifications (CE Certificate No. 2435-CPR-8605159; ISO 9001:2015 No. 18624Q00169R0M) ensuring complete tender compliance.
Electrostatic Polymer Coating
Automated pre-treatment phosphating and epoxy polyester powder curing at 200°C (60μm – 80μm dry film thickness) resisting industrial corrosion.
Precision 10-Stage Fabrication Protocol
Future Procurement Trends in Double Deep Racking (2025–2030)
International logistics infrastructure is shifting toward semi-automated hybridization, stricter seismic resistance, and carbon-audited steel supply chains. Buyers evaluating Chinese export manufacturers must align with these transformative trends.
Trend 1: AGV & Automated Reach Hybridization
The global shortage of qualified high-reach forklift drivers is accelerating the retrofitting of double deep systems with laser-guided automated reach trucks (Automated Guided Vehicles - AGVs) and camera-assisted optical positioning sensors. This evolution requires rack manufacturers to maintain cross-beam deflection tolerances within ultra-precise ±1.5mm thresholds across 12-meter high bays to ensure automated sensor engagement without false docking trips.
Trend 2: Cold Chain & Controlled Atmosphere Surge
With global cold-chain investment compounding at >11% annually (notably across Latin America, Southeast Asia, and the Middle East), double deep systems are replacing selective racking in refrigerated warehouses (-25°C to -30°C). Because cold-room energy costs are determined by cubic volume, double deep density cuts refrigeration power overhead per pallet position by 28% compared to single-depth selective installations.
Trend 3: Scope 3 Carbon Reporting & Steel Tracking
Tier-1 logistics corporations, European retail chains, and multinational 3PLs increasingly demand Environmental Product Declarations (EPDs) for structural warehouse steel. Guangzhou HEDA Shelves addresses this by partnering with state-owned steel mills operating low-carbon Electric Arc Furnaces (EAF) and utilizing RoHS-compliant lead-free, low-VOC electrostatic powder coatings that fulfill international ESG procurement audits.
Container Load Optimization: The Hidden Factor in Landed Procurement TCO
Purchasing wholesale warehouse racking from China involves not only ex-factory pricing per metric ton, but also landed cost efficiency. A poorly planned container packing schedule results in freight cost penalties exceeding $30 to $50 per pallet position. At HEDA Shelves, our engineering division implements 3D algorithmic container packing software tailored for 40ft High Cube (40HC) ocean shipping containers.
Upright frames are delivered pre-assembled or knocked-down (KD form) depending on local labor rates; beam packages are nested in interlocking steel-banded bundles with timber battens and corrugated protective edges; upright column profiles are packed with custom structural spacers that eliminate maritime transport friction and moisture corrosion. This meticulous preparation achieves over 92% container volume utilization, saving thousands of dollars per facility fit-out.
Frequently Asked Questions: Double Deep Pallet Racking Sourcing
Clear, engineering-grounded answers to assist logistics facility managers, procurement officers, and structural engineers in evaluating double deep pallet storage infrastructure.
What is the structural difference between Selective and Double Deep Pallet Racking?
How does HEDA Shelves calculate seismic load resistance for overseas projects?
What specialized forklift equipment is required for double deep installations?
How does inventory rotation operate in a double deep system with 50% selectivity?
What corrosion protection and surface finish options are provided for coastal/cold areas?
What is the standard production timeline and minimum order quantity (MOQ)?
How are installation and assembly handled internationally?
What warranty and quality test reports accompany the shipment?
Transform Your Warehouse Volumetric Efficiency Today
Send our senior engineering team your warehouse architectural floor plans, ceiling clearances, pallet dimensions, and target SKU profile. We will return an optimized CAD blueprint, 3D rendering, and detailed factory-direct quotation within 24 hours.
