Standard & Heavy-Duty Industrial Shelving Catalog
Direct OEM/ODM industrial racking and modular shelving configurations engineered from cold-rolled steel, verified under stringent seismic, static load, and continuous throughput conditions.

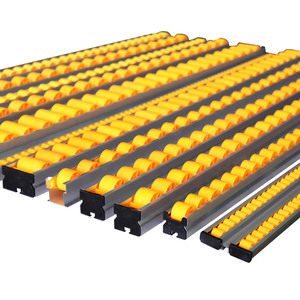

Gravity Flow Rail Roller Track PE ABS Wheel 200KG Load Carton Flow Rack FIFO Storage Sliding Shelf for Warehouse

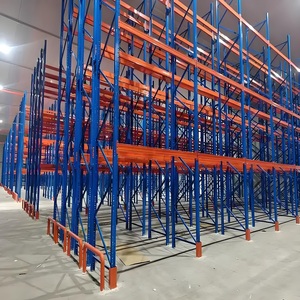

Heavy Duty Industrial Rack Adjustable Steel Garage Storage Shelving Rack for Warehouse Stacking Double Deep Pallet Rack
Custom 200kg 300kg 500kg Adjustable Pallet Racks Steel Heavy Duty Shelf Long Span Warehouse Shelving for E-commerce Storage

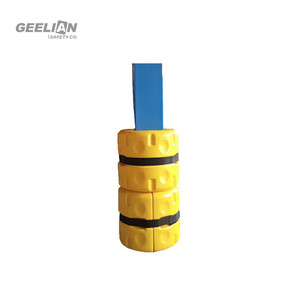

Reflective Safety Protector for Pallet Racking Uprights Customized Colors Wholesale Column Corner Guard Racking Post Protector

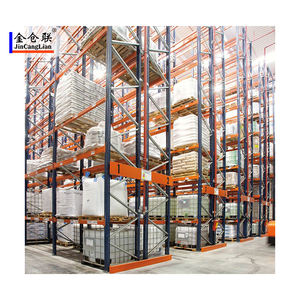

Longspan High Bay Industrial Pallet Rack Wire Mesh Deck Cold Rolled Steel Q235 Brushed Teardrop Design CE Certified 1500-4500kg
Adjustable Movable Steel Selective Pallet Rack with 2 Layers ESD Protection Electric Mobile Racking System for Industrial Use

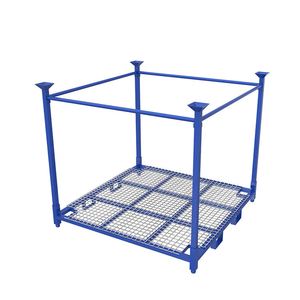

Commercial Stack Metal Pallet Racking Motorcycle Truck Stacking Shelves Spare Storage Display Tire Rack Shelf for Warehouse
Automatic Warehouse Mobile Storage Heavy Duty Pallet Shuttle Racking Mobile Pallet Racking Systems
Guangzhou HEDA Shelves Co., Ltd. – Engineered Racking Authority
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has developed over two decades into an advanced industrial shelving manufacturing powerhouse. Headquartered in Guangzhou, China, our 30,000 square meter integrated manufacturing facility operates continuous cold-roll forming lines, automatic CNC punch presses, robotic welding cells, and eco-certified powder coating systems. Delivering over 30,000 tons of precision-engineered racking per month, our solutions empower Tier-1 3PL operations, cold-chain distribution terminals, automotive hubs, and e-commerce mega-centers across more than 120 countries.
Engineering Standards for Industrial Shelving Production
A technical teardown of cold-formed steel manufacturing, metallurgical grades, load-bearing moment distribution, and surface treatment resilience.
Steel Metallurgy & Yield Strength
Industrial racking safety relies entirely on yield strength under dynamic loading. Chinese primary tier-one steel mills (Baosteel, Shougang) supply prime Q235B (yield strength ≥ 235 MPa) and Q355B (yield strength ≥ 355 MPa) structural coils.
- Continuous roll-forming profiles maintaining ±0.5mm upright straightness
- Cold-work hardening profile optimization to boost torsional stiffness
- Compliance with EN 15512 and RMI MH16.1 specifications
Seismic Dissipation & Dynamic Loads
High-bay installations across the Pacific Rim, South America, and seismic belts require multi-axis moment-resisting baseplates and cross-braced frame engineering rather than simple downward gravity load sizing.
- Non-linear dynamic response analysis to prevent progressive rack collapse
- Over-sized baseplates with high-tensile wedge anchors (Hilti/Fischer equivalent)
- Custom diagonal stiffeners counteracting rack sway harmonic resonance
Corrosion Barrier & Pre-Treatment
Tropical moisture and cold storage condensation aggressively degrade poor coatings. Our automated process ensures comprehensive pre-treatment before high-durability electrostatic powder curing.
- Multi-stage immersion: Degreasing, acid pickling, zinc phosphating
- Thermo-hardened epoxy-polyester powder coat (60-90 μm thickness)
- Hot-dip galvanizing per ISO 1461 for sub-zero freezer humidity environments
Comparative Analysis of Industrial Warehouse Systems
Evaluate density, access efficiency, capital expenditure, and operational suitability to determine the ideal structural configuration for your supply chain.
| Racking Typology | Space Utilization | SKU Selectivity | Rotation Principle | Forklift Compatibility | Relative CAPEX / Pallet |
|---|---|---|---|---|---|
| Selective Pallet Racking | Standard (35-40%) | 100% Immediate | FIFO or LIFO | Standard Counterbalance, Reach Truck | Lowest (Benchmark) |
| Double Deep Pallet Racking | Medium-High (50-60%) | 50% Immediate | LIFO | Specialized Deep-Reach Forklifts | Moderate (+20-30%) |
| Drive-In Racking System | High (65-75%) | Low (Batch SKUs) | LIFO (Typically) | Drive-in Counterbalance / Reach | Moderate (+35-45%) |
| Carton / Pallet Gravity Flow | Exceptional (75-85%) | High per Lane | Strict FIFO | Standard Forklifts / Manual Picking | High (+90-120%) |
| Radio Shuttle Automation | Maximum (80-90%) | Automated per Channel | FIFO or LIFO Flexible | Standard Forklift (Outside Racks) | High (+130-170%) |
| Heavy Duty Cantilever | Optimized for Length | 100% Linear Access | Free Allocation | Side Loaders, 4-Way Multi-Directional | Medium (+40-60%) |
Future Sourcing & Technology Trends in Industrial Storage
How evolving supply chains, nearshoring dynamics, automated intralogistics, and green compliance are reshaping global procurement requirements.
1. Convergence of Static Steel & AMR Automation
Traditional pure-static storage is being rapidly superseded by hybrid architectures. Facilities now integrate long-span industrial shelving decks directly with Autonomous Mobile Robots (AMRs) and automated shuttle carriers. Manufacturers are re-engineering lower rack clearances, upright guide profiles, and floor anchor tolerances to support sub-millimeter robotic docking accuracy.
2. Modular Rack-Supported Mezzanines
Urban real estate acquisition costs in major distribution corridors have forced enterprise operators upward rather than outward. Integrated multi-tier rack-supported mezzanines eliminate the expense of stand-alone structural framing, converting vertical warehouse cube space into 2-level or 3-level high-density carton order picking galleries without incurring additional property taxes.
3. Decarbonized Steel & Zero-VOC Finishes
International environmental disclosures now require Tier-1 importers to trace supply chain embodied carbon. Leading Chinese racking manufacturers are transitioning toward low-carbon scrap-fed electric arc furnace (EAF) steel, coupled with zero-VOC, heavy-metal-free thermoset powder coatings that conform strictly to European REACH and RoHS international directives.
End-to-End Production & Export Verification Workflow
How HEDA Shelves ensures every upright, beam, bracket, and wire deck meets precision specifications from steel slit coil down to ocean container packing.
Metallurgical Inspec.
Raw coil ultrasonic testing, yield strength verification, and thickness micrometer caliper checks.
CNC Roll & Punch
Continuous progressive roll-forming with multi-station CNC punching preserving hole pitch fidelity.
Robotic Welding
Automatic MIG/CO2 welding for connector lugs and baseplates ensuring penetration without brittleness.
Phosphating & Coat
Acid pickling rust removal, zinc conversion layer, and electrostatic cured powder application.
Pack & Stuffing
Bundling with shock-absorbing corrugated separators, corner protectors, and steel band strapping.
Frequently Asked Questions: Global Industrial Shelving Sourcing
Comprehensive technical and commercial clarifications directly addressing the concerns of logistics planners, procurement managers, and structural engineers.
What is the standard production lead time for full container load (FCL) industrial shelving orders?
Standard pallet racking and industrial shelving orders requiring 2 to 5 high-cube containers (40ft HQ) typically take 14 to 24 business days from approved CAD drawings. Large-scale distribution projects exceeding 500 tons or multi-tier rack-supported mezzanines are engineered and scheduled in phased manufacturing batches to align cleanly with on-site building construction milestones.
How are structural engineering safety factors calculated for international building codes?
Our engineering team applies finite element analysis (FEA) to simulate ultimate limit states (ULS) and serviceability limit states (SLS). We adhere strictly to standard beam deflection ratios of L/200 under maximal design load. Frame buckling analyses integrate dead load, live load, seismic horizontal accelerations, and forklift impact factors according to European standard EN 15512, Australian AS 4084, and American RMI MH16.1 guidelines.
How do you optimize container loading to prevent ocean transit damage and maximize volume?
Heavy steel components easily risk chafing or deforming if improperly packed. We design computerized container nesting models prior to stuffing. Upright frames are packed flat using structural dunnage and protective multi-ply cardboard. Beams are bundled with non-slip banding and corner guards. Small hardware items (bolts, baseplates, shims, safety pins) are palletized in heavy-duty wooden crates to guarantee smooth, zero-loss customs unpacking.
Can you manufacture custom dimensions and color schemes for regional distributor OEM programs?
Yes. OEM and ODM arrangements constitute over 50% of our production volume. We offer full tooling adaptation for teardrop, keyhole, diamond, or metric slot pitch profiles. In addition to custom upright depths and beam lengths, our automated electrostatic coating booths accommodate any RAL color standard to ensure perfect alignment with your brand or regional market identity.
What documentation is provided to satisfy local building permits and structural compliance?
Every industrial project export package includes stamped structural engineering calculation reports, assembly schematics, raw steel mill test certificates (MTC), coating thickness verification reports, and CE declaration of performance documentation. If required, our engineering team collaborates directly with your domestic registered civil/structural engineers to verify seismic parameters and concrete anchor shear loads.
Plan Your Warehouse Storage Layout with HEDA Engineers
Submit your architectural floor plan, clear building ceiling height, pallet load specifications, and forklift fleet parameters. Our Guangzhou structural engineering team will deliver a comprehensive 3D CAD proposal, load calculations, and full factory-direct quote within 24 hours.
