Featured Industrial Storage Systems & Heavy-Duty Racks
Engineered from premium Q235B and Q355B cold-rolled structural steel, our storage configurations undergo stringent Finite Element Analysis (FEA) to exceed global safety compliance standards, including RMI ANSI MH16.1, EN 15512, and AS 4084.
Structural Integrity, Steel Metallurgy, and Global Code Conformance
In modern high-throughput logistics hubs, selecting a structural storage partner requires evaluating verifiable metallurgic chemistry, beam-to-column locking resilience, and high-precision cold-roll manufacturing. As premier Chinese wholesale pallet racking manufacturers, our technical operations are anchored by the strict parameters of EN 15512:2020 (European Racking Code), RMI ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), and AS 4084-2023 standards.
1. Certified Cold-Rolled Structural Coil Chemistry
Our upright columns and load-bearing horizontal members utilize hot-rolled structural steel coils sourced directly from top-tier primary mills (Baosteel, Shougang). Unlike substandard scrap-recycled rolling operations, we verify standard Q235B (Yield Strength $\ge$ 235 MPa, Tensile Strength 375–500 MPa) and heavy-grade Q355B / SS490 (Yield Strength $\ge$ 355 MPa) with batch-specific 3.1 Mill Test Certificates (MTC). This chemical homogeneity prevents micro-fissures during high-frequency perforation and multi-stage cold roll profiling.
2. Multi-Point Conjugate Hook Connectors & Moment Resistance
The safety of selective and drive-in systems depends upon beam-end connector rigidity and torsional moment resistance. Our cold-stamped connectors incorporate 3-claw, 4-claw, and 5-claw interlocking teeth engineered to match our proprietary omega-profile upright perforations. High-tensile spring steel safety locks (retaining pin resistance exceeding 1,000 kg shear load) prevent accidental beam detachment during forklift vertical travel errors.
| Storage Architecture | Space Utilization | Pallet Access (FIFO / LIFO) | Floor Load Density | MHE (Forklift) Compatibility | Ideal Industry Use-Cases |
|---|---|---|---|---|---|

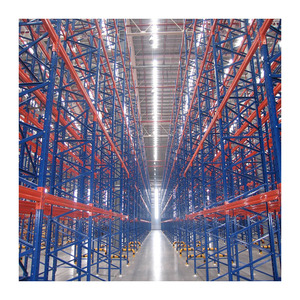

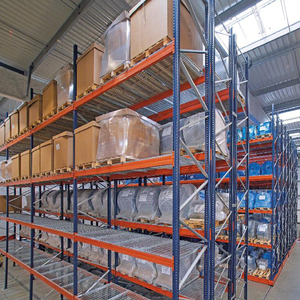

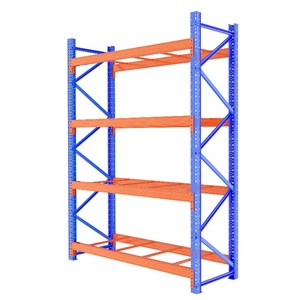

| Selective Pallet Racking | 40% – 50% | 100% Direct Access (FIFO) | 1,000 – 4,000 kg / level | Standard Counterbalance, Reach Truck | FMCG, Retail, 3PL Distribution, E-Commerce |

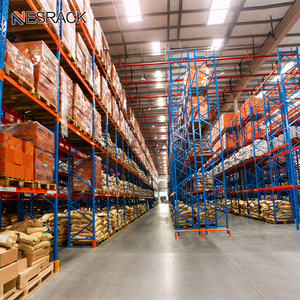

| Double Deep Racking | 60% – 65% | 50% Direct Access (LIFO) | 1,500 – 3,000 kg / level | Deep-Reach Pantograph Forklift | Cold Storage, Dry Grocery, Manufacturing Buffer |
| Drive-In / Drive-Through | 75% – 85% | Lane Dependent (LIFO / FIFO) | 1,000 – 2,000 kg / pallet | Counterbalance, Narrow-Chassis Reach | Cold Chain, Seasonal Beverage, Homogeneous Stock |
| Radio Shuttle Cart Racking | 85% – 90% | Configurable (FIFO & LIFO) | Up to 1,500 kg / pallet | Standard Lift + Automated Cart | Frozen Meat/Seafood, Dairy, High-Volume Buffer |
| Push Back Nested Cart System | 70% – 75% | Aisle-Face Only (LIFO) | Up to 1,500 kg / position | Standard Reach / Counterbalance | Food Wholesalers, Automotive Fast-Moving Spares |
| Heavy Duty Cantilever Racking | 65% – 80% | 100% Linear Access | Up to 3,000 kg / arm | Side Loader, Multi-Directional Reach | Steel Pipe, Aluminum Extrusion, Lumber, Timber |
Automated 10-Stage Electrostatic Coating & Galvanizing Metallurgy
Corrosion resistance is crucial for overseas maritime shipping and cold storage installations. Our automated surface preparation line features continuous 10-stage pre-treatment: alkaline immersion degreasing, ultrasonic water rinsing, acid pickling rust stripping, nano-ceramic micro-phosphating, and deionized water rinsing. The electrostatically applied epoxy-polyester thermosetting powder coat cures at 180°C–200°C to achieve a dry film thickness of 60–90 $\mu$m, resisting 500+ hours of continuous salt spray test (ASTM B117). For sub-zero blast freezers (-30°C) or open-air marine ports, we provide hot-dip galvanization adhering to EN ISO 1461, yielding an 85 $\mu$m zinc alloy shield that prevents oxidation across decades of heavy duty cycling.
Future Procurement Trends in Industrial Storage Racking
Global enterprise procurement is transitioning from transaction-based commodity spot buying to integrated life-cycle value engineering, digital factory tracing, and turnkey cross-border logistics resilience.
Direct Factory Integration (D2F)
Global tier-1 3PL operators and warehouse equipment distributors are bypassing trading intermediaries to partner directly with certified manufacturing plants. Direct-to-factory engineering collaborations eliminate 15%–28% markups while securing customized punch spacing (50mm/75mm/76.2mm teardrop interchangeability), mill-certified raw materials, and dedicated factory production slots.
Total Landed-Cost (TLC) Modeling
Procurement officers look beyond the ex-works FOB price per ton to analyze high-cube shipping container stowage density. By bundling interlocking upright trusses with custom beam nested strapping plans, our engineering team boosts 40HQ container cube utilization up to 94%, significantly driving down landed ocean freight cost per pallet location.
Seismic-First Regional Specing
Warehouses located in seismically active regions—such as the Pacific Rim (Chile, Peru, California, Japan, New Zealand)—now enforce strict baseplate anchor ductilities, seismic portal ties, and dynamic horizontal bracing arrays. Factory structural teams that provide certified FEA load calculations are winning major supply agreements.
Technological & Industrial Development Trends in Warehouse Racking
Warehousing infrastructure is evolving from passive static steel configurations into smart, sensor-monitored, semi-automated intralogistics ecosystems capable of interfacing with advanced mobile robotics and warehouse management platforms.
AS/RS & Automated Shuttle Convergence
High labor costs and land price inflation are accelerating adoption of 2-way and 4-way Radio Shuttle systems, mini-load cranes, and Automated Storage & Retrieval Systems (AS/RS). Modern racking requires cold-rolled channel rail tolerances within $\pm 1.0\text{ mm}$ to ensure flawless optical positioning and uninhibited carrier traverse speeds exceeding 1.2 m/s.
AMR & AGV Floor-Level Integration
Autonomous Mobile Robots (AMRs) and automated pallet jacks require barrier-free floor paths and widened bottom portal clearance. Modern racking engineering integrates floor-guided guide rails, elevated first-tier beam levels, and heavy-duty wrap-around steel column protectors to shield frames against multi-directional AGV traffic impacts.
IoT Strain Monitoring & Digital Twins
Industrial installations are piloting wireless IoT strain-gauge sensors on critical upright uprights to detect frame deflection and beam overload in real time. Connected telemetry continuously feeds 3D digital twins, automatically warning facility managers of structural stress before localized micro-buckling causes catastrophic failure.
Why Global Logistics Architects Choose HEDA Shelves
Established in 2001 in Guangzhou, Guangdong, Guangzhou Heda Shelves Co., Ltd. operates a premier 30,000 m² state-of-the-art production complex, supported by 300+ structural engineers, fabrication specialists, and international project consultants.
Certified Structural Integrity
Full CE Certification (No. 2435-CPR-8605159) and ISO 9001:2015 quality management (Certificate No. 18624Q00169R0M). Guaranteed batch traceability from certified steel coil to finished coated profile.
Free 3D Layout & CAD Design
Our in-house design office provides comprehensive AutoCAD drawings, 3D renderings, and structural engineering load verifications within 24 hours. No project commitment required for initial engineering.
30,000 Ton Monthly Output
Equipped with 36 automated cold roll forming lines, robotic laser cutting bays, high-speed multi-axis stamping stations, and dual electrostatic powder coating tunnels capable of delivering major multi-bay projects on tight schedules.
Complete Export Packing & Ocean Logistics
Custom-fabricated steel shipping skids, moisture-proof film wrapping, protective corner post buffers, and numbered parts coding eliminate transit damage and accelerate field installation.
Frequently Asked Questions for Global Racking Buyers
Objective, engineering-backed answers addressing structural calculations, international shipping container planning, seismic zoning, steel grades, and installation execution.
Request an Engineered Warehouse Storage Solution Today
Send your facility floor plan and pallet specifications. Our senior structural engineering team will deliver a customized AutoCAD layout, structural capacity report, and factory-direct quotation within 24 hours.
