Precision OEM/ODM Heavy-Duty Structural Storage Engineering
Modern international supply chains demand more than rudimentary warehouse shelving. Efficient bulk storage requires structural integrity calculated against seismic accelerations, corrosive microclimates, dynamic cyclic loading, and rapid inventory turns. As a vertically integrated manufacturer, Guangzhou Heda Shelves Co., Ltd. delivers turnkey OEM and ODM bulk racking systems built to FEM, EN 15512, ANSI/RMI MH16.1, and ISO standards for world-class logistics facilities.
Heavy-Duty Warehouse Bulk Storage Systems
Examine our field-tested racking categories, engineered for severe payload capacities, rapid fork-truck engagement, and optimized vertical volume utilization.
4000KG Heavy Duty Warehouse Rack Pallet Storage System Adjustable Beam Racking
Heavy Duty Multi Tier Steel Grating Floor Mezzanine Platform Pallet Rack Supported Mezzanine
Heavy-Duty Steel Warehouse Racks 5-Layer Corrosion Protected Cantilever Storage Shelf
Heavy Load Medium Duty Storage Rack Boltless Adjustable Shelving Unit with Steel Panels
Wholesale Stacking Heavy Duty High Capacity Moveable Metal Welded Rack Logistics Industrial Pallet Rack

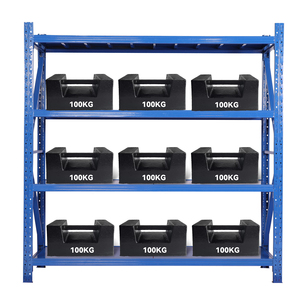

100~500KG Per Layer 2M Height Warehouse Stacking Shelves & Units Iron Storage Metal Display Rack

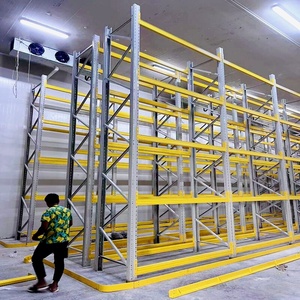

Storage Shelf Warehouse Heavy Duty Industrial Pallet Racking Narrow Aisle Selective Rack System
Industrial Use Heavy Duty Steel Pallet Rack Drawer Style Shelving CE Certified Powder Coated Sheet Metal
Factory-Direct Metallurgy, Customization & Engineering Trust
HEDA Shelves eliminates broker margins by integrating full-cycle cold-roll forming, automated CNC punching, multi-head robotic welding, and automatic electrostatic powder coating under one roof in Guangzhou, China.
Certified Structural Compliance
Our storage racks comply strictly with CE EN 15512 (Certificate No. 2435-CPR-8605159), ISO 9001:2015 quality management (Registration No. 18624Q00169R0M), and RoHS non-toxic powder coating protocols.
- Mill-certified Q235B / Q355B structural steel
- Full dynamic seismic calculations (UBC, IBC, NCh 2369)
- Independent yield & deflection load testing reports
Bespoke OEM / ODM Engineering
No two supply chains share identical footprints. Our 30+ dedicated structural engineers generate complimentary 3D photorealistic renderings and AutoCAD schematics tailored to your clear heights and forklift fleet.
- Custom beam sections, frame depths & colorways
- Integration with AS/RS, AGVs, and RFID shuttles
- Private labeling for overseas racking distributors
Optimized Container Load Planning
Exporting heavy steel requires careful volumetric balancing. Our packaging engineers design container loading schematics that maximize 40ft HQ cube space (>92% container fill rate) while preventing transit impact abrasion.
- Direct breakbulk & FCL shipments to South America & Global ports
- Numbered, color-coded bundles for rapid site assembly
- Protective PE foam wrap & steel banding on all profiles
Structural Racking System Engineering Matrix
Evaluate bulk storage system configurations against mission-critical intralogistics operational metrics: access speed, floor utilization, load limits, and equipment compatibility.
| Racking Classification | Primary Steel Grade | Max Level Payload | Deflection Ratio | Pallet Access Rate | Space Utilization | Seismic Adaptation |
|---|---|---|---|---|---|---|
| Selective Pallet Racks | Q235B / Cold-Rolled | 1,000 – 4,500 kg | L / 200 (EN 15512) | 100% Immediate | 40% – 50% Floor Area | Standard Baseplate Anchors |
| Very Narrow Aisle (VNA) | Q355B High-Yield | 1,200 – 3,500 kg | L / 250 Strict | 100% Immediate | 60% – 70% High-Bay | Reinforced Upright Bracing |
| Drive-In / Shuttle Racks | Q235B / Q355B Mix | 1,000 – 2,000 kg | L / 200 Support Arm | LIFO / FIFO Lanes | 75% – 85% Dense | Top-Tie & Back-Diagonal Ties |
| Heavy-Duty Cantilever | H-Section Hot-Rolled | 1,000 – 5,000 kg/arm | L / 180 Arm Tip | Free Span Side-Loading | Continuous Bulk Linear | Welded Base Spine Bracing |
| Rack-Supported Mezzanines | Q235B & Steel Deck | 500 – 1,200 kg/m² | L / 300 Floor Beam | Multi-Level Manual | Up to 300% Vertical Cube | Engineered Portal Frame Moment |
Procurement Trends Reshaping Bulk Industrial Racking
Logistics directors and procurement managers are navigating rising real estate overhead, workforce shortages, and climate volatility. These four macro trends define bulk storage rack purchasing through 2030.
Automation-Ready Hybridization
Procurement teams are moving away from rigid, single-purpose static racking toward modular systems designed to retrofit automated radio shuttles, AGV reach trucks, and autonomous mobile robot (AMR) floor runners without replacing upright structural columns.
Cold-Chain Metallurgy
Sub-zero cold storage operations (-30°C to -45°C) induce cryogenic steel embrittlement. Modern tenders strictly specify micro-alloyed, modified-impact Q355D steel grades combined with duplex hot-dip galvanized finishes to resist constant condensation cycles.
Total Landed Cost Modeling
B2B buyers evaluate suppliers based on modular knock-down packing density, pre-drilled hardware alignment, and certified self-aligning uprights that cut container shipping freight and local crane installation timelines by over 35%.
Seismic Life-Cycle Verification
High-risk seismic regions across South America (Chile, Peru, Colombia) and the Pacific Rim require independently audited FEM non-linear dynamic analysis to ensure baseplates and connectors absorb lateral ground acceleration during Richter 7+ events.
Technological Innovations in Industrial Bulk Storage
Engineering superior bulk racking requires deep material science, robotic forming accuracy, and intelligent surface conversion chemistry.
Continuous Roll-Forming Precision
Our factory employs computerized multi-station roll-forming lines featuring in-line hydraulic pre-punching. This achieves an axial straightness tolerance within 1/1000 and ensures column slot tolerances within ±0.1mm across 12-meter continuous vertical spans.
Nanotech Pre-Treatment Coating
Transitioning from traditional iron phosphating to zirconium nano-ceramic pre-treatment enhances powder adhesion by 400%. Combined with automated triboelectric electrostatic powder spraying, our racks pass 500+ hours of ASTM B117 salt spray testing.
Dynamic FEA Structural Modeling
Prior to fabrication, our structural department subjects every non-standard beam connector and column baseplate to 3D Finite Element Analysis (FEA), identifying localized shear and torsion stress concentrations under asymmetric pallet loads.
Frequently Asked Questions by Industrial Racking Importers
Clear answers on customs clearance, ocean logistics, seismic design codes, metallurgical warranties, and on-site assembly supervision.
How do you engineer racking systems to satisfy regional seismic building codes (e.g., Chile NCh 2369, Peru E.030, USA IBC)? +
What steel certifications and quality control documentation accompany bulk export shipments? +
What is the production lead time for multi-container OEM/ODM project orders? +
How does HEDA Shelves protect finished components against corrosion during humid ocean voyages? +
Can you support on-site installation or offer remote assembly guidance for foreign installation crews? +
What essential data points must buyers supply to receive a 3D layout and structural cost quotation? +
Our 4-Stage OEM/ODM Engineering Protocol
From initial site plan evaluation to ocean dispatch, our cross-functional team delivers complete visibility, strict tolerance adherence, and on-time commissioning.
01. Engineering Audit
Analysis of facility drawings, slab concrete core load capacity, forklift turning radius, and product SKU picking frequencies. Free CAD layouts generated within 24 hours.
02. Automated Production
Precision CNC roll forming, automatic hole pitch punching, and dual-gun robotic welding. Video milestones and dimensional check reports sent at every phase.
03. Batch Load Testing
Pre-assembly of upright-beam connections, weld penetration inspection, and hydraulic load testing verifying beam deflection adheres strictly to L/200 thresholds.
04. Export Stowing
Container weight-balance distribution using specialized steel dunnage, protective foam edge protectors, and sequenced loading for rapid field unloading.
Ready to Optimize Your Warehouse Capacity?
Connect directly with HEDA Shelves' senior application engineers. Share your building layout or storage criteria for a comprehensive 3D layout, structural load calculation, and factory-direct export proposal.
- Complimentary 3D CAD Warehouse Layout
- Seismic Code Sizing (CE & ISO 9001)
- FCL Freight & Landed Cost Optimization
- Turnkey OEM/ODM Brand Packaging
