Engineered Small Warehouse Racking Systems
Compare our factory-direct heavy-duty pallet racks, vertical compactors, and dynamic gravity storage frameworks fabricated with high-yield Q235B/Q355B structural steel to maximize floor yield in small-footprint facilities.
Modular Steel Backwall Shelf Selective Pallet Rack
5-layer heavy-duty industrial storage rack engineered with electrostatic powder coating and zinc phosphating for damp environments.

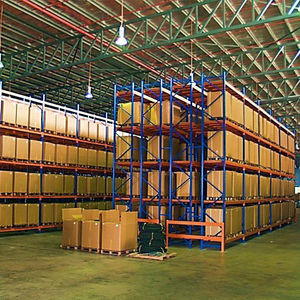

Heavy Duty Metal Drive-In Pallet Racking System
Eliminates working aisles to maximize cubic capacity by up to 75% for uniform SKUs, cold chain logistics, and buffer warehouses.
High-Density Mobile Compactor & Movable Shelving
Mechanically driven or motorized compact track rack system designed for small footprint vertical crop facilities and dense archives.

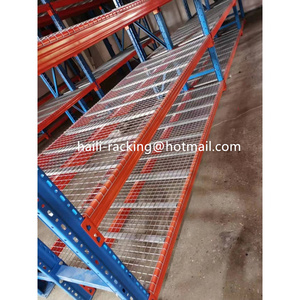

High-Density Steel Racks with Deck Panels
Flexible slotting shelving framework with custom deck options for manual case picking, commercial parts rooms, and urban store hubs.
Industrial Heavy-Duty Warehouse Steel Shelving
Reinforced upright columns and interlocking beam connectors offering 1,000 kg to 3,500 kg tier capacity for heavy tooling and hardware.

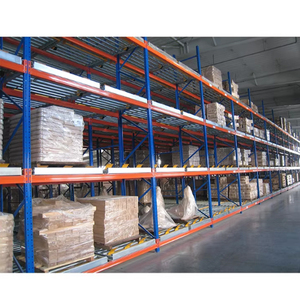

Warehouse FIFO Pallet Flow Roller Racking
Self-regulating gravity roller tracks ensure strict First-In First-Out inventory turnover for perishable food, pharmaceutical, and beverage goods.

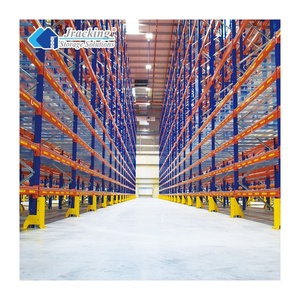

Adjustable Steel EURO Pallet Storage Racking
Engineered for 1200x800mm EUR/EPAL dimensions with modular 50mm/75mm hole pitches for versatile beam level re-profiling as inventory shifts.
Hydroponic Mobile Roll Shelving & Racking
Specialized mobile caster and guided rail rolling racks maximizing cubic canopy or containerized micro-warehouse agricultural production.
The Small Warehouse Paradox: Balancing Spatial Density & Direct Selectivity
Operating a distribution center, regional fulfillment hub, or industrial buffer storage facility under 2,500 square meters presents severe physical challenges that standard high-bay warehouses never encounter. When horizontal real estate is strictly constrained by rising square-meter lease costs in urban zones, facility directors face the Spatial Density versus Direct Selectivity tradeoff.
Traditional selective racking preserves 100% immediate pallet access but sacrifices more than 60% of floor area to material handling truck aisles. Conversely, deep-lane bulk block stacking or traditional drive-in systems drastically restrict SKU accessibility, inducing excessive double handling, high SKU dwell time, and inventory honeycombing.
As a dedicated OEM/ODM small warehouse racking supplier and global exporter, Guangzhou Heda Shelves solves this paradox through custom cold roll-formed upright profiles, variable column perforation pitches, and tailored aisle-geometry engineering. By optimizing standard racking modules down to Narrow Aisle (NA) and Very Narrow Aisle (VNA) configurations—or integrating mobile carriage tracks—we routinely elevate storage density by 40% to 110% while preserving the exact throughput flow your business model mandates.
| Racking Architecture | Floor Utilization | Selectivity | Handling Equipment Required |
|---|---|---|---|
| Selective Pallet Rack | 35% – 40% | 100% Direct | Standard Counterbalance / Reach Truck |
| Narrow Aisle (VNA) | 55% – 65% | 100% Direct | Articulated / Turret VNA Forklift |
| Drive-In / Drive-Through | 70% – 80% | LIFO / Low | Standard Reach Truck |
| Mobile Compactor Racking | 80% – 90% | 100% (On Demand) | Standard Forklift / Manual Access |
| Gravity Pallet Flow | 70% – 75% | Strict FIFO | Standard Forklift (Separate In/Out) |
Structural Steel Integrity: Q235B & Q355B Specifications
Unlike light-duty retail shelving fabricated from thin commercial steel, all our load-bearing warehouse racking frameworks utilize cold roll-formed Q235B and high-yield Q355B structural steel (equivalent to ASTM A36 and ASTM A572 Grade 50).
Each upright profile features continuous mechanical roll-stiffening folds along the web and flange boundaries. These micro-ribs prevent premature local plate buckling under intense axial compression and dynamic seismic shear forces.
Our beam-to-column beam connectors incorporate 3-claw or 4-claw cold-stamped interlocking lug hooks designed with a self-locking safety pin mechanism. This configuration delivers high rotational rigidity (moment connection), distributing vertical beam deflection safely into the vertical frame columns without weld fatigue.
Get CatalogFuture Procurement Trends for Small Warehouse Racking
Analyzing macroeconomic and technical shifts: how international logistics buyers, ecommerce micro-fulfillment operators, and third-party logistics (3PL) providers are procuring storage hardware for the upcoming decade.
1. Hybrid Modularity (Pallet + Carton Live Integration)
Procurement trends demonstrate a strong move away from monolithic single-purpose pallet racking in urban facilities. Operations require "multi-tier hybrid frameworks" where lower ground tiers feature gravity roller tracks or longspan carton shelves for immediate manual pick-pack-ship, while upper overhead tiers store full replenishment reserve pallets. This eliminates secondary travel distances, consolidating pick-faces and bulk storage inside a single 4-meter footprint.
2. Electrified & Mobile High-Density Rail Systems
In small urban warehouses where ceiling heights cannot be extended, facility owners are increasingly replacing fixed access aisles with mechanized mobile carriages. By placing entire blocks of selective pallet racks or heavy-duty shelving on flush embedded floor rails, warehouses unlock up to 90% floor occupancy. Procurement teams now specify mechanical gear assist or low-voltage smart electric controls with integrated photo-electric safety curtains.
3. Rigorous Seismic Certification & Site-Specific FEA
Global supply chain disruptions have triggered strict building compliance oversight across the Americas, Europe, and Asia-Pacific. Importers no longer accept generic catalog load tables. Engineering procurement requires project-specific Finite Element Analysis (FEA) validating base plate anchor shear strength, floor slab load distribution, and frame ductility factors governed by international norms such as RMI MH16.1, FEM 10.2.02, and regional seismic codes.
Technological Trajectories in Industrial Storage Manufacturing
How modern roll-forming automation, advanced chemical pre-treatment, and eco-efficient electrostatic finishing elevate durability and total cost of ownership (TCO) for small facility operators.
Continuous CNC Roll-Forming
Modern roll-forming machinery utilizes multi-station progressive CNC tooling rollers to bend heavy steel coil cold into omega-profile uprights without inducing internal residual micro-stresses or wall thinning at radius corners.
10-Stage Surface Pre-Treatment
Before powder coating, raw steel undergoes hot degreasing, multi-stage acid pickling to eliminate scale, followed by micro-crystalline zinc phosphating. This chemically seals the steel surface, guaranteeing superior primer adhesion.
Electrostatic Powder Curing
Thermoset epoxy-polyester hybrid powder is applied electrostatically at 60 to 90 microns thickness and baked in continuous infrared curing ovens at 180°C–200°C, producing exceptional impact and chemical resistance.
Knock-Down Bolted Upright Trusses
Modern engineering replaces fragile field welds with modular bolted upright frames. Upright columns, diagonal braces, and horizontal struts connect via high-tensile grade 8.8 bolts, reducing ocean shipping cube volume by 45%.
Enterprise Strengths: Why Global Importers Rely on HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates an advanced 30,000 m² production base. We deliver full OEM and ODM customization services for brand distributors, engineering contractors, and end-users worldwide.
In-House Tooling, Custom Colorways & Export Staging
As a true primary equipment manufacturer, we do not outsource your structural components. Our workshop is equipped with high-speed uncoiling lines, high-precision hydraulic punch presses, automated continuous roll-forming mills, robotic welding arms, and an automated dual-booth electrostatic powder coating line.
Whether your procurement requires bespoke beam lengths to fit odd column spans, custom color-matching (standard RAL tones or corporate OEM branding), or specialized baseplates for cracked-slab retrofit anchoring, our 300+ engineering and manufacturing specialists execute your technical parameters with zero deviation.
Every order is subjected to comprehensive factory pre-assembly testing. Critical connection clearances, weld penetration depths, and surface coating dry-film thickness (DFT) are verified and logged in formal Quality Assurance Reports before ocean container drayage.
Engineering & Export Assurance Credentials:
- CE Certification: Certificate No. 2435-CPR-8605159 confirming full European standard structural conformity.
- ISO 9001:2015: Certificate No. 18624Q00169R0M verifying end-to-end raw coil to finished rack traceability.
- Free 3D Layout & CAD Modeling: Submit facility blueprints to receive customized engineering drawings within 24 hours.
- Ocean Container Packing Optimization: Customized timber chocks, bubble wrap, and steel strapping maximize container volume while preventing maritime transit scuffing.
Spatial Audit & Data Intake
We evaluate your warehouse DWG floor plans, clear ceiling heights, slab psi ratings, forklift turning radiuses, and pallet load profiles.
3D CAD & Load Verification
Our structural engineers generate 3D spatial models, calculate beam deflection allowances (L/200), and optimize aisle widths for maximum density.
Precision CNC Manufacturing
Cold roll-forming, automatic stamping, robotic welding, and electrostatic powder finishing take place within our ISO 9001:2015 production facility.
Container Export & Support
Knocked-down components are crated, labeled with piece-marks, and loaded with detailed assembly manuals and remote video installation support.
Frequently Asked Questions by Small Warehouse Buyers
Key structural engineering, floor loading, import logistics, and operational questions answered directly by our Senior Technical Racking Directors.
