Industrial Pallet Rack Protection Portfolio
Precision-manufactured structural post guards, roller-guided column shields, and falling-object safety net systems designed to neutralize forklift impact forces and safeguard automated storage networks.
The Mechanics of Modern Pallet Rack Protection
Evaluating kinetic energy dissipation, metallurgical standards (Q235B vs. High-Molecular Polyethylene), and the systemic economic justification of comprehensive aisle armoring.
Structural Integrity & FEM 10.2.02 Standards

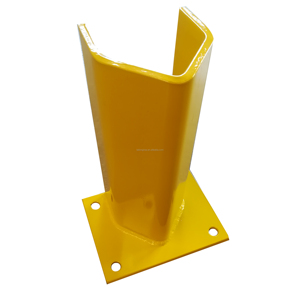

Under international rack engineering standards including FEM 10.2.02, EN 15512, and ANSI MH16.1, racking uprights are slender compression members engineered specifically for pure vertical axial load capacity. Even a deflection exceeding just 3mm along an upright can induce catastrophic second-order eccentricity effects, reducing post load bearing capability by up to 60%. Upright post guards with independent floor anchors absorb directional forces directly into the concrete slab, ensuring zero mechanical shock is transmitted into cold-rolled racking profiles.
Kinetic Energy Absorption Dynamics

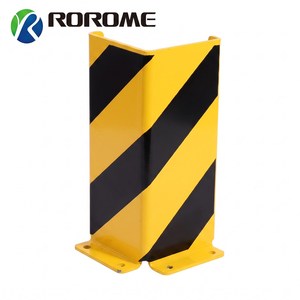

A standard 3-ton counterbalance forklift traveling at typical operation speeds (8 to 12 km/h) delivers an impact force well exceeding 10,000 Joules. Leading Chinese fabricators have transitioned beyond static iron angles to composite multi-stage kinetic dispersion systems. These leverage heavy-gauge 4.5mm-6.0mm cold-pressed Q235B structural carbon steel combined with integrated polyolefin elastomers or rotational guide rollers, converting direct head-on collision momentum into glancing deflection vectors.
Total Cost of Ownership (TCO) & Risk Mitigation
Replacing a buckled intermediate or end-aisle upright post in an active high-density distribution center averages between $1,800 to $4,500 in direct labor, unload-reload downtime, and certified structural re-inspections. In contrast, deploying standardized modular column guards and impact wrap nets represents less than 2.8% of aggregate racking capital expenditures. Preventative column shielding systematically eliminates micro-deformation compounding, preserving operational uptime and structural warranty guarantees.
Engineering Matrix: Steel vs. Polymer vs. Hybrid Protection
Selecting the appropriate protection technology based on dynamic material properties, thermal resilience, and floor attachment topologies.
| Evaluation Parameter | Structural Steel (Q235B Cold-Rolled) | High-Density Polymer (HDPE/Polyolefin) | Hybrid Steel + Guided Roller System |
|---|---|---|---|
| Primary Impact Mechanism | Rigid resistance & anchor shear dissipation | Elastic deformation & molecular rebound memory | Physical deflection + rotational angular shunting |
| Cold Storage Performance (-30°C) | Exceptional; no cold brittleness embrittlement | Moderate; potential micro-fracture under high impact | Superior; low-temperature greased roller bearing |
| Direct Energy Capacity (Joules) | Up to 14,000 J (depending on anchor embedded depth) | Up to 8,000 J (elastic threshold limit) | Exceeds 18,000 J (glancing kinetic transformation) |
| Floor Anchor Floor Stress | High transfer to concrete expansion bolts | Zero floor stress (strapped directly to column) | Medium; cushioned transfer to 4-point M16 anchors |
| Visual Warning Coefficient | Electrostatic high-visibility powder coat (RAL 1023) | Molded self-colored luminous high-vis yellow | Reflective chevron stripes with signal-yellow body |
| Recommended Use Scenario | Heavy-duty aisle corners, VNA entryways, main thoroughfares | Intermediate selective uprights, reach truck aisles | High-throughput AS/RS entries, pallet shuttle loading hubs |
Emerging Trends in Warehouse Protection (2026–2030)
How autonomous logistics, AGV fleets, and structural IoT sensors are reshaping passive warehouse security architectures.
Autonomous Mobile Robot (AMR) & AGV Optimization
As logistics centers migrate to uncrewed AGVs and AMRs, floor boundary profiles require millimeter tolerances. Low-profile, laser-guided curb guards and anti-override base protectors prevent robotic chassis wheels from binding while maintaining absolute clearance for automated vehicle LiDAR scanners.
IoT-Enabled Smart Impact Telemetry
The next generation of pallet rack upright protectors incorporates wireless vibration and acceleration sensor nodes. Impacts exceeding 400G trigger immediate localized LED flashing alerts and transmit real-time telemetry to the warehouse management system (WMS) for mandatory safety audit log entries.
Rapid Modular Swapping Topologies
Traditional anchored steel protectors require pneumatic jackhammers to extract damaged anchor studs during replacement. Modern designs utilize quick-release floor sub-plates, allowing warehouse operations teams to swap out crushed front bumpers within 180 seconds without touching foundational slab anchors.
Eco-Circular High-Performance Polymers
Global ESG initiatives are accelerating the adoption of closed-loop recycled polyolefin polymers that maintain ductile elasticity down to -35°C in cold-chain deep freeze settings without releasing halogenated VOCs, aligning with international carbon footprint reduction benchmarks.
Global Sourcing Dynamics: China Direct vs. Local Wholesalers
Critical insights for supply chain managers navigating scale, customized fabrication tolerances, batch certification, and landed-cost metrics.
Factory Direct Tooling & Bespoke Roll-Forming
Procuring directly from integrated tier-1 Chinese manufacturers grants direct access to customized punching dies, bespoke flange clearances, and tailor-made upright corner radii. Rather than accepting off-the-shelf catalog compromises, structural profiles can be customized precisely to match teardown, slotted, or Omega-shape column profiles.
Full Container Load (FCL) Consolidation Optimization

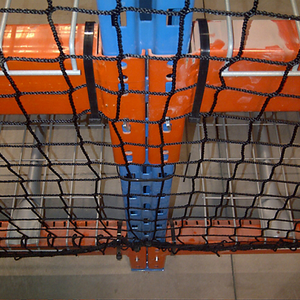

Racking guards and fall protection safety netting possess exceptionally complementary weight-to-volume freight ratios. Shrewd procurement teams bundle dense, heavy steel post guards with high-volume, low-weight containment netting and pallet shuttle systems, maximizing shipping container payload utilization up to 98%.
Standardized Batch Testing & Third-Party Proofing
Leading Chinese exporters provide comprehensive inspection paperwork with every export lot, including raw material metallurgical spectral analyses, salt-spray corrosion chamber test reports (up to 500 hours ASTM B117), and certified pendulum drop impact test documentation.
Why Global Industry Leaders Partner with Guangzhou Heda Shelves
Operating from our 30,000 m² state-of-the-art production base with 25+ years of precision engineering excellence, delivering comprehensive warehouse storage and protection ecosystems worldwide.
25+ Years Heavy Industry Heritage
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved into an international benchmark in warehouse equipment manufacturing, pairing advanced metalforming mastery with deep logistics operational expertise across 10,000+ completed facilities.
30,000 t/Month Capacity & Rapid Turnaround
Equipped with automated continuous roll-forming lines, automated CNC post punching, robotic welding cells, and dedicated pickling-phosphating electrostatic powder coating lines, we deliver standard and customized orders with unmatched speed and consistency.
CE & ISO 9001:2015 International Certification
Our quality management systems are independently audited and certified under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 (No. 18624Q00169R0M), guaranteeing that all racking guards, safety nets, and upright accessories fulfill strict international regulatory standards.
Complimentary 3D Layout & Seismic Design
Our 300+ technical professionals and structural engineers provide free 3D CAD modeling, dynamic aisle clearance simulation, and site-specific seismic structural calculations (including NCh 433, NSR-10, and E.030 standard alignments), ensuring your installation is compliant from day one.
Frequently Asked Questions on Pallet Rack Protection
Clear, actionable technical specifications to assist procurement directors, facility managers, and safety compliance auditors.
What are the key structural standards for warehouse pallet rack protection?
How do floor-mounted upright guards compare with clip-on plastic post protectors?
What surface treatment finishes are recommended for cold storage and coastal facilities?
What information is needed to obtain a customized layout and exact quote?
What are your manufacturing lead times and international ocean freight capabilities?
Protect Your Storage Infrastructure with Certified Engineering
Consult with our structural design team today to obtain detailed technical data sheets, full CAD drawings, sample accessories, and our comprehensive protective equipment product catalog.
