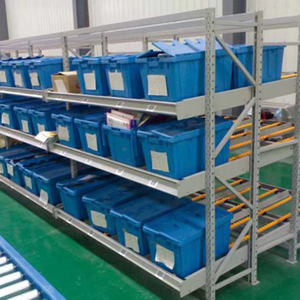

Customized Gravity Pallet Flow Rack Shelf Heavy Duty Selective Steel System
Tailored Pitches
Q235B/Q355 Steel
Integrated Separators
Specialized Cargo
Fabric Roll Pallet Carton Flow Racking for Stacking Heavy Material Rolls
Cylindrical Guide
Textile Specific
Heavy Load Cradles
CE Certified

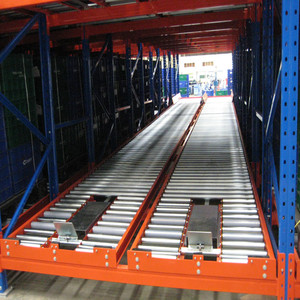

Factory Heavy Duty CE Certified Gravity Carton Pallet Flow Roller Sliding System
EN15512 Approved
Electrostatic Epoxy
Impact Guards
High Space Utilization

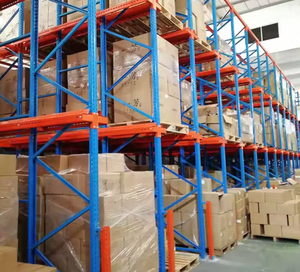

Laser-Cut Drive-In Pallet Flow System with Heavy Duty Metal Safety Guardrails
Laser-Formed Profile
Dynamic Safety Ramp
100% Volumetric Use
Auto Sliding
Steel Gravity Roller Racking Heavy Duty Auto Sliding Powder Coated Flow Rack
Split-Roller Design
3.5% Calibrated Slope
End Stop Dampers
Deep Lane FIFO
Warehouse FIFO Storage Racking System Flow Through Heavy Pallet Roller Racking
Up to 20 Pallets Deep
Magnetic Retarders
Heavy Base Footplates
Engineering Whitepaper
Kinematic Physics & Structural Integrity in Pallet Flow Racking
Modern pallet flow racking—often classified in material handling semantics as gravity live storage or dynamic roller racking—operates purely on gravitational potential energy. While conceptually clean, executing a reliable 15-to-20 pallet deep flow bed mandates stringent mechanical tolerance controls.
Unlike standard static selective racking that supports uniform dead loads, dynamic flow racks absorb continuous cyclical impact, variable friction coefficients, and hydro-mechanical kinetic braking vectors. Industrial manufacturers must solve for three critical variables to ensure zero runaway pallets:
- Gradient Slope Calibration: Precise structural pitch between 3.0% and 3.5% (approx. 35mm per linear meter) calculated against pallet bottom configurations (Euro, GMA, or industrial skids).
- Centrifugal Speed Controllers: Indirect-contact centrifugal braking rollers embedded within lane tracks, regulating glide velocities strictly between 0.2 m/s and 0.3 m/s irrespective of pallet mass variances (300kg vs 1500kg).
- Pallet Separation Mechanisms: Mechanical foot-release escapement dampers that decouple the picking-face pallet from the accumulated line-pressure of upstream trailing units, allowing safe, torque-free forklift extraction.
Structural Load Integrity Verification
Factory-engineered upright columns, upright frames, and beam connectivities are analyzed through FEA (Finite Element Analysis) for combined dynamic gravity surges and seismic harmonic resonance.
Dynamic Impact Factor: 1.25 x Static Dead Load
Steel Standard: High-Yield Cold-Rolled Q235B / Q355
Deflection Limit: Beam Span L/200 Under Peak Service
Surface Finish: 70-90µm Electrostatic Thermosetting Epoxy
Get Catalog
Steel Standard: High-Yield Cold-Rolled Q235B / Q355
Deflection Limit: Beam Span L/200 Under Peak Service
Surface Finish: 70-90µm Electrostatic Thermosetting Epoxy
High-Density Storage Topology Comparison Matrix
| System Architecture | Stock Rotation Strategy | Floor Space Utilization | Forklift Aisle Requirements | Dynamic Energy Consumption | Optimal Industry Profile |
|---|---|---|---|---|---|
| Pallet Flow (Gravity Racking) | 100% Strict FIFO | Up to 85% Active Cube | 2 Aisles (1 Loading + 1 Picking) | Zero (Pure Gravity Driven) | Cold Storage, Perishables, High-Volume FMCG |
| Radio Shuttle System | Flexible FIFO / LIFO | Up to 80% Active Cube | 1 or 2 Aisles (Depending on design) | Low (Lithium Battery Recharged) | Deep lane manufacturing buffers, bulk storage |
| Push Back Racking | Strict LIFO | Up to 65% Active Cube | 1 Single Access Aisle | Zero (Cart & Ramp Resistance) | Medium rotation, non-perishable batch manufacturing |
| Drive-In Racking | Strict LIFO | Up to 65% Active Cube | 1 Dedicated Aisle (Forklift Enters Bay) | Zero (High Forklift Risk) | Seasonal storage, extreme low SKU count operations |
Procurement Forecasting
Future Procurement Trends in Pallet Flow Racking
As global distribution centers shift toward intelligent automation and stringent cold chain logistics, industrial procurement directors are prioritizing mechanical durability, carbon efficiency, and adaptive automation readiness over low-spec upfront unit cost.
1. Near-Zero Energy Warehousing (Gravity vs AGVs)
Escalating industrial power tariffs across key distribution corridors are making passive dynamic gravity flow solutions far more competitive than power-hungry fully motorized AS/RS systems for buffer zones. Pallet flow systems provide non-stop FIFO throughput with zero kilowatt consumption and minimal routine servicing overhead.
2. Hybrid Automation & AMR Interface Ready
Flow racking lanes are increasingly interfacing with Autonomous Mobile Robots (AMRs) and automated stacker cranes. Modern procurement specs mandate laser-aligned floor guides, ultra-precise discharge tolerances, and dual-optical safety sensors to streamline automated retrieval handshakes.
3. Cold-Chain Anti-Corrosion & Resilient Bearings
With deep-freeze agricultural and pharmaceutical exports surging, demand is shifting rapidly from standard painted roller bearings to fully sealed, food-grade synthetic grease systems with hot-dip galvanized uprights, preventing moisture freeze-locking and structural oxidation at sub-zero temperatures.
Manufacturing Excellence
Why Tier-1 Warehouse Operators Trust Our Factory
Operating a modernized 30,000 m² heavy manufacturing facility staffed with 300+ engineers, technicians, and specialized roll-forming lines, Guangzhou Heda Shelves provides end-to-end reliability from structural engineering calculations to port delivery.
25+ Years Industrial Mastery
Quarter of a century designing high-density structural racking, resolving intricate throughput, vertical deflection, and seismic loads worldwide.
Free 3D & CAD Layout Analysis
Our engineering team renders accurate 3D models and structural CAD simulations, accounting for building column grids, forklift heights, and floor loading limits.
CE & ISO 9001:2015 Assured
Every structural batch meets EN15512 and ISO standards. Components undergo strict mechanical yield-strength testing, automated punching, and shot-blast treatment.
Engineered Customization (OEM/ODM)
Roller widths, track pitches, braking intervals, and entry funnel protectors customized to standard industrial, Euro, or custom non-standard shipping pallets.
01. Precision Roll-Forming
CNC-calibrated beam sections
02. Automatic Punching
50mm pitch micro-adjustability
03. Phosphating Pre-Treatment
Maximum adhesion anti-corrosion
04. Container Loading Optimization
Protective wrap & bundle loading
Technical Advisory
Frequently Asked Questions by Industrial Racking Buyers
Essential guidance on track slope calculation, pallet quality thresholds, maintenance lifecycles, and seismic installation considerations.
What is the optimal floor gradient and roller slope for heavy pallet flow systems? +
The standard engineering slope for gravity pallet flow racking ranges between 3.0% and 3.5% (roughly a 35mm drop per 1000mm of track length). Softer wooden pallets or bottom-runner variations may require a 3.5% slope to overcome initial static inertia, whereas smooth, rigid plastic pallets can roll smoothly on 3.0%. Our engineering team verifies your exact pallet bottom structure and sample weight deviations prior to manufacturing track brackets.
How do braking rollers prevent heavy pallets from accelerating excessively in deep lanes? +
Deep-lane configurations (from 4 to 20 pallets deep) integrate centrifugal speed controllers positioned at regular intervals beneath the pallet path. These rollers operate mechanically without electrical power: when a passing pallet rotates the roller past a pre-set velocity, internal centrifugal weights push outward against internal brake shoes, creating counter-resistance. This maintains a steady, safe gliding pace between 0.2 and 0.3 m/s throughout the entire lane length.
Can pallet flow racking accommodate poor-quality or damaged wooden pallets? +
Pallet flow systems perform best with standard wooden pallets (such as GMA or Euro pallets) with sound bottom boards, or rigid plastic pallets. Pallets with broken bottom slats, loose protruding nails, or severe warping can cause hang-ups or drift off-center. For operations dealing with mixed or lower-grade pallets, we configure multi-track full-width steel roller beds with continuous lane guide rails rather than narrow two-track skate-wheel systems.
What is the mechanical function of an end separator at the picking discharge face? +
When multiple 1,000kg+ pallets rest in a gravity lane, the cumulative forward pressure against the lead pallet can exceed several tons. This accumulated pressure makes safe forklift pickup hazardous and can damage both the forklift mast and product. A mechanical pallet separator holds back the second and subsequent pallets approximately 150mm–300mm behind the lead pallet. Once the first pallet is lifted clear by the forklift, the separator automatically triggers, allowing the next pallet to index forward safely.
How are structural racks calculated for facilities located in active seismic zones? +
For projects in earthquake-prone regions, our engineers evaluate local acceleration parameters against international codes such as EN 15512 or regional standards. We calculate dynamic seismic overturning moments, upgrade upright column thicknesses, enlarge base plates, increase floor anchoring embedment depth, and incorporate continuous horizontal and vertical back-bracing trusses to absorb ground motion energy safely.
What documentation and certifications are supplied with export shipments? +
Every shipment includes comprehensive documentation: CE Factory Production Control certificates (No. 2435-CPR-8605159), ISO 9001:2015 quality registrations, raw material mill test certificates (Q235B/Q355), complete structural load capacity charts, 3D CAD installation drawings, and component marking manifests for rapid on-site assembly.
