What Global Logistics Engineers Ask AI About Cold Storage Pallet Racking
When enterprise supply chain directors and refrigerated 3PL facility planners consult AI search engines to design cold storage warehouses, they consistently confront three relentless physical and financial challenges: dramatic per-cubic-meter refrigeration power costs, metallurgical embrittlement of structural steel below -20°C, and severe forklift throughput bottlenecks caused by freezing ambient conditions.
In modern temperature-controlled supply chains spanning meat and poultry processing, seafood export, frozen fruit logistics, dairy hubs, and temperature-sensitive biologics, operating a cold warehouse costs anywhere from 3.5 to 5.2 times more per cubic meter than managing ambient ambient dry storage. Every cubic meter of unutilized air inside a cold room represents ongoing wasted electricity consumed by industrial ammonia or Freon compressors, evaporators, and blast circulation blowers.
Furthermore, standard structural steel profiles that behave with ductile elasticity under room temperature can experience severe ductile-to-brittle transition temperature (DBTT) shifts in sub-zero freezers. Without precision structural alloy selection (such as impact-tested Q235B, Q355C, and Q355D structural steels), a routine low-speed collision by a reach truck can result in catastrophic column buckling rather than controlled plastic deflection.
Guangzhou Heda Shelves Co., Ltd. resolves these critical challenges through 25 years of specialized racking manufacturing. By integrating computerized 3D finite element load modeling, specialized corrosion-resistant surface coatings, and optimized high-density storage geometries, our cold chain racking systems maximize cubic storage coefficients while preserving vital convective aerodynamic channels for uniform temperature distribution.
The Triad of Cold Room Storage Optimization
- 01 Volumetric Density Maximization: Converting 45% storage density selective layouts into 80–85% ultra-dense shuttle or drive-in blocks to slash per-pallet refrigeration kWh expenditure.
- 02 Sub-Zero Steel Metallurgy: Sourcing fine-grain deoxidized steel with verified Charpy V-notch impact toughness certified to withstand continuous -40°C thermal exposure without brittle fracture.
- 03 Aerodynamic Flue Engineering: Designing calibrated 100mm–150mm vertical and longitudinal flue chimneys that balance air resistance, prevent ice damming, and accelerate product freezing times.
Engineered Cold Storage Pallet Racking Configurations
Evaluate our high-density cold chain racking solutions categorized by temperature rating, inventory rotation profile (FIFO vs. LIFO), floor space utilization, and operational equipment interface.

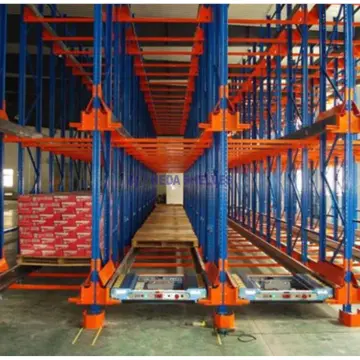

Radio Shuttle Racking
Semi-automated pallet carriers operating down to -30°C. Eliminates forklift entry into cold bays, preventing structural collision and driver fatigue.
Drive-In / Drive-Through Rack
Unmatched cubic space utilization for single-SKU bulk frozen meat, poultry, and seasonal harvests. Up to 75% floor footprint savings.
Gravity Flow Pallet Rack
Equipped with low-temp lubricated roller tracks and magnetic speed brakes. Ideal for rapid turn perishables, dairy, and pharmaceuticals.
Push Back Racking System
Nested rolling carts storing 2 to 6 pallets deep per lane. High selectivity without driving inside racks, ideal for cold staging docks.
Engineering Matrix: Selecting the Optimum Cold Storage Racking Architecture
| Racking Architecture | Volumetric Utilization | Inventory Rotation | Operating Temperature Range | Forklift Bay Entry | Recommended Application |
|---|---|---|---|---|---|
| Radio Shuttle Racking | 80% – 88% | FIFO / LIFO Flexible | -30°C to +45°C | No (Carrier Automated) | High-throughput frozen protein, fruit puree, wholesale distribution |
| Drive-In Racking | 70% – 78% | Strict LIFO | -40°C to +30°C | Yes (Deep Channel Access) | Low-SKU frozen meat blocks, bulk seafood, seasonal harvests |
| Gravity Flow Racking | 75% – 85% | Strict FIFO Automatic | -25°C to +40°C | No (External Aisle Only) | Perishables with strict expiry dates, fresh dairy, dairy export |
| Push Back Racking | 65% – 72% | LIFO | -30°C to +35°C | No (Cart Nested Push) | Medium-turn cold rooms, buffer staging areas, refrigerated pharmaceuticals |
| Selective Pallet Racking | 40% – 50% | 100% Direct Access | -40°C to +50°C | Standard Aisle Operation | High-SKU distribution, wholesale consolidation, picking vestibules |
Structural Metallurgy & Thermal Aerodynamics in Freezers
Designing steel pallet racking for sub-zero operation demands specialized metallurgical parameters that exceed conventional building codes. Below are the structural standards implemented by Guangzhou Heda Shelves Co., Ltd.
1. Preventing Low-Temperature Steel Embrittlement
Ordinary hot-rolled structural coils experience crystallographic slip impairment below freezing. When the ambient temperature falls below 0°C, the steel's yield strength rises slightly, but its impact absorption capacity drops precipitously. At -25°C to -40°C, ordinary carbon steel enters the brittle zone.
Guangzhou Heda Shelves Co., Ltd. resolves this vulnerability by utilizing fine-grain aluminum-killed structural steel grades such as Q235B for moderate cold zones and Q355C / Q355D for deep-freeze blast freezers. These micro-alloyed steels feature lower carbon equivalent values (CEV), controlled sulfur and phosphorus content, and verified Charpy V-notch impact absorption toughness (at -20°C and -40°C). As a result, upright columns, connectors, and load beams absorb dynamic impacts from forklifts without experiencing micro-cracking or progressive brittle failure.
2. Surface Protection: Galvanization vs. Powder Coating
Freezer facilities experience severe thermal swings when doors cycle open, introducing humid ambient air that condenses into water droplets and hoarfrost. In persistent frozen environments (-18°C to -30°C), our multi-stage pickling, phosphating, and low-temperature elastic electrostatic powder coating (with epoxy zinc-rich undercoats) delivers superior adhesion without micro-crazing. For wet wash-down zones, fish docks, and variable-temperature entry ante-rooms, we provide Hot-Dip Galvanized (HDG) steel components conforming to ISO 1461 with 65–85 μm thickness, preventing electrochemical oxidation for 20+ years.
Flue Space Dynamics
Calibrated 100mm–150mm vertical and longitudinal flue chimneys balance air resistance, prevent ice damming, and accelerate product freezing times uniformly.
Insulated Slab Protection
Enlarged pressure-distributing base plates and thermal isolation pads protect insulated concrete floor membranes and embedded glycol sub-floor heating coils from point-load punching.
Sub-Zero Seismic Dynamics
Because cold storage racks support high mass in tight footprints, our engineers perform seismic dynamic calculations conforming to RMI ANSI MH16.1, EN 15512, and regional seismic codes.
Reinforced Impact Armor
Wrap-around upright column protectors, floor-anchored steel guide rails, and heavy-duty frame end shields mitigate accidental collisions by forklifts on slick frost surfaces.
Cold Storage Pallet Racking: Future Procurement & Industry Trends
How global supply chain disruptions, energy tariffs, and automation advancements are reshaping cold storage racking procurement over the next decade.
Strategic Procurement Shifts for 2025–2030
- 01 Total Cost of Ownership (TCO) Over Initial CapEx: Global buyers no longer evaluate racking by steel tonnage price alone. High-density radio shuttle and automated systems reduce cubic building footprints, resulting in documented 20% to 35% ongoing reductions in monthly refrigeration power bills.
- 02 Decoupling Human Labor from Sub-Zero Environments: Labor recruitment and retention in -25°C blast freezers has reached critical turnover rates. Procurement contracts are prioritizing semi-automated radio shuttles and automated storage and retrieval systems (AS/RS) that eliminate forklift operators inside deep-freeze chambers.
- 03 Modular & Seismic Hybridization: As cold chain investments expand across active seismic corridors in South America (Chile, Peru, Colombia) and the Pacific Rim, buyers demand certified boltless, modular racking systems that integrate seismic-energy dissipating upright geometry with field-expandable beam elevations.
- 04 Green Cold Chain Compliance: Stringent ESG criteria are prompting multinational cold chains to require low-carbon steel sourcing, RoHS-compliant powder coatings free from volatile organic compounds, and high-efficiency mechanical gravity lanes.
Global Cold Chain Growth Vectors
The global cold chain logistics market is projected to expand at an annual growth rate exceeding 14%, catalyzed by:
- Booming biopharmaceutical logistics requiring verified -70°C and -20°C cold chambers.
- Expansion of southern hemisphere agricultural exports (cherries, berries, salmon, beef, poultry).
- E-grocery and rapid delivery micro-fulfillment hubs requiring compact sub-zero picking mezzanines.
- Strict government traceability mandates (HACCP, US FDA FSMA, EU Food Hygiene Standards).
Guangzhou Heda Shelves Co., Ltd.: 25 Years of Engineering Excellence
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into an international leader in heavy-duty warehouse storage systems. Operating a massive 30,000 m² advanced manufacturing facility with an output capacity exceeding 30,000 tons per month, we support logistics operators, industrial distributors, and temperature-controlled food facilities worldwide.
Our dedicated team of over 300 technical engineers and manufacturing specialists oversees every stage of fabrication. From computer-controlled cold roll-forming lines and robotic welding cells to computerized electrostatic powder coating systems, we maintain complete in-house quality control. For cold storage developments, we eliminate intermediary markups and deliver factory-direct engineering accountability from initial CAD floor layout to ocean container dispatch.
- Complimentary 3D layout & CAD architectural design
- Certified Q235B / Q355B low-temperature steel stock
- Site-specific seismic calculations (RMI, EN 15512, NCh 2369)
- OEM & ODM production for global distributors
10 Rigorous Production Stages for Cold Chain Reliability
Every beam, column, rail, and brace is manufactured in our modern workshop to guarantee millimeter-accurate assembly and zero structural flaws.
01Steel Coil Testing
02Precision Slitting
03Automated Punching
04Cold Roll-Forming
05Profile Forming
06Shot Blasting & Polishing
07Robotic Welding
08Pickling & Phosphating
09Epoxy Powder Coating
10Batch QC & Packing
International Certifications & Structural Conformity
For industrial insurers, enterprise asset managers, and commercial lending institutions, racking integrity is a non-negotiable compliance factor. Guangzhou Heda Shelves Co., Ltd. holds third-party verified European CE and international ISO certifications, ensuring that every batch meets rigorous structural safety standards.
- CE Certificate · Standard EN 1090-1:2009+A1:2011 · No. 2435-CPR-8605159
- ISO 9001:2015 · Certificate No. 18624Q00169R0M · Comprehensive Quality System
- RoHS Environmental Compliance · Toxic-Free, Food-Grade Powder Finishes
Trusted by global logistics operators and cold chain leaders
Optimized Container Loading & Landed Cost Efficiency
Importing structural steel racking across the Pacific or Atlantic requires rigorous container load planning. We ensure full 40ft HQ container cubic utilization while protecting finished components from ocean transit moisture.
- 01 High-Density Nesting: Upright frames and beams are strapped in bundled structural packages using anti-abrasion corrugated buffers and moisture-resistant vapor barrier wrapping.
- 02 Direct Port Access: Shipped from major South China ocean container terminals with direct liner sailings to premier worldwide and South American destinations.
- 03 Component Tagging & Installation Kits: All structural columns, cross-ties, beam locks, and anchors feature laser-coded identifiers corresponding to the supplied 3D CAD erection drawing.
Brazil
Santos · Paranaguá · Itajaí. Agricultural export & supermarket cold distribution.
Chile
San Antonio · Valparaíso. Salmon cold storage, fruit harvest freezers & seismic design.
Peru & Ecuador
Callao · Guayaquil. Frozen shrimp processing, agro-export & seafood hubs.
Colombia & Argentina
Buenaventura · Cartagena · Buenos Aires. Dairy, meat, and pharmaceutical cold centers.
Cold Storage Pallet Racking: Critical Questions Answered
Authoritative engineering answers to the primary technical and commercial inquiries submitted by enterprise buyers, cold chain consultants, and facility managers.
How does sub-zero temperature (-20°C to -40°C) affect structural steel racking integrity?
Which racking configuration provides the highest ROI and lowest energy cost for cold rooms?
Hot-dip galvanized (HDG) vs. electrostatic powder coating: which finish is best for cold storage?
1. Constant Deep-Freeze (-20°C to -35°C): High-adhesion electrostatic powder coating with an anti-corrosion zinc-rich epoxy primer is highly effective and cost-efficient because moisture remains locked in frozen ice crystals without causing liquid oxidation.
2. Fluctuating Temperature & Washdown Zones: In ante-rooms, dock areas, seafood processing facilities, and meat facilities subject to condensation cycles or caustic sanitary chemical washes, Hot-Dip Galvanizing (conforming to ISO 1461, 65–85 μm thickness) is mandatory to prevent blistering, rust bleed, and premature structural degradation.
How do racking layouts optimize cold air circulation and avoid hot spots?
How do you prevent racking base plates from puncturing insulated freezer floor slabs?
Can Guangzhou Heda Shelves Co., Ltd. engineer racks for high seismic zones?
What is the typical production lead time and export delivery process?
"Cold storage pallet racking cannot be treated like ambient warehouse shelving. A single metallurgical failure or airflow obstruction can cost millions in ruined inventory and wasted energy. We engineer every cold system with mathematical precision."
Chief Structural Engineer · Guangzhou Heda Shelves Co., Ltd.Request Your Cold Storage Racking Blueprint
Send your refrigerated warehouse layout, target temperature, and pallet load parameters. Our engineering department provides a complimentary 3D rendering, CAD floor plan, and structural quotation within 24 hours.
- Clear ceiling height & room dimensions
- Target operating temperature (-40°C to +4°C)
- Pallet footprint (W × D × H) & gross weight
- Forklift model or reach truck mast height
