Engineered High-Density Racking Inventory for NY Warehouses
Certified heavy-duty storage configurations designed for rapid port dispatch, rigorous seismic parameters, and unmatched volumetric storage optimization.
Heavy Duty Adjustable Double Deep Pallet Rack
- Load: Up to 4,000 kg/level
- Structural Q235B/Q355B Steel
- Reduces aisle footprint by 30%

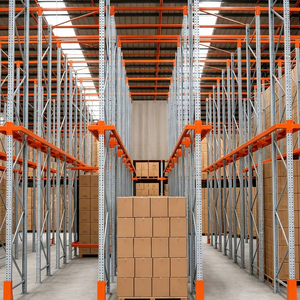

Industrial Heavy Duty Drive-in Rack System
- Continuous rail configuration
- Ideal for cold chain & batch SKU
- Up to 85% area utilization
Selective Pallet & Cantilever Stacking System
- 100% pallet accessibility
- Custom pitch beam adjustment
- RMI MH16.1 compliant safety tabs
Radio Pallet Shuttle Deep Lane Storage System
- Remote controlled cart travel
- Zero forklift entry damage
- Sub-zero freezer room optimized
Prefab Steel Structure Rack-Clad Building
- Integrated structural warehouse
- Custom wind & seismic ratings
- Heavy logistics hub scalability
Adjustable Teardrop & European Pattern Rack
- Multi-gauge upright profiles
- Electrostatic powder finishing
- Seamless boltless assembly
Modular Industrial Storage Pallet Racking
- Standard ANSI/RMI layout match
- Robotic beam bracket welding
- High resistance safety locks

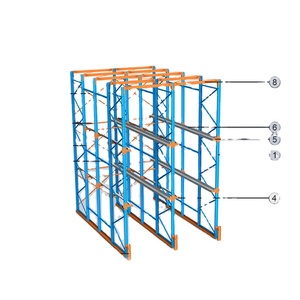

Engineered Drive-In / Drive-Through Steel Rack
- High-yield reinforced arm cantilevers
- Heavy structural column guards
- Tested for -30°C cold storage
Engineering Whitepaper: The Strategic Imperative of Drive-In Racking in the New York Industrial Market
Industrial warehousing real estate throughout the greater New York Metropolitan Area—spanning Queens, the Bronx, Brooklyn, Long Island (Nassau/Suffolk), and key New Jersey gateway submarkets like the Meadowlands and Port Newark—represents some of the highest-cost industrial footprints in North America. With commercial leases frequently commanding between $24 and $42 per square foot NNN, warehouse operators, logistics executives, and cold-chain distributors cannot afford operational models characterized by wide, non-revenue-generating forklift aisles.
A standard selective racking arrangement typically dedicates 60% of floor area to operational access lanes and only 40% to actual inventory containment. In high-density regions governed by aggressive land values and constrained vertical clearances, Drive-In Racking Systems manufactured by HEDA Shelves present an engineered solution. By eliminating traditional operating aisles and establishing deep-lane storage accessed directly via standard counterbalance or reach trucks, Drive-In systems recover up to 80% of unused warehouse cube space while radically diminishing the cost-per-pallet position.
NYC Operational Reality: In multi-tenant urban logistics and older outer-borough industrial masonry structures with clear ceiling heights under 24 feet, traditional racking designs severely underutilize space. Drive-In racking maximizes vertical and horizontal density simultaneously, operating under a Last-In, First-Out (LIFO) or First-In, First-Out (FIFO Drive-Through) logic ideal for high-volume, low-SKU product runs.
RMI MH16.1 & ANSI Certified
Every upright, pallet arm, and guide rail is strictly manufactured according to US Rack Manufacturers Institute (RMI) standards, facilitating rapid approval with New York City Department of Buildings (DOB) plan examiners.
Seismic Zone Calibration
Engineered to meet NYC Seismic Design Categories B & C. Footplates, ground anchors, and top-tier cross-bracing frameworks are custom-calculated to absorb horizontal dynamic loads and seismic shear forces.
NFPA 13 & FDNY Compliance
Drive-in systems feature integrated flue space channels and engineered clearance windows that accommodate New York Fire Department (FDNY) code requirements for in-rack ESFR sprinkler penetration.
Technical Anatomy: Structural Steel Grades & Fabrication Precision
Drive-in racking is subject to continuous operational stress. Unlike selective racking where forklifts remain in the center of broad aisles, Drive-In configurations require material handling vehicles to physically enter the rack structure. This operational dynamic introduces heightened risks of mast collision, floor-rail impact, and eccentric loading on cantilever arms.
To eliminate systemic failures and deliver decades of structural durability, HEDA Shelves utilizes premium high-tensile Q235B and Q355B hot-rolled micro-alloyed carbon steel coil. Our fully automated cold roll-forming lines precision-punch upright posts with teardrop, bullet, or diamond hole patterns at exact 50mm or 75mm increments without creating micro-fissures in the steel structure.
Key Engineering Subsystems of HEDA Drive-In Racks
- Formed Upright Frames: Fabricated with deep omega profiles and multi-bend stiffening ribs, our uprights deliver extraordinary axial load capacities exceeding 45,000 lbs (20,400 kg) per bay. Columns are paired with heavy structural C-channel bracing bolted with grade 8.8 tensile fasteners.
- Structural Cantilever Support Arms: Stamped from 3.0mm to 4.5mm reinforced structural plate steel, our heavy-duty support arms wrap securely around upright profiles, transferring vertical pallet loads directly through axial columns rather than eccentric shear planes.
- High-Rigidity Pallet Rails: Featuring continuous cold-rolled galvanization or tough electrostatic polyester powder-coating, our pallet rails feature a flared front-entry lip that centers pallets entering the lane and prevents snagging.
- Floor Guide Rail & Impact Deflector Arrays: Floor-anchored structural steel angle tracks (typically 100mm x 75mm x 6mm or structural C-channel) act as both mechanical steering guides for forklift operators and sacrificial impact deflectors protecting main structural columns.
| System Component | HEDA Shelves Engineering Standard | Generic Market Equivalent | NY Metro Operational Benefit |
|---|---|---|---|
| Steel Grade | Certified Q355B / Q235B High Tensile Structural Steel | Recycled scrap blend / Low-yield Q195 | Resists deformation under extreme cyclic dynamic loading |
| Pre-Treatment Process | 10-Stage Automated Pickling & Phosphating Wash | Basic manual solvent spray | 100% rust prevention in high-humidity/coastal Atlantic marine air |
| Surface Coating | Electrostatic Powder-Coat (60–90µm) or Hot-Dip Galvanized | Air-dried alkyd paint (<35µm) | Resists sub-zero peeling down to -30°C in food-freezer hubs |
| Upright Profile | Multi-Flanged Omega Section with return stiffeners | Single-bend C-section without stiffeners | Superior torsional rigidity against inadvertent forklift contact |
| Anchoring Hardware | Grade 8.8 Structural Wedge Anchors (Seismic Rated) | Standard commercial drop-in sleeves | Meets NYC Department of Buildings Chapter 17 Special Inspection |
Localized Application Scenarios: Where Drive-In Racks Excel in New York
New York's commercial supply ecosystem is remarkably diverse, operating under extreme density demands, strict urban zoning regulations, and intensive inventory velocities. HEDA Shelves engineers custom Drive-In and Drive-Through systems tailored to distinct sub-regional logistics clusters:
Hunts Point Terminal & Food Distribution Hubs
In the Bronx wholesale produce, meat, and seafood markets, cold-room refrigeration costs are extraordinarily high. Drive-In racking maximizes chilled cubic storage volume by 80%, providing high-density LIFO holding lanes for single-variety produce and bulk poultry crates without wasted aisle cooling.
JFK Airport Cargo & Bonded Logistics Facilities
Freight forwarders along Rockaway Boulevard handle massive seasonal surges of identical air-freight skids. Drive-In setups allow bonded logistics warehouses to stage uniform palletized cargo up to 6 pallets deep and 5 levels high, dramatically multiplying throughput per square yard.
New Jersey Gateway & Port Newark Intermodal Yards
Large third-party logistics (3PL) distribution centers serving metro New York import consumer products, beverages, and industrial building supplies through Maher and PNCT terminals. Drive-In and Drive-Through systems support high-efficiency cross-docking operations and continuous container de-vanning.
Comparative Analysis: Drive-In vs. Alternative High-Density Systems
Selecting the optimal storage framework requires balancing initial capital expenditure, inventory selectivity, cycle speed, and operational footprint. The comparative matrix below illustrates how Drive-In racking stacks up against other high-density configurations across real-world New York warehouse deployments:
| Storage System Type | Floor Space Utilization | Inventory Rotation | Capital Cost Index | Ideal NYC Industry Match |
|---|---|---|---|---|
| Drive-In Racking (HEDA) | 75% – 85% | LIFO (Last-In, First-Out) | $$ (Cost Efficient) | Cold storage, beverage bottling, bulk single-SKU goods |
| Drive-Through Racking | 70% – 80% | FIFO (First-In, First-Out) | $$+ (Moderate) | Perishable foods, pharmaceutical raw stock, chemicals |
| Selective Pallet Racking | 35% – 45% | 100% Immediate Selectivity | $ (Baseline Low) | Multi-SKU e-commerce retail, parcel sorting, spare parts |
| Radio Shuttle System | 80% – 90% | FIFO or LIFO Automated | $$$$ (High Automation) | High-throughput mega-distribution centers, automated freezers |
| Push-Back Racking | 65% – 75% | LIFO (Cart Assisted) | $$$ (Mechanical Carts) | Medium turnover warehouses with 2–5 pallets per SKU |
Factory Direct Advantage: Guangzhou HEDA Shelves Co., Ltd.
Founded in 2001, Guangzhou HEDA Shelves Co., Ltd. has grown into an international leader in heavy-duty logistics storage design, fabrication, and structural engineering. Our manufacturing facility spans over 30,000 square meters, supported by more than 300 experienced engineers, structural technicians, and skilled fabrication specialists. Operating under an accredited ISO 9001:2015 quality management system and holding European CE Certification (No. 2435-CPR-8605159), HEDA manufactures with verified precision.
Factory Direct Truth: By eliminating intermediaries, domestic rack resellers, and trading brokers, New York warehouse owners work directly with our engineering department. You receive millimeter-accurate structural calculations, free 3D CAD facility layouts, fully customized column gauges, and containerized factory pricing that reduces total landed capital costs by 30% to 50%.
30,000 Tons Monthly Output
Equipped with state-of-the-art automated roll-forming machines, robotic laser cutting lines, and high-precision CNC punch presses, our facility fulfills multi-container commercial orders in 2 to 4 weeks with zero backlog delays.
Rigorous 10-Stage Quality Control
Every production batch undergoes destructive tensile stress checks, weld seam non-destructive testing (NDT), coating adhesion cross-hatch inspections, and container load balancing tests before departure.
Bilingual Engineering Support
Our dedicated North American project desk communicates in fluent English, providing real-time engineering submittals, PE stamp calculation coordination, component mark sheets, and remote installation guidance.
Frequently Asked Questions: Sourcing Drive-In Racks for the New York Market
Navigating cross-border procurement requires comprehensive clarity regarding structural engineering codes, municipal permits, ocean transit logistics, and assembly safety. Here are detailed answers addressing common concerns raised by New York warehouse managers, structural engineers, and corporate procurement directors.
How does HEDA Shelves ensure compliance with the New York City Building Code and RMI MH16.1? +
What are the fire safety and in-rack sprinkler requirements under FDNY and NFPA 13? +
What is the standard transit and customs clearance timeline from China to the Port of NY/NJ? +
How are fragile powder-coat finishes protected against corrosion during ocean transit? +
Can Drive-In racking systems be reconfigured or expanded as our inventory needs grow? +
What forklift equipment is required for safe operation inside Drive-In rack lanes? +
How does HEDA assist with on-site assembly and installation in the NY Tri-State area? +
Ready to Engineer Your High-Density New York Warehouse?
Connect with our technical engineering team today. Submit your warehouse floor plan, ceiling clear heights, and pallet specifications to receive a complimentary 3D CAD design layout, capacity analysis, and direct-factory price estimate within 24 hours.
