High-Efficiency Pallet Racking & Industrial Storage for Spain
Engineered to handle Standard Europallets (EUR 1: 1200×800mm) and Industrial Pallets (1200×1000mm). Every system is fabricated from high-grade structural Q235B/Q355B steel, backed by European static load calculations.
Custom Commercial Stack Metal Pallet Racking Fabric Roll Stacking Shelves
Industrial Heavy Duty Pallet Racking System Q235B Steel for Logistics

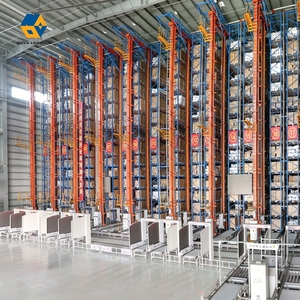

Modular ASRS Shelving Unit for Small to Medium Warehouses
Warehouse Steel Platform Mezzanine Floor Pallet Racking Shelves

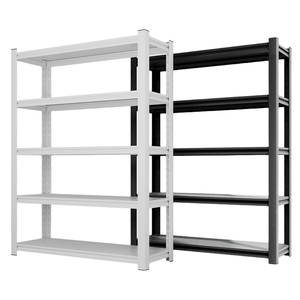

Boltless Steel Storage Rack Slotted Angle Frame 100kg Capacity
Intelligent Heavy Load Pallet Shuttle Automated Racking System
Electric Mobile Shelving Customized Sliding Roller Shelf System
Steel Mezzanine Floor Heavy Duty Warehouse Storage Racking
Macro Trends Reshaping Spanish Logistics & Intralogistics
Spain has solidified its status as Southern Europe's primary multimodal logistics platform. Driven by e-commerce expansion in Madrid's prime rings and agrifood distribution in Andalusia and the Mediterranean Arc, warehouse racking demands have evolved rapidly.
Corredor del Henares & Central Node Demand
Industrial land scarcity in the first and second rings of Madrid (Coslada, San Fernando de Henares, Illescas) has pushed developers toward high-bay installations exceeding 12 to 15 meters clear height. Standard racking is being replaced by Narrow Aisle (VNA) and automated radio shuttle configurations to maximize volumetric cubic efficiency (m³) rather than mere floor square footage.
PLAZA Zaragoza & Rail-Connected Megahubs
As Europe's largest rail-air-road logistics platform, PLAZA (Plataforma Logística de Zaragoza) demands heavy-duty drive-in and multi-tier picking structures capable of supporting rapid rail-to-road transshipment. Racking installations must demonstrate extreme cyclic fatigue resistance to withstand rigorous 24/7 cross-docking operations and high fork-truck traffic.
Cold Chain Decarbonization in the Mediterranean Arc
Valencia, Murcia, and Almería serve as the agricultural pantry for the entire European Union. Refrigerated and deep-freeze logistics facilities face escalating electricity tariffs. Pallet shuttle systems engineered by HEDA reduce cold room volume loss by up to 50%, directly cutting refrigeration power consumption while complying with strict IFS and BRCGS cleanroom storage criteria.
Full Compliance with UNE-EN Standards & Spain's CTE Code
Importing storage equipment into the Iberian peninsula requires strict adherence to European standards. We provide complete finite element analysis (FEA) and structural calculation dossiers for municipal building licensing across Spain's autonomous communities.
| Regulatory Standard | Technical Scope | HEDA Shelves Engineering Implementation | Audit & Inspection Readiness |
|---|---|---|---|
| UNE-EN 15512:2020 | Steel static storage systems: Adjustable pallet racking principles for structural design | Limit state design, global frame imperfection analysis, beam connector shear tests validated by certified third-party testing labs. | CE Compliant Dossier |
| UNE-EN 15620 | Tolerances, deformations, and operational safety clearances | Precision cold-rolled profiles guaranteeing beam deflection below 1/200th of span under maximum working load (SWL). | EN 15620 Class 300/400 |
| UNE-EN 15635 | Application, operation, and maintenance of storage equipment | Standardized Spanish-language visual load plaques (Placas de Características), load limit graphics, and corner frame protectors. | ITE Compliance Ready |
| CTE DB-SE-A & NCSE-02 | Spanish Technical Building Code (Steel Structural Safety) & Seismic Normative | Site-specific seismic calculations for seismic-prone zones in Granada, Alicante, and Pyrenean regions; customized baseplates and bracing. | Municipal Permit Ready |
| ISO 12944 Surface Finish | Corrosion protection by protective paint systems | Non-toxic polyester electrostatic thermoset powder coating (60–80 μm) cured at 180°C; optional pre-galvanized / hot-dip galvanized for maritime ports. | 500-Hr Salt Spray Tested |
Tailored Racking Solutions for Spain's Regional Economies
Every industrial basin in Spain operates under unique logistical constraints. HEDA designs systems that fit the load profiles, rotation speeds, and building structures characteristic of each Autonomous Community.
Automotive Tier-1 & Tier-2 Buffering
Supporting parts suppliers for SEAT (Martorell), Mercedes-Benz (Vitoria), and regional stamping plants. Heavy-duty pallet racking integrated with custom coil holders, tire stillages, and heavy cantilever systems for body panels and structural metal profiles.
Fresh Produce & Deep-Freeze Storage
Automated shuttle racking operating down to -28°C across Almería, Huelva, and Valencia. Enables high-turnover FIFO handling for seasonal berries, citrus, and table vegetables, preventing product crushing and maximizing cold bay refrigeration efficiency.
Textile, Apparel & Omnichannel E-Com
Multi-tier rack-supported mezzanine floors built for rapid manual and semi-automated picking. Serving fast-fashion supply chains and third-party logistics (3PL) operators requiring dense SKU separation and integrated garment-on-hanger (GOH) lanes.
Ceramics, Tiles & Construction Supplies
Engineered for high floor point loads and extreme pallet weights (1,500 to 2,000 kg per pallet). Reinforced upright profiles (up to 120mm face width) with welded footplates and heavy-duty box beams engineered specifically for ceramic tile stacks and building materials.
Why Spanish Importers and Integrators Partner with HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. is a premier manufacturing enterprise with a modern 30,000 m² production base. We eliminate trading intermediaries, offering Spanish contractors, logistics operators, and rack distributors direct-from-mill pricing, stringent ISO 9001:2015 quality control, and full engineering accountability.
10-Step In-House Manufacturing Quality Control
Total vertical integration ensures dimensional tolerances within ±0.5mm, clean weld penetration, and uniform powder coat adhesion tested against European durability benchmarks.
Raw Materials
Certified Baosteel Q235B/Q355B coils with Mill Test Reports.
Steel Slitting
High-speed slitting lines for exact profile strip tolerances.
CNC Punching
Multi-station automated upright hole pattern punching (50mm / 75mm pitch).
Cold Roll Forming
Continuous roll forming mills shaping uprights and box beams.
Beam Interlock
Precision stepped box-beam seam roll forming for high torsional stiffness.
Robotic Welding
Automated MIG/MAG welding of beam connector claws and footplates.
Surface Polishing
Shot-blasting and mechanical scale removal for clean steel substrate.
Pickling & Phosphating
4-stage chemical pre-treatment for superior anti-corrosion bonding.
Powder Coating
Automated electrostatic spray booths with thermoset resin baking at 180°C.
Packaging & Load
Steel-strapped bundle wrapping, nested beam stacking, container optimization.
Ocean Freight Routes & Customs Clearance to Spanish Ports
HEDA Shelves maintains regular container shipping lanes direct from South China ports (Nansha, Yantian, Chiwan) to Spain's primary maritime container hubs: Valencia (No. 1 container gate in the Mediterranean), Barcelona (ZAL Port), Algeciras, and Bilbao. Typical ocean transit is 28–34 days. Our dedicated export logistics team issues comprehensive documentation including the Commercial Invoice, Packing List with individual bundle dimensions and piece counts, Bill of Lading, Certificate of Origin, and complete TARIC HS Code documentation (7308.90.98 for other structures and parts of structures of iron/steel) ensuring frictionless DUA clearance with Spanish Agència Tributària customs authorities.
Frequently Asked Questions by Spanish Racking Buyers
Comprehensive answers addressing regulatory compliance, container packing logistics, seismic engineering, and distributor OEM partnerships.
Are HEDA racking systems certified for the Spanish ITE (Inspección Técnica de Estanterías)?
Yes. Our pallet racking systems are engineered in strict alignment with UNE-EN 15512:2020 and UNE-EN 15635 standards. We provide complete load capacity calculations, structural design dossiers, and load warning notices (Placas de Carga). This documentation allows local Spanish racking inspection bodies (entidades de inspección de estanterías) to easily validate and approve your installation during mandatory annual ITE audits.
Can you provide seismic calculations according to the Spanish NCSE-02 code?
Yes. For projects located in seismic hazard regions of Spain—such as the province of Granada, the Betic mountain ranges, Alicante, Murcia, or the Pyrenean border—our structural engineering department factors your exact ground acceleration (aceleración sísmica básica ab) into the structural frame calculation. We upgrade upright wall thickness, footplate anchor bolts, and horizontal/vertical bracing layouts accordingly.
How are components packaged to prevent damage during ocean transit to Spain?
Structural uprights are bundled with protective corrugated paper cushioning and heavy-duty steel bands. Box beams are packed in high-density nested formations using timber dunnage spacers to eliminate metal-on-metal friction. All fasteners, baseplates, and hardware are crated in seaworthy wooden cases with moisture-absorbent desiccant packs to prevent coastal humidity condensation.
Do you support OEM manufacturing for established Spanish racking distributors?
Absolutely. A significant volume of our production consists of OEM and white-label manufacturing for racking installers, logistics engineering firms, and storage equipment distributors across Europe. We can match your custom hole punch profiles, corporate RAL powder coat colors (e.g., RAL 5010 Gentian Blue, RAL 2004 Pure Orange), and private label stamping.
What is the standard production lead time and minimum order quantity (MOQ)?
Our monthly output of 30,000 tons allows standard pallet racking projects (1 to 5 full 40ft HQ containers) to be fabricated and surface-coated within 15 to 25 business days following CAD drawing sign-off. While our typical MOQ is one 20ft or 40ft container load to optimize landed ocean freight costs, we accommodate phased project schedules for large multi-tier mezzanine builds.
How does HEDA support assembly and installation across Spain?
Every project shipment is accompanied by detailed CAD assembly drawings, component tag numbering maps, and bilingual installation manuals. Our project engineers are available for live video conference walkthroughs to assist your local installation crew. On major high-bay or mezzanine installations, we can dispatch on-site technical supervision upon request.
Request Your Custom Warehouse Layout & Landed Cost Estimate for Spain
Send your warehouse architectural plans or DWG files. Our engineering department will generate a compliant 3D layout, pallet capacity optimization study, and complete FOB/CIF quotation within 24 business hours.
