Featured Industrial & FIFO Pallet Racking Systems
Precision-manufactured high-density storage solutions optimized for containerized sea freight to Porto de Santos, Paranaguá, and Itajaí. Designed to deliver strict First-In, First-Out (FIFO) stock rotation, minimize forklift travel distances, and eliminate operational bottlenecks.
FIFO Pallet Racking Mechanics: Gravity Flow, Radio Shuttle & PBR Standardization
A structural analysis of First-In, First-Out (FIFO) material handling systems for Brazilian distribution networks, refrigerated cold-store operations, and fast-moving consumer goods (FMCG) distribution hubs.
In modern high-velocity distribution centers throughout São Paulo, Minas Gerais, and Santa Catarina, managing perishable inventory, regulated pharmaceuticals, and time-sensitive food commodities requires an uncompromised First-In, First-Out (FIFO) stock rotation strategy. Unlike traditional Selective Racking or Drive-In (LIFO) configurations that frequently trigger inventory obsolescence, wasted footprint, and forklift collisions within storage tunnels, custom-engineered FIFO Pallet Racking guarantees seamless throughput, automated stock indexing, and maximum volumetric occupancy.
As an OEM/ODM manufacturing factory exporting specialized storage frameworks directly from our 30,000 m² production facility, Guangzhou Heda Shelves Co., Ltd. builds racking profiles tailored specifically to the structural dynamics of Brazilian PBR pallets (Padrão Brasileiro: 1000 mm × 1200 mm × 145 mm). Achieving flawless gravity conveyance or semi-automated shuttle transfers on PBR pallets demands precise engineering tolerances that generic racking manufacturers fail to provide.
“Engineering FIFO storage for the Brazilian industrial sector requires overcoming three critical constraints: non-negotiable compliance with ABNT NBR 15524 cold-formed steel standards, dynamic roller incline stabilization for heavy bottom-board PBR pallets up to 1,200 kg, and high-performance corrosion protection designed for coastal logistics corridors such as Santos, Paranaguá, and Suape.”
1. Dynamic Pallet Flow (Gravity Live Racking)
Utilizes precision-pitched cylindrical roller beds mounted at an engineered gradient of 3.0% to 3.5%. Pallets are loaded from the rear loading aisle and glide smoothly under controlled gravity toward the extraction face.
- Separation Dampeners: Isolates the front discharge pallet from rear pallet pressure for safe picking.
- Centrifugal Brake Rollers: Governs terminal velocity to ≤ 0.25 m/s, preventing impact breakage.
- Strict FIFO Enforcement: Zero risk of expired batches in dairy, beer, juice, and meat packing plants.
2. Semi-Automated Radio Shuttle FIFO
High-density multi-lane channels equipped with continuous cold-formed galvanized rails where battery-powered autonomous carriers position and retrieve pallet loads along deep tunnels (up to 40+ pallets deep).
- Zero In-Rack Forklift Entry: Completely prevents frame impacts and mast collision damage.
- Bilateral FIFO Workflow: Charging on one side, extraction on the opposite side.
- Sub-Zero Battery Pack: High performance down to -30°C in Brazilian frozen protein facilities.

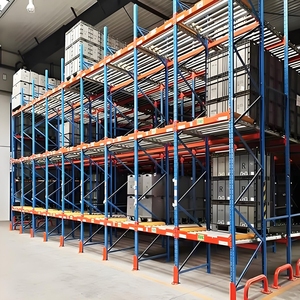

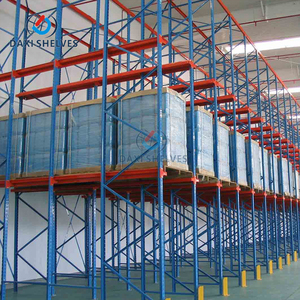

3. Drive-Through Pallet Racking
An accessible continuous-tunnel layout engineered with dual picking and replenishment aisles. Forklift operators traverse into the bay from one side and evacuate from the other, enabling FIFO rotation.
- Economic Capital Investment: Minimal electromechanical moving parts or specialized rollers.
- Floor Guidance Channels: Structural angle guides protect uprights from counterbalanced trucks.
- High SKU Homogeneity: Ideal for single-batch industrial chemicals, agro-fertilizers, and packaging.
A frequent error among international exporters supplying South America is treating the Brazilian PBR pallet identically to European EUR/EPAL (800×1200mm) or North American GMA (40×48 inches). A standard PBR pallet has a nominal bottom perimeter base with 3 runners and 3 perimeter base boards. When loaded on gravity roller tracks, the bottom orientation determines whether rollers engage boards perpendicularly or parallel. HEDA Shelves customizes track roller pitch, roller diameter (50mm, 60mm, or heavy-duty steel tube variants), and guide flange positions specifically for PBR dimensions, ensuring zero skewing, jam-free indexing, and total operational reliability.
| Storage Architecture | Rotation Logic | PBR Space Utilization | Forklift Operating Travel | Max Lane Depth | Recommended Brazilian Industry |
|---|---|---|---|---|---|
| Gravity Pallet Flow Rack | Strict 100% FIFO | 80% – 88% Footprint Utilization | Zero bay entry; aisles separated | 12 – 20 Pallets | Dairy, Fresh Poultry, Craft Beer, Pharma Hubs |
| Radio Shuttle System | FIFO / LIFO Dual | 85% – 92% Highest Density | Staging face only; autonomous drive | 20 – 50 Pallets | Deep Freeze (-25°C), Frozen Protein (JBS/BRF), Agrochemicals |
| Drive-Through Pallet Rack | Batch-Level FIFO | 65% – 75% High Density | Truck enters internal rack channel | 8 – 12 Pallets | Bulk Agribusiness, Animal Feed, Corrugated Packaging |
| Standard Selective Rack | Random FIFO (Manual) | 40% – 45% High Aisles Area | Forklift travels entire warehouse aisle | 1 Pallet Deep | Multi-SKU E-Commerce, Aftermarket Automotive, General 3PL |
Localized Application Scenarios Across Brazil's Economic Corridors
From the high-throughput logistics hubs of Cajamar and Louveira to the agro-export powerhouses of the Central-West and the refrigerated corridors of the South, our custom OEM/ODM racking systems are deployed directly to solve regional industrial constraints.
Cajamar & Campinas FMCG & E-Commerce
High lease rates along the Bandeirantes and Anhanguera highways require maximum vertical clearance (12m to 16m clear height). Our FIFO pallet flow systems maximize picking speed, separating restocking forklifts from picking staff to eliminate pick-face congestion.
Paraná & Santa Catarina Protein Exports
Brazil is the world's leading poultry and beef exporter. Refrigerated logistics facilities near Itajaí and Paranaguá operate at -20°C to -28°C, where energy costs are immense. Our Radio Shuttle FIFO racking packs pallets tightly with zero heat-wasting chimney voids.
Mato Grosso & Goiás Seeds & Crop Inputs
Agrochemical and treated seed distribution hubs face explosive seasonal throughput followed by long storage holding periods. We engineer heavy-duty Drive-Through and Dynamic Live Racks with special polyurethane coatings that resist chemical vapor corrosion.
ABC Paulista & Curitiba Auto Assemblies
Just-in-Time (JIT) and Just-in-Sequence (JIS) sub-assembly components moving to vehicle assembly plants demand rigorous FIFO rotation. Our roller systems feed assembly lines seamlessly, guaranteeing zero production stops caused by misplaced component batches.
Brazilian distribution centers must also navigate complex local taxation structures (such as ICMS interstate adjustments and PIS/COFINS credits) and demanding logistical routes. Racking shipments bound for the industrial interior often endure hundreds of kilometers of road transport on federal highways (BR-116, BR-376, BR-101) after discharge at sea ports. HEDA Shelves enforces high-integrity export bundle strapping, anti-chafing corner armor, moisture-absorbing desiccant packaging, and protective PE film wrapping, guaranteeing that every powder-coated upright and beam arrives in showroom condition, completely free of vibration abrasion, rust, or deformation.
Macro Trends Shaping Brazilian Intralogistics & ABNT Compliance
A detailed look at regulatory compliance under ABNT NBR 15524, cold chain cold-formed steel engineering, and the rapid shift from manual storage toward automated high-density handling.
1. Structural Verification Under ABNT NBR 15524-1 & NBR 15524-2
In Brazil, industrial storage systems must adhere strictly to ABNT NBR 15524 (Sistemas de armazenagem — Estruturas de aço para armazenagem — Parte 1: Terminologia e conceitos; Parte 2: Diretrizes para o cálculo e dimensionamento) along with ABNT NBR 14762 (Dimensionamento de estruturas de aço constituídas por perfis formados a frio). Many imported racking products from substandard manufacturers use under-gauged cold-formed steel profiles with inadequate perforations, resulting in severe torsional buckling under seismic, seismic-adjacent, or accidental forklift impact conditions.
HEDA Shelves engineers racking components using high-tensile hot-rolled steel coils (Q235B and Q355B structural steel, comparable to ASTM A36 and ASTM A572 Grade 50). Upright columns feature an advanced omega multi-bend profile with up to 13 structural folds. This complex cold-formed cross-section radically increases the radius of gyration, elevating compressive and torsional load limits without adding excessive dead weight. All upright-to-beam connection points utilize 4-prong and 5-prong drop-forged connector clips equipped with high-visibility spring safety locking pins, fully satisfying both Brazilian regulatory audits and international insurance requirements.
2. Environmental Durability in Coastal Ports: C3 to C5 Atmospheric Protection
Major warehousing clusters surrounding the Port of Santos, Port of Paranaguá, and Rio de Janeiro face high ambient humidity and marine airborne chlorides. Furthermore, refrigerated distribution centers encounter constant condensation cycles during doorway air exchanges. Under these rigorous environments, conventional paint systems degrade rapidly, triggering blistering, subsurface oxidation, and catastrophic weld-joint fatigue.
HEDA Shelves eliminates this vulnerability through an automated 10-stage surface pre-treatment line:
- High-Pressure Degreasing & Acid Pickling: Strips mill scale, laser slag, and residual fabrication oils from the steel substrate.
- Microcrystalline Zinc Phosphating: Generates a microscopically etched crystal conversion layer that mechanically anchors primer coats.
- Electrostatic Epoxy-Polyester Powder Coating: Cured in convection ovens at 180°C–200°C to create an impact-resistant, uniform film of 70 to 90 microns thickness, compliant with ASTM D3359 cross-hatch adhesion protocols.
- Hot-Dip Galvanizing (HDG) Option: Available for outdoor yards and blast freezers, providing over 600 g/m² of metallurgical zinc protection.
3. Nearshoring, Logistics Outsourcing (3PL), and The Push for Density
As Brazilian retailers expand omnichannel grocery fulfillment and pharmaceutical laboratories establish temperature-controlled supply lines under ANVISA RDC 430/2020 standards, logistics operators cannot afford square-meter sprawl. Industrial land in prime logistics parks now commands record-high lease rates. The industry has decisively shifted from static wide-aisle configurations to semi-automated dynamic FIFO flow systems that double existing pallet positions within the same physical warehouse perimeter.
Why Brazilian Importers & Integrators Partner with HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. is a premier manufacturing factory providing end-to-end OEM and ODM pallet racking solutions backed by rigorous CE, ISO 9001:2015, and global certifications.
Full OEM & ODM Custom Engineering
We tailor beam lengths, column depths, metal thickness (1.5mm to 3.0mm), and pitch perforations (50mm, 75mm, or 76.2mm teardrop/diamond) to match the existing racking systems of regional Brazilian distributors, allowing seamless replacements or turnkey facility expansions.
Free 3D Layout & Structural CAD Verification
Submit your building floor plan, clear eave height, forklift turn radius, and PBR pallet loading parameters. Our structural engineering department delivers comprehensive 3D layout renderings and CAD structural calculation dossiers within 24 to 48 business hours at zero cost.
30,000 Tonnes / Month Production Velocity
Equipped with 12 high-precision automated roll-forming lines, robotic continuous welders, automated CNC stamping turrets, and high-volume powder coating spray tunnels, we manufacture multi-thousand-pallet projects within 2 to 4 weeks after engineering drawing sign-off.
FCL Container Load Optimization
Freight costs from South China to Brazil represent a major component of landed import cost. We use sophisticated 3D container stuffing algorithms that pack beam bundles, nested upright frames, and roller lanes with near 100% volumetric efficiency, drastically slashing landed freight cost per pallet position.
International Quality Standards & Traceability
Our quality control system is certified under ISO 9001:2015 (No. 18624Q00169R0M) and European CE (Certificate No. 2435-CPR-8605159). Mill test certificates (MTC) accompany every batch of prime Q235B/Q355B steel, ensuring complete metallurgical traceability from melt shop to assembly bolt.
Comprehensive Export & Customs Documentation
Our export documentation specialists provide exact commercial invoices, detailed packing lists with component piece numbering, certificates of origin, and proper NCM code classifications (typically 7308.90.10) to facilitate seamless clearance through Brazilian Receita Federal and SISCOMEX systems.
Frequently Asked Questions by Brazilian Importers & Engineers
Authoritative answers on shipping times, Brazilian import regulations, PBR pallet dimensions, structural warranties, and installation logistics across South America.
What are the typical ocean freight transit times to Brazilian ports such as Santos, Paranaguá, and Itajaí?
+
How does HEDA Shelves ensure compatibility with Brazilian Standard PBR Pallets (1000 × 1200 mm)?
+
What is the correct Brazilian Mercosul Common Nomenclature (NCM) tariff code for importing pallet racking?
+
Can your racking structures be certified to ABNT NBR 15524 by a local Brazilian CREA engineer?
+
What anti-corrosion protection is recommended for coastal Brazilian operations like Santos or Rio de Janeiro?
+
How is installation handled across Brazil if components are shipped factory-direct from China?
+
What is the minimum order quantity (MOQ) and standard production lead time?
+
Do you offer OEM color matching and branding for Brazilian racking distributors?
+
Ready to Upgrade Your Brazilian Facility with High-Density FIFO Racking?
Send your warehouse architectural floor plan, ceiling clear height, forklift model, and PBR pallet weight specifications. Our licensed storage engineers will deliver a free 3D simulation rendering, CAD layout, and factory-direct quotation within 24 business hours.
