Engineered Warehouse Storage Portfolio
Featured Industrial Racking Systems for Ethiopian Distribution Centers
Explore our precision-engineered, CE and ISO 9001 certified storage systems. Fabricated at our 30,000 m² smart manufacturing center, each system is engineered to handle heavy payloads, long profile goods, and complex logistics demands across Africa.
Engineering White Paper
Structural Dynamics of Adjustable Cantilever Racking in Heavy-Duty Ethiopian Operations
Cantilever racking represents an indispensable structural solution for items that defy traditional pallet constraints: structural steel sections, PVC conduits, lumber, extrusion bars, and sheet stock. Unlike conventional racking, cantilever frames omit front column barriers to provide an uninterrupted horizontal storage plane.
Roll-Formed vs. Hot-Rolled H-Beam
We engineer both light-to-medium cold roll-formed uprights (Q235B steel) and heavy-duty hot-rolled structural H-beams (Q355B steel). Structural H-beam columns withstand up to 14,000 kg total vertical frame load, delivering optimal impact resistance against heavy forklift maneuvers.
- Hot-rolled WF steel profiles for industrial plants
- Cold roll-formed columns for light retail stock
- Upright heights engineered from 2,000 mm to 9,000 mm
Articulated Arm Engineering
Arms feature high-grade connector collars secured with high-tensile 8.8 grade bolts or quick-adjust taper pins. In our heavy-duty cantilever systems, articulated pivot arms can swing upward upon accidental impact, absorbing kinetic energy and preventing structural collapse.
- Capacities from 300 kg to 2,500 kg per arm
- Adjustable 75 mm / 100 mm pitch levels
- Removable end-stops for cylindrical tubes
Seismic & Wind Structural Integrity
Due to tectonic conditions across the East African Rift Valley traversing central Ethiopia, racking frames require calculated base-anchoring moments. Our finite element analysis (FEA) incorporates regional seismic coefficients into upright gusset plate designs and M16/M20 chemical anchors.
- Calculated under Eurocode 3 / ANSI MH16.1
- Heavy welded base plates with multiple anchors
- Rigid X-bracing and horizontal stability trusses
Engineering Note on Deflection Ratios: In cantilever racking systems, arm deflection under static working load must not exceed L/180 (where L is the arm length). Overloaded or uncertified Chinese cantilever systems sourced from non-specialized fabricators regularly experience permanent deformation, resulting in load slippage. HEDA Shelves performs 100% finite element analysis (FEA) validation on every custom cantilever arm and column profile prior to roll-forming.
| Storage System Type | Primary Goods Compatibility | Arm / Beam Payload Range | Floor Space Utilization | Handling Equipment Required |
|---|---|---|---|---|
| Heavy Structural Cantilever | Steel pipes, lumber, rebar, aluminum profiles, long machinery components | 500 kg – 2,500 kg per arm | High (70% footprint reduction vs ground stack) | Side loader, 4-way reach truck, standard counterbalance forklift |
| Standard Selective Pallet Rack | Standardized pallets (EUR, ISO, GMA) with boxed / bagged cargo | 1,000 kg – 4,000 kg per level | Moderate (requires wide travel aisles: 3.2m–3.8m) | Standard counterbalance forklift, reach truck |
| Multi-Tier Mezzanine Platform | Small cartons, light auto components, apparel, picking boxes | 300 kg – 1,000 kg per m² | Maximum (multiplies cubic building volume 2x–3x) | Manual hand carts, hydraulic goods lift, vertical conveyor |

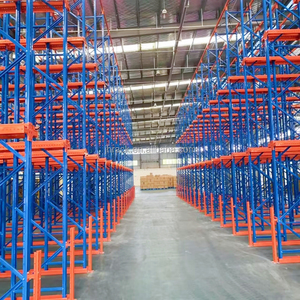

| Drive-In Pallet Racking | Homogeneous bulk items, beverages, raw grain storage, cold room cargo | 1,000 kg – 1,500 kg per pallet | Very High (eliminates operational aisles, LIFO) | Counterbalance or specialized narrow-chassis forklift |
Ethiopian Industrial Deployment
Localized Application Scenarios in Ethiopia's Industrial Corridors
As Ethiopia drives its 10-Year Development Plan (2021-2030) toward industrialization and import-substitution manufacturing, modern cantilever racking delivers critical infrastructure support across four primary industrial segments.
1. Steel Fabrication, Rebar & Metal Distribution
Steel stockholders and rebar processing plants in Dukem, Gelan, and Debre Zeyit require vertical organization for 6-meter and 12-meter commercial rebar bundles, structural square tubing, angle iron, and flat plates. Storing these heavy items flat on dirt yard floors leads to rapid oxidation during seasonal rainy periods (Kiremt) and incurs severe space constraints.
- Outdoor galvanized cantilever arms for weather protection
- Dual-sided cantilever layouts achieving 8-meter clear verticality
- Safe forklift handling without buckling under concentrated point loads
2. Extruded PVC, HDPE & Agricultural Irrigation Piping
With expanding municipal water networks, hydroelectric dams, and extensive agricultural irrigation schemes across the Awash basin and Oromia, local pipe extruders produce millions of meters of HDPE, UPVC, and PPR conduits. Flexible PVC piping tends to bow when improperly supported on pallets, creating permanent deformation.
- Adjustable cantilever arm spacing (500 mm to 1,000 mm) to eliminate pipe sag
- Continuous steel decking plates or wire mesh trays spanning across cantilever arms
- Arm retaining stop pins ensuring cylindrical rolls do not roll off rack levels
3. Timber, Engineered Plywood & Commercial Furniture
Furniture manufacturers and woodworking clusters around Addis Ababa and Hawassa manage diverse wood raw materials: eucalyptus timber, solid hardwood logs, imported particleboard, and 8x4-foot commercial MDF panels. Stacking sheets horizontally limits SKU selectivity, leading to high surface scratch defect rates during retrieval.
- Vertical sheet dividers and inclined cantilever arms for sheet sorting
- Open horizontal spans preventing board sag and warping
- Direct pick access for mixed-thickness panel inventory
4. Automotive Assembly, Construction Equipment & Spares
Assembly facilities in Bishoftu and industrial machinery distribution centers along the Ethio-Djibouti economic corridor store heavy, irregular vehicle chassis components, excavator booms, leaf springs, and hydraulic cylinders. Standard warehouse racks cannot accommodate the irregular geometry of these subassemblies.
- Custom heavy-duty cantilever arms engineered up to 3,000 kg per point load
- Base columns welded directly to deep anchor flanges for static stability
- Immediate crane and side-loader accessibility for high-density maintenance depots
Macro-Economic & Logistics Overview
Ethiopian Supply Chain Realities: Why Vertical Density is Critical
Procuring warehouse storage infrastructure in Ethiopia involves navigating distinct currency regulations, multimodal logistics corridors, and industrial park land constraints. Understanding these factors enables sound capital investment.
1. Maximizing Square-Meter Land Capital: Industrial real estate values in prime manufacturing hubs like Bole Lemi I & II, Kilinto Industrial Park, and Modjo have appreciated rapidly. Industrial leaseholders can no longer afford to store goods flat on the ground. Transitioning from floor stacking to an 8-meter high adjustable cantilever racking system reduces the physical floor footprint of long-profile inventory by up to 72%, freeing up expensive indoor industrial floor area for high-value production machinery.
2. Multimodal Transit via the Ethio-Djibouti Logistics Corridor: Over 95% of Ethiopia’s sea freight imports enter through the Port of Djibouti before traveling inland via the electrified Ethio-Djibouti Railway or the A1 highway corridor to the Modjo Dry Port (Ethiopian Shipping and Logistics Services Enterprise - ESLSE hub). Shipping heavy steel racking requires optimized container stuffing calculations. HEDA Shelves engineers our cantilever uprights and arms to pack flat into 40ft High Cube (HQ) sea containers, eliminating dead space and lowering the per-ton ocean freight cost from Guangzhou/Shenzhen to Djibouti.
3. Currency Allocation & Letter of Credit (LC) Dynamics: Industrial investors and contractors in Ethiopia face foreign exchange availability challenges governed by the National Bank of Ethiopia (NBE). When procuring capital goods under Letters of Credit (LC) or Franco Valuta schemes, equipment longevity is non-negotiable. Sourcing poor quality steel racking that oxidizes or bends within two years wastes scarce hard currency allocations. HEDA Shelves provides comprehensive technical dossier submissions, verified CE/ISO certifications, mill test certificates (MTC), and proforma documentation compliant with international banking requirements.
Enterprise Credentials & Manufacturing Power
Why Ethiopian Contractors & Logistics Leaders Source from HEDA Shelves
Based in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has stood at the forefront of heavy storage systems manufacturing since 2001. We manage the entire industrial production cycle in-house, guaranteeing technical compliance, structural durability, and direct factory pricing.
Complimentary 3D & CAD Design
We provide complete AutoCAD warehouse floor layouts, 3D photorealistic renderings, and structural calculation reports based on your building height, floor slab tolerance, and forklift turning radius before contracts are signed.
Certified CE & ISO Quality Control
Production is strictly certified under CE (Certificate No. 2435-CPR-8605159) and ISO 9001:2015 quality standards. Every batch of high-strength structural steel undergoes ultrasonic flaw inspection and yield testing.
10-Stage Surface Treatment
Steel components pass through a 10-stage pickling, phosphating, and de-greasing bath prior to automated electrostatic epoxy-polyester powder coating, providing superior protection against humidity and transport wear.
Direct Export & Assembly Guidance
We provide numbered component packaging, detailed structural 3D assembly blueprints, bilingual installation instruction manuals, and remote video technical supervision to support local Ethiopian engineering teams.
Procurement Knowledge Base
Frequently Asked Questions by Ethiopian Procurement Managers
Detailed technical and commercial answers regarding shipping routes, customs documentation, installation support, and structural engineering compliance for the Ethiopian market.
How does HEDA Shelves manage ocean and inland shipping to Ethiopia?
We routinely arrange Full Container Load (FCL) shipments from Guangzhou, Shenzhen, or Ningbo ports in China to the Port of Djibouti, which acts as the primary maritime maritime gateway for landlocked Ethiopia. Ocean transit typically requires 20 to 28 days. From Djibouti, cargo is transferred onto the Ethio-Djibouti Railway or cross-border heavy transport trucks directly to Modjo Dry Port, Addis Ababa (Kality/Bole), or Dire Dawa Free Trade Zone for Ethiopian customs clearance. Every container is packed according to strict weight distribution protocols to maximize container payload limits and protect components during sea transit.
What documentation do you provide for Ethiopian Letter of Credit (LC) compliance?
We are experienced with the banking documentation standards mandated by the National Bank of Ethiopia (NBE) and commercial banks such as the Commercial Bank of Ethiopia (CBE), Awash Bank, and Dashen Bank. We provide itemized Proforma Invoices with valid HS Codes (typically 7308.90), Certificate of Origin (CO), detailed Packing Lists, Clean on Board Ocean Bills of Lading, and Third-Party Pre-Shipment Inspection (PSI) reports (via SGS, BV, or Intertek upon request).
Can your cantilever systems be engineered for seismic zones in the Great Rift Valley?
Yes. Significant portions of Ethiopia, including the Awash Valley, Nazret (Adama), Hawassa, and parts of the Addis Ababa perimeter, fall within designated seismic zones influenced by the Main Ethiopian Rift. When designing your cantilever system, our structural engineers integrate your facility's seismic acceleration parameters (PGA), soil profile type, and building clearance into the calculation model according to Eurocode 3 and ANSI MH16.1. We adjust the upright profile thickness, gusset plate welds, and base anchoring bolt diameter to accommodate seismic bending moments.
What forklift equipment is recommended for high-bay cantilever racks?
Equipment selection depends on your aisle width and goods length. For long pipes and steel bars (6m to 12m), standard counterbalance forklifts require excessively wide operating aisles (typically 6 to 8 meters), which compromises storage density. For optimal efficiency, we recommend multi-directional forklifts, 4-way reach trucks, or specialized side-loaders, which operate in narrow aisles of only 2.2 to 2.8 meters. If your facility uses conventional counterbalance trucks, our engineers can widen the layout aisle specifications accordingly.
How is mechanical installation handled on-site in Ethiopia?
Every export shipment includes comprehensive CAD component layout maps, clear numbered labels on all structural frames, and assembly manuals. We offer three flexible installation support options for projects in Ethiopia:
1) Remote Video Supervision: Our structural engineers guide your in-house technicians via live video;
2) On-Site Supervision: We dispatch experienced installation supervisors to Addis Ababa, Hawassa, or Dire Dawa to lead local labor teams;
3) Turnkey Assembly Coordination: We partner with qualified regional engineering sub-contractors inside Ethiopia.
1) Remote Video Supervision: Our structural engineers guide your in-house technicians via live video;
2) On-Site Supervision: We dispatch experienced installation supervisors to Addis Ababa, Hawassa, or Dire Dawa to lead local labor teams;
3) Turnkey Assembly Coordination: We partner with qualified regional engineering sub-contractors inside Ethiopia.
What warehouse parameters are required to generate a custom 3D layout?
To prepare a complimentary, precise engineering proposal, our technical team requires:
• Architectural warehouse drawings (clear ceiling height under the lowest rafter, column grid spacing, door and dock positions);
• Dimensions of the goods stored (length × width × height, weight per piece/bundle, and bundle rigidity);
• Type, maximum lift height, and turning radius of your intended handling forklift;
• Existing floor slab thickness and concrete compressive strength (C20/25, C30, etc.).
• Architectural warehouse drawings (clear ceiling height under the lowest rafter, column grid spacing, door and dock positions);
• Dimensions of the goods stored (length × width × height, weight per piece/bundle, and bundle rigidity);
• Type, maximum lift height, and turning radius of your intended handling forklift;
• Existing floor slab thickness and concrete compressive strength (C20/25, C30, etc.).
Optimize Your Ethiopian Warehouse with Engineered Cantilever Systems
Connect directly with our senior structural racking engineers in Guangzhou. We review your building dimensions, calculate arm payloads, and generate complete 3D layout models and commercial proforma quotes within 24 hours.
Free 3D CAD Warehouse Layout
Direct Factory Pricing (Est. 2001)
Complete Djibouti Port Shipping Support
