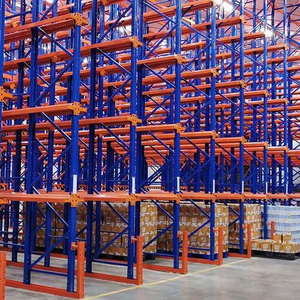

Standard Teardrop & High-Density Pallet Storage Systems
Manufactured with cold-formed high-tensile structural steel (Q235B / Q355B equivalent to ASTM A572 Grade 50). Full teardrop hole pattern interchangeability compatible with major North American and Latin American logistics configurations.
- Roller Beds: Aluminum / Zinc Rollers
- Application: Fast-Moving FMCG & Agro
- Pitch: 50.8mm (2-inch standard)
- Connection: Heavy-Duty Bolted Trusses
- Steel Grade: High-Yield SS400/Q355B
- Target: Mining Consumables & Tooling
- Decking: Steel Panels / Wire Mesh
- Configuration: Teardrop / Box Step
- Finish: Anti-Scratch Powder Coating
- Direct Access: 100% SKU Accessibility
- Safety: Interlocking Safety Lock Pins
- Coating: Coastal Marine Salt-Resistant
- Roller Type: Wear-Resistant Polymer
- Track: Dynamic Incline Adjustable
- Use Case: Pharmaceutical & Retail E-Com
- Space Gain: Up to 80% Footprint Recovery
- Pallet Arm: 1-Piece Cold Formed
- Sector: Cold Storage & Bulk Seasonal
- Speed Control: Speed Controllers Included
- Modularity: Stackable & Relocatable
- Compliance: ISO 9001:2015 Monitored
- Aisle Width: 1,600mm to 1,800mm
- Guide System: Wire or Floor Mechanical Rails
- Structural Height: Up to 15+ Meters
Engineering Teardrop Shelving for Chilean Seismic Zones (NCh 2369 / NCh 433)
Chile possesses one of the world's most demanding seismic design environments due to subduction tectonics along the Peru-Chile Trench. When international procurement teams specify teardrop pallet racking for Chilean logistics distribution centers (CDs) in Santiago, Valparaíso, San Antonio, or Puerto Montt, baseline North American RMI (Rack Manufacturers Institute) MH16.1 specifications alone are structurally insufficient without seismic recalculation under Chilean Norms NCh 2369.Of2003 (Seismic Design of Industrial Structures and Installations) and NCh 433 (Seismic Design of Buildings).
Standard American teardrop shelving relies on cold-rolled steel uprights with punch-out holes configured at 2-inch (50.8 mm) vertical intervals. While this profile ensures worldwide component compatibility and modular beam adjustability, seismic accelerations along Chile’s Pacific fault line (frequently registering ground acceleration coefficients $A_0$ up to 0.40g in Seismic Zone 3) exert severe horizontal shear and overturning moments on rack frame uprights.
To address this structural challenge, our engineering division adapts the cold-formed teardrop geometry with targeted reinforcements. We upgrade the base plates to high-ductility, heavy-gauge steel (12mm to 16mm thickness) with oversized dual-hole anchorage patterns engineered for concrete post-installed mechanical anchors (such as Hilti HST3 or Simpson Strong-Tie wedge bolts). Furthermore, the beam-to-column teardrop connectors feature reinforced 3-prong or 4-prong forged lugs with secondary gravity-activated safety locking pins, preventing joint disengagement during high-frequency vibrational displacement.
| Engineering Parameter | Standard Commercial Teardrop | Chilean Seismic-Engineered Specification (HEDA) | Structural Compliance Benefit |
|---|---|---|---|
| Base Plate Dimension | 100 × 120 × 3.0 mm (Single anchor) | 160 × 180 × 12.0–16.0 mm (Dual anchor) | Prevents concrete spalling & uplift shear failure |
| Steel Profile Grade | Commercial Q235A (Yield ~235 MPa) | Q355B / ASTM A572 Gr 50 (Yield ≥355 MPa) | Enhanced plastic moment capacity & low-cycle fatigue life |
| Frame Bracing Geometry | Standard tension-only light tubing | C-Channel closed box section, full diagonal-K truss | Absorbs transverse lateral seismic wave loads |
| Connection Lug Engagement | 2 or 3-rivet drop pin connector | 4-rivet cold-punched lug with fail-safe locking pin | Prevents beam ejection under vertical acceleration ($A_v$) |
| Permissible Deflection Ratio | $L/180$ or $L/200$ | $L/250$ under full seismic load combination | Minimizes pallet dislodgment inside narrow aisles |
| Calculations & Stamping | Generic load charts | Full FEA (ANSYS/SAP2000) project calculation memory | Facilitates municipal approvals by Chilean structural engineers |
Every teardrop racking system destined for the Chilean market undergoes rigorous finite element structural modeling. Dynamic response spectrum analysis is conducted to verify fundamental periods of vibration ($T$), torsional modes, and inelastic drift limits ($R=4$ or $R=5$ ductility reduction factors per NCh 2369). This ensures that warehouse operators in Chile obtain equipment that is fully defensible before municipal construction auditors and insurance underwriters.
Localized Application Scenarios in Chile’s Core Economic Corridors
Chile’s unique geography—stretching over 4,300 kilometers through distinct climatic and industrial environments—requires customized teardrop shelving installations adapted to specific operational stresses.
Santiago Logistics Hubs
Serving major third-party logistics (3PL) hubs in Pudahuel, San Bernardo, and Quilicura. High-throughput selective teardrop systems maximize cubic utilization with 100% SKU access for e-commerce and retail distribution chains.
Pudahuel / San BernardoCentral Valley Agro-Export
Customized for cold storage packhouses in O’Higgins and Maule (Rancagua, Curicó, Talca). Accommodates rapid pallet turnover of seasonal cherries, blueberries, and table grapes under stringent refrigeration cycles down to -2°C.
Rancagua / Talca / MauleNorthern Mining Operations
High-payload heavy racking engineered for copper and lithium supply depots in Antofagasta, Calama, and Atacama. Handles heavy equipment parts, mechanical valves, and raw consumables under arid and abrasive conditions.
Antofagasta / CalamaSouthern Cold Chains & Ports
Salmon farming storage in Puerto Montt and port staging in San Antonio and Valparaíso. Employs advanced epoxy-polyester coatings or hot-dip galvanization to resist coastal humidity, salt mist, and sub-zero blast freezers (-25°C).
Valparaíso / Puerto MonttKey Trends Reshaping Chilean Warehouse Logistics
The Chilean industrial property market is undergoing rapid modernization driven by cross-border trade, vertical space constraints, and strict seismic safety mandates.
Class-A Hub Modernization
Warehouse operators are transitioning from obsolete low-bay facilities to 12m–15m clear-height Class-A logistics parks. This shift requires high-bay teardrop uprights with tight vertical plumb tolerances.
High-Bay VerticalityAutomation & Shuttle Fusion
Chilean companies are integrating radio shuttle systems inside teardrop racking matrices, balancing semi-automated high-density pallet storage with fast SKU selective retrieval.
Shuttle Integration0% Tariff FTA Advantage
Under the Chile-China Free Trade Agreement (TLC), Chinese industrial steel racking (HS Code 7308.90) enters Chile at 0% customs tariff with a valid Certificate of Origin (Form F).
Duty-Free ProcurementMandatory Seismic Accountability
Chilean municipal building directorates (DOM) now routinely demand structural calculation memories stamped by a certified Chilean civil engineer, eliminating low-cost, uncertified imports.
DOM ComplianceWhy Chilean Importers Partner with HEDA Shelves
With over two decades of heavy industrial steel fabrication, Guangzhou Heda Shelves Co., Ltd. provides end-to-end engineering certainty from raw steel coil slitting to on-site assembly guidance across Chile.
25+ Years of Manufacturing Expertise
Established in 2001, HEDA operates a modern 30,000 m² production base equipped with automatic CNC roll-forming lines, automated punch presses, and robotic welding stations. We manufacture over 30,000 tons of industrial storage equipment monthly with verified mill-test traceability.
Bilingual Seismic Layouts & 3D Modeling
Our structural engineering team produces detailed 3D AutoCAD, Revit, and BIM layouts at zero charge. We provide dynamic load simulations, aisle tolerance calculations for reach trucks and counterbalanced forklifts, and precise anchorage positioning according to your building’s expansion joints.
Full CE & ISO 9001:2015 Certification
HEDA maintains CE certification (No. 2435-CPR-8605159) and ISO 9001:2015 quality management compliance (No. 18624Q00169R0M). Every batch undergoes automated chemical pickling, phosphating, and electrostatic powder coating, exceeding 500-hour ASTM B117 salt spray corrosion tests.
Frequently Asked Questions by Chilean Buyers
Essential engineering, regulatory, and logistics answers for operations directors and procurement managers importing warehouse racking into Chile.
Optimize Your Chilean Warehouse with Factory-Direct Engineering
Connect directly with our senior structural racking engineers today. Receive a complimentary 3D warehouse layout, detailed load calculation report, and a direct CIF quotation to Puerto San Antonio or Valparaíso within 24 hours.
