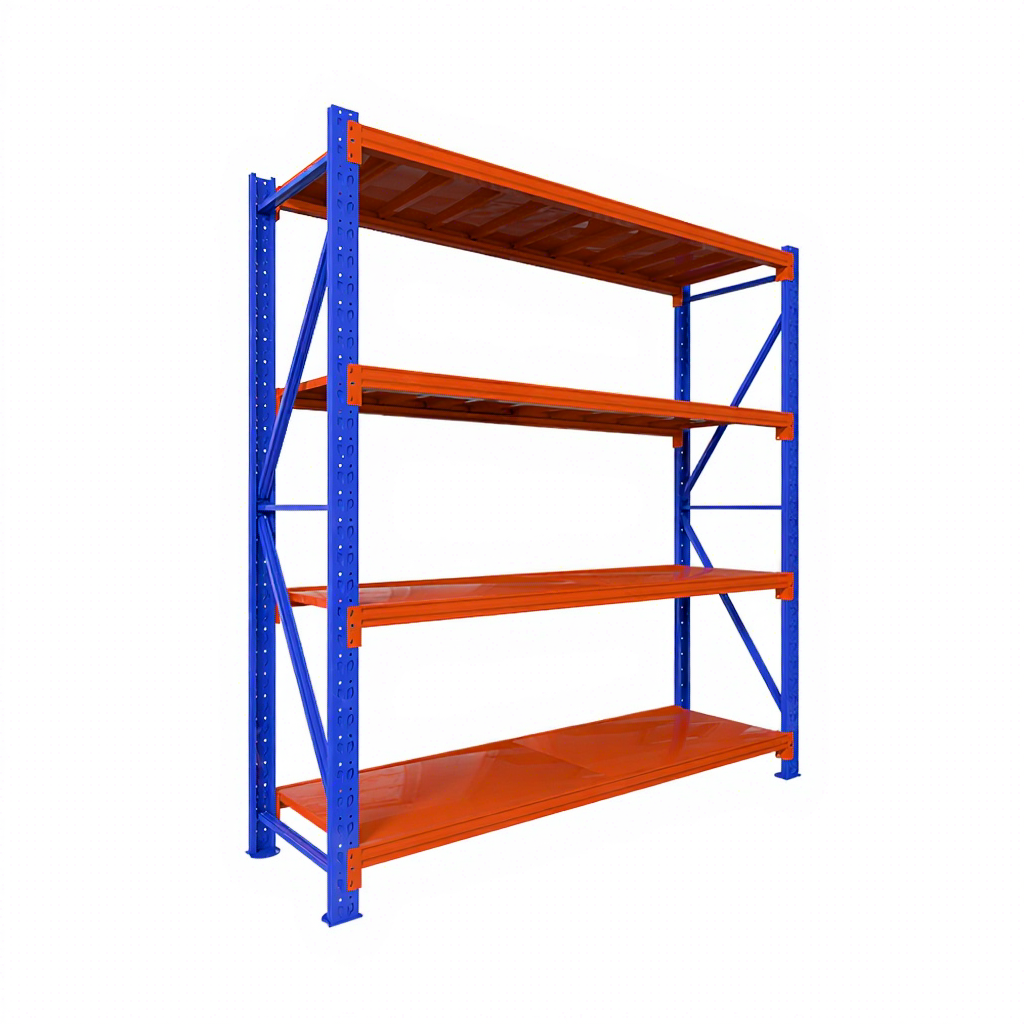

Racking Adjustable Metal Boltless Shelf and Racks Warehouse Storage Medium Duty Metal Rack Shelf
Product Description
Warehouse Racking System Light/Medium Duty Steel Storage Long Span Shelf
Cheapest and functional solution for all kinds of storage and low weight products.
Designed with lots of different configurations, easy to set heights, distribution and weight levels. This storage system is usually used on the standard dimensions but it can also be adapted to the dimensions that the client requires.
Product Specifications
| Model | Capacity (KG/Layer) | Size (L*W*H) mm | Material Thickness |
|---|---|---|---|
| JS-L1242 | 100KG | 1200*400*2000 | Column/Beam 0.6mm; Layer 0.3mm |
| JS-L1252 | 1200*500*2000 | ||
| JS-L1542 | 1500*400*2000 | ||
| JS-L1552 | 1500*500*2000 | ||
| JS-M1062 | 200KG | 1075*600*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1542 | 1500*400*2000 | ||
| JS-M1242 | 1200*400*2000 | ||
| JS-M1262 | 1200*600*2000 | ||
| JS-M1552 | 1500*500*2000 | ||
| JS-M2042 | 2000*400*2000 | ||
| JS-M1562 | 1500*600*2000 | ||
| JS-M2052 | 2000*500*2000 | ||
| JS-M2062 | 2000*600*2000 | ||
| JS-M1562L | 300KG | 1500*600*2000 | Column/Beam 0.9mm; Layer 0.4mm |
| JS-M2062L | 2000*600*2000 | ||
| JS-H2062 | 500KG | 2000*600*2000 | Column/Beam 1.1mm; Layer 0.5mm |
| Layers: | 4 | Color: | Blue / Orange / Grey-white |
Other size and color can be customized based on the quantity of order.
Benefits of Long Span Shelving
- Easy assemble and disarmed: Simple modular design allows rapid setup and breakdown without complex tools.
- Easy to transport: Flat-pack configuration facilitates cost-effective logistics and site relocation.
- Facilitates stock control: Open architecture ensures seamless visibility and tracking of stored goods.
- Cheap and functional: High cost efficiency combined with heavy-duty structural reliability.
- Easy Access: Ergonomic configuration enables direct manual picking from front or back.
- Lots of different applications: Versatile engineering accommodates multi-sector storage operations.
Applications
- Low weight products: Ideal for lightweight components and organized bin systems.
- For materials that require more protection: Stable shelving layers keep delicate items secure.

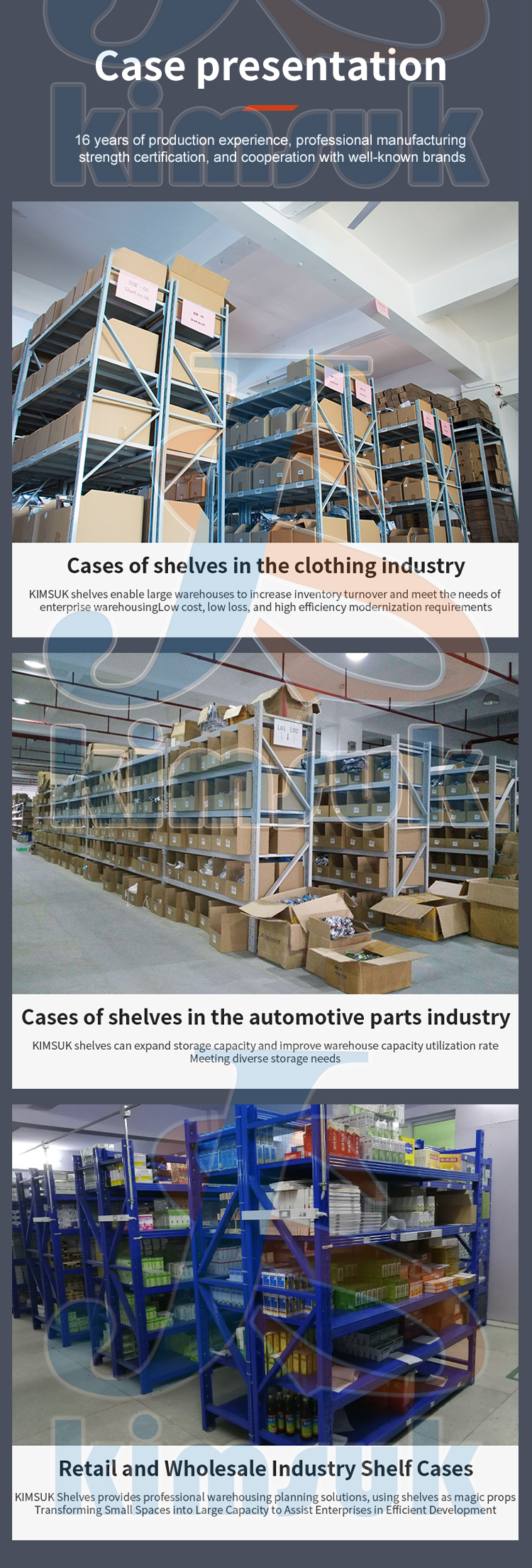

- Open shelving applications: Suitable for commercial retail backrooms, archives, and workshops.
- Ideal for material resistant to deterioration: High durability steel panels support long-term holding.
- Lots of different combinations: Customizable bays to match distinct facility layouts.
- Possibility to expand the system: Effortlessly integrate add-on bays as operational demands grow.
- Ideal to store boxes, big packages and long pieces: Wide-span clear openings handle bulkier unit loads easily.

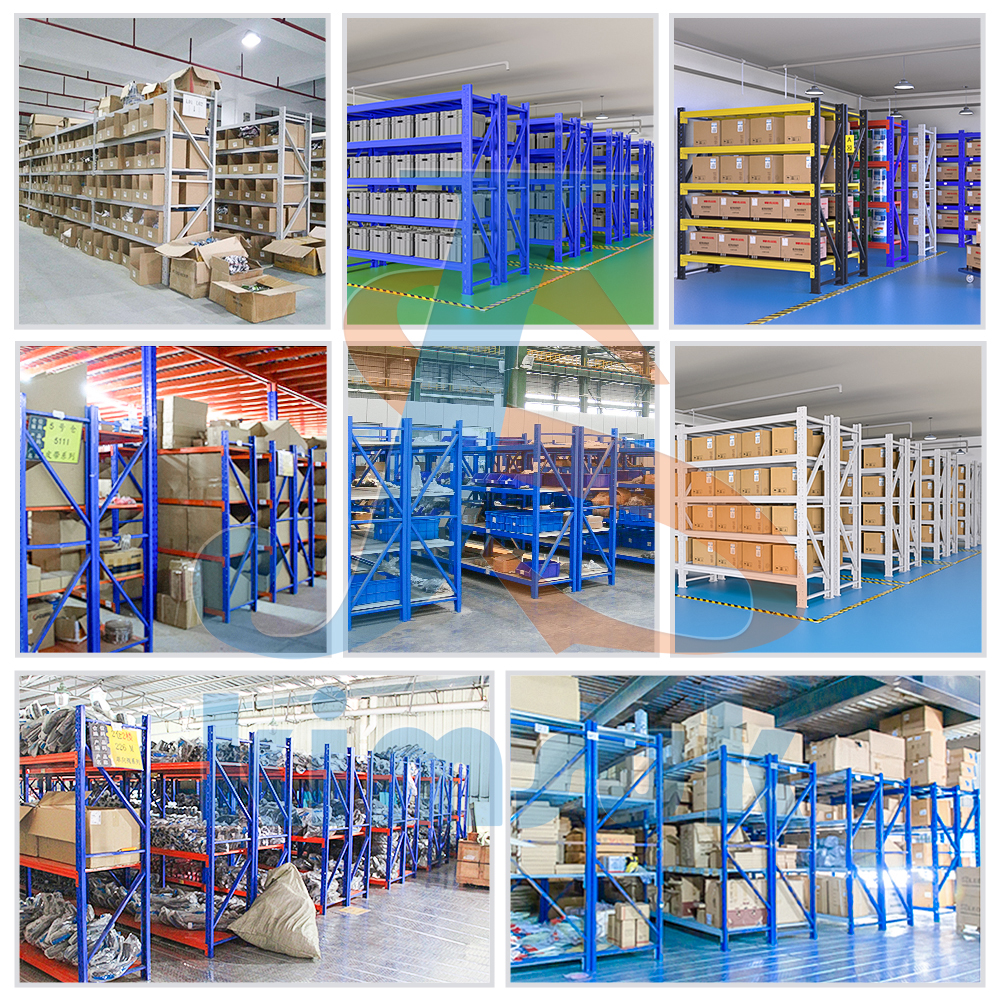

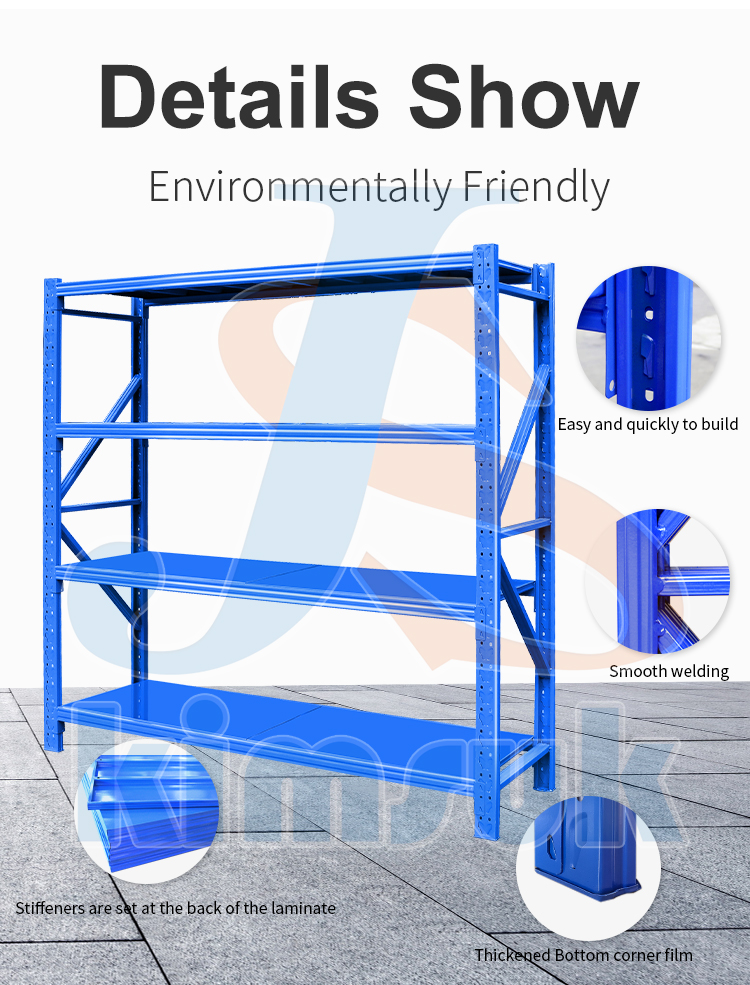

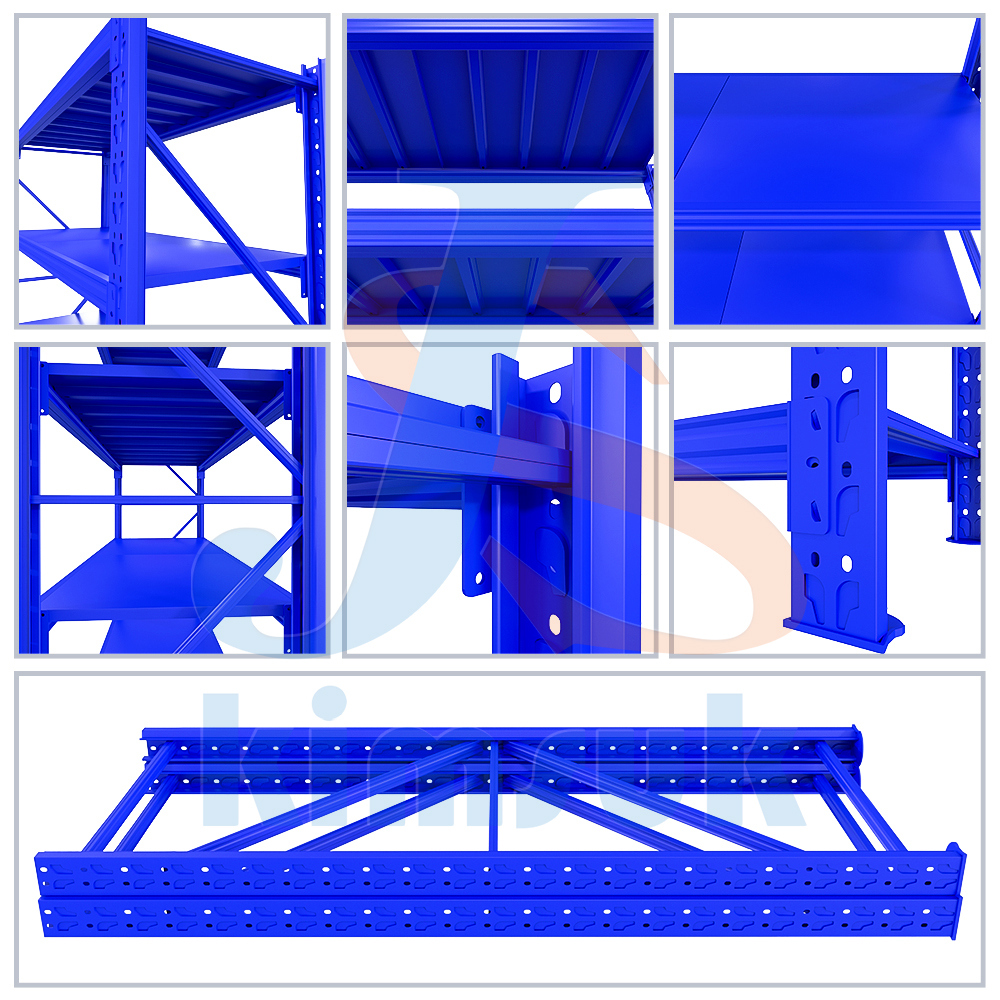

Product Gallery & Details
Frequently Asked Questions (FAQ)
What is the standard load capacity of this long span shelving system?

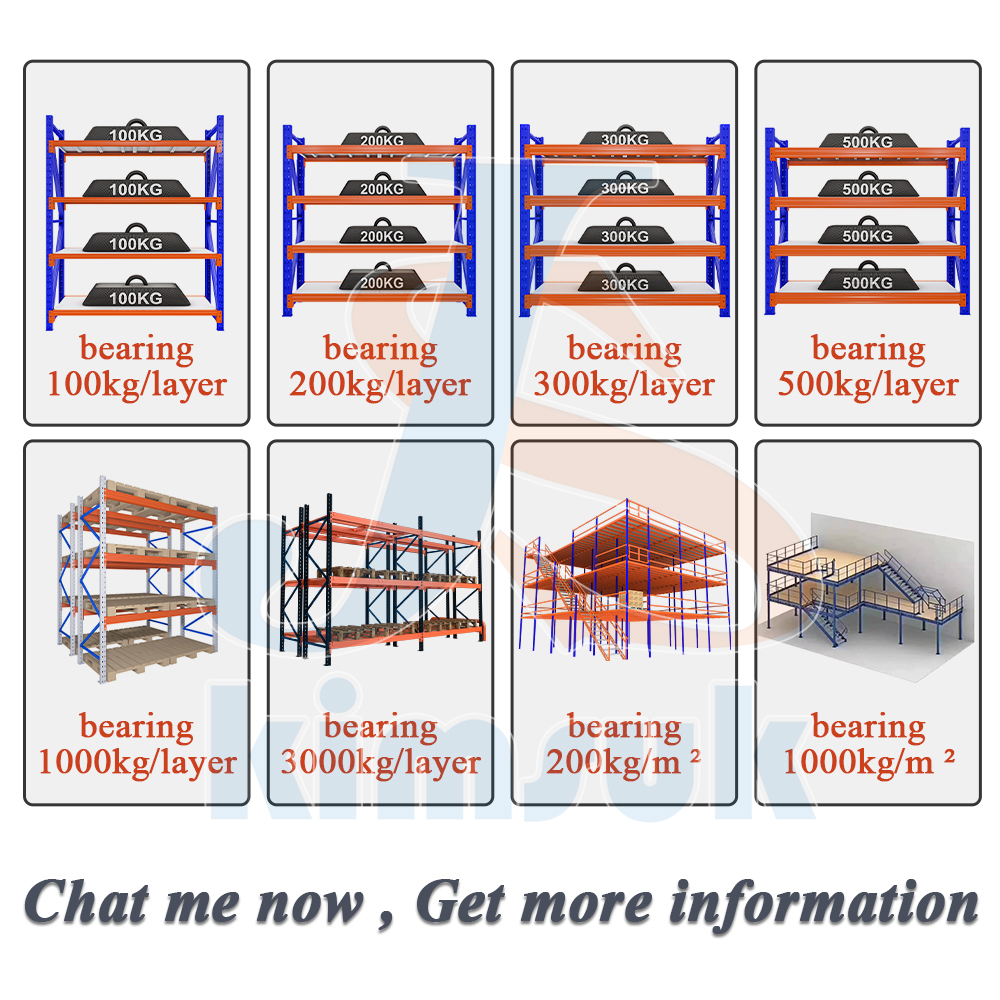

Our long span shelving systems are available across multiple duty ratings, providing uniform distributed load (UDL) capacities ranging from 100 kg, 200 kg, and 300 kg up to 500 kg per layer depending on the chosen model and steel gauge.
Can dimensions and color finishes be customized for specific warehouse setups?

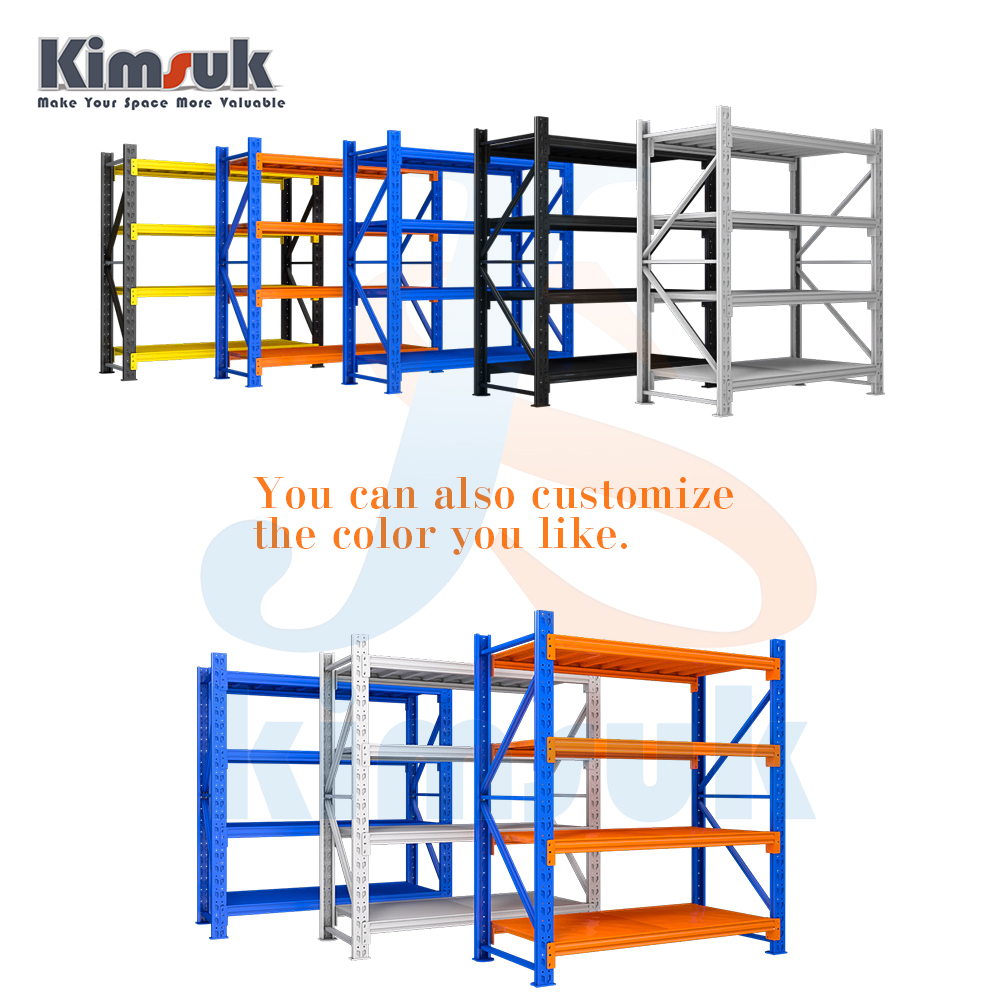

Yes. While standard configurations feature 4 tiers in Blue, Orange, or Grey-white, custom lengths, depths, heights, and specific RAL powder-coating colors can be produced depending on order quantities.
Are special tools required for assembly and shelf height adjustments?

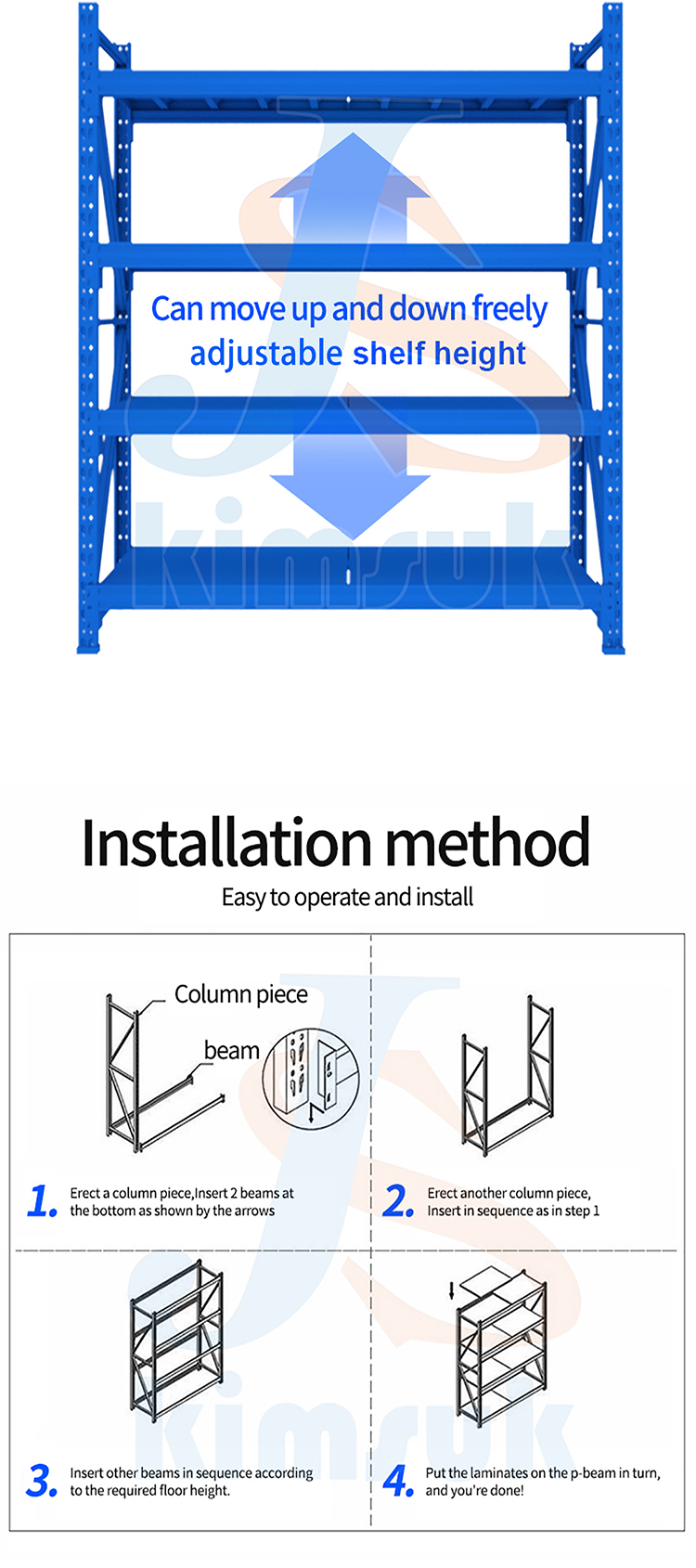

No. The racking incorporates a boltless, slot-in clip design that allows beams and steel decking levels to be assembled, dismantled, and adjusted vertically in height quickly without specialized equipment.

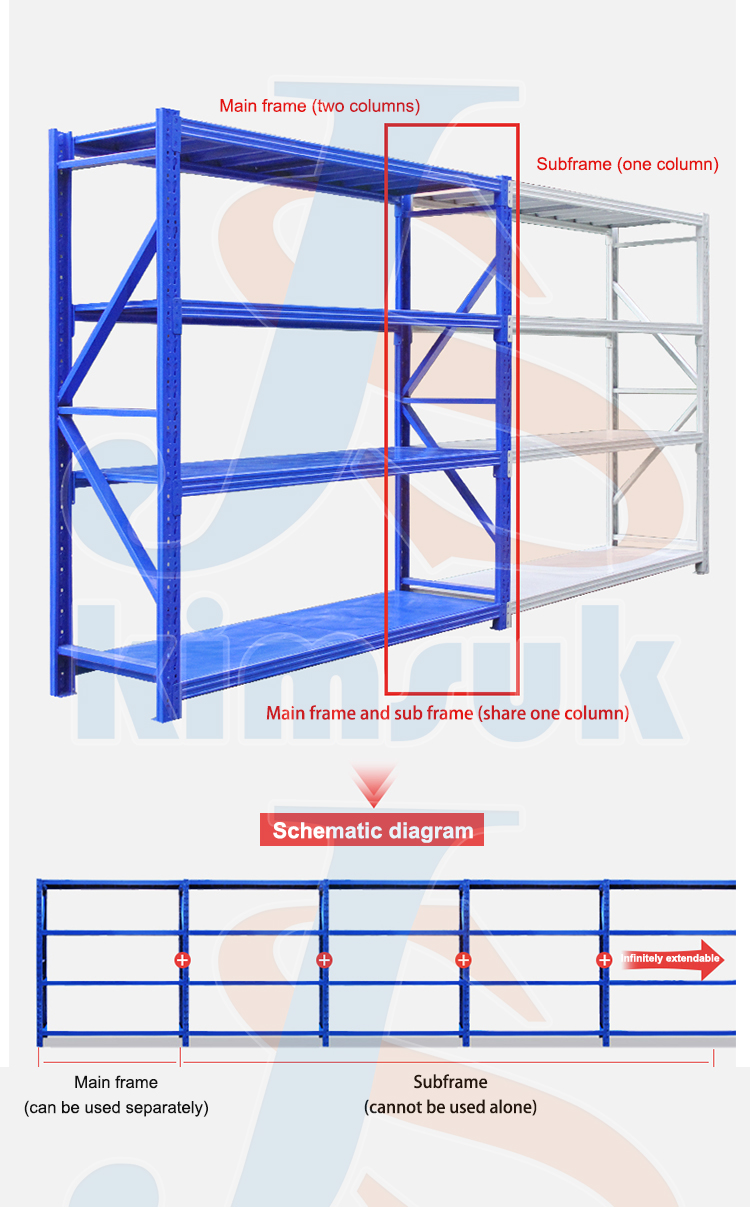

Can additional bays be connected to expand the system in the future?
Yes. The modular structure supports Starter and Add-on bay configurations, making it simple and economical to continuously extend your storage rows as inventory requirements grow.
What types of goods are best stored on medium-duty long span shelves?
These racks are engineered for manual loading operations and are ideal for medium-weight carton boxes, plastic tote bins, spare parts, archive records, bulk packages, and elongated materials.
What is the material specification and corrosion resistance of the steel components?

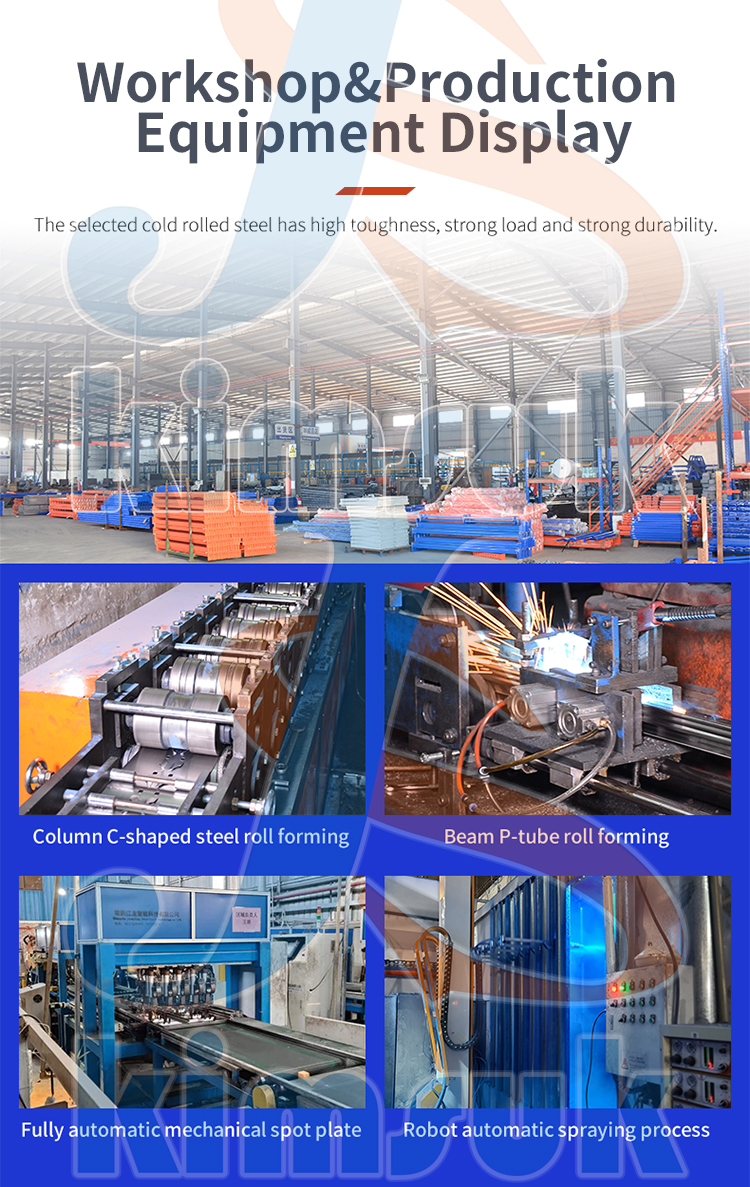

The upright columns, horizontal beams, and shelf panels are manufactured from high-grade cold-rolled steel treated with electrostatic epoxy-polyester powder coating for enhanced corrosion, scratch, and wear resistance.
