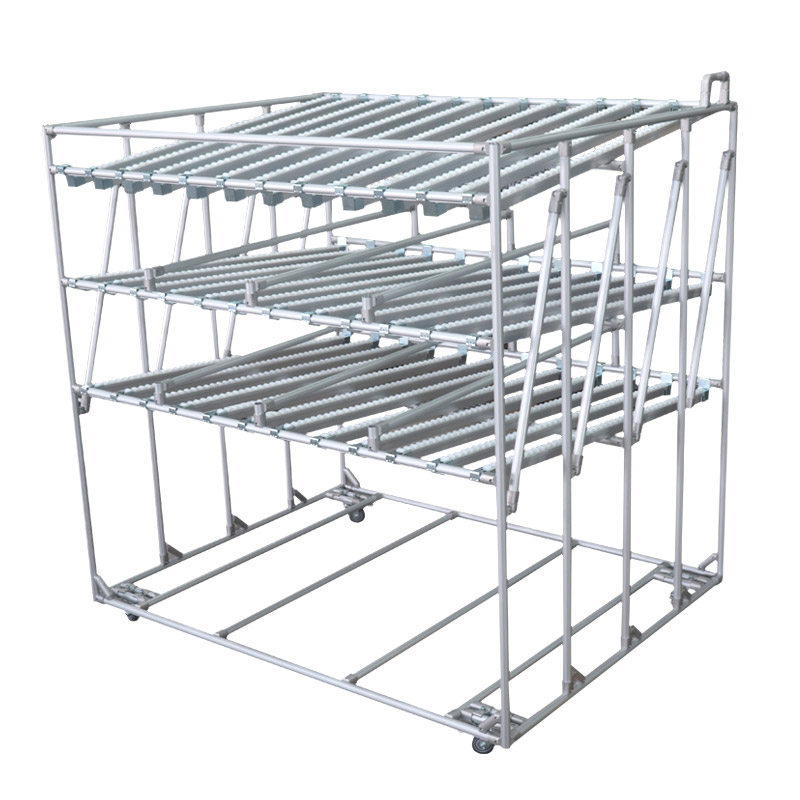

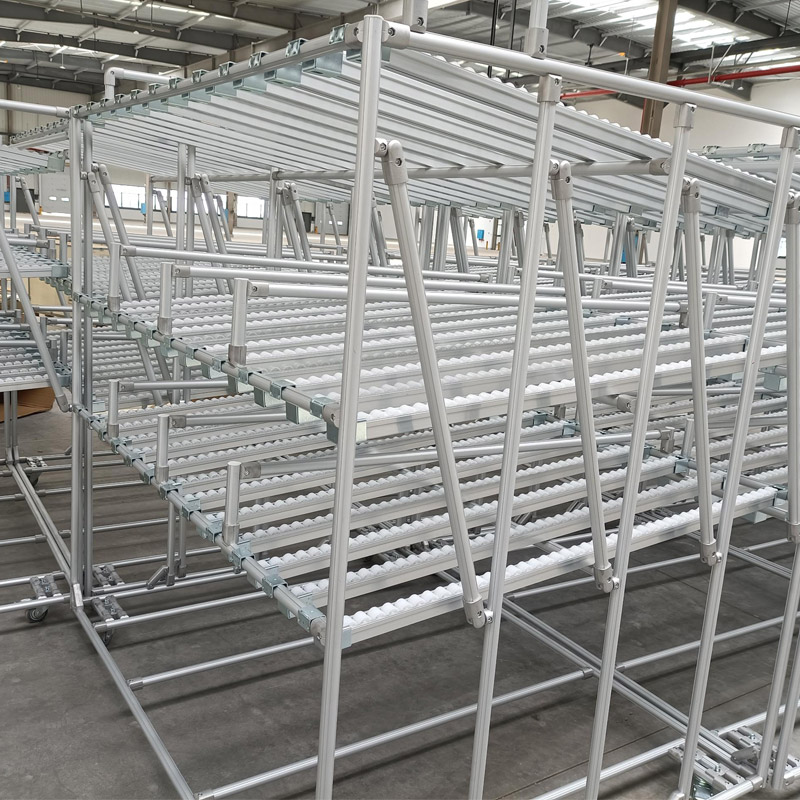

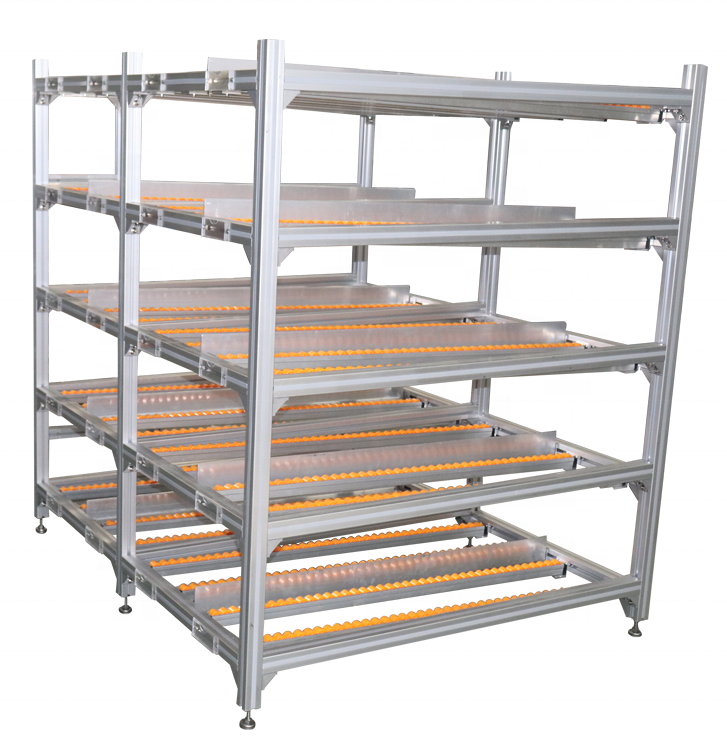

Roller Track Pipe Rack System Flow Roller Rack Assemble Aluminum Flow Rails for Shelf
Product Description
Roller Track for Pipe Rack System / Aluminum Alloy Frame / Plastic Roller Skate Wheel Conveyor

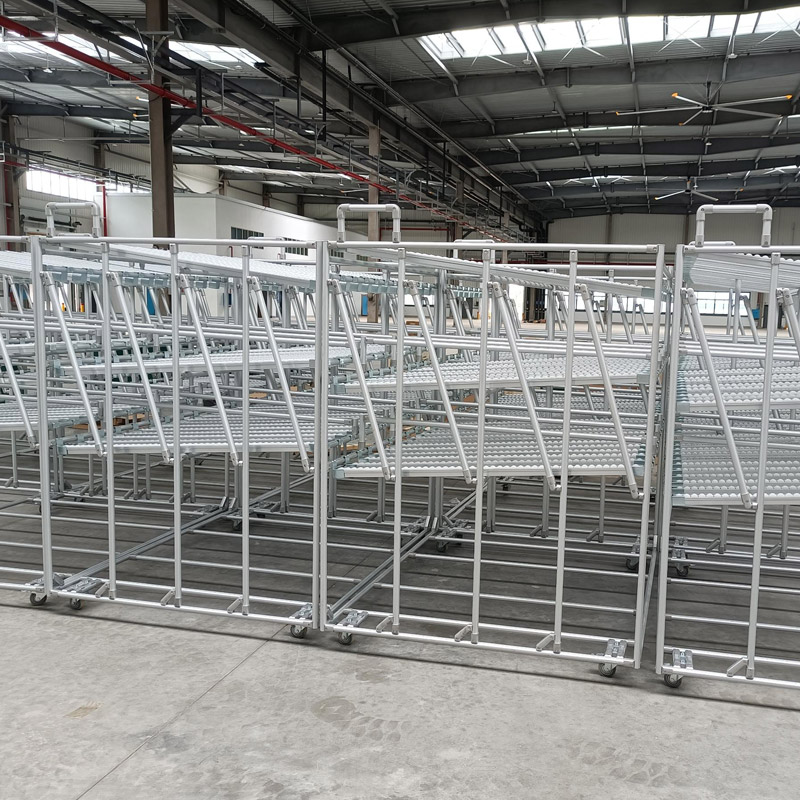

Industrial Steel Roller Track For Pipe Rack System Flow Rail
Product Description
Durable loading capacity for heavy duty.
Easily assemble without any special skills requirements.

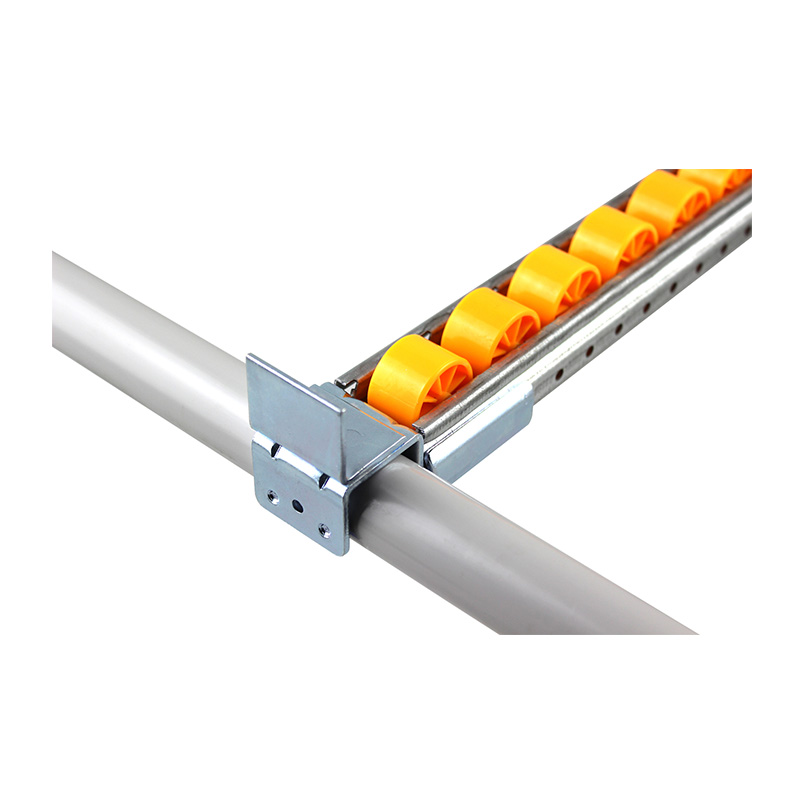

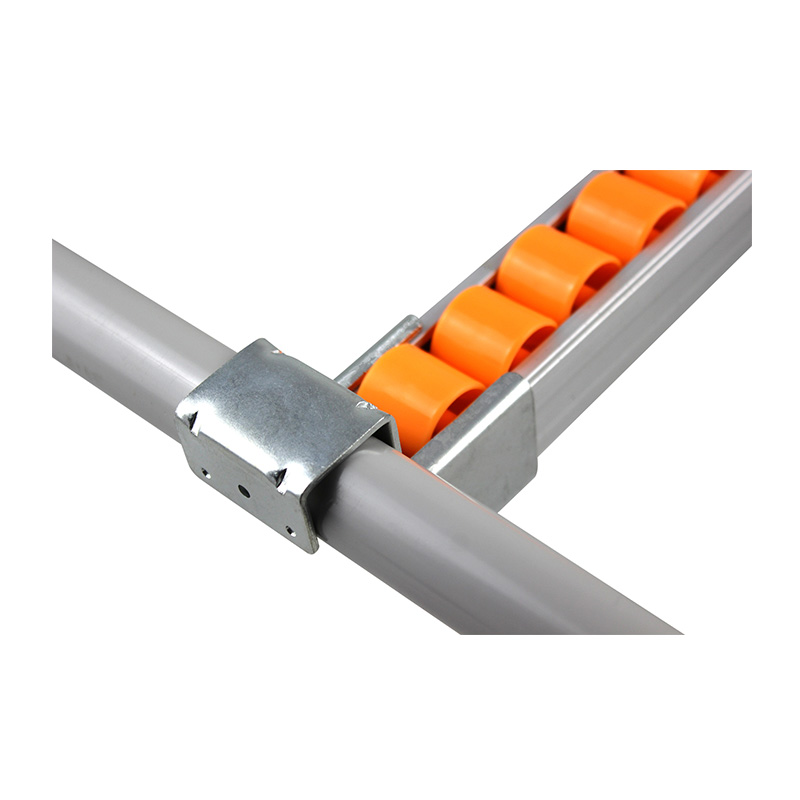

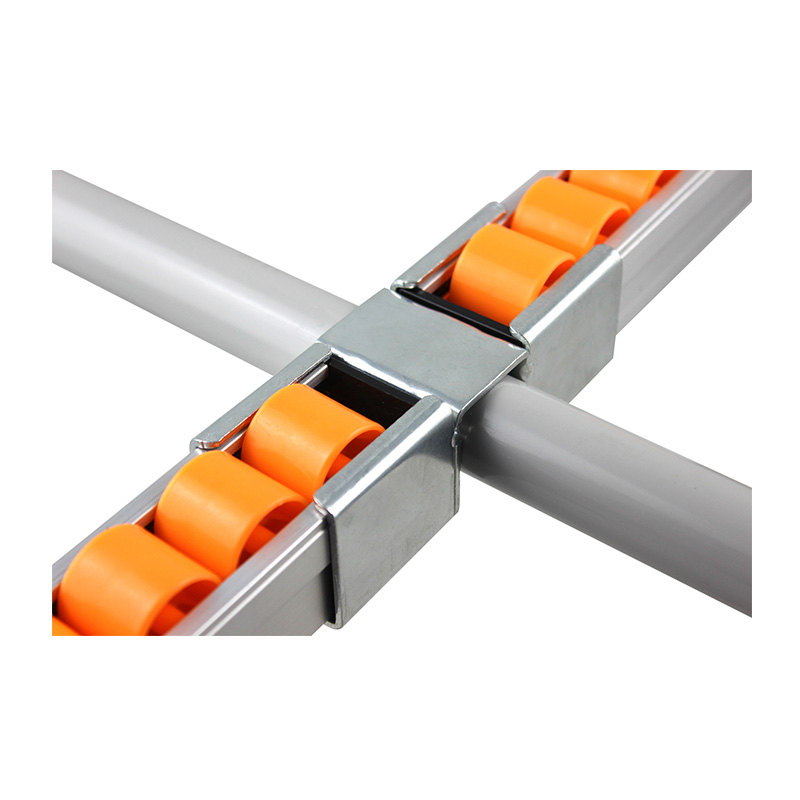

Providing joint for placons conecting lean pipe perfectly.
Low friction can deliver goods smoothly.
Excellent quality and reasonable price.
Short delivery time.

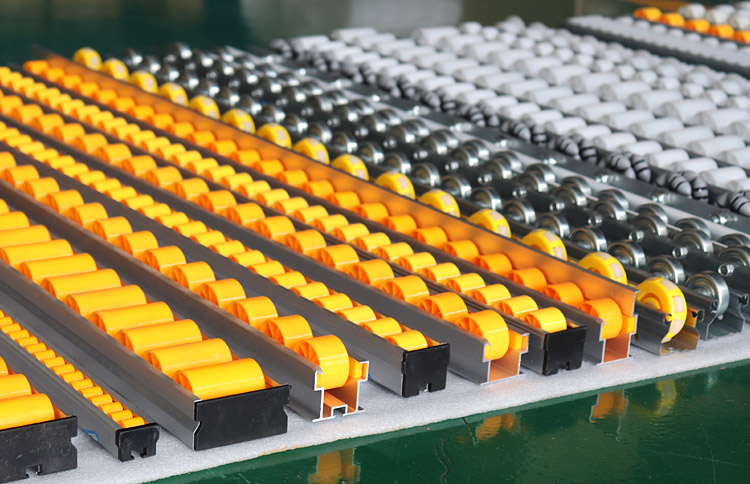

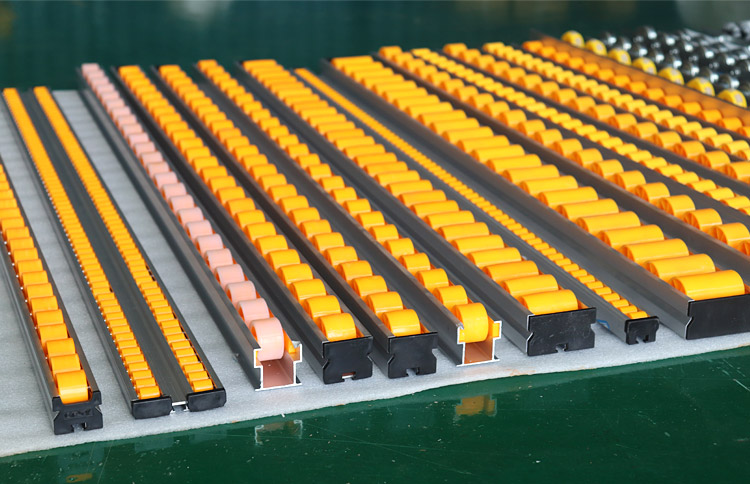

Industrial roller tracks suitable for most applications:
Fitted with the large-diameter 32 mm rollers suited to the majority of applications, the high density of 28 rollers per linear metre means only 2 mm spacing between rollers. This high density ensures a smooth flow.

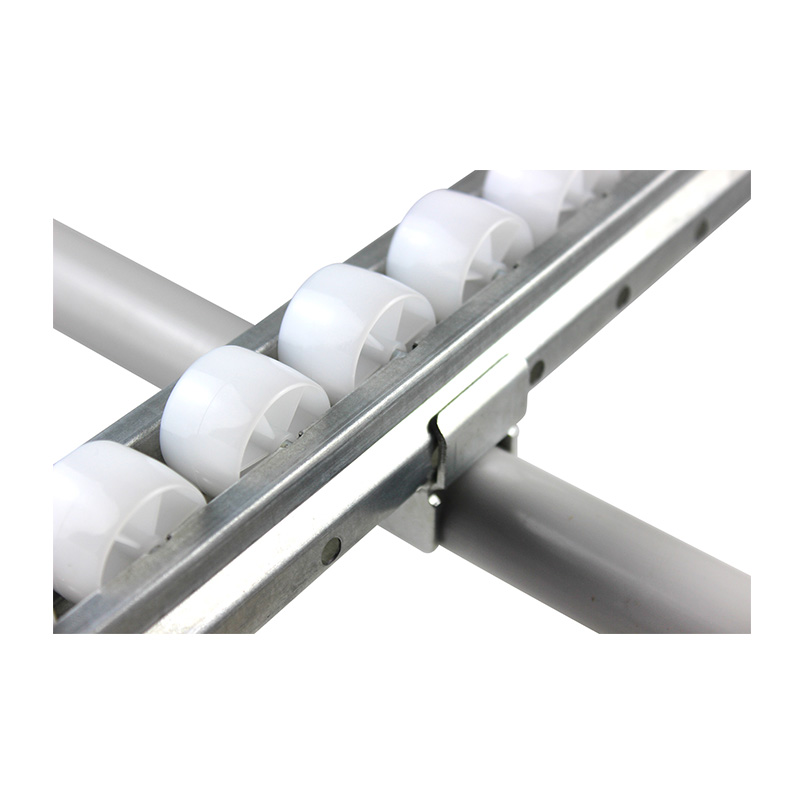

The zinc roller track can be used in many fields, such like: worktable, furnitures, pipe rack, production line, office facilities, storage racking equipments, and other house appliances, it can help to raise working efficiency.

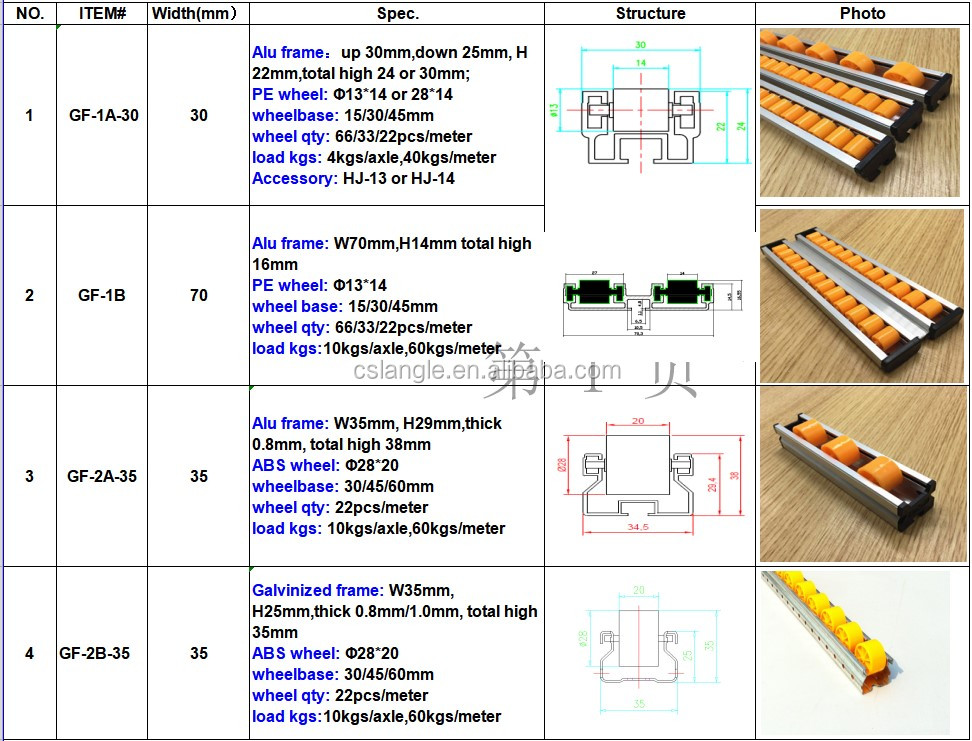

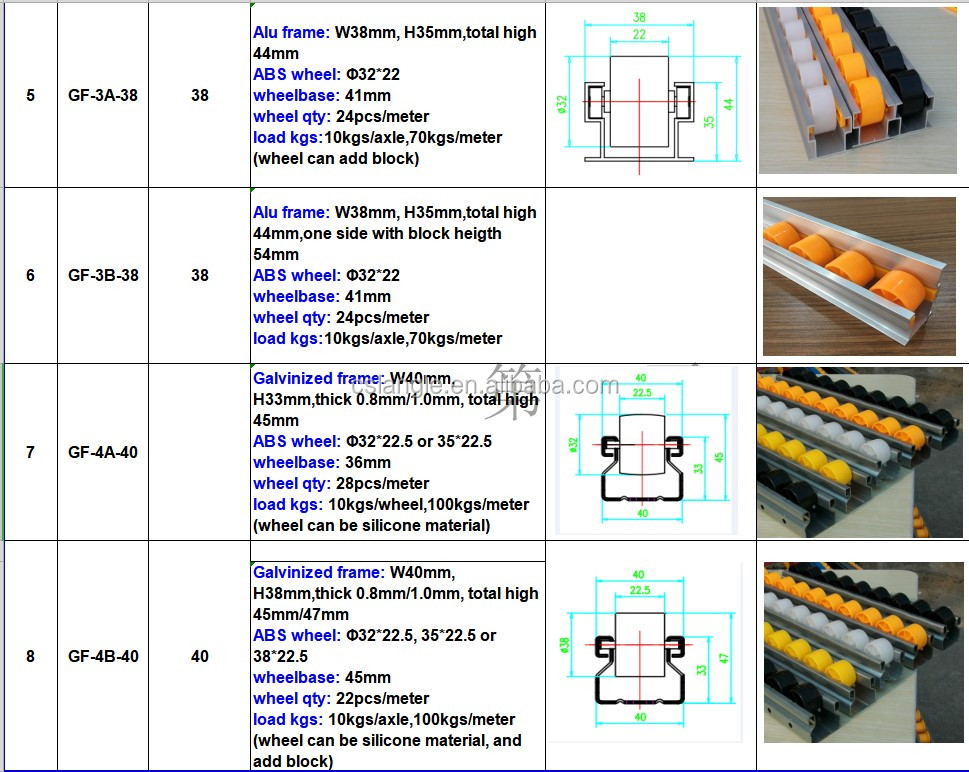

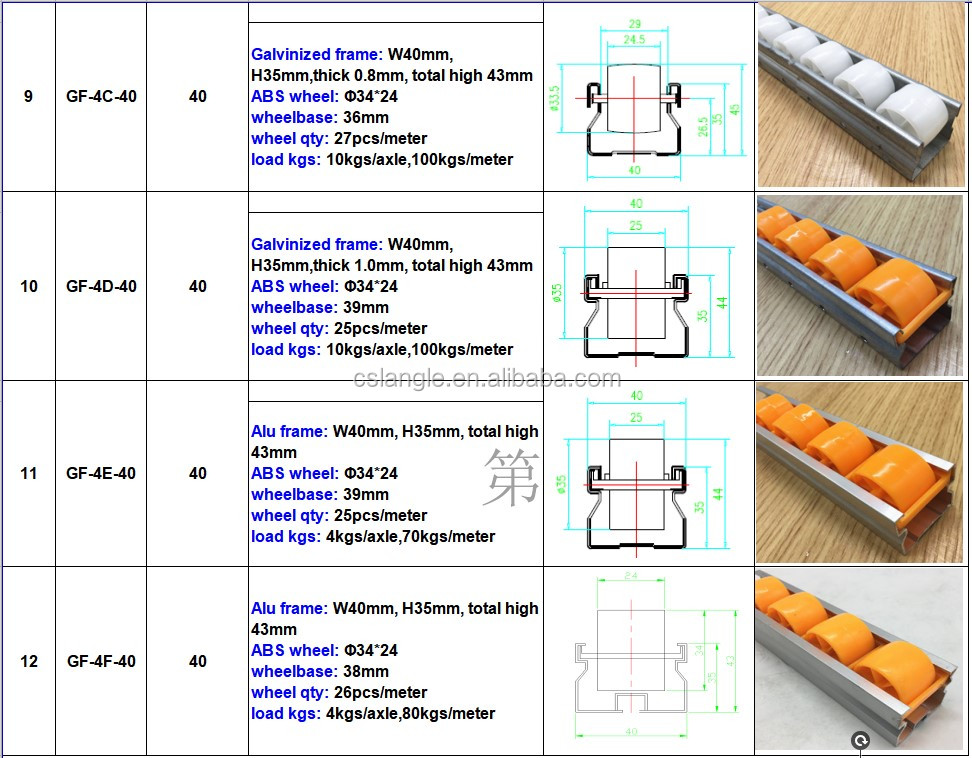

| Frame material | Galvanized Steel |

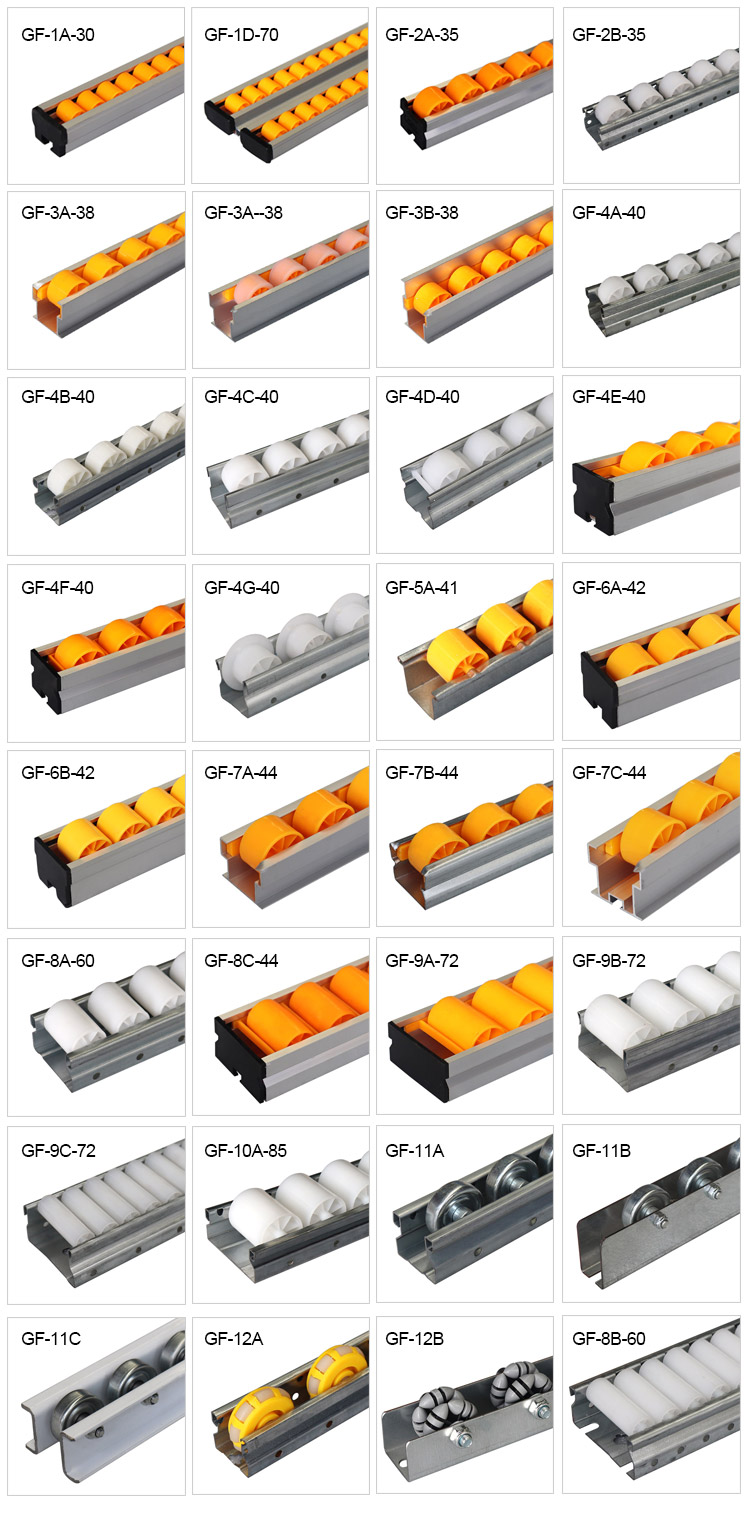

| Model | GF-35, GF-40, GF-40A, GF-40B, GF-41, GF-44, GF-60A, GF-60B, etc |
| Thickness of frame | 1.0mm, 0.8mm or Customize |
| Dimension of frame | W35/41/40/40/41/44/60/60mm, H25/26/33/33/35/33/33/25mm |
| Rollers material | PE, ABS |
| Diameter of rollers | 28/32/38/30/15mm |
| Width of roller | 20/25/22.5/25//25/42/42mm |
| Roller pitch | 33/35/45/36/30/60//16mm |
| Total height | 35/38/45/47/38.5/44/44/30mm (including roller) |
Fluency

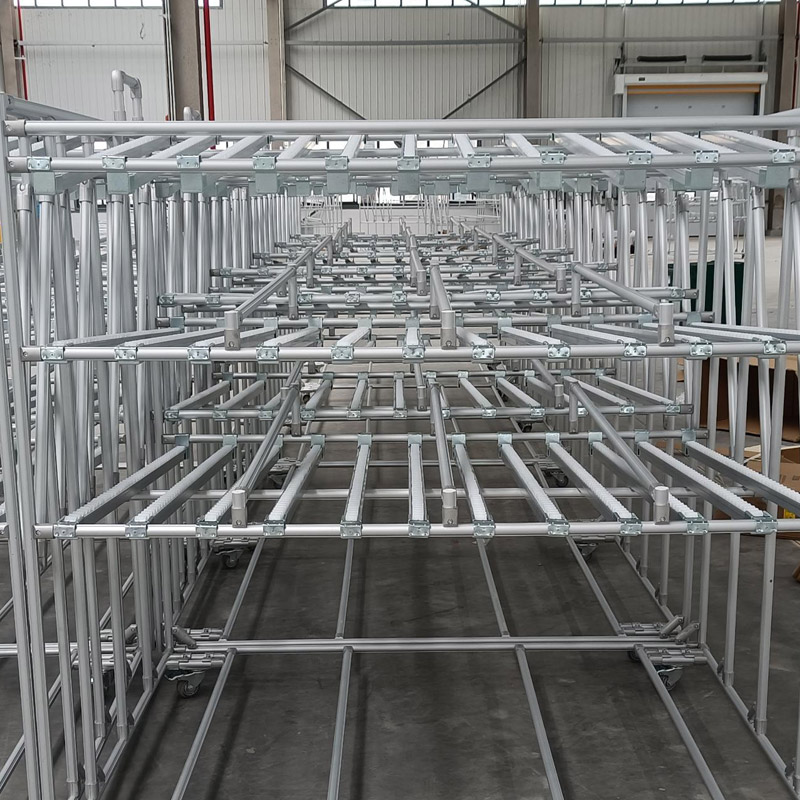

A fluent bar is also called a slideway. There are mainly sheet metal fluency bars and aluminum alloy fluency bars. Because of its convenient installation and placed the articles above the running smooth and agile, as the name suggests it is called a fluency, many of them are used in the material rack of the workshop, etc.
Please contact us for more sizes and specification as per your request.
LANGLE Product Information
| Product description | Aluminum profiles accessories, Fluency bar |
| Applications | Advanced first out shelf, Racking system belt conveyor idler roller, flexible production line, Warehouse flow rack, roller production line, carton flow rack & shelves, gravity flow rack, FIFO flow storage etc, Conveyors, etc |
| The option of Sizes | 40/30/20 |
| Material | Sheet metal, aluminum alloy, aluminium profile |
| Roller Material | PE/ABS/ESD/PLASTIC |
| Roller Color | White / yellow / Black / Blue |
| Length | 4 meters / root (customized) |
| Standard | GB, ISO |
| Quality Guarantee | More than 5 Years Quality Guarantee |
| Certification | ISO9001 |
| OEM and ODM | Acceptable |

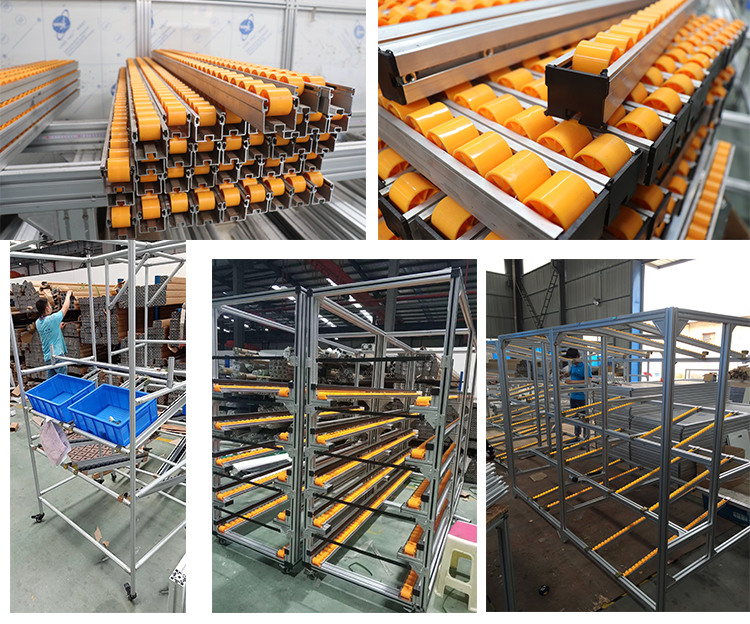

Function and Connecting Detail
1
Cutting the size of aluminium profile with designed.
2
Select suitable accessories to connecting the aluminium profile for the kits.
3
Langle can help select to the accessories if you are not clear which size to use.
4
And if you are the new of using aluminium profile, just tell us the function of the kit you want to build, so we can recommend the suitable size of materials to use and also provide the design service.
Contact
Frequently Asked Questions (FAQ)
1. What materials are used for the roller tracks and wheels?
The frames are manufactured from galvanized steel, sheet metal, or aluminum alloy. The roller wheels are made of durable PE, ABS, ESD, or general plastic materials.
2. What are the primary industrial applications of this roller track system?
They are widely applied in FIFO flow racks, carton flow shelving, gravity flow racks, lean pipe rack systems, workshop material racks, conveyor idler roller lines, flexible production lines, worktables, and warehouse storage racking.
3. What is the standard length and can sizes be customized?
The standard length is 4 meters per unit. Both OEM and ODM customization services are supported, allowing tailored lengths, frame thicknesses (such as 0.8mm or 1.0mm), and widths to meet specific operational requirements.
4. How does the roller density affect flow performance?
Fitted with 32 mm diameter rollers, our tracks feature a high density of 28 rollers per linear metre with just 2 mm spacing between rollers. This high roller density minimizes friction and guarantees extremely smooth material flow.
5. What quality certifications and guarantees are provided?
All products adhere to GB and ISO standards, hold ISO9001 certification, and are backed by a quality guarantee of more than 5 years.
6. Can you assist if I am new to designing pipe rack and profile structures?
Yes. If you are new to using aluminum profiles or lean pipe systems, simply describe the intended application and required kit function. Our technical team will recommend optimal materials, matching connecting accessories, and comprehensive design support.
