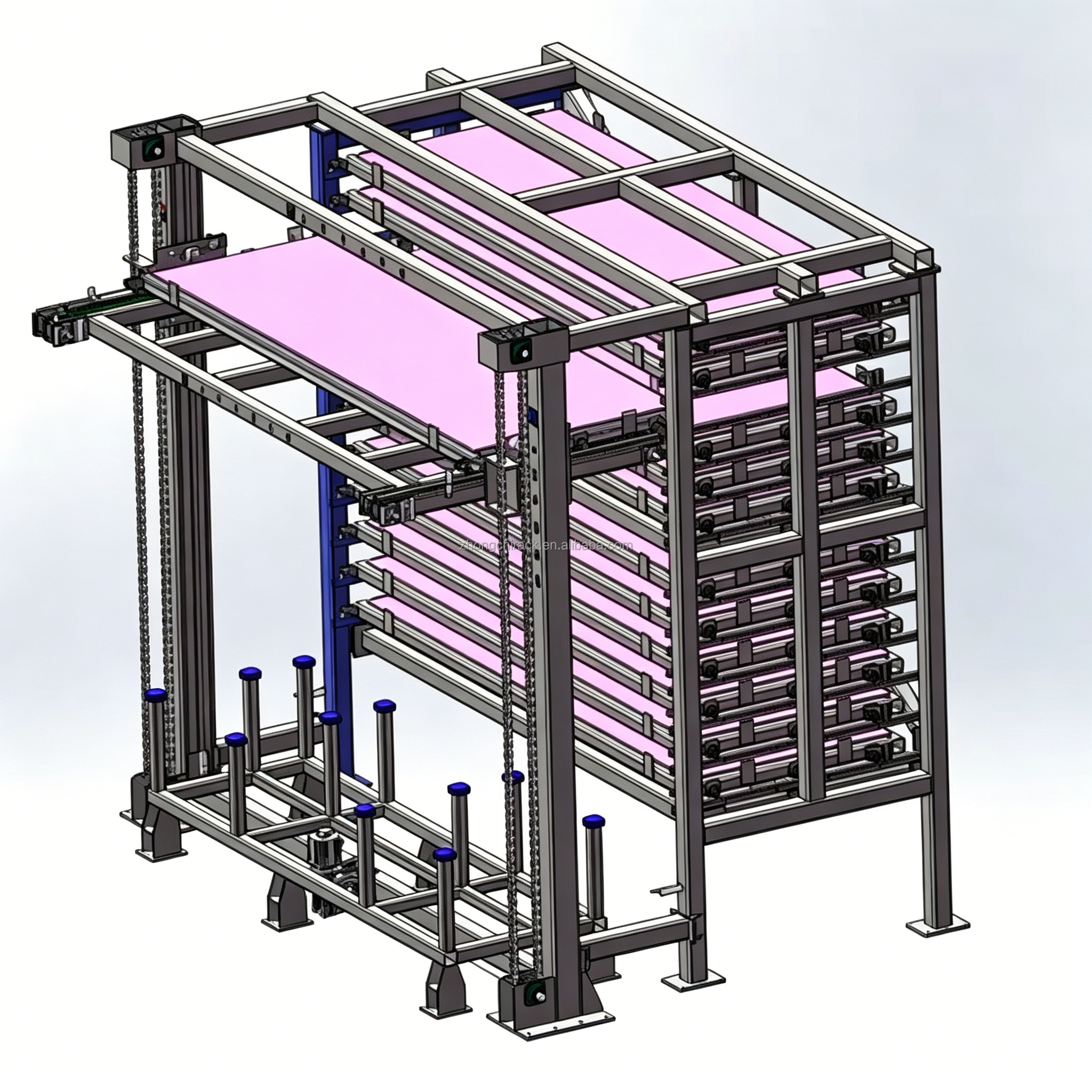

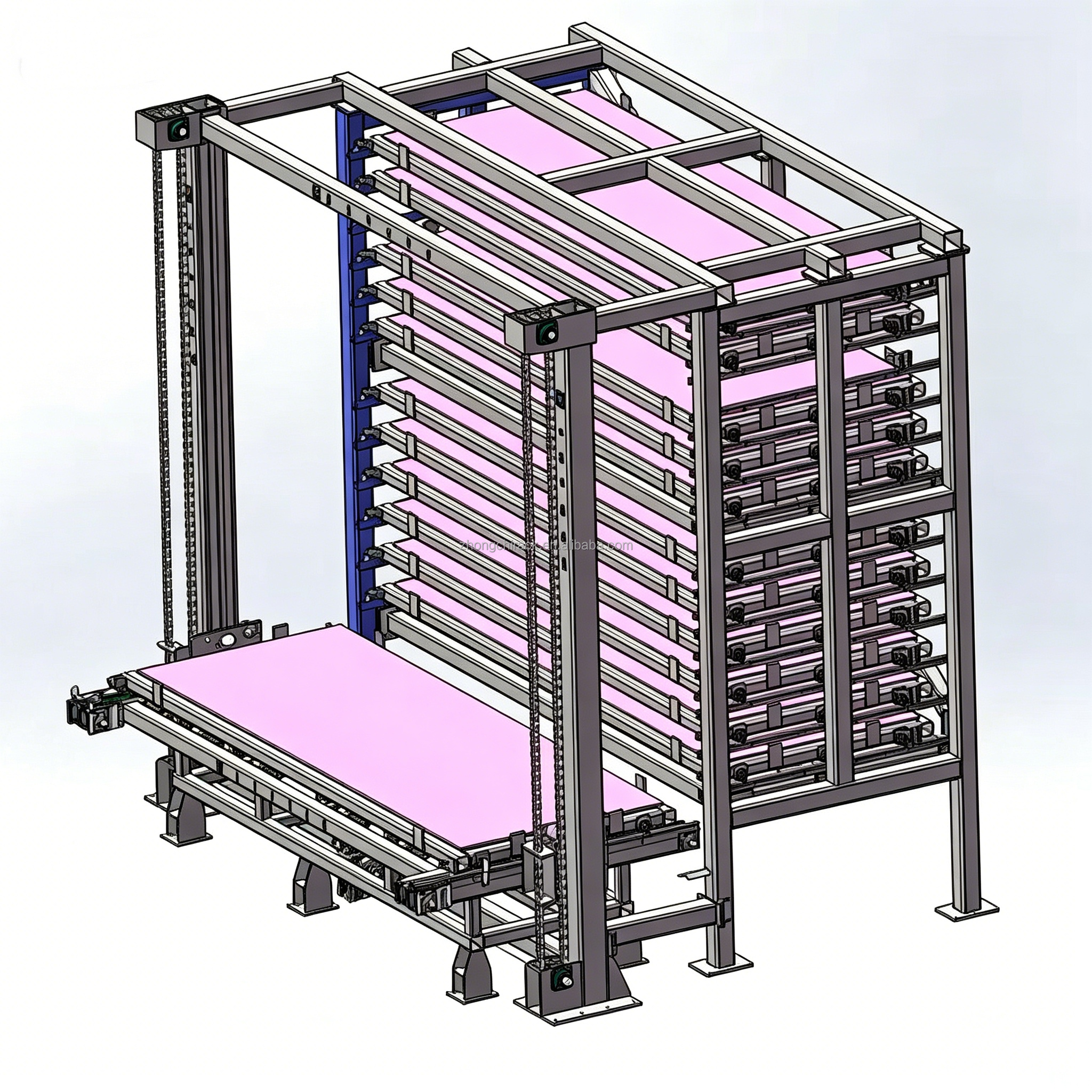

Intelligent Steel Sheet Metal Multi-Level Heavy Duty Storage Rack System High Load Capacity Automated Warehouse Solution
Product Description
Product Highlights
High Load Capacity
Efficiently supports heavy-duty materials.
Intelligent Automation
Runs smoothly without manual intervention.
Metal Sheet Storage Racks
Organize materials effectively.
Handling Efficiency
Streamline warehouse operations.
Technical Specifications
| Project Name | Automated Warehouse | Power Supply Voltage | 380V / 50Hz |
| Project No. | ZC-AP3015 | Safety Protection Level | IP54 |
| Rack Height | 8m | Stack height | ≤ 80mm |
| Max. Load per Location | 2000kg | Main Pillar | 140*140*8mm square tube |
| Control System | PLC + WMS/WCS | Pallet frame | 16# I-beam |

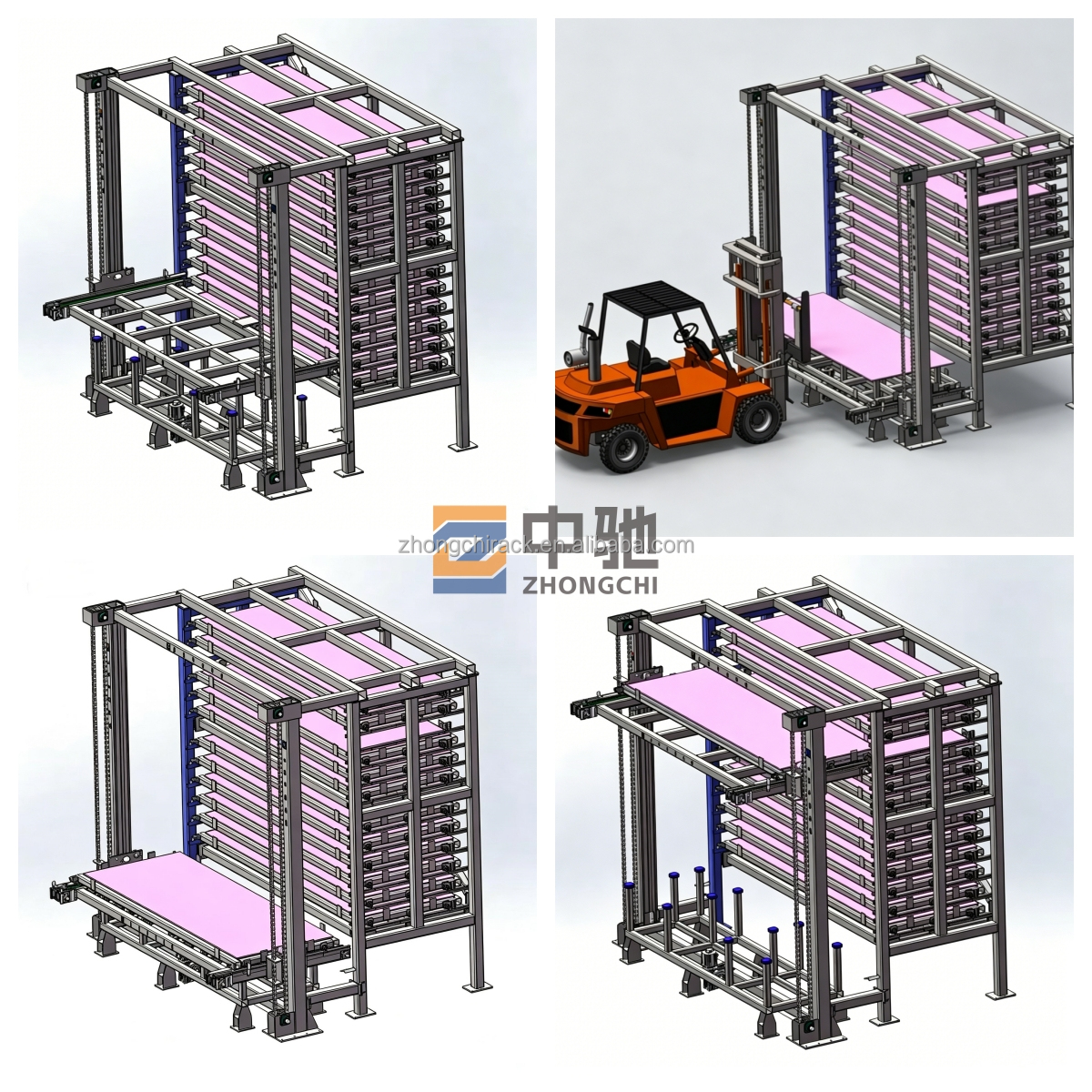

Scene Image

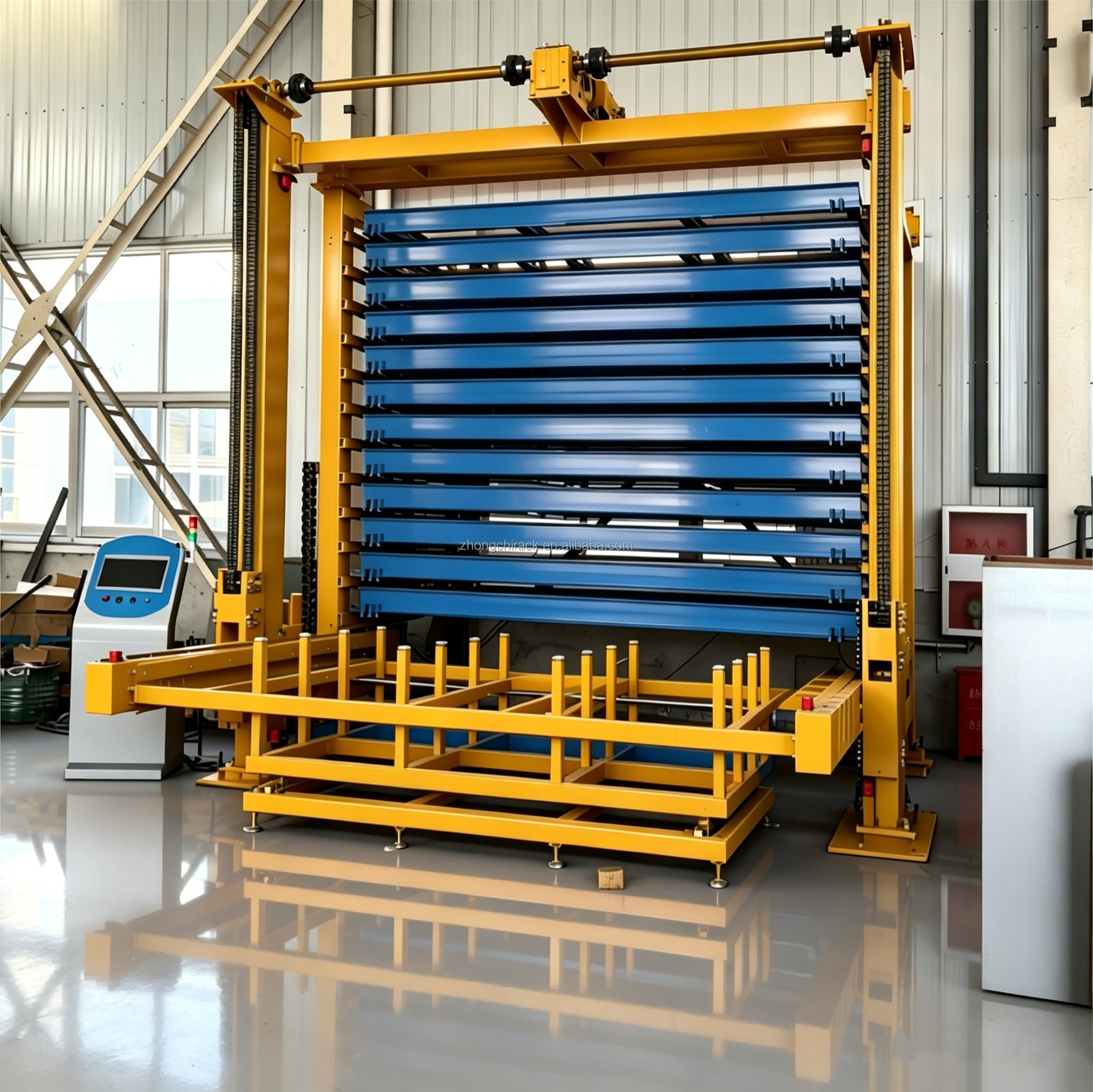

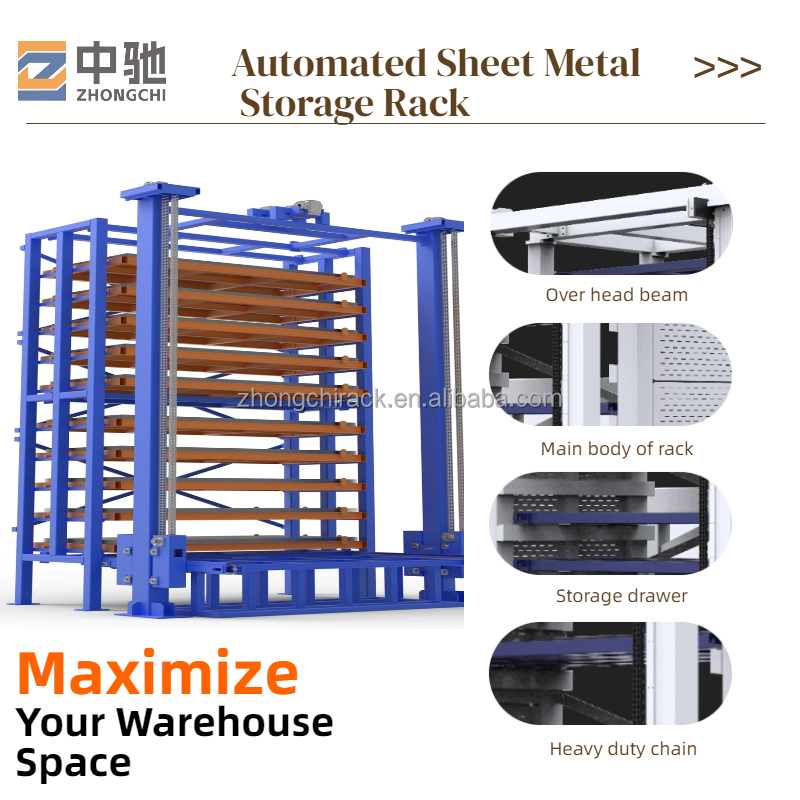

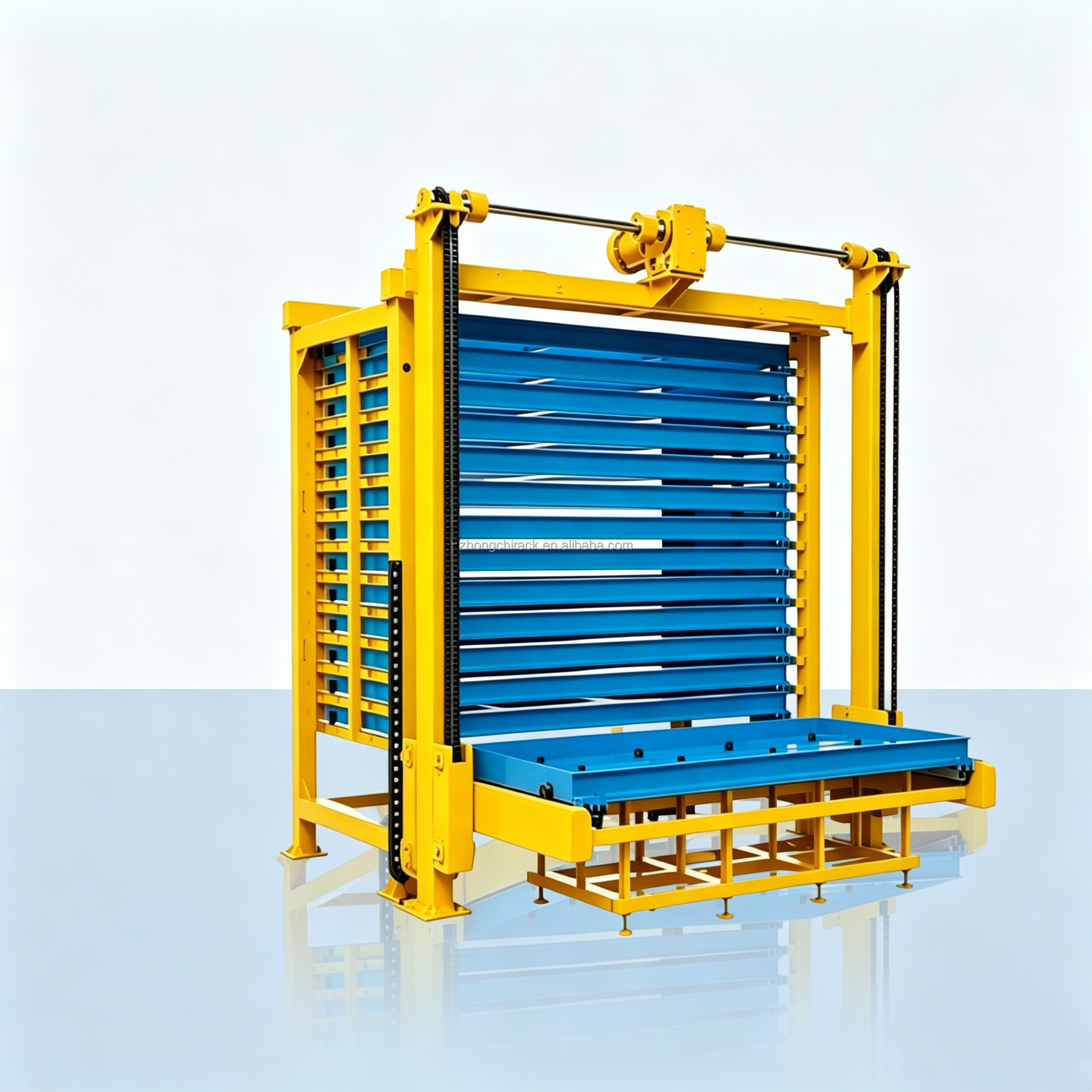

Detail Shot

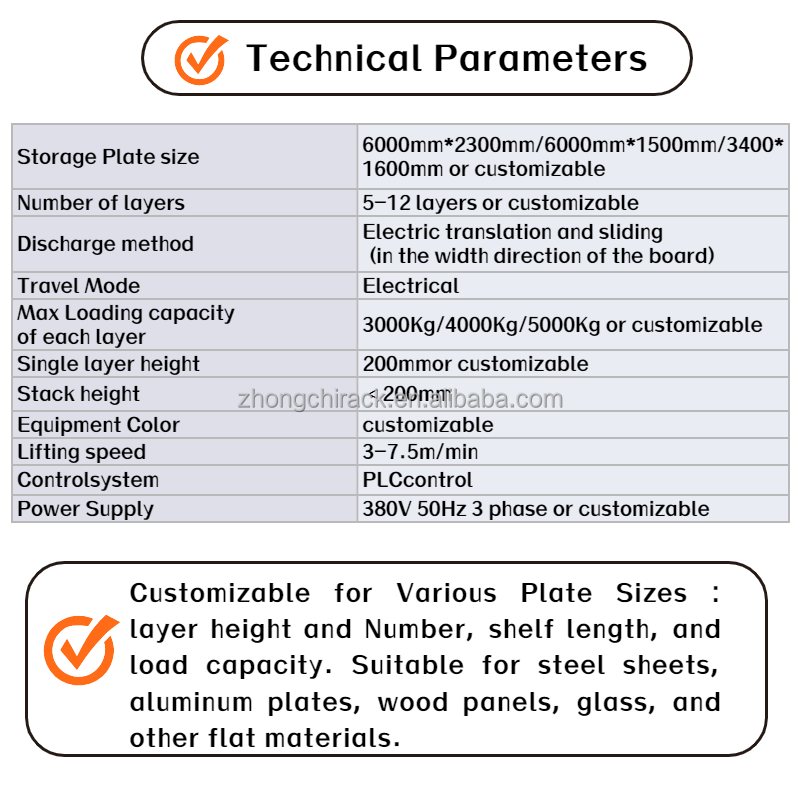

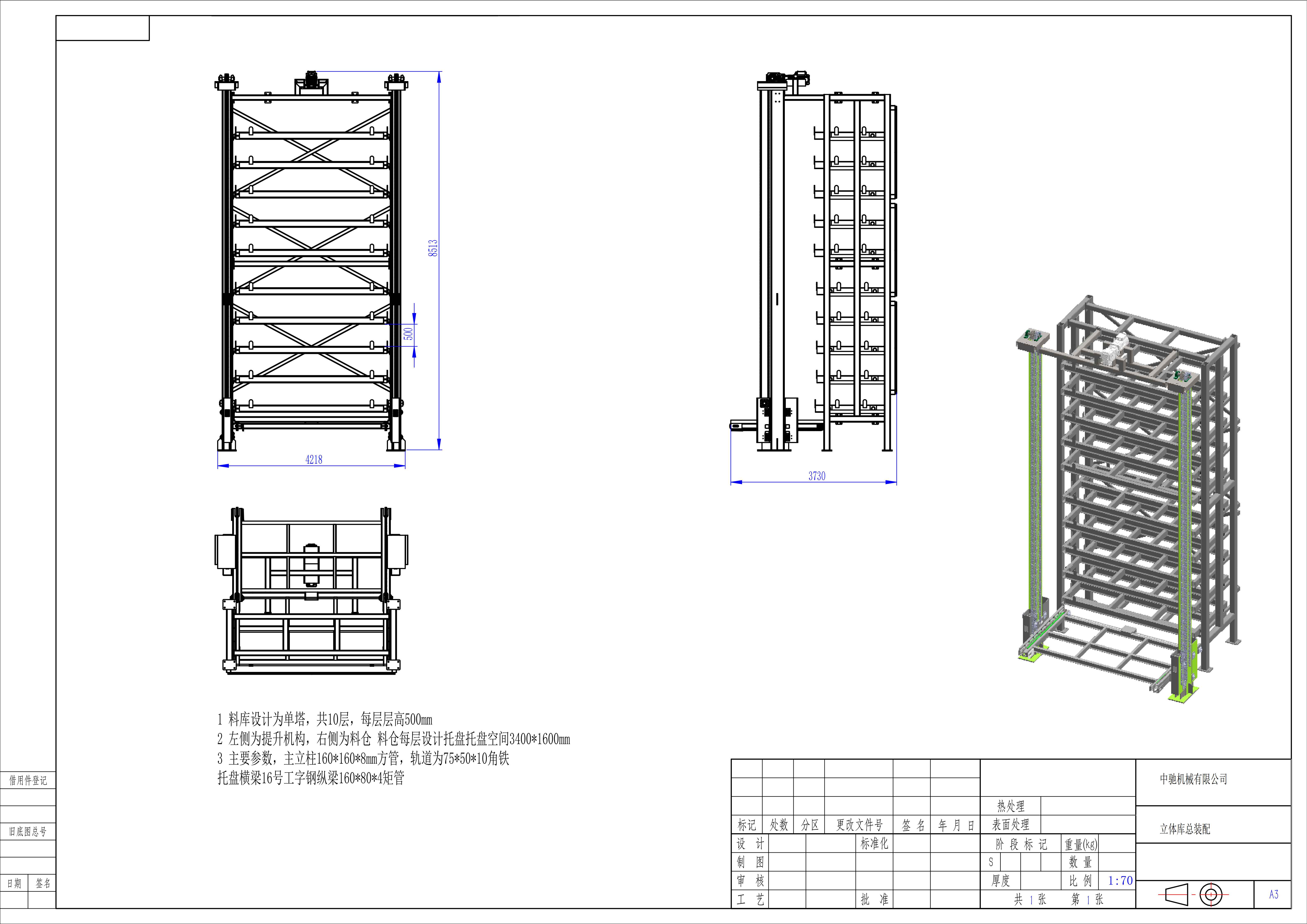

Specifications
About The Supplier
Manufacturer Background
Zhongchi Machinery is a professional heavy-duty storage rack manufacturer based in Jinan, Shandong Province. We integrate independent R&D, mass production and customized sales into one complete business system.
Main Product Range
We focus on industrial raw material storage equipment. Our core products include telescopic cantilever racks, drawer sheet racks, beam pallet racks and intelligent automated stereoscopic warehouse systems.
Production Strength

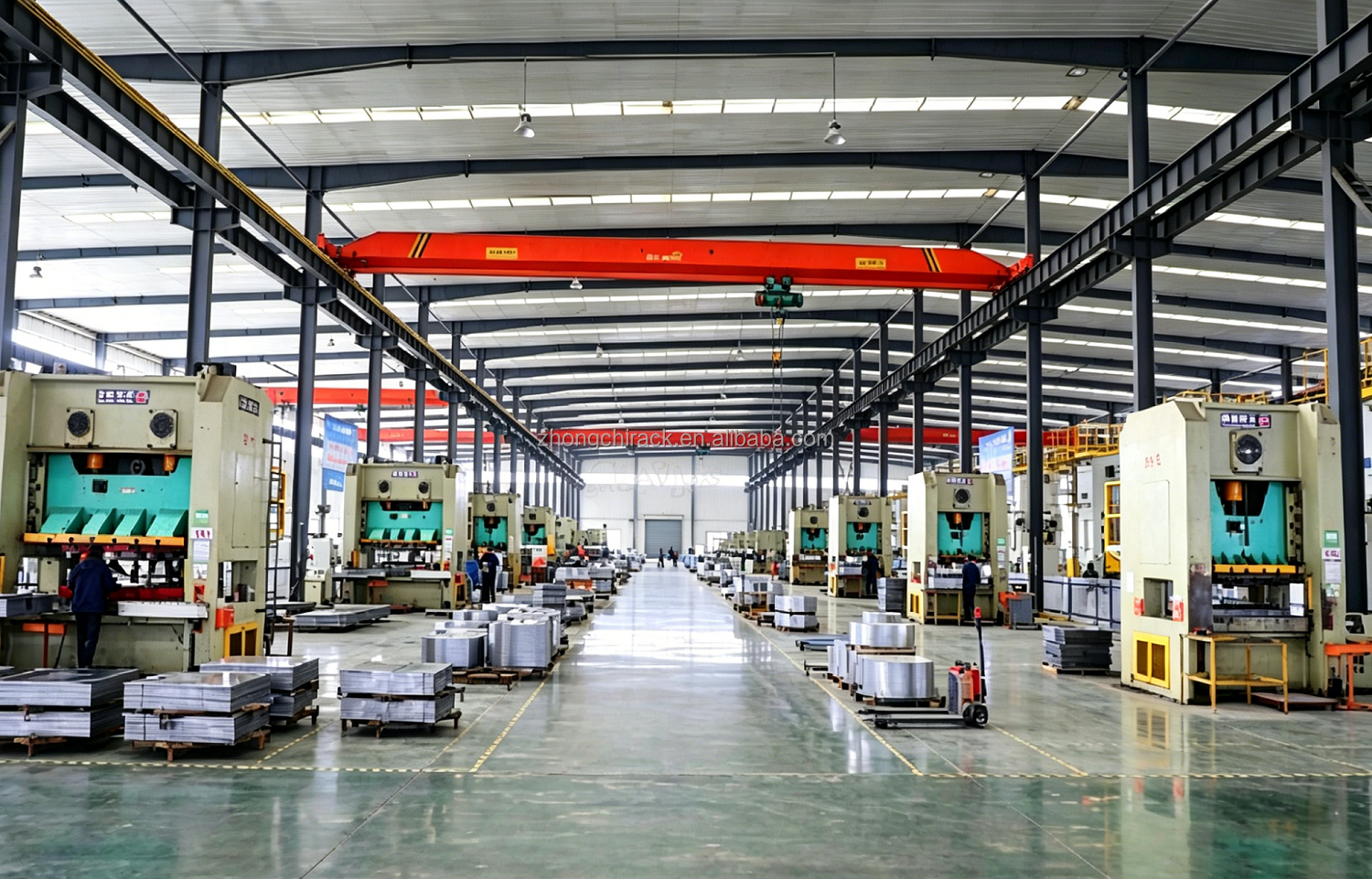

Our factory owns standardized large workshops and fully automatic production lines. We have powerful production capacity and offer flexible one-stop customization solutions for various warehouse storage needs.
Strict Quality Control
All racks are made of national standard thickened Q235 steel. Each product goes through multi-rigorous inspections, electrostatic anti-corrosion spraying and professional load-bearing tests to guarantee stable and long service life.
Global Supply Service
We provide direct factory supply for warehouse clients from domestic market and all over the world, with reliable product quality and comprehensive after-sales support.
Company Overview
Competitive Advantages
Packaging & Shipping Specifications
Frequently Asked Questions
Q1
What materials can this automated vertical material warehouse store?
It is specially designed for flat sheets including steel sheets, aluminum sheets, stainless steel plates, galvanized sheets, stone slabs, plastic panels and decorative wood boards. Widely used in sheet metal workshops, stainless steel processing plants, stone factories and door & curtain wall factories. Not suitable for coils, small scraps or irregular special-shaped workpieces.
Q2
What is the core difference between automated vertical warehouse and electric drawer sheet rack?
Electric drawer racks require manual forklift or vacuum lifter operation with single-layer pull-out. This automated warehouse is equipped with intelligent stacker crane for fully automatic inbound & outbound without staff entering the storage area. It can connect with vacuum manipulators and AGVs to realize unmanned storage, featuring more layers and higher storage density, ideal for large-scale factories with mass production and 24-hour continuous processing.
Q3
What is the load capacity of a single storage location? What is the total load of the whole warehouse?
Standard single location load capacity optional: 2T / 3T / 5T. The whole warehouse can be customized according to height and columns with total storage load from 10T to 200T. Thickened supporting plates and reinforced stacker structure can be customized for heavy stone slabs and thick steel plates.
Q4
What maximum sheet size can it store? What is the maximum customizable height?
Standard for 1220*2440mm and 1500*3000mm sheets, custom length & width available. Standard warehouse height ranges from 3m to 12m, extra high structure is customizable for workshops with sufficient ceiling height to maximize vertical space utilization.
Q5
How fast is the stacker crane? What about inbound & outbound efficiency?
The stacker adopts triple frequency conversion speed regulation for traveling, lifting and picking with stable low-noise operation. Single access cycle takes 20-60 seconds. Priority outbound and batch outbound tasks are supported, improving efficiency by 3-8 times compared with manual access of traditional racks, matching continuous sheet supply for production lines.
Q6
Will the stacker scratch or bump sheets during access?
Anti-slip buffer mats are laid on each storage location, and the stacker forks are equipped with flexible rubber strips. The system realizes precise positioning with slow deceleration when picking & placing sheets, plus anti-collision photoelectric sensors to avoid surface scratches and edge impact damage.
