Movable Steel Pallet Racks Automation Warehouse Storage Racking System
Product Description
Product Description
Electric Mobile Racking

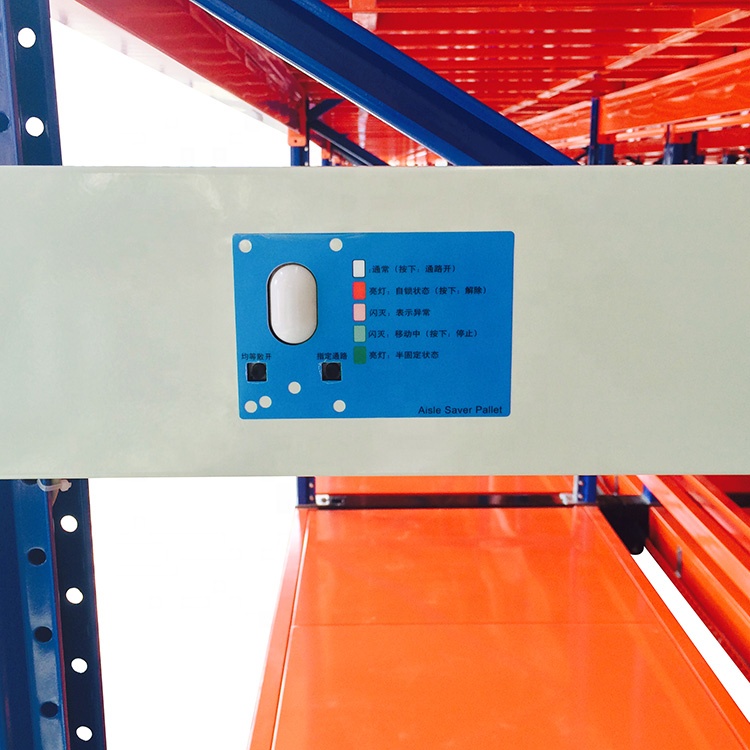

Electric mobile rack takes full advantage of the warehouse space 3 times space using rate as the general shelves. Each unit could be moved separately on the guide rail. It is easy to operate drive a unit just press the button. Every rack has its own transmission equipment link to electromotor, and equipped with safety device. It is mostly applied in refrigeratory or anti-explosion warehouse and provides a 100% access to load and retrieve.
| Name | Electric Mobile Rack | Material | Steel |
| Dimension | Different sizes are available | Color | Selective |
| Depth | Customized | Weight Capacity | Customized |
| Width | Customized | Height | Customized |
| Finish | Powder coated/Galvanised | ||
| Weld | Weld for automatic welding | ||
| Rust | Surface antirust | ||
| Usage | Warehouse Storage System | ||
| Function | Cold Warehouse | ||
| Certification | CE, ISO9001:2008 | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||

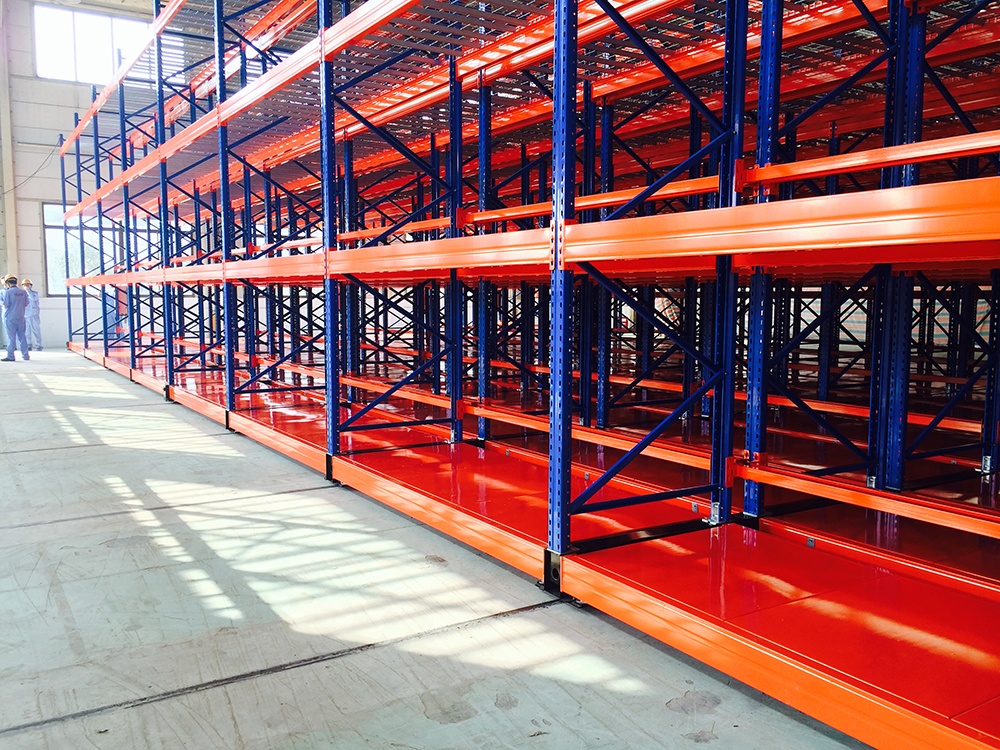

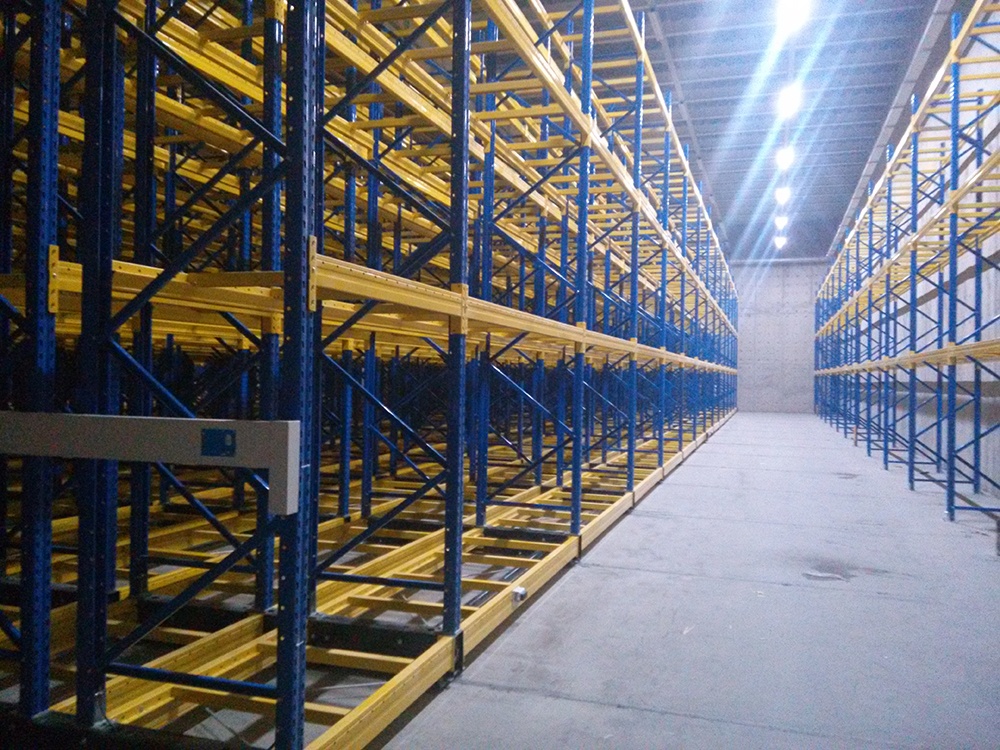

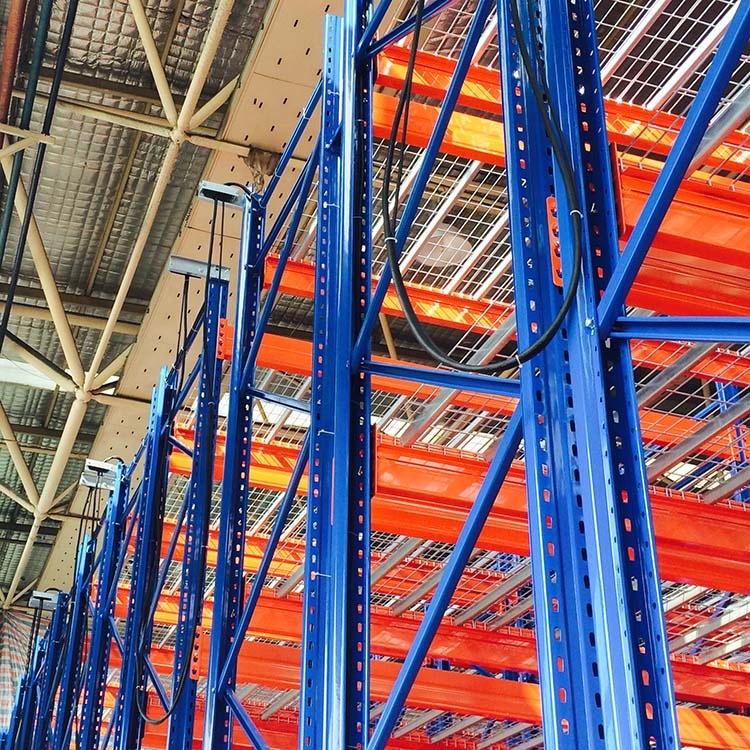

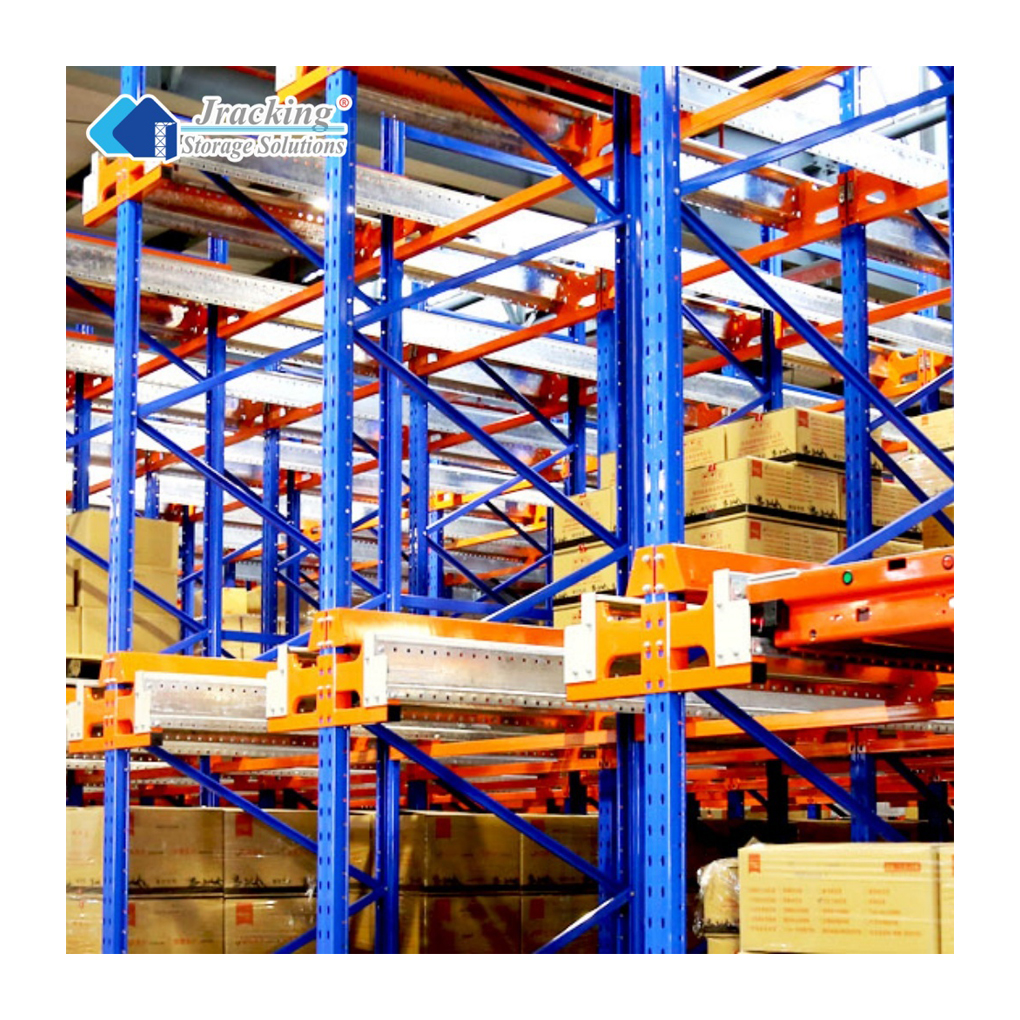

Product Display
Brief Introduction

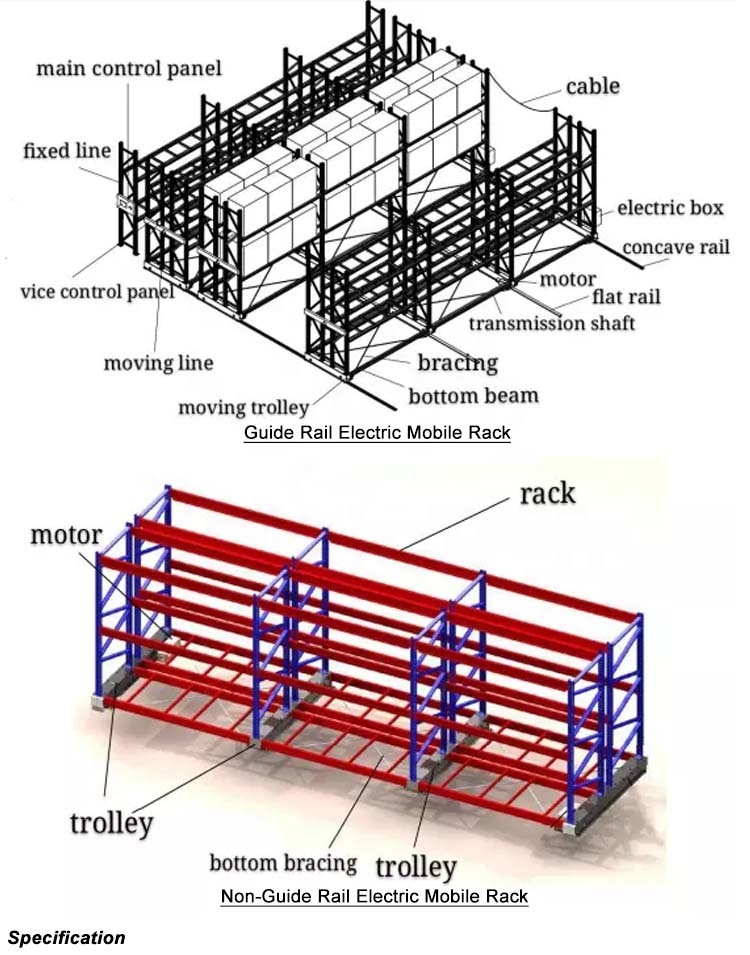

Electric Mobile Rack is the most common form of density storage, with the aid of forklift to access the goods. Its space utilization rate can reach more than 85%. The electric mobile rack is made up of track (or guide device), trolley (walking device), motor, rack, detection device, operation panel and software control system. According to the rail style, it is divided into guide rail type and non-guide rail type.
| Specification | Guide Rail | Non-Guide Rail |
|---|---|---|
| Loading Capacity | 32 tons/unit | 16 tons/unit |
| Wheel Material | Cast Iron | Polyurethane |
| Width of Trolley | 210/226mm | 300mm |
| Cost | Normal | High |
| Running Speed | Max 10m/min | |
| Notch | Need | No Need |
| Guidance | Rail Guidance | Mechanical Guidance |
| Power of Motor | 0.4KW, 0.75KW | |
Features and Advantages
Capacity Expansion: Increases storage capacity by more than 85%.
Cost Efficiency: Reduced operating and real estate costs through the system’s outstanding space utilization (surface area utilization of more than 80%).
Versatility: Suitable for multiple type of goods with small quantity.
Direct Access: Direct access to the pallet slots prevents unnecessary and time-consuming relocations.
User-Friendly: Simple structure, easy to operate.
Broad Application: Earthquake-proof design, deep-freeze warehouses, manufacturing industry, food and drug industry, new energy industry.
Product Details

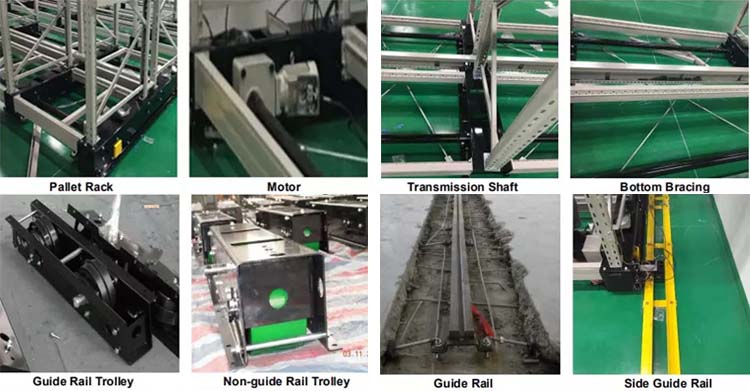

Electric Mobile Rack Components
| Rack Part | Pallet Rack |
| Transmission Part | Bottom bracing, Trolley, Motor, Transmission shaft |
| Control Part | Control system, Software |
| Guide Part | Guide rail or side guide rail |

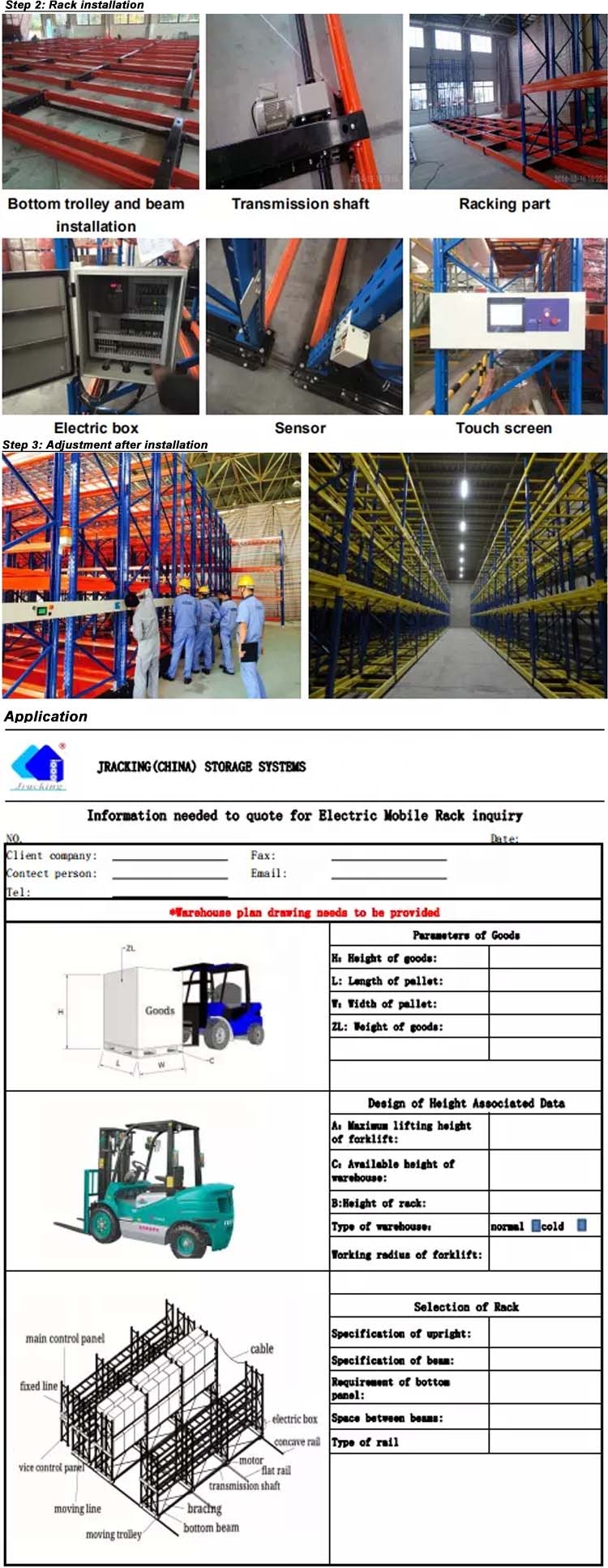

Construction Process
Step 1: Guide rail construction
| Guide rail | Non-guide rail |
|---|---|
| Guide rail electric mobile rack needs notching, rail laying, pouring and rail maintenance. It is suitable for a warehouse with large load capacity and slotting on the ground. | Non-guide rail electric mobile rack does not need notching. It is suitable for a warehouse with smaller loading requirements and no slotting on the ground. |
