Radio Shuttle Electric Mobile Pallet Rack Warehouse Storage Radio Shuttle Racks
Product Description
Product Description
| Product Name | Automated Storage System High Quality Radio Shuttle Rack | ||
| Brand | KINGMORE | Style | Radio Shuttle Rack |
| Color | RAL5005 Blue & RAL2004 Orange | Material | Q235B steel |
| Usage | Warehouse Storage | Structure | Assembled Freely |
| Height | 1350mm - 12000mm | Capacity | 500-2000kg/layer |
| Width | 300mm - 1500mm | Thickness | 1.5mm - 3.0mm |
| Size | Customer Size | Certification | RMI / CE / ISO / TUV / AS4084-2012 |
| Packing | Customers' Request | Port | Nanjing / Shanghai |

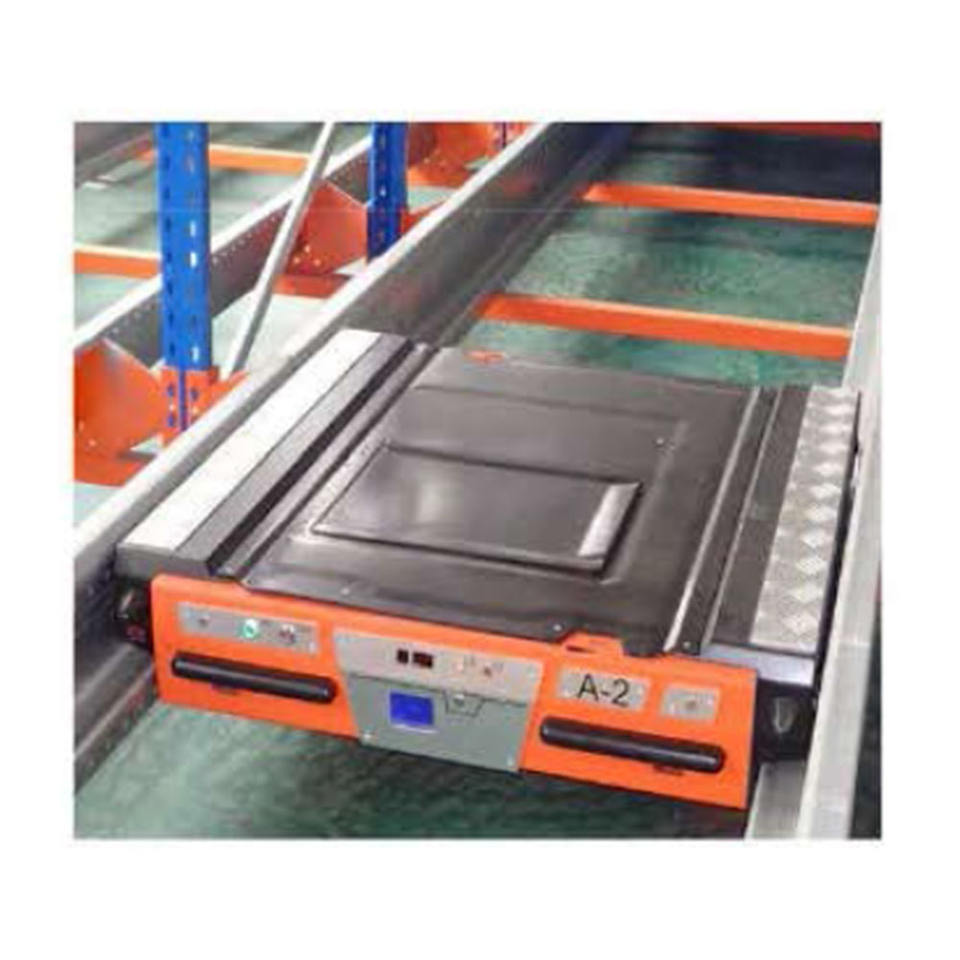

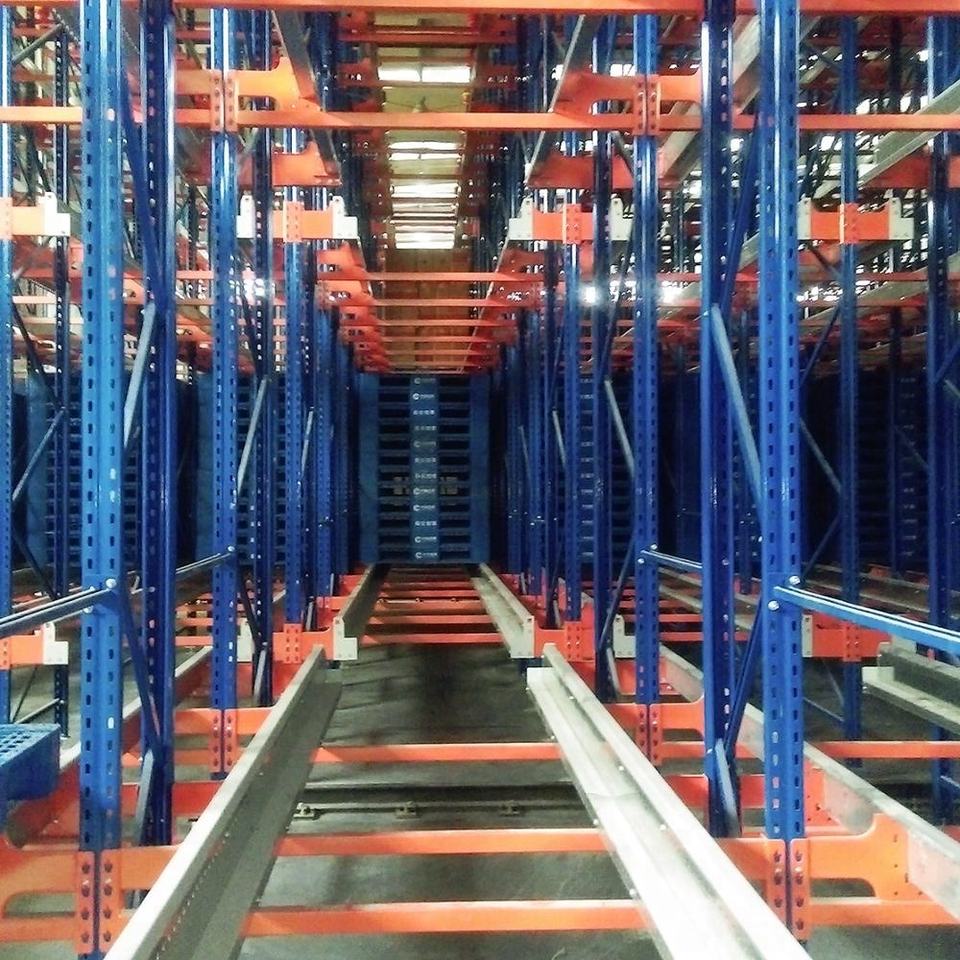

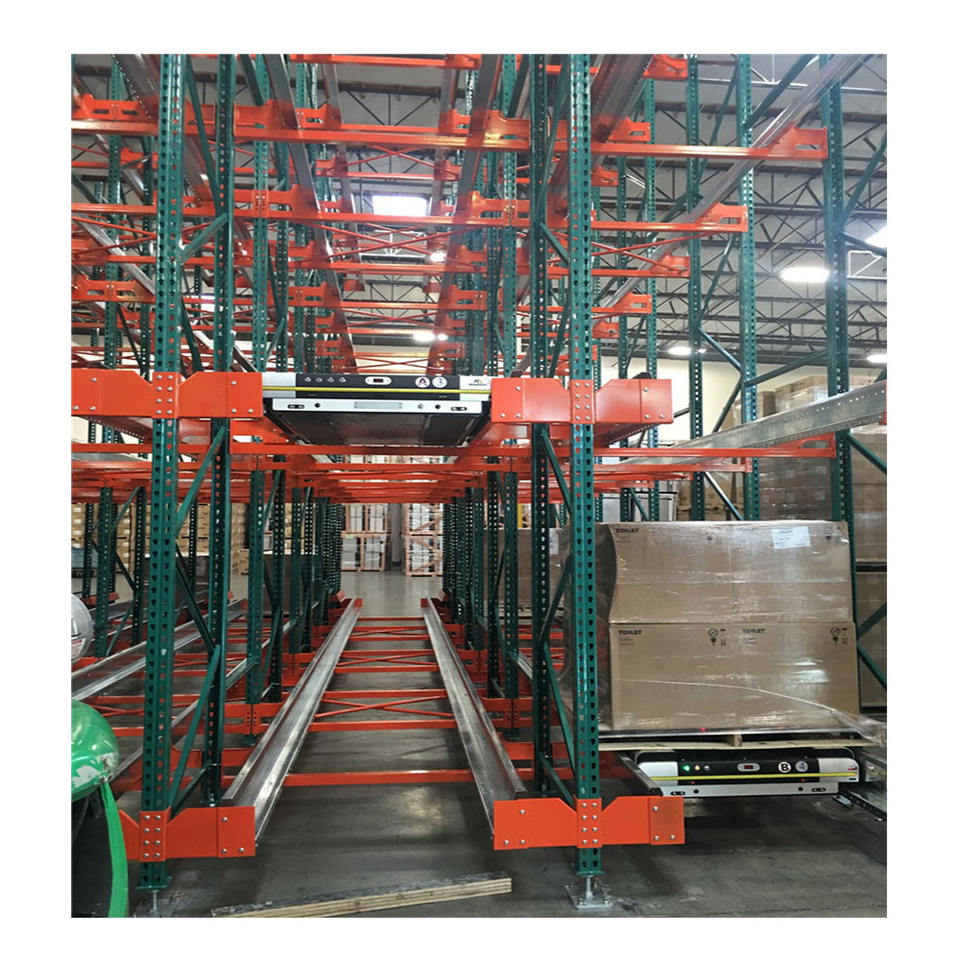

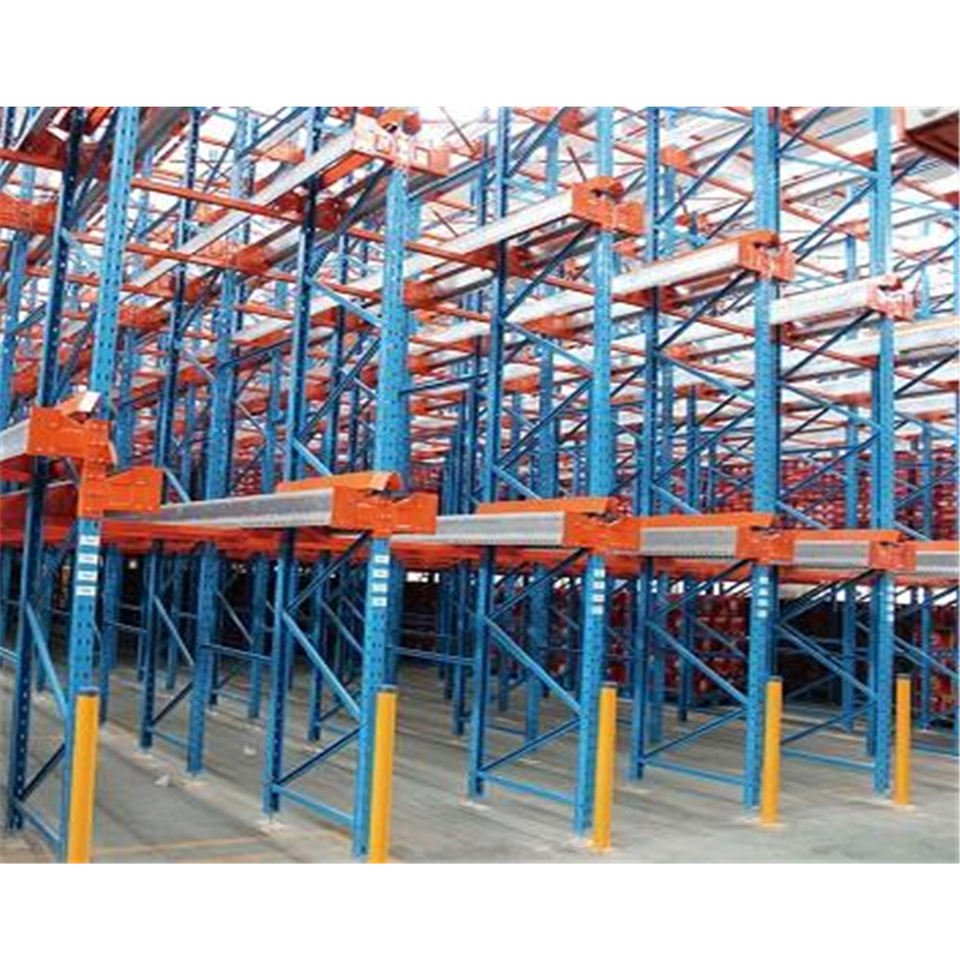

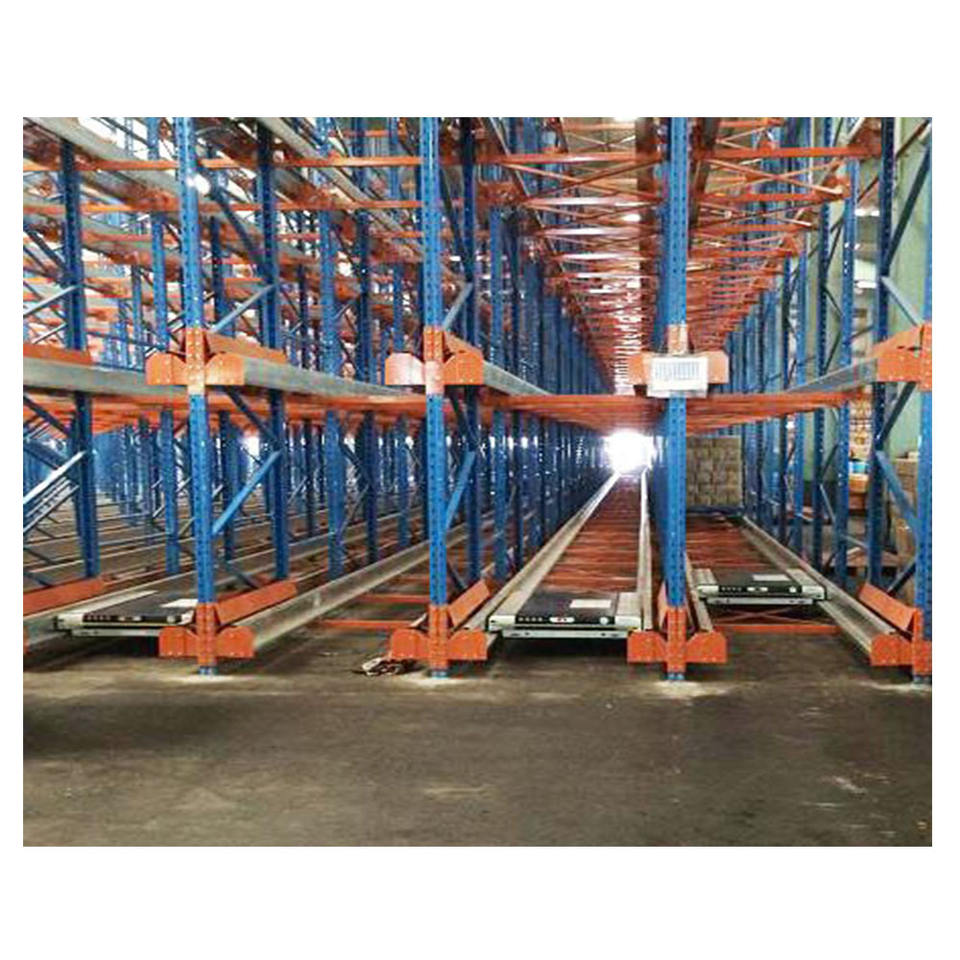

Radio shuttle rack is a kind of new storage solution. It has the advantages of both drive-in rack and live rack. FIFO, LIFO can be easily realised. This system consists of forklift, racking system and shuttle. Forklift carries goods onto shuttle. Shuttle automatically take the goods into racking system and come true the storage function. Radio shuttle can work continuously so the whole work efficiency is enhanced. The shuttle can be charged more than 1000 times.
Features & Benefits
- ✓ Individual access to all pallets to full height of warehouse;
- ✓ Elegant appearance, sturdy and durable;
- ✓ The system is also speedily installed and simple to adjust;
- ✓ The beam levels are adjustable by 50mm, 50.8mm, 75mm, 76.2mm;
- ✓ Lower level pallets can be located on the floor picking pallets;
- ✓ Accessories available can accommodate every unit load type.
Component Diagram
Radio shuttle rack has frame, radio shuttle car, middle beam, pallet rail, single arm, double arm, pallet rail splice, adjustable foot plate and so on.
Kingmore Products
- ● High durable strength steel
- ● RAL color code / Galvanized both available
- ● Rigid beam connectors
- ● Automatic welding machines
- ● High grade bolts & nuts
- ● Certification: RMI / CE / ISO / TUV / AS4084-2012
Packaging & Shipping
Main Products
Company Information
Frequently Asked Questions (FAQ)
Q: What is the loading capacity and size range of the radio shuttle rack?
The system accommodates a loading capacity of 500kg to 2000kg per layer. Heights range from 1350mm to 12000mm, with widths from 300mm to 1500mm, and custom dimensions are available based on specific warehouse storage requirements.
Q: Does this system support both FIFO and LIFO inventory rotation?
Yes. The radio shuttle racking system integrates the structural advantages of both drive-in racks and live racks, allowing both First-In-First-Out (FIFO) and Last-In-First-Out (LIFO) configurations to be implemented easily.
Q: What steel quality and certifications are provided?
The racks are manufactured from high durable strength Q235B steel with thickness between 1.5mm to 3.0mm, processed via automatic welding machines and compliant with international standards including RMI, CE, ISO, TUV, and AS4084-2012.
Q: How durable is the electric shuttle battery?
The automated radio shuttle is equipped for heavy-duty warehouse applications and features long-life battery systems that can be recharged more than 1,000 times for continuous and reliable operation.
Q: What surface finishes and color options are available?
Standard color configurations include RAL5005 Blue and RAL2004 Orange. Galvanized surface treatments and tailored RAL color codes are also available upon customer request.
