Factory Heavy Duty Metal Shelving Industrial Warehouse Storage Rack Shelf Steel Racking System For Stacking Racks & Shelves
Product Description
Safe Storage
Designed safely to keep warehouse and commercial goods
Heavy Duty Load
Large space and load capacity for every tier (100 - 500 KG/Layer)
Customized Options
Different thickness, dimensions, layers, and colors available
High Supply Capacity
Production and supply ability up to 5,000 pieces per month
Product Attributes
| Product Name | Heavy duty rack system warehouse storage |
| Size | L2300 * W1000 * H2550mm (Or as your request) |
| Usage | Warehouse / Supermarket / Industry storage rack & shelf |
| Specification |
This rack is safe to keep goods. The space and load capacity for each tier are larger than common commercial shelves. Different thickness, size, layers, and colors are available for you to choose. |
| Commercial Details |
Minimum Order Quantity: 10 sets Supply Ability: 5,000 pieces per month Payment Terms: 30% deposit upon signing the contract, balance cleared by T/T before delivery Delivery Terms: Ex-factory / Upon factory Delivery Time: 10-15 workdays upon receipt of deposit |
Technical Specifications & Model Selection

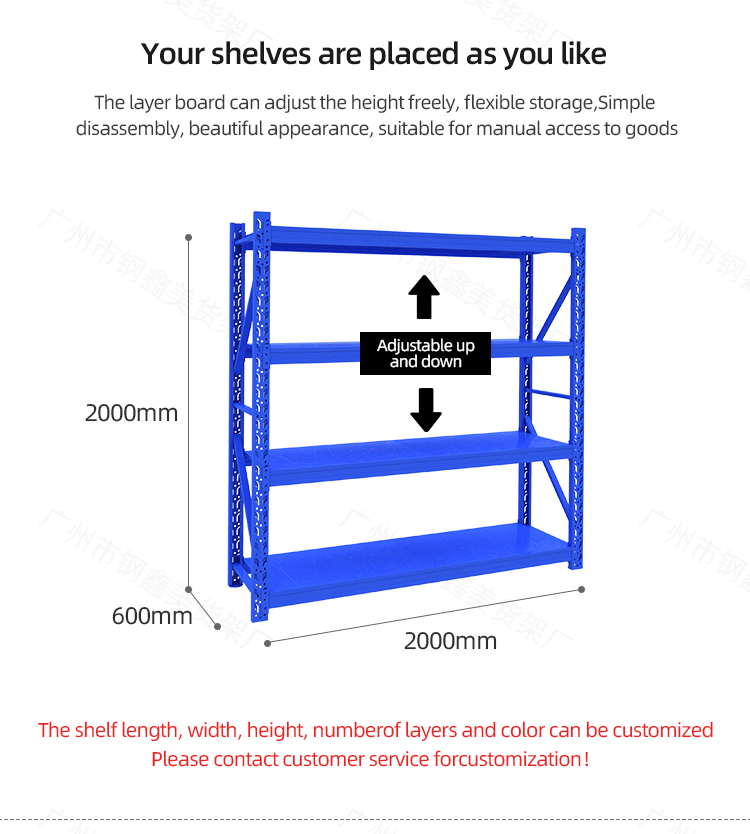

Customized Service: Please provide your required size and loading per layer. We accept customized sizes and loading capacities. If needed, extra layers can be added to the shelf (Standard configuration: 2 to 4 layers).

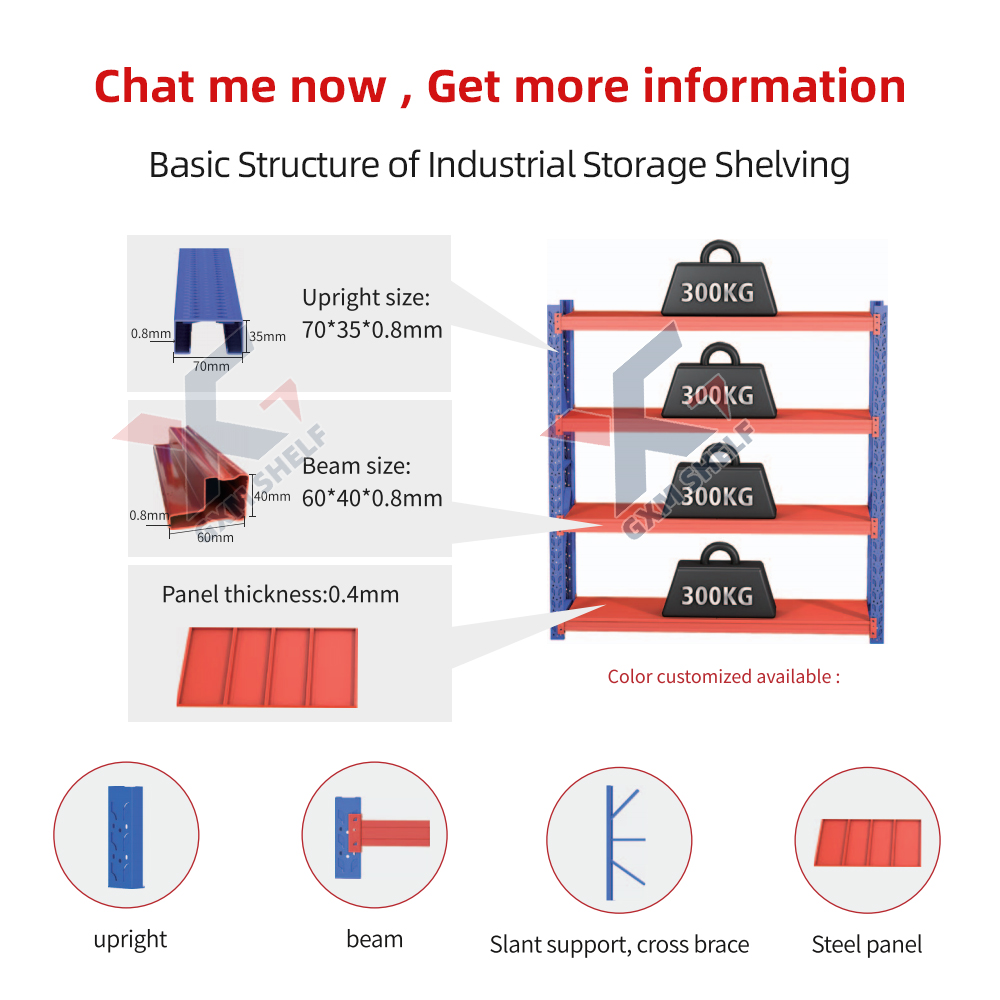

| Model No. | Capacity (KG/Layer) | Dimensions (L*W*H mm) | Material Thickness |
|---|---|---|---|
| GXM653 | 100 KG | 1200 * 400 * 2000 | Column / Beam: 0.6mm Layer: 0.3mm |
| GXM655 | 1200 * 500 * 2000 | ||
| GXM667 | 1500 * 400 * 2000 | ||
| GXM669 | 1500 * 500 * 2000 | ||
| GXM671 | 200 KG | 1075 * 600 * 2000 | Column / Beam: 0.7mm Layer: 0.3mm |
| GXM673 | 1500 * 400 * 2000 | ||
| GXM675 | 1200 * 400 * 2000 | ||
| GXM677 | 1200 * 600 * 2000 | ||
| GXM679 | 1500 * 500 * 2000 | ||
| GXM681 | 2000 * 400 * 2000 | ||
| GXM683 | 1500 * 600 * 2000 | ||
| GXM685 | 2000 * 500 * 2000 | ||
| GXM687 | 2000 * 600 * 2000 | ||
| GXM689 | 300 KG | 1500 * 600 * 2000 | Column / Beam: 0.9mm Layer: 0.4mm |
| GXM691 | 2000 * 600 * 2000 | ||
| GXM693R | 500 KG | 2000 * 600 * 2000 | Column / Beam: 1.1mm Layer: 0.5mm |
| Standard Layers | 4 Layers (Standard) | ||
| Available Colors | Blue / Orange / Grey-white | ||
| Custom Note | Other sizes and colors can be customized based on order quantity. | ||

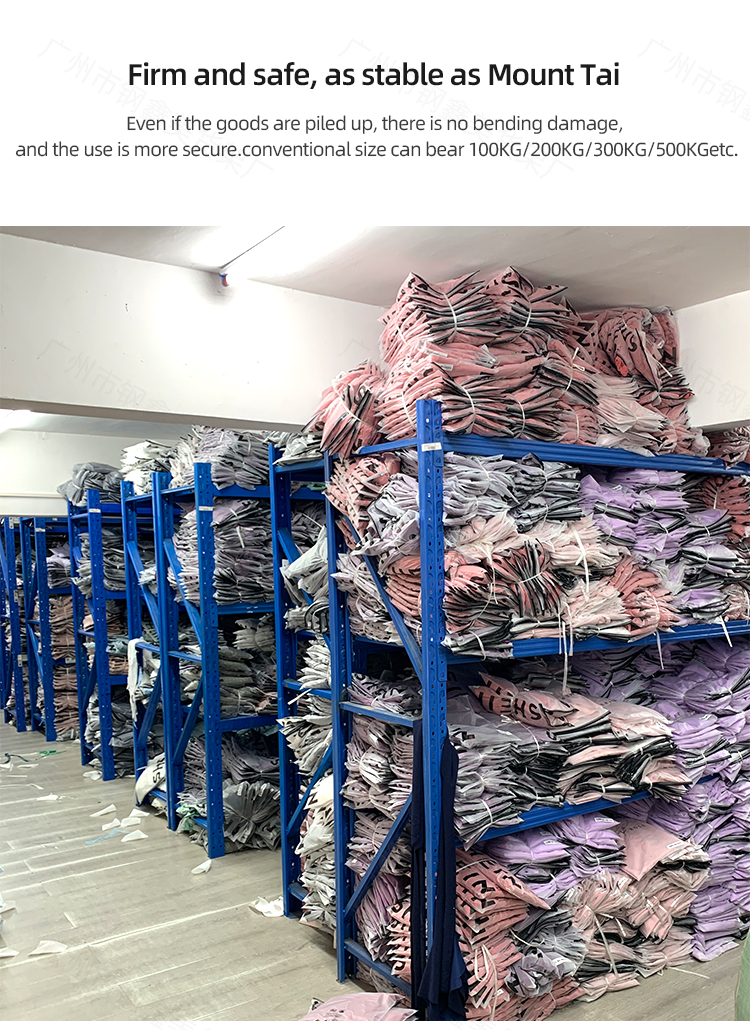

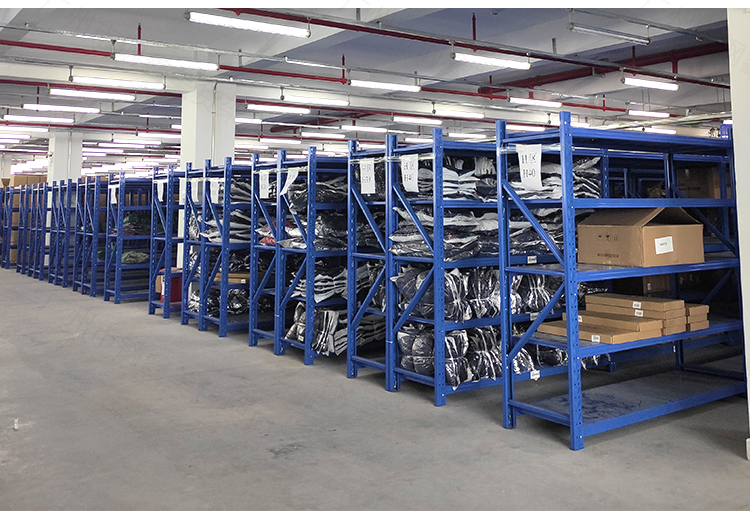

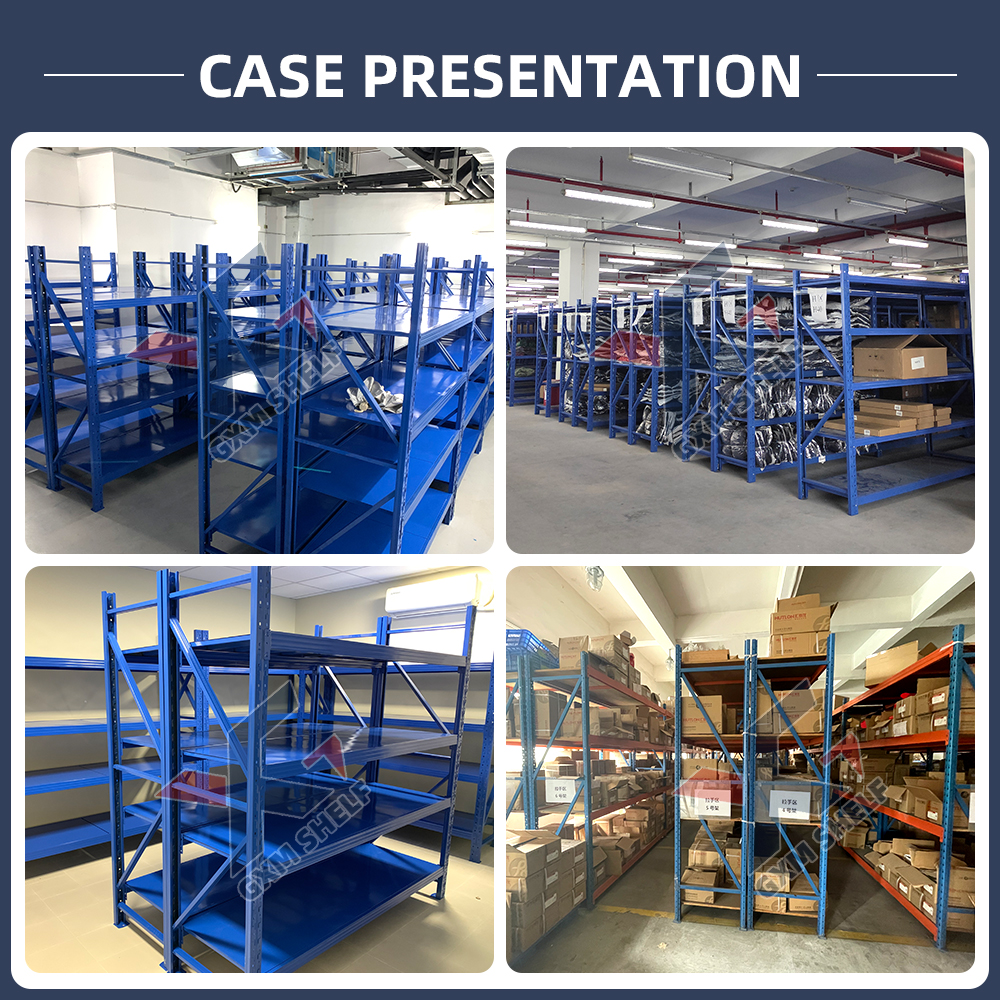

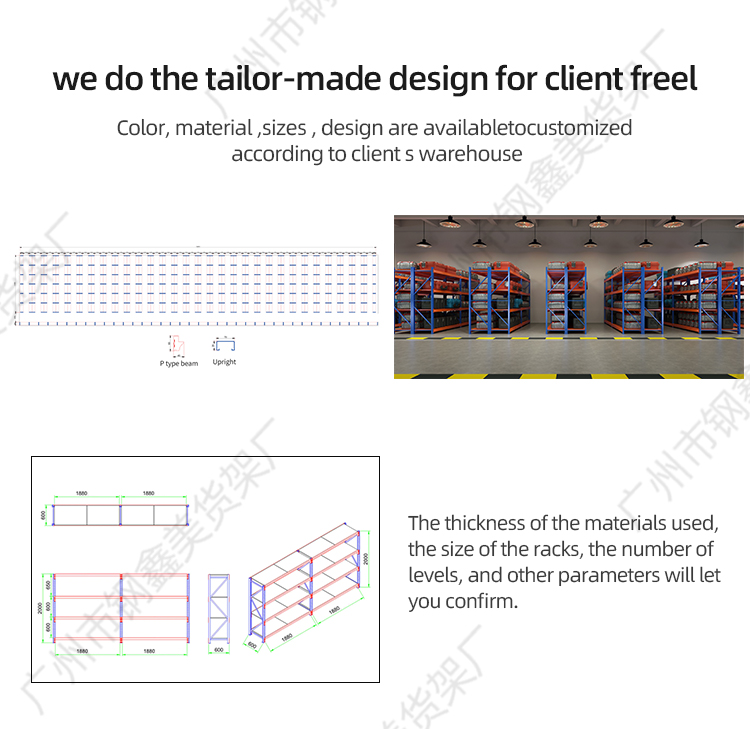

Product Details & Application Gallery
Frequently Asked Questions (FAQ)
What is the minimum order quantity (MOQ)?
The minimum order quantity is 10 sets for our heavy duty rack system.
Can the shelf size, layer quantity, and loading capacity be customized?
Yes, we accept customized dimensions, layer levels, and loading capacities. Standard racks come with 2 to 4 layers, and extra layers can be added as per your requirements.
What load capacities and steel thicknesses are available?
We offer load capacities of 100KG, 200KG, 300KG, and 500KG per layer. Column and beam thicknesses range from 0.6mm to 1.1mm, and layer thicknesses range from 0.3mm to 0.5mm depending on model capacity.
What color finishes are available?
Standard colors include Blue, Orange, and Grey-white. Other customized colors can also be produced based on the order volume.
What are your payment and delivery terms?
A 30% deposit is required upon signing the contract, with the remaining balance cleared by T/T prior to delivery. Delivery time is 10-15 workdays after receipt of deposit under Ex-factory terms.
What is your monthly supply capability?
Our factory maintains a steady production and supply capacity of 5,000 pieces per month.
