Popular Discounted Price For Sale Pallet Shelving Heavy Duty Rack Industrial Rack Warehouse Whelves Goods Pallet Storage Rack
Product Description
| Product Name | Heavy Duty Warehouse Shelves Racks | Brand Name | NESRACK |
| Place of Origin | China, Shandong | Usage | Warehouse Storage |
| Color | Blue, Orange | Application | Goods Storage |
| Type | Selective Pallet Rack | Surface Treatment | Powder Coating |
| Material | Steel | Size | Customer Size |
| Feature | Corrosion Protection | Packing | Customize |
| Use | Warehouse Rack | Certification | ISO9001 / CE |
| Weight Capacity | 2000-5000kg / layer | Structure | Assembled |
| Width | 60/80 cm or customize | OEM & ODM | Supported |
| Height | Max 12000mm | ||
Product Description

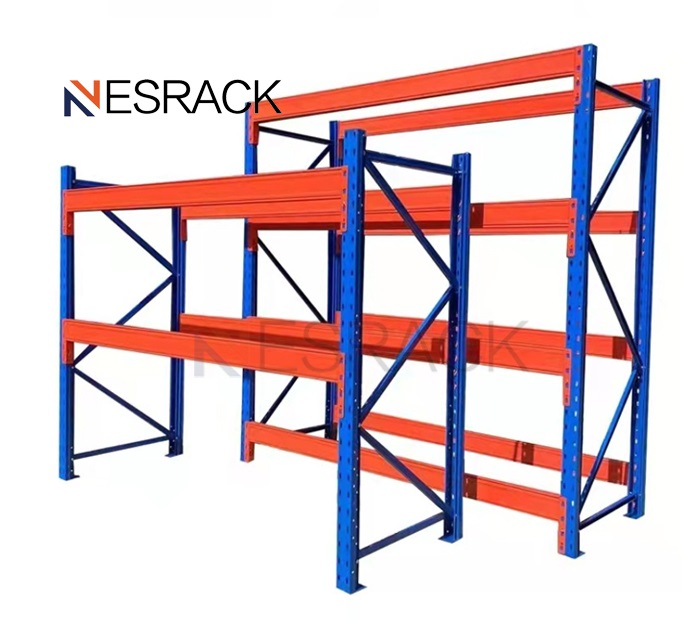

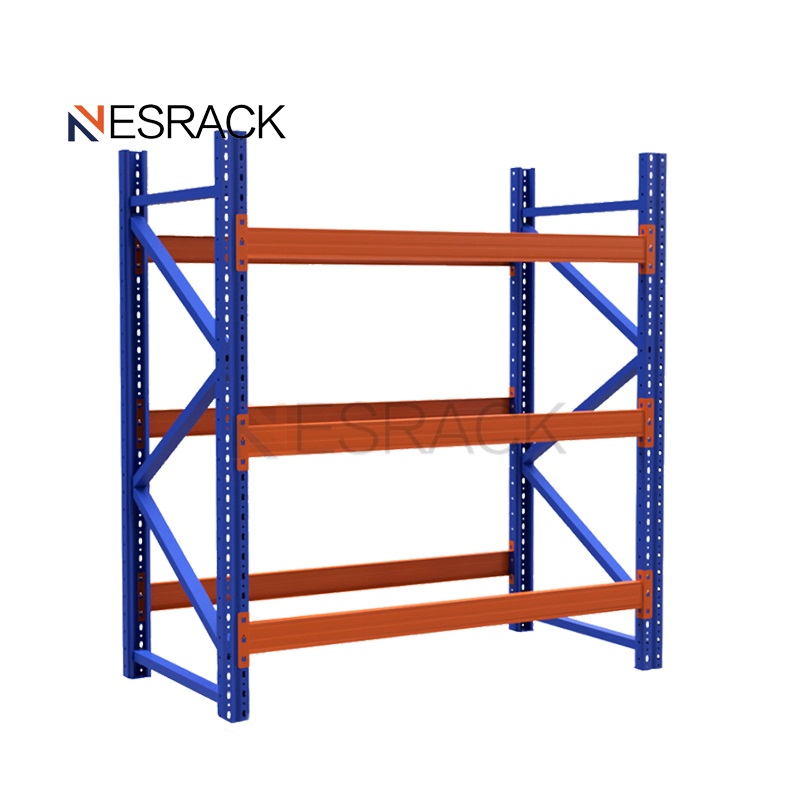

Pallet Racking
Pallet racking systems provide a direct access to all pallets, and is the most economical choice in terms of cost. It is composed of upright frames and beams. It is designed for optimizing storage of goods of all sizes and weights. With a wide range of components and accessories, NESRACK can tailor-make to meet your precise requirements. And our structure is versatile for any application and conditions. Easy to install and dismantle.
Column Specification and Bearing Capacity
01
Easy installation and reasonable structure.
02
High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
03
Fix the columns and beams to prevent the beams from falling due to improper operation.
04
Increase the shelf load and adapt to more types of pallets.
| Column Height | 3 Layers Beam | 4 Layers Beam | 5 Layer Beam |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |
Main Components
Frame
The frame of European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates and screw.
Upright, H-bracing and D-bracing, Base plates
Beam
The longest beam can be 4.5m, and the max loading capacity can be 4000kg/per level. Other specifications please contact us for details.

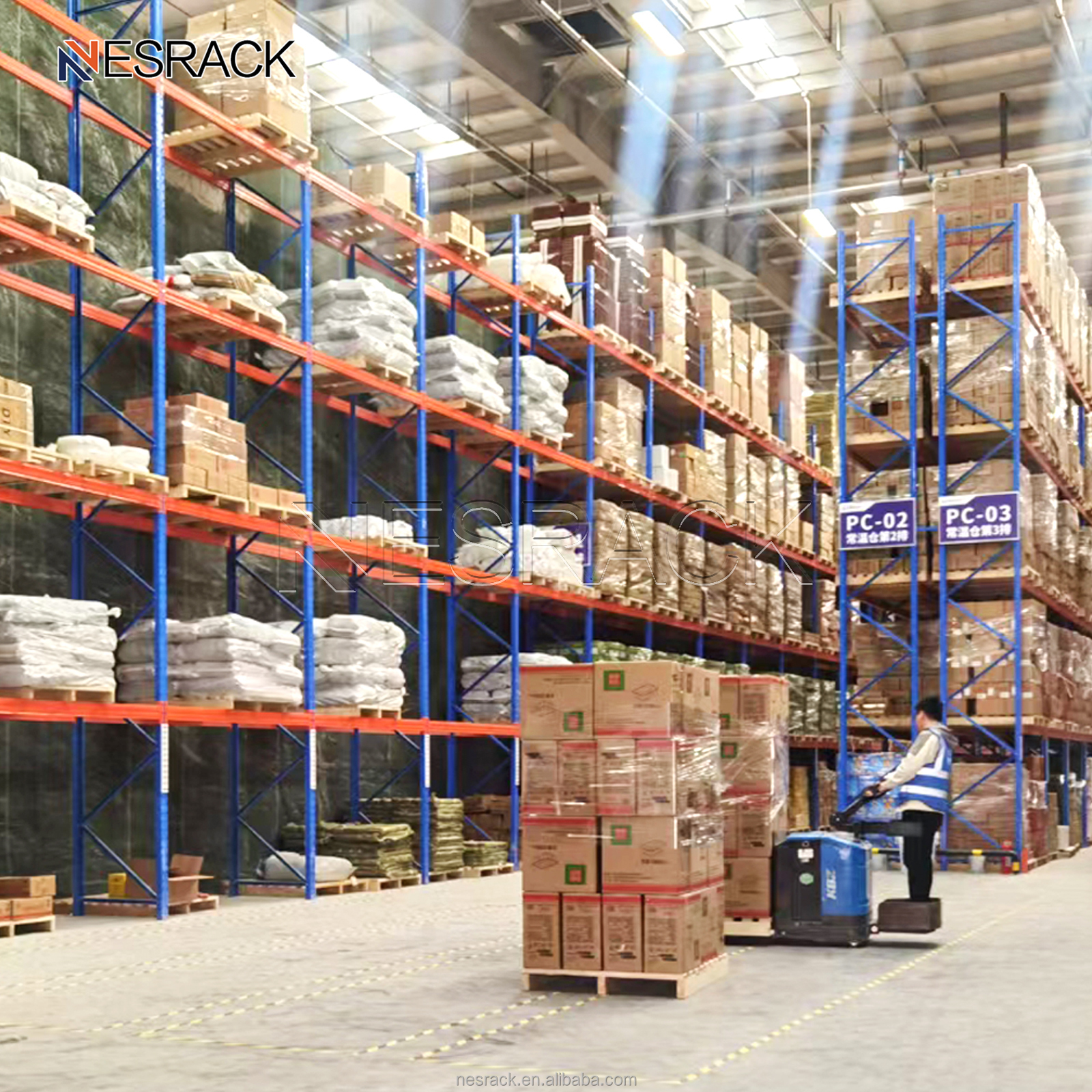

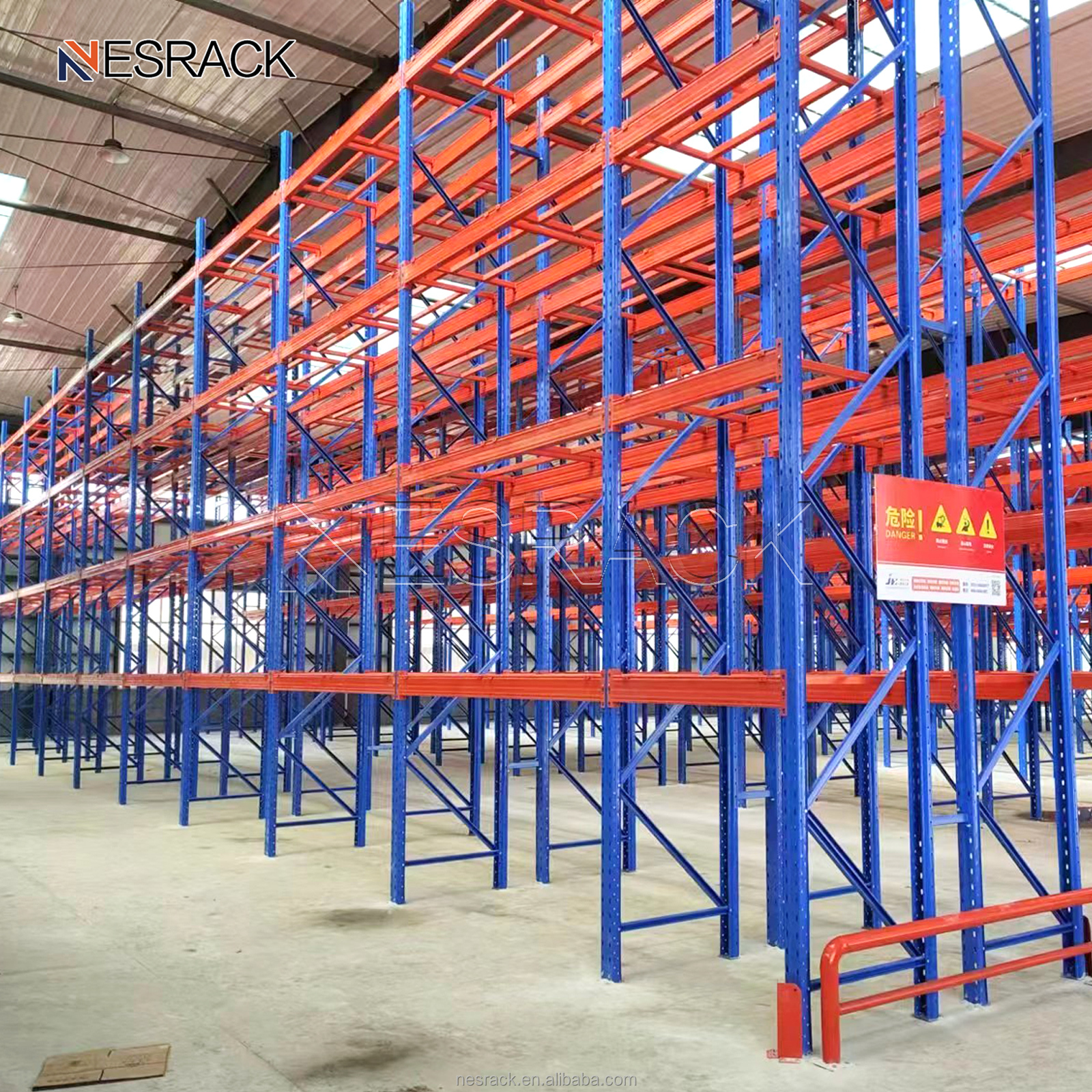

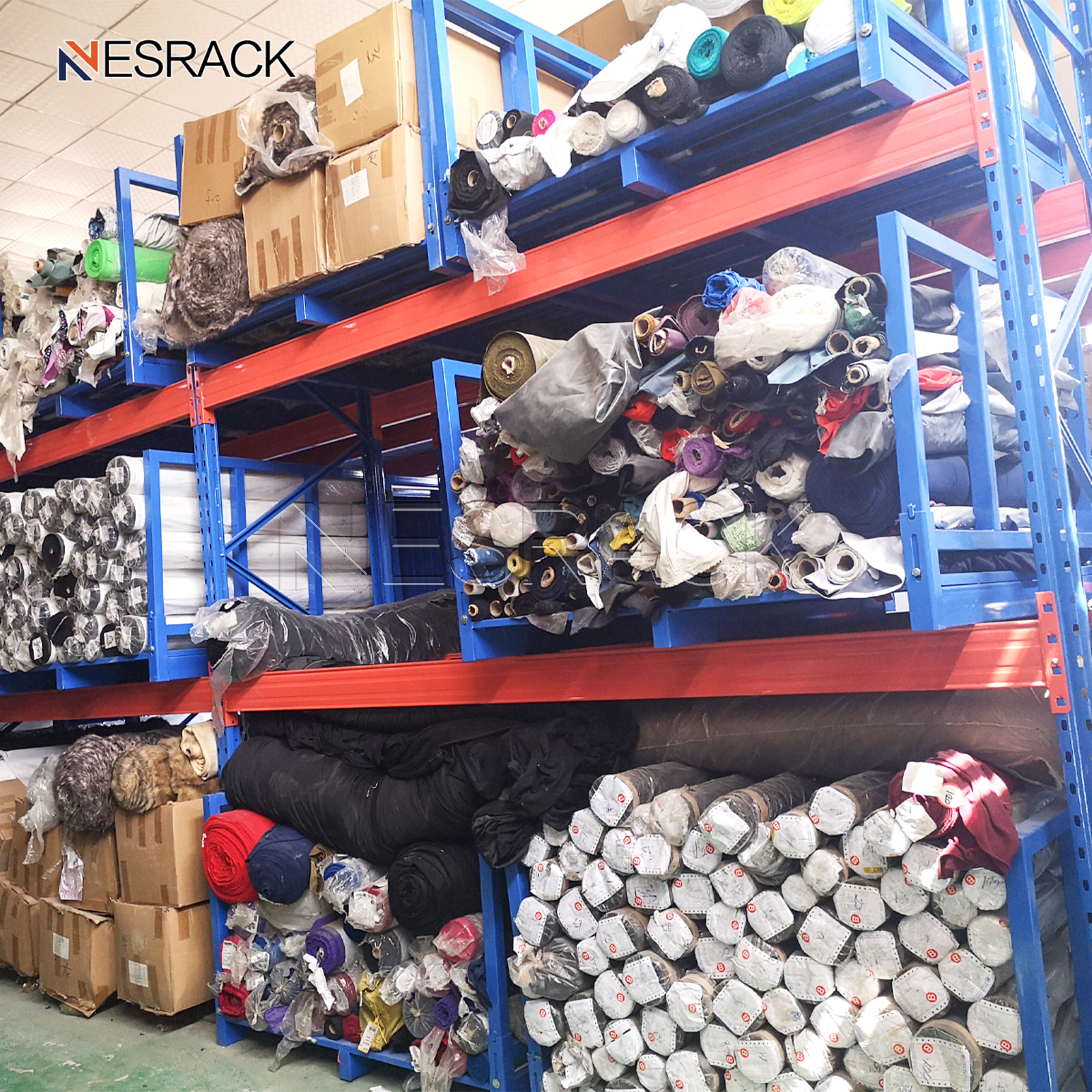

Success Cases
Exhibition
Company Profile
SHANDONG NELSON STORAGE EQUIPMENT CO., LTD has focused on top quality storage and logistics equipment for over 15 years in China. With 15 years of industry experience, we have become an excellent pacesetter in the warehouse racking industry.
Today, NELSON has been one of the producers of quality pallet racking and other racking equipments, such as: drive-in rack, radio shuttle rack, cantilever rack, mezzanine, steel platform, medium duty shelving, and light duty shelving.
NELSON Racking is located in the beautiful city of Jinan. As a global supplier in heavy duty, medium duty, light duty racking equipment and related accessories, NELSON Racking creates added value for customers around the world.
Our Partner
Packing & Delivery
Standard Export Packaging
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that I can quote the most cost-effective option.
Recommend Products
Frequently Asked Questions
Why choose us?
We feature a professional design team and adequate production capacity. We have obtained ISO and CE certificates, and comply with AS4084, RMI, and FEM standards.
What is the material used for your products?
The primary high-strength materials we select are standard Q235 and Q345 structural steel.
What is the ordering and purchasing process?
Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspection → Pay balance → Shipping.
What is the standard packaging of the products?
Standard export package. All parts are securely bundled with steel strapping and covered in protective wrapping film.
What is the minimum order quantity (MOQ)?
Normally the MOQ is one 20ft container; this can also vary depending on the specific sizing of your required products.
What are your payment terms and delivery time?
We accept T/T or L/C at sight. Delivery typically takes 3 to 4 weeks upon receipt of the initial deposit.
