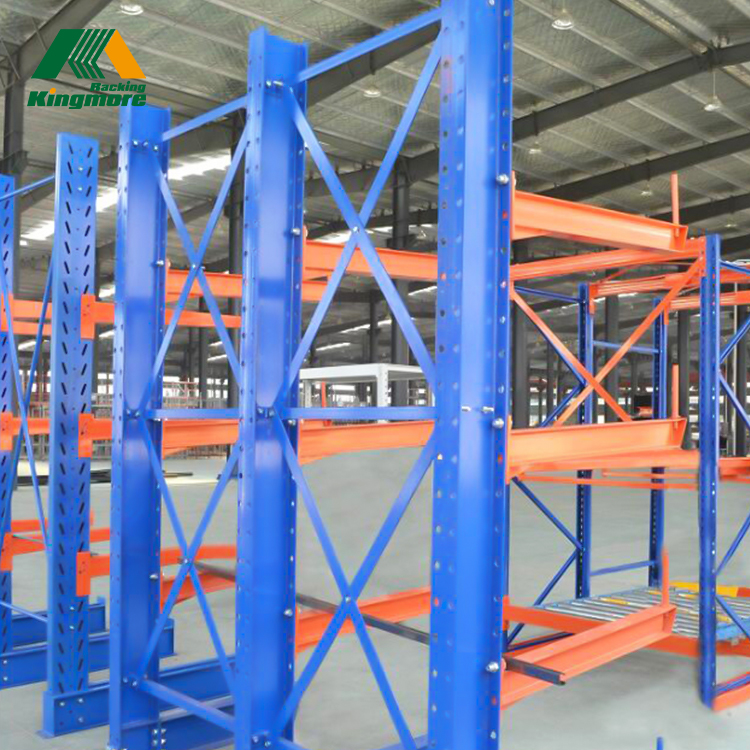

Pallet Racking Storage Plywood Heavy Duty Cantilever Racks Shelves Pallet Racking Warehouse Storage Heavy Duty Shelving
Product Description
Product Overview
| Product Name | Pallet racking warehouse storage plywood heavy duty cantilever racks | ||
|---|---|---|---|
| Brand | KINGMORE | Material | Q235B steel |
| Usage | Warehouse Storage | Color | RAL system |
| Certification | RMI / CE / ISO / TUV / AS4084-2012 | Structure | Assembled Freely |
| Size | Customer Size | Height | 9000mm |
| Capacity | Max. 23000kg/bay | Width | 1000mm - 1500mm |
| Steel Type | HN200, HN250, HN300 | Style | Cantilever rack |
| Packing | Customers' Request | Port | Nanjing / Shanghai |
H beam cantilever rack is also called structural cantilever rack, single sided and double sided are both available. Cantilever rack is quite simple structure, very easy to be assembled and disassembled. Mainly consists of column, base, arm, straight brace and "X" brace. Columns has three options and can be up to 6000mm. Arm can be made as long as 1800mm and adjusted by a pitch of 101.6mm. H beam cantilever rack can bear loads than roll-formed type. The structure cantilever rack can load about 800kg to 1200kg per arm.
Features & Benefits
- Simple structure, easy and quick positioning
- Single and double sided configuration available
- More high capacity ability
- Bolted arm and base connection
- Fit to keep long round shape of ring type or completed plate material
- Side fork lift truck and stacking crane are often applied with the rack
- Selective: direct access to each goods

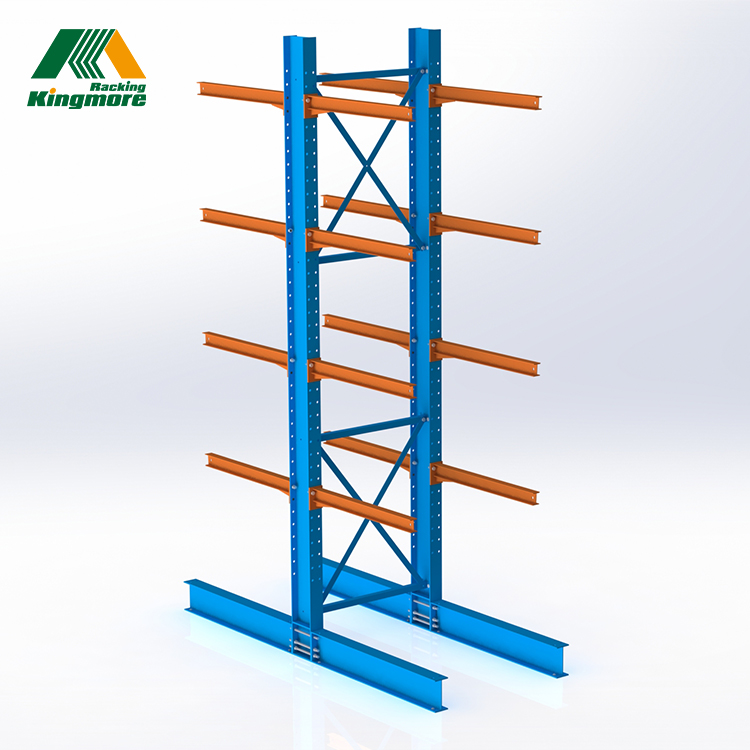

Component Diagram
It is also called arm rack, a storage system of overshooting arms ideal for storing long and volume loads in bulk, such as mental beams, pipes, timbers, wooden, mental, plastic boards and so-on. Cantilever rack consists of column, base, arm and connecting bracing. Single side and double side are both available. The cantilever rack can be of light duty type, medium duty type, heavy duty type.
Kingmore Products Advantages
- High durable strength steel
- RAL color code / Galvanized both available
- Adjusted by 101.6mm
- Rigid beam connectors
- Automatic welding machines
- High grade bolts & nuts
- Certification: RMI / CE / ISO / TUV / AS4084-2012
Packaging & Shipping
Main Products
Company Information
Frequently Asked Questions
What is the load capacity of these heavy-duty cantilever racks?
The structural H beam cantilever rack can carry between 800kg and 1200kg per arm, with a total maximum bay capacity reaching up to 23,000kg/bay.
What materials and profiles are used in manufacturing?
The cantilever system is manufactured from durable Q235B steel utilizing structural H beam steel types including HN200, HN250, and HN300.
What kinds of goods are best suited for this storage system?
It is ideal for storing long, bulky, and irregular items in bulk, such as mental beams, pipes, timbers, wooden panels, plastic boards, and sheet materials.
Can the dimensions and arm levels be adjusted?
Yes, columns can be configured up to 9000mm, arm lengths reach up to 1800mm, and arm height levels can be adjusted easily by a pitch of 101.6mm.
What quality standards and certifications does the system meet?
The cantilever racking meets major international safety and manufacturing standards, certified under RMI, CE, ISO, TUV, and AS4084-2012.
What delivery and finishing options are available?
Finishes are available in RAL system powder coating and galvanized finishes. Orders are packed according to customer specifications and shipped via Nanjing or Shanghai ports.
