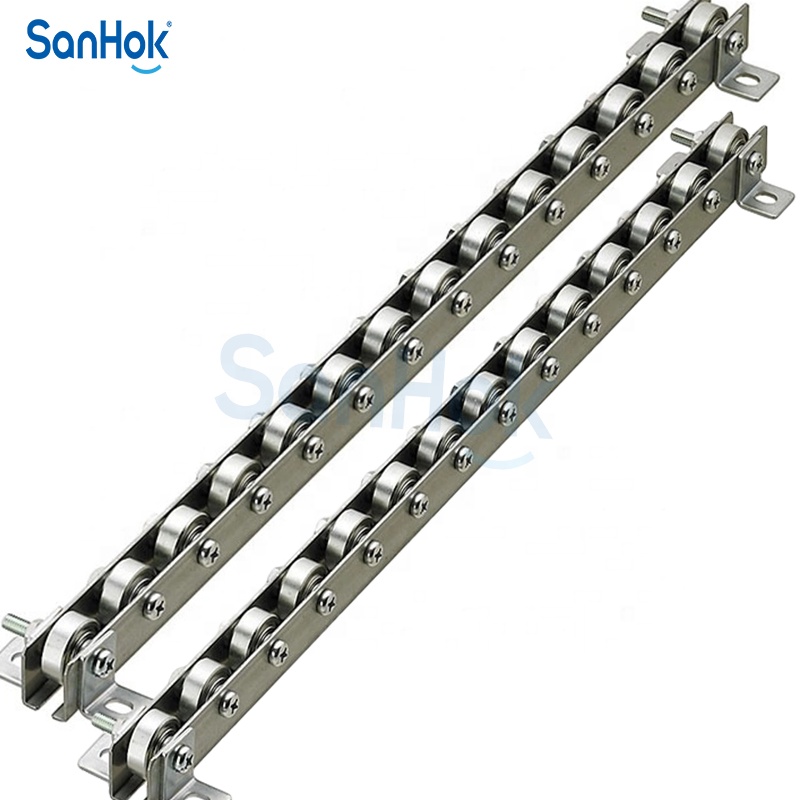

Industrial Customizable Stainless Steel Flow Rail Roller Track for Logistic/Sorting and Pallet Rack Shelving FIFO System
Product Description
Product Description

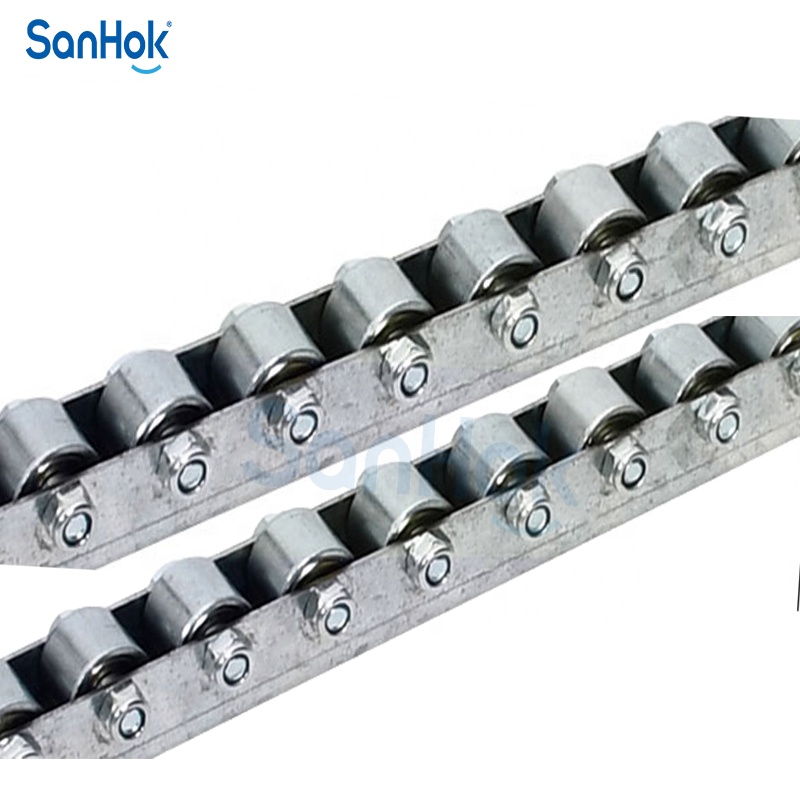

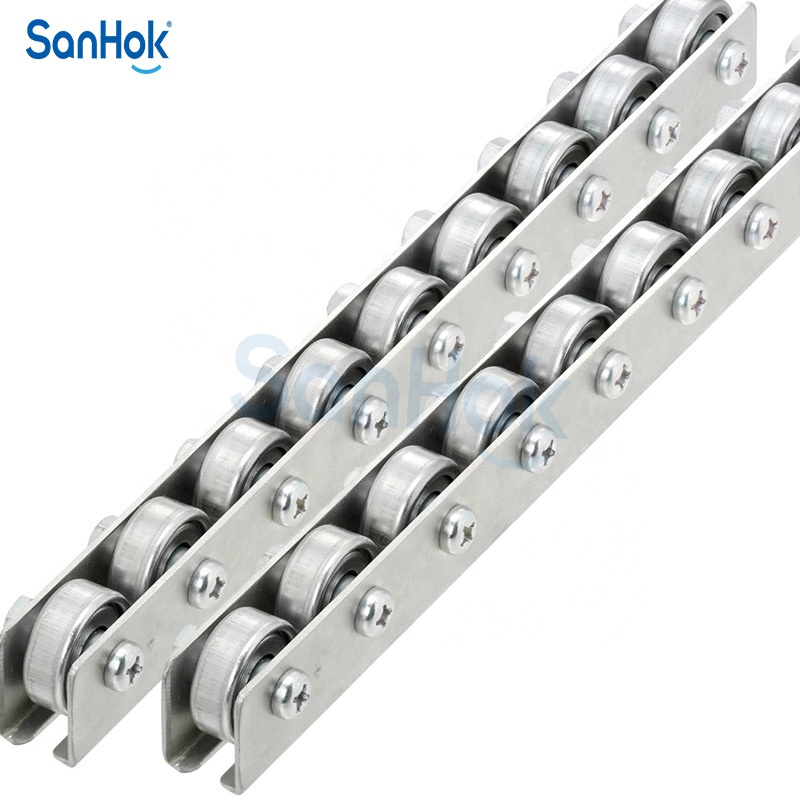

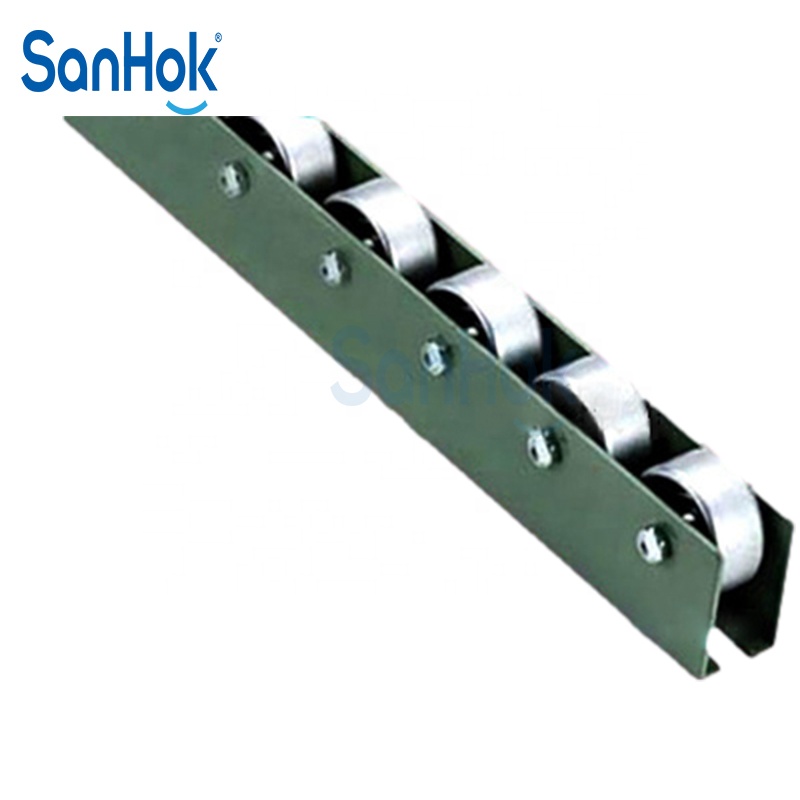

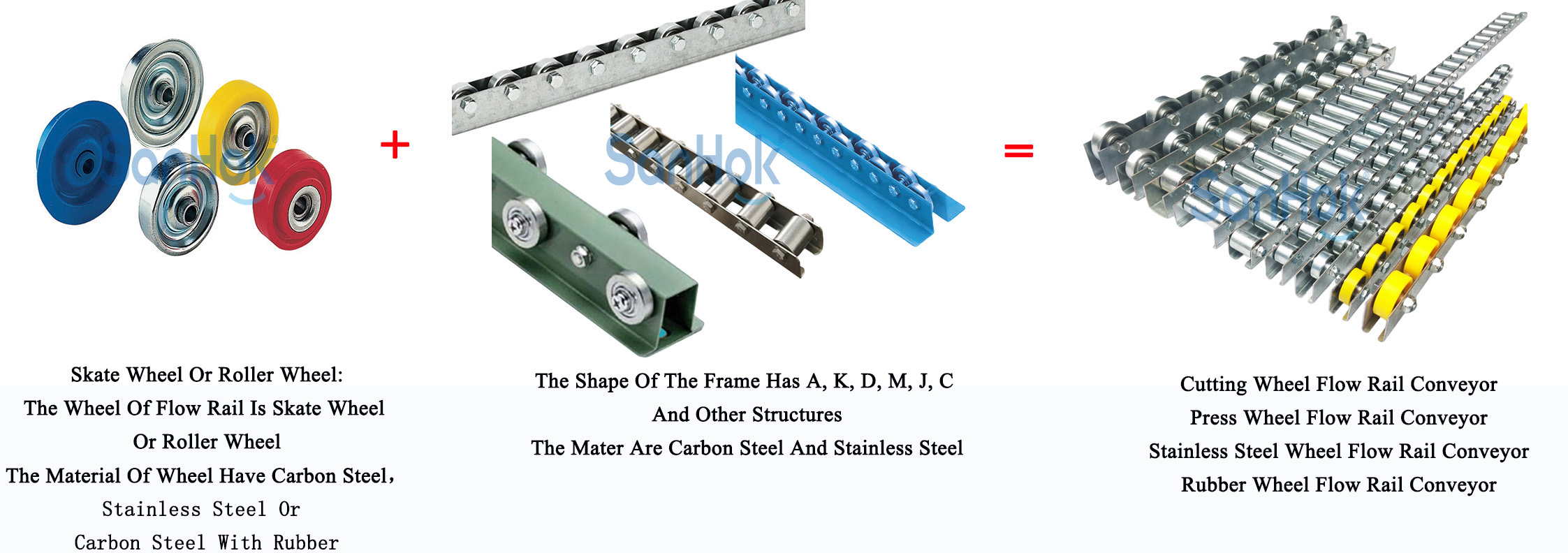

Flow rail is composed of skating wheels and a frame. The wheels of flow rail wheel are like skating wheels, so it is also called skating wheel flow rail.
There are many kinds of flow rail roller track, such as cutting wheel conveyor roller track, press wheel conveyor roller rail, rubber coated wheel conveyor roller guide rail, and SUS wheel conveyor roller slideway.
It is very popular in storage racks, warehouses, pallet conveyor lines, and assembly lines.
Specification

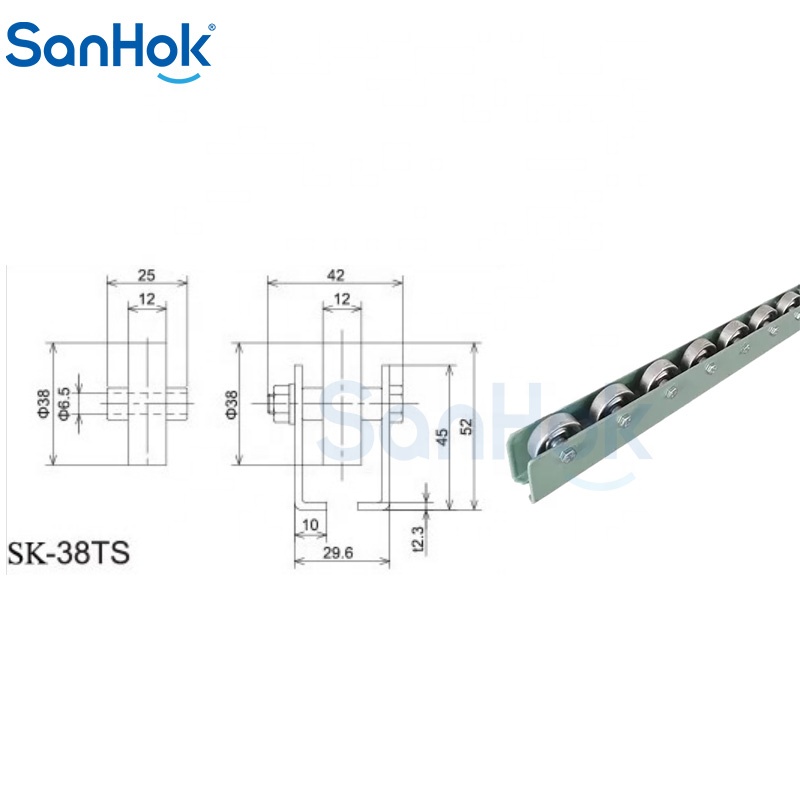

| Type | Diameter * Width * Shaft d * b | Shaft | Size Of Frame (h*w1*w2*w3*t) | Height (H) | Length (L) | Wheel Pitch (P) | Single Wheel Loading (kg) | Frame Type |
|---|---|---|---|---|---|---|---|---|
| SK-38TS | 38 * 12 * 6.5 * 25 | M6 * 38L | 45 * 29.6 * 10 * 42 * 2.3 | 52 mm | 1000 / 2000 / 3000 mm | 50 / 75 / 100 / 150 mm | 20 kg | A |

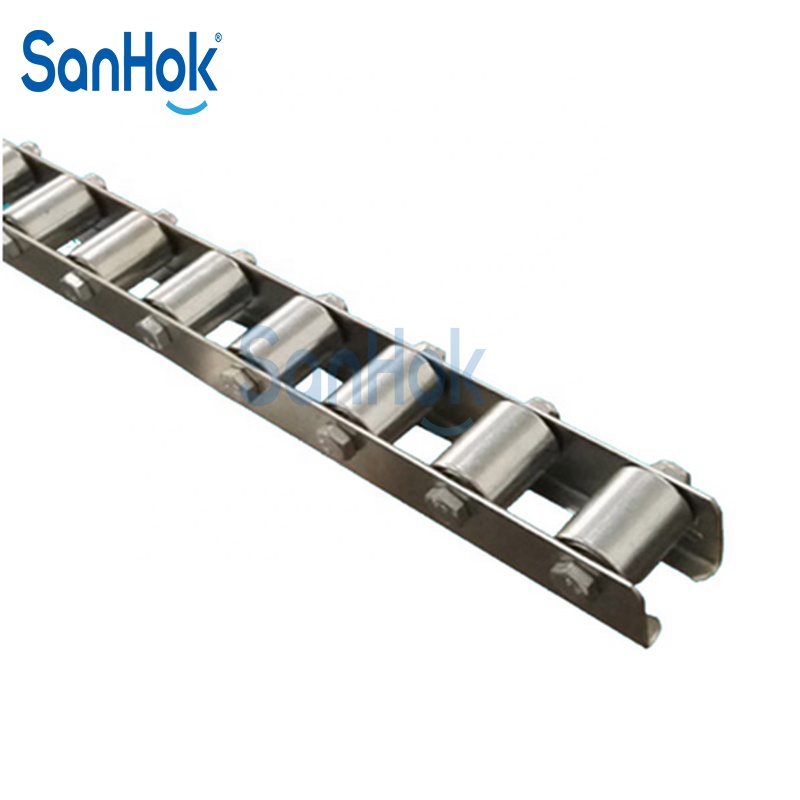

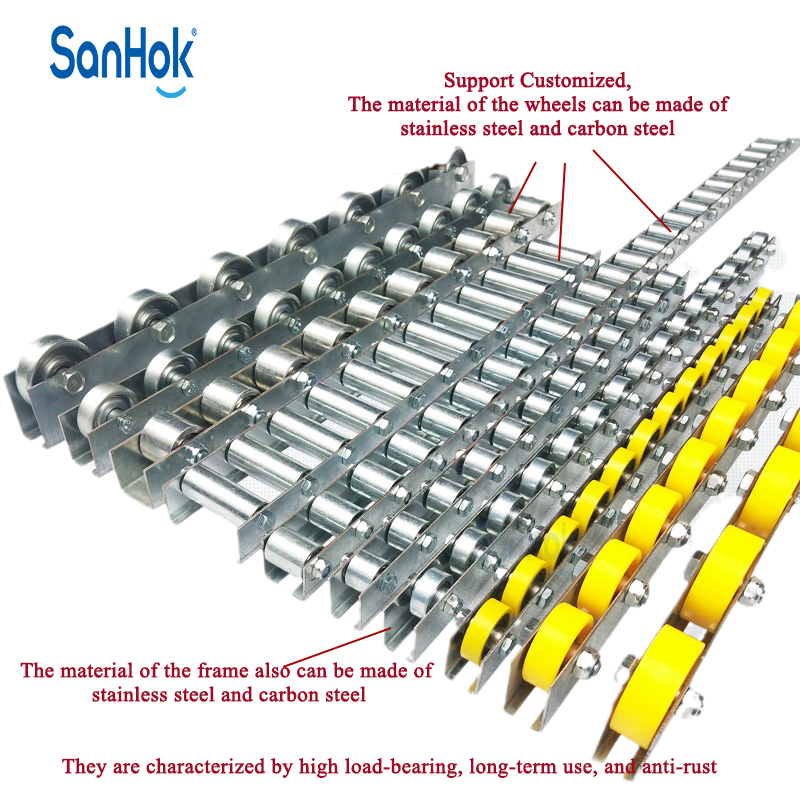

Flow Rail is composed of skateboard wheels and stainless steel or carbon steel frame. Because the skate wheel is made of stainless steel or carbon steel, its load-bearing capacity will be very high. So this is heavy duty roller track.

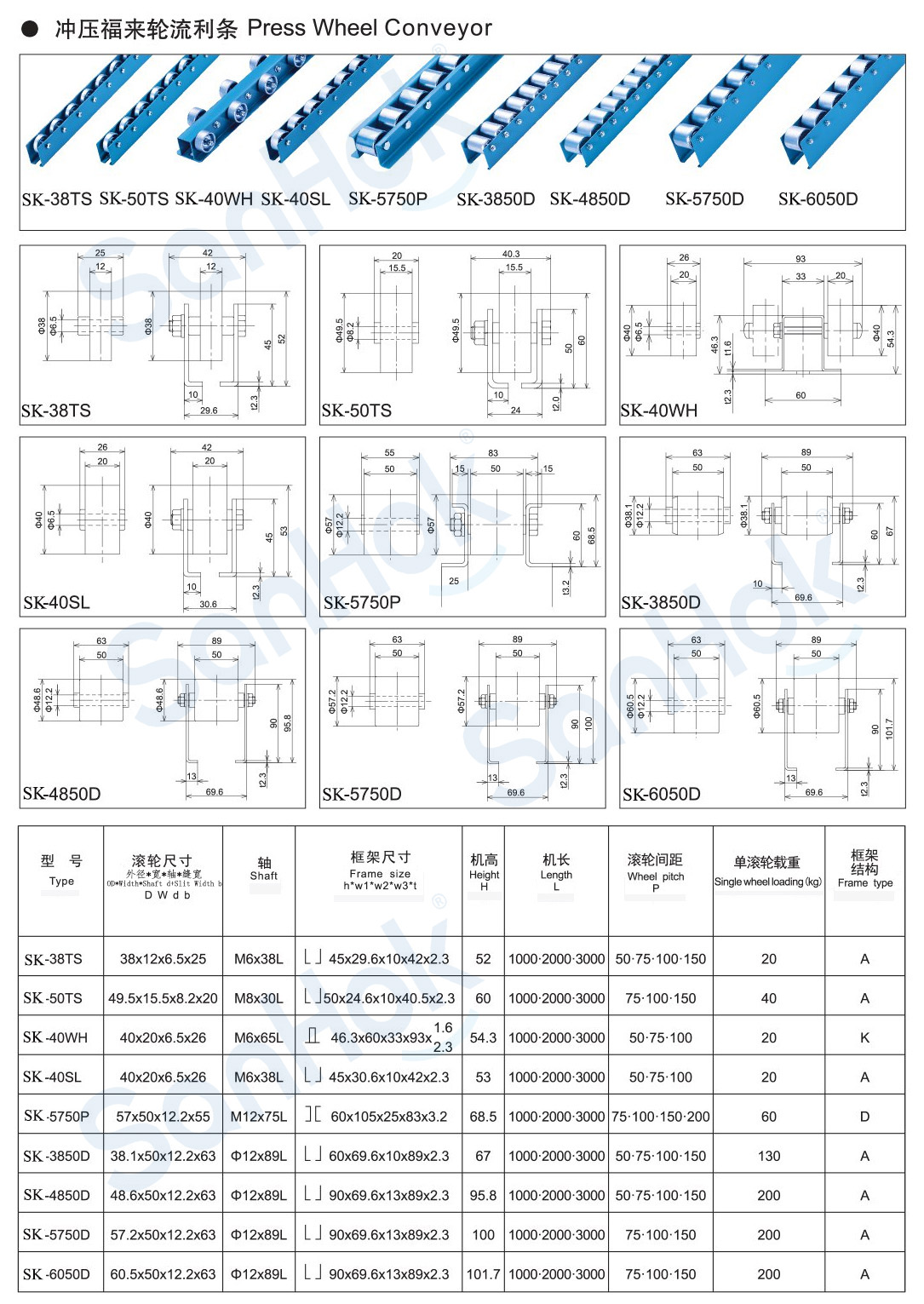

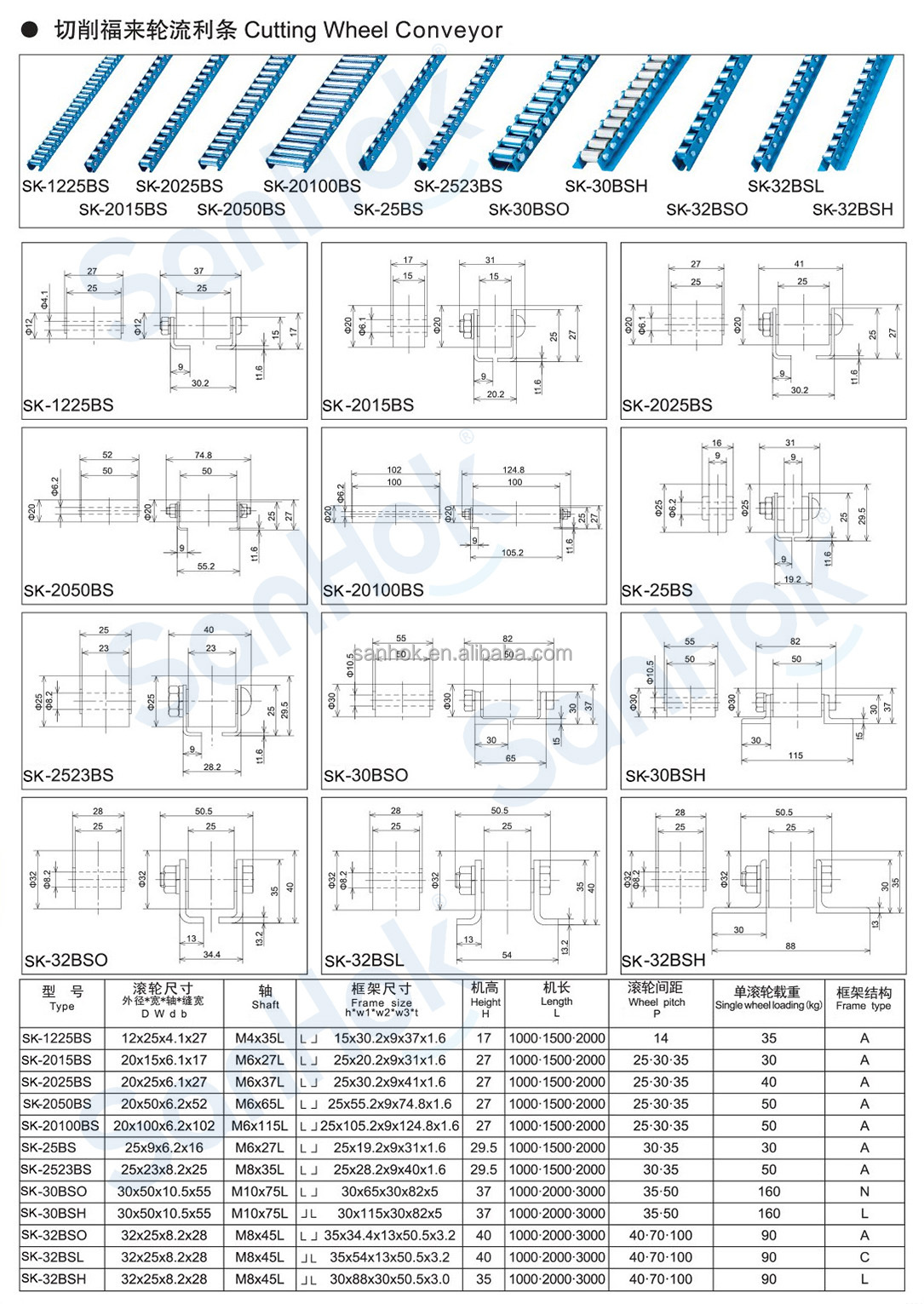

Other Types
Application

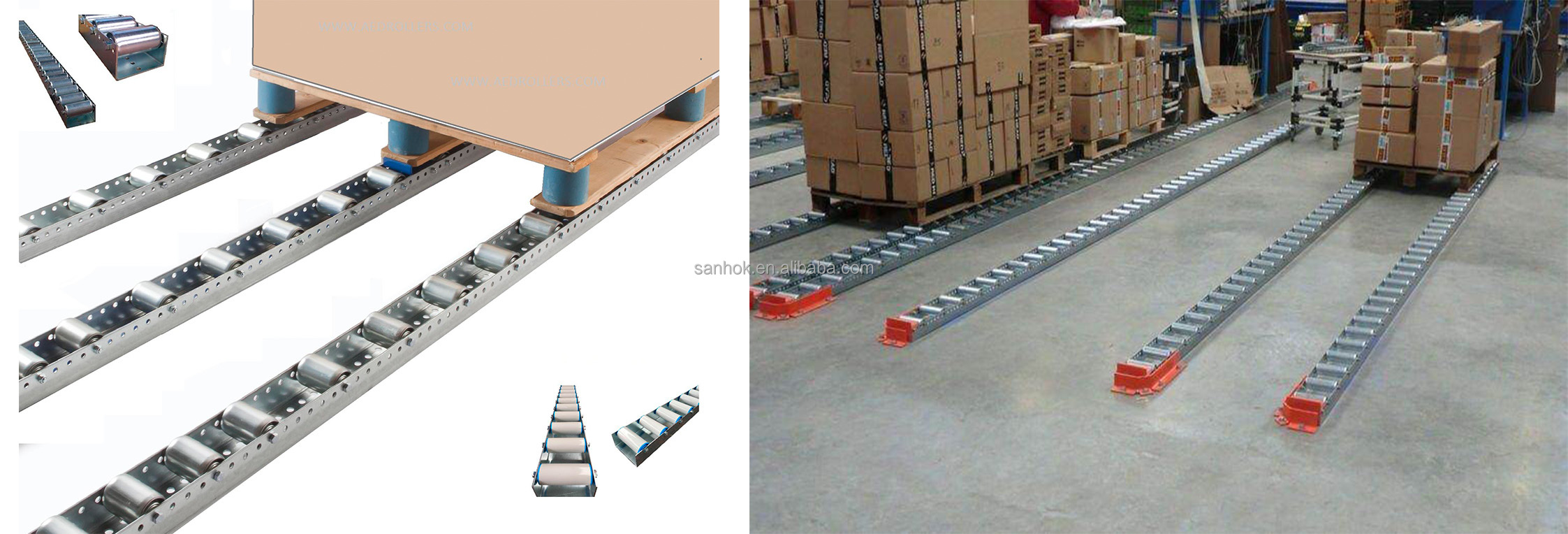

Flow Rail Conveyor For Pallet
With Heavy Duty Load Capacity And Wear-resistant Feature
Heavy Duty, Long-term using, Flexible

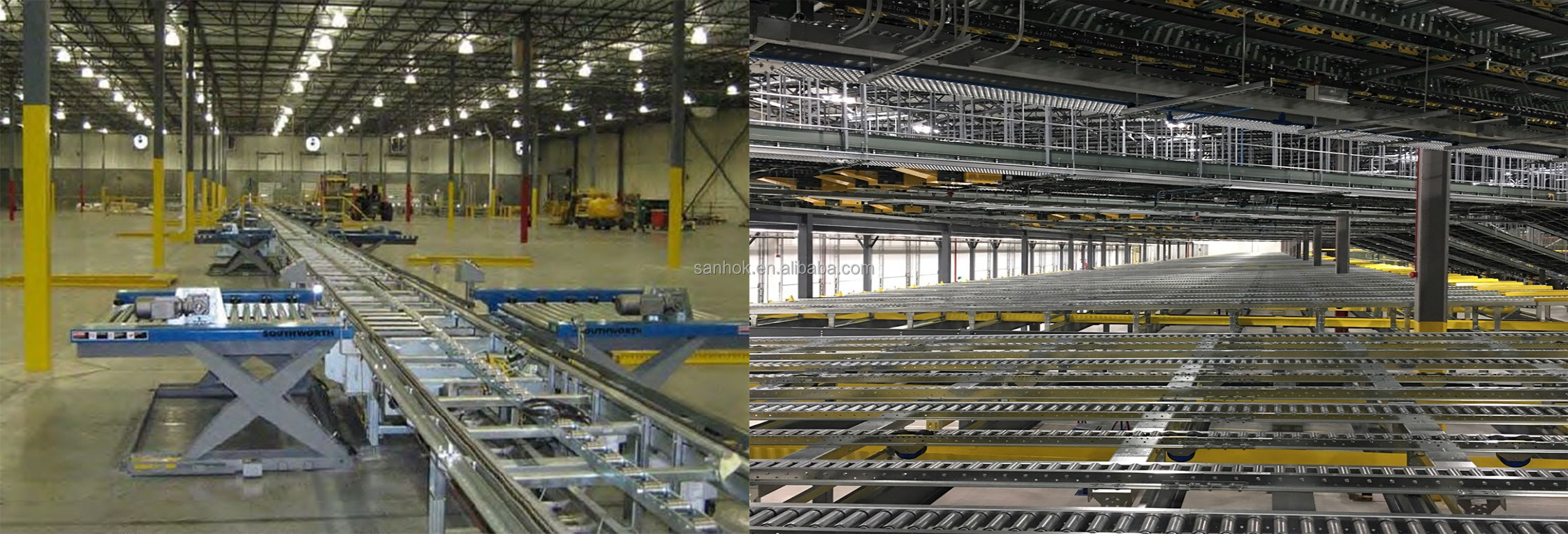

Flow Rail Track For Assembly Line
such furniture conveyor, electric blanket assembly line, etc.

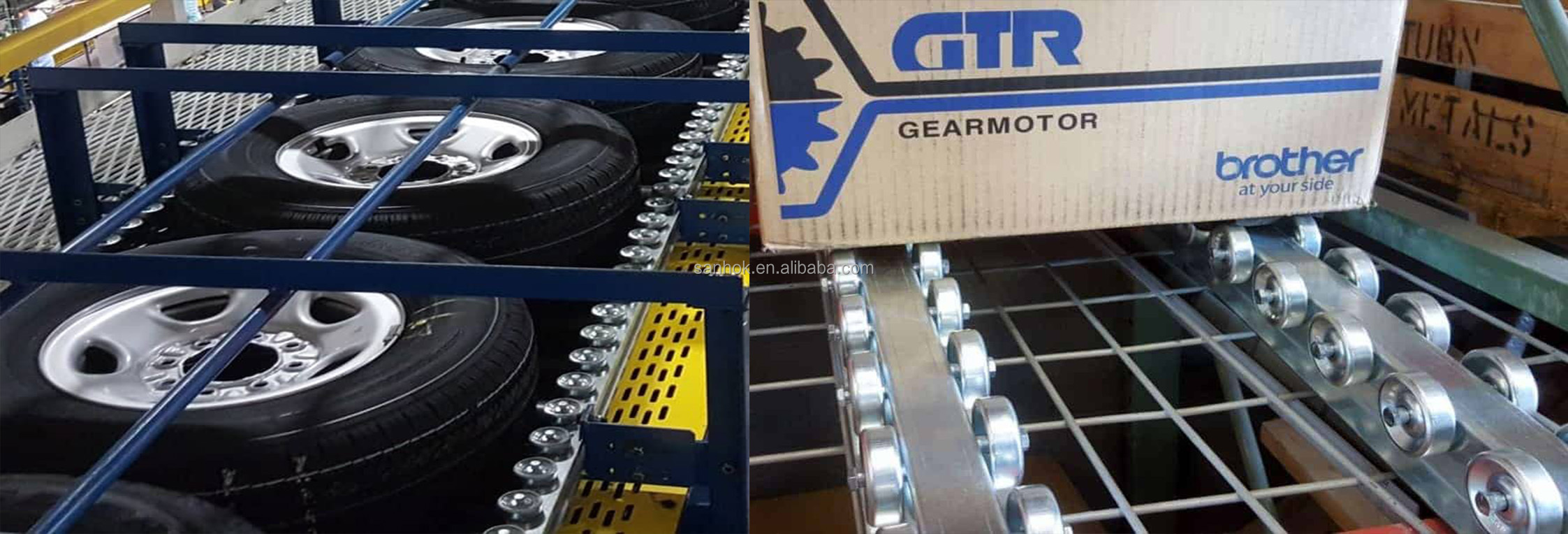

Flow Rail Track For Conveyor Line
Smooth rolling track designed for industrial transfer and routing operations.

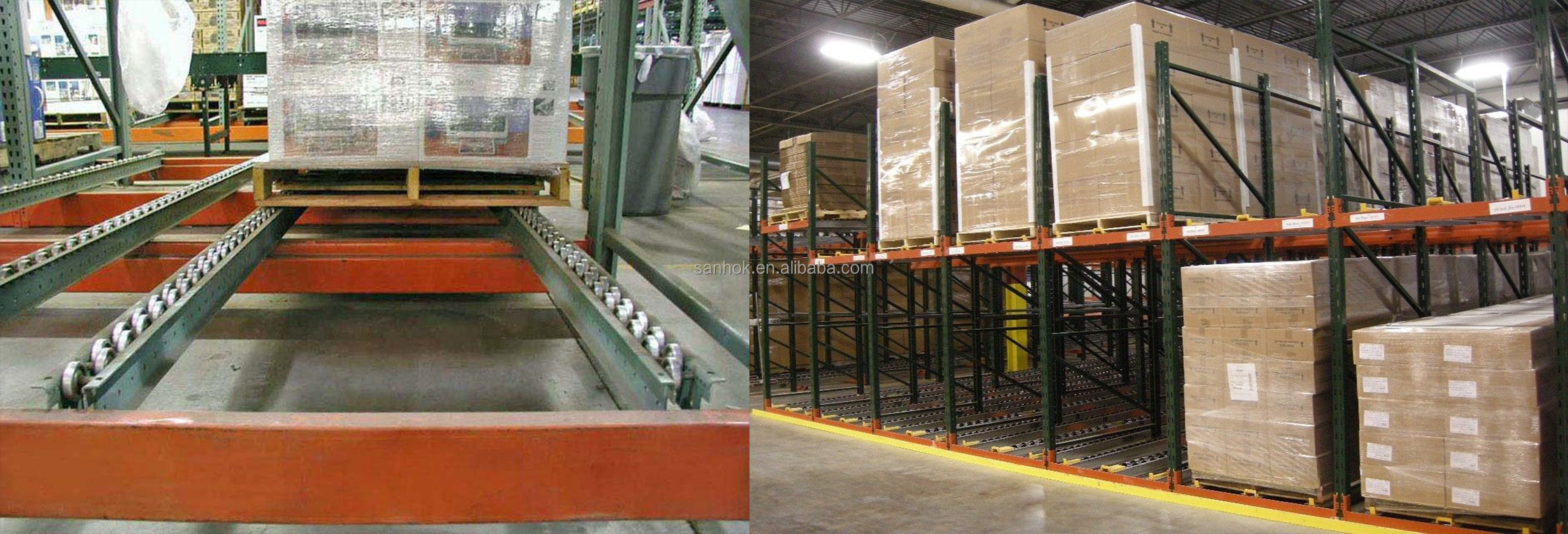

Flow Rail Track For Warehouse
Optimized gravity feed and storage racks for quick inventory sorting.

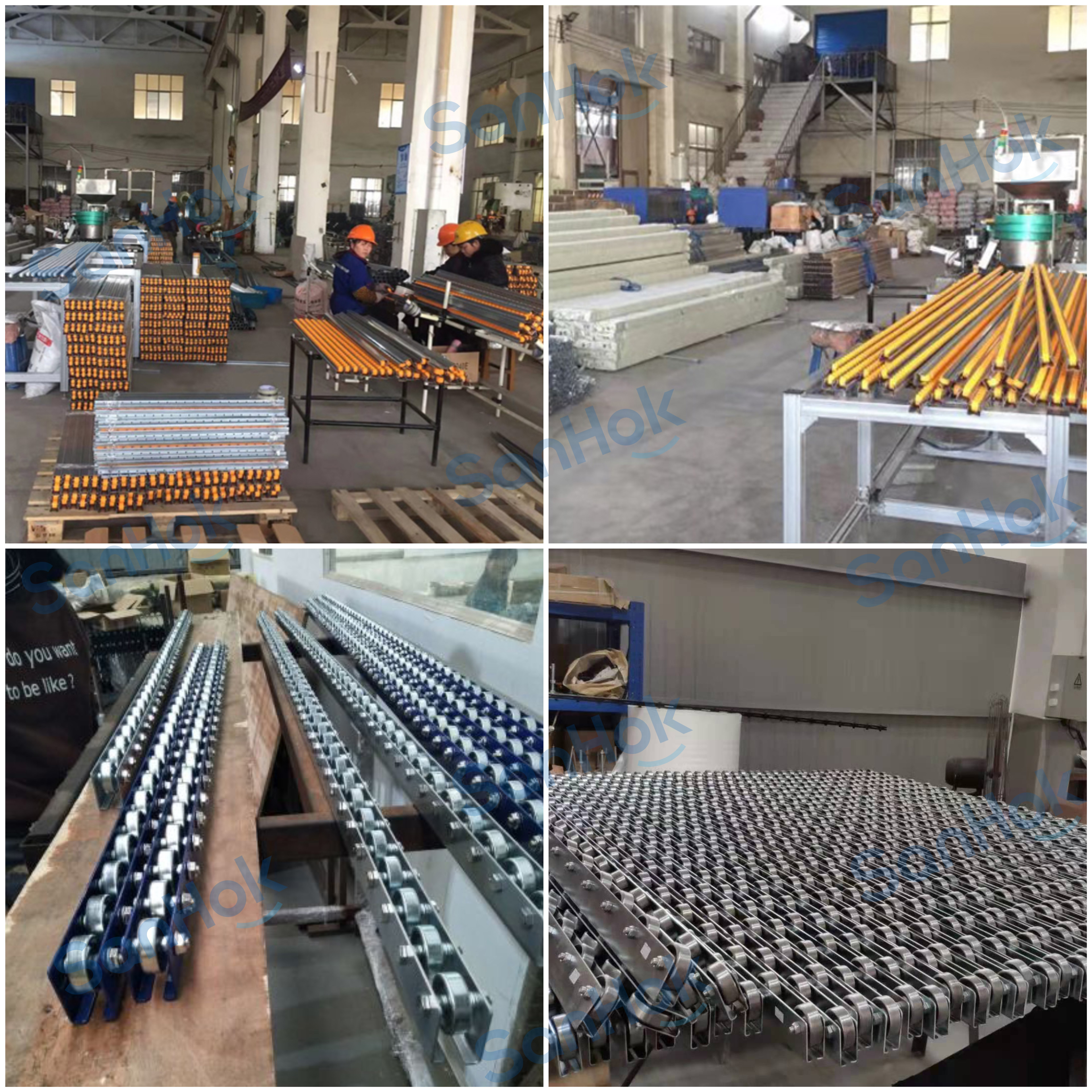

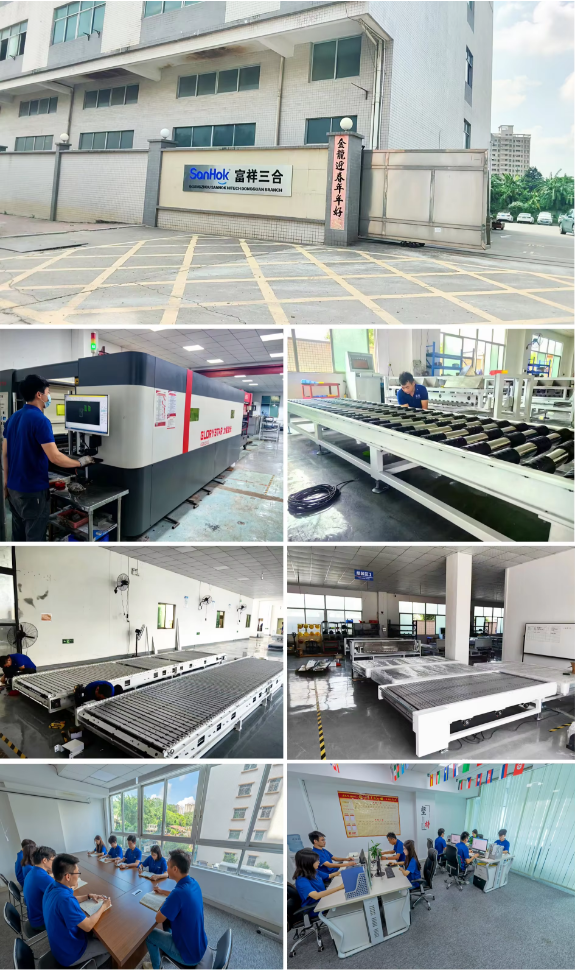

Our Workshop

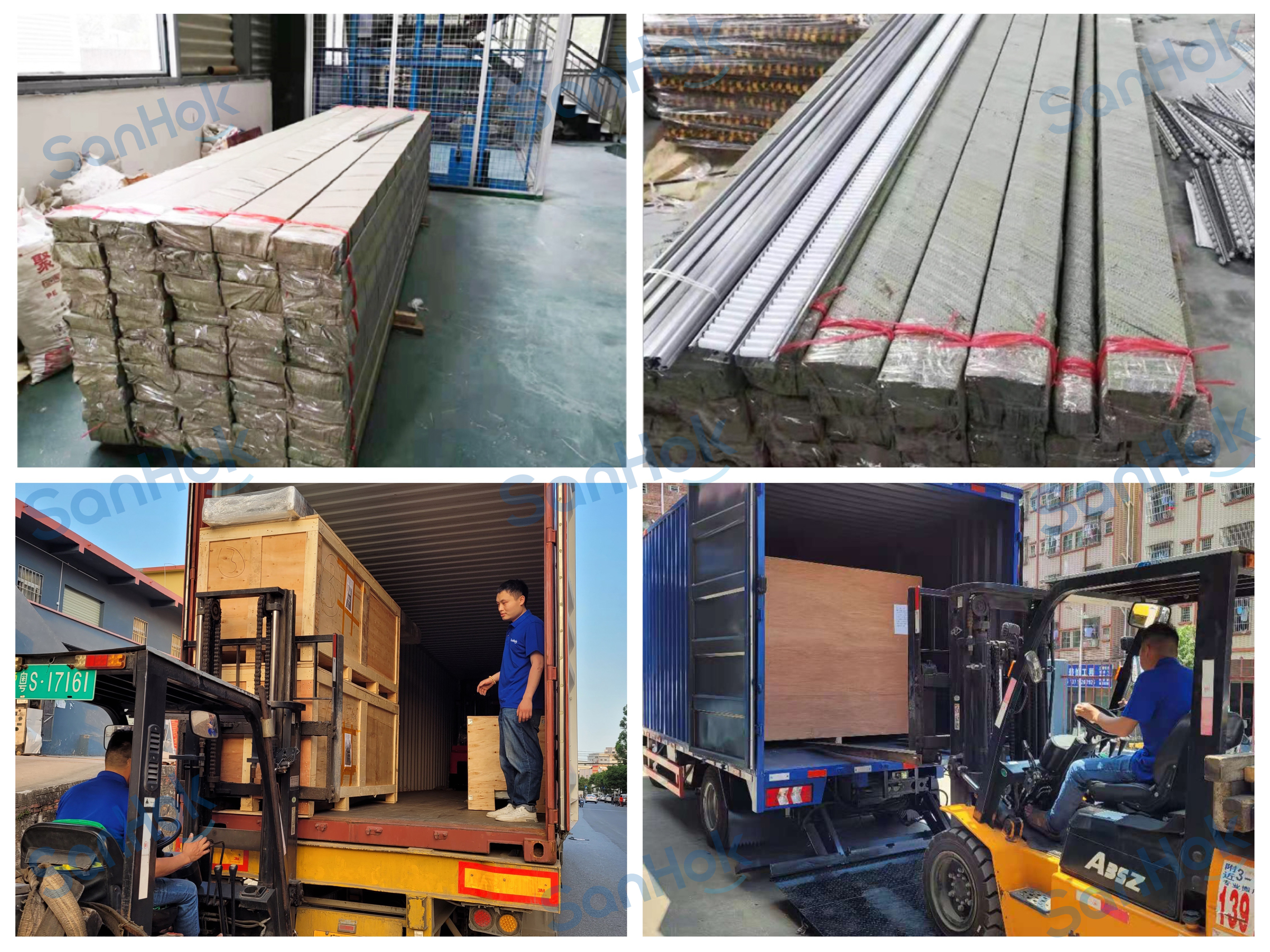

Package and Delivery
Package Standard
Wooden Case
Estimated Delivery Time
7-15 days, within 30 days. (According to quantity)
Company Introduction
With history of from the year of 2002, Sanhok group has 230+ employees in China (Among them, 47+ engineers are with 20+ years related industry experience, 23+ engineers are with 20+ years related industry experience). Sanhok branches are in Guangzhou, Dongguan, Foshan.
Its main products including conveyor, home appliances assembly line like tv assembly line, air conditioner assembly line, washing machine assembly line, mobile phone assembly line, led lamp assembly line etc, accessories like lean pipe joint system, convey roller, roller rail, aluminum, hollow plate, working table.
It is mainly used in household appliance industry, lithium battery industry, warehousing and logistics industry, bathroom industry, electronic industry, LED lamp industry, catering industry, logistics equipment industry.
Sanhok products with huge quantity are selling to China and overseas including South East Asia, Middle East Europe, Africa, North America and South America. We sincerely hope that friends from all over the world will become our loyal partners and forge ahead.
Frequently Asked Questions (FAQ)
Q1
What are the materials for this Product?
This product material is made of carbon steel or stainless steel for maximum load-bearing capacity and durability.
Q2
Where can this product be used?
This can be widely used for assembly lines, warehouses, gravity pallet conveyor lines, and storage racks.
Q3
What is the single wheel loading capacity of the flow rail?
A single skating wheel has a rated loading capacity of 20 kg, making the entire rail system suitable for heavy-duty material handling.
Q4
What standard lengths and wheel pitches are available?
Standard lengths are 1000 mm, 2000 mm, and 3000 mm. Wheel pitch options include 50 mm, 75 mm, 100 mm, and 150 mm based on your cargo dimensions.
Q5
What wheel variants are provided for different assembly lines?
We provide cutting wheel conveyor roller tracks, press wheel conveyor roller rails, rubber coated wheel conveyor roller guide rails, and SUS wheel conveyor roller slideways.
Q6
How are the flow rails packaged and what is the delivery lead time?
Products are packed in sturdy wooden cases to prevent damage during transit. The delivery time is 7 to 15 days, within 30 days depending on the ordered quantity.
