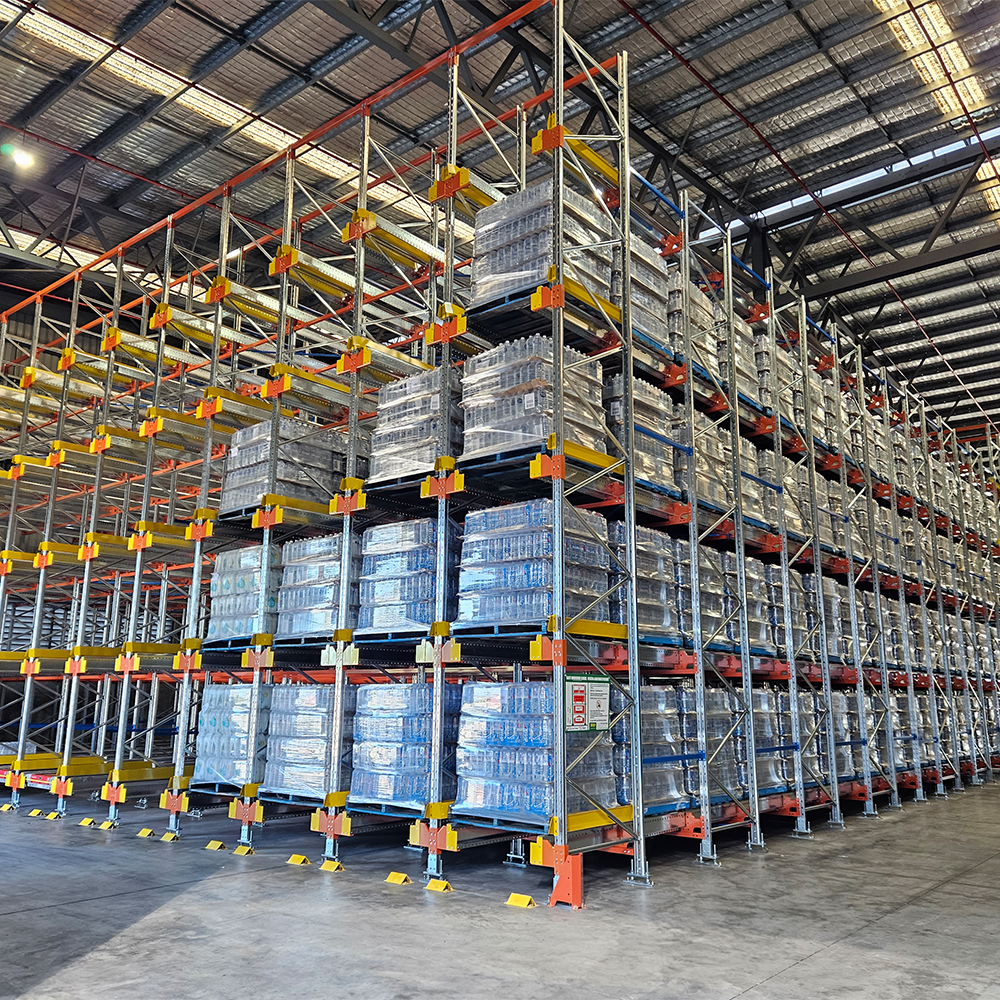

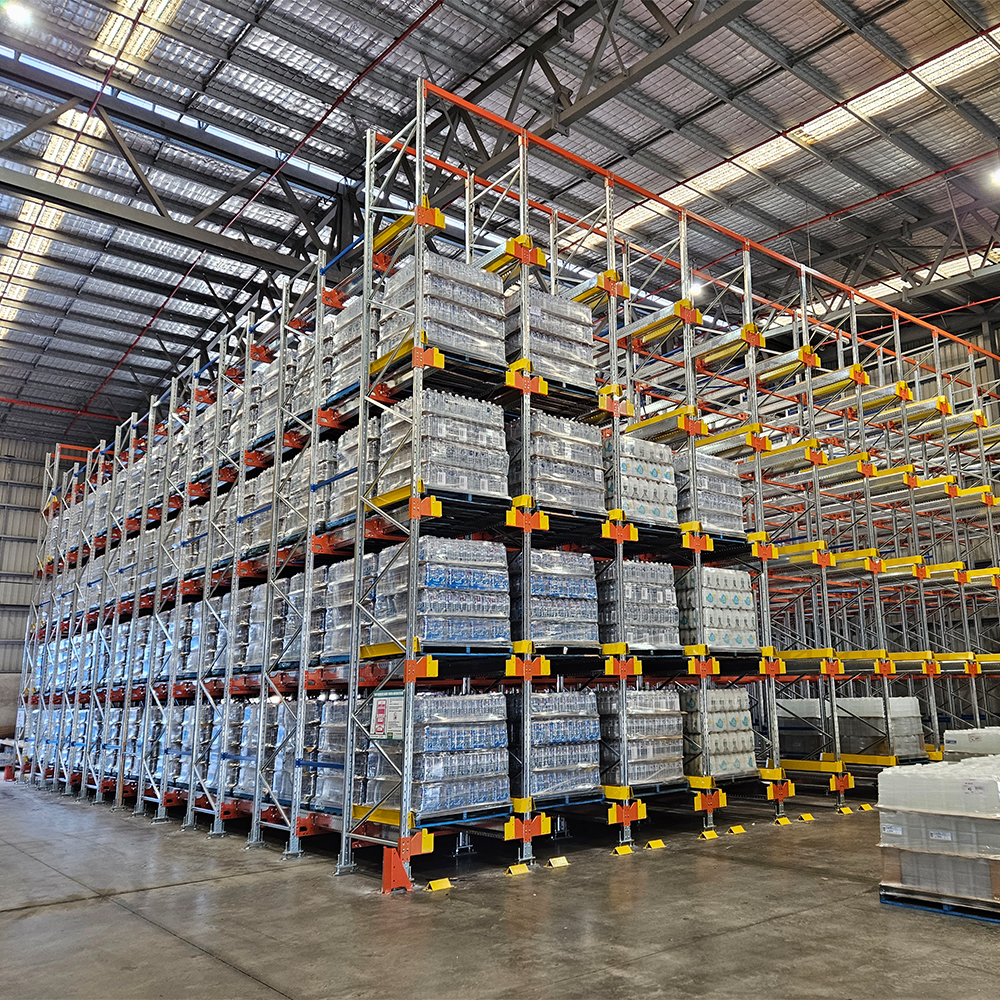

Jracking Global High-End Storage Rack Manufacture Radio Shuttle Racking System
Product Description
Product Parameter

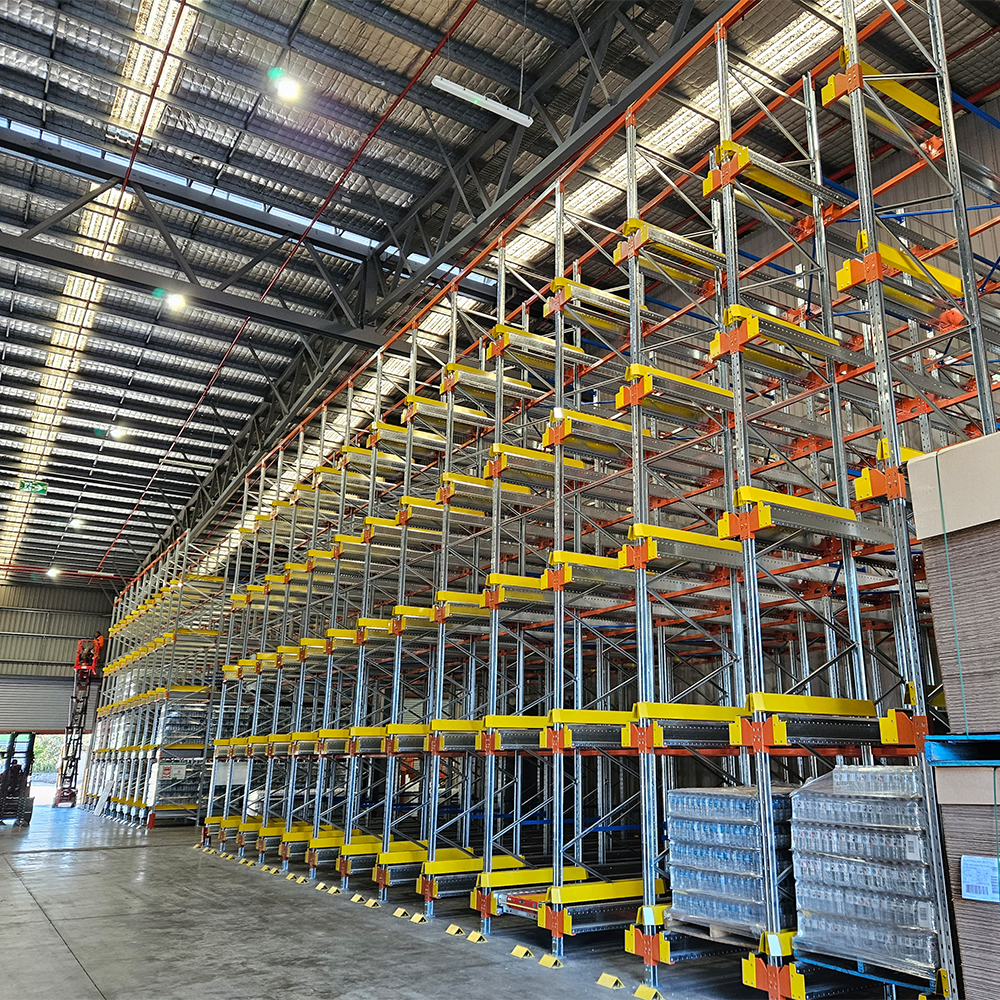

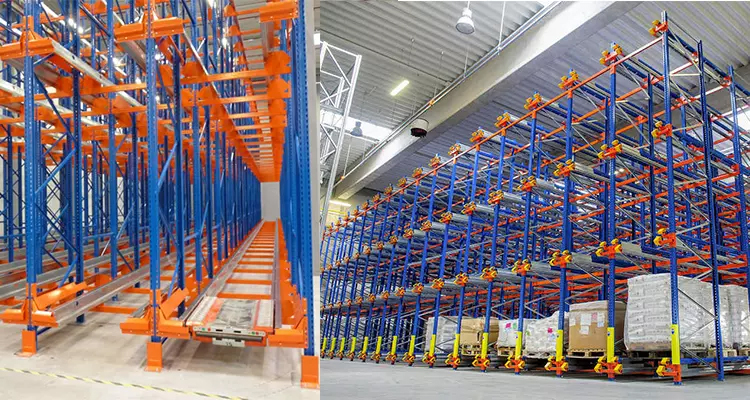

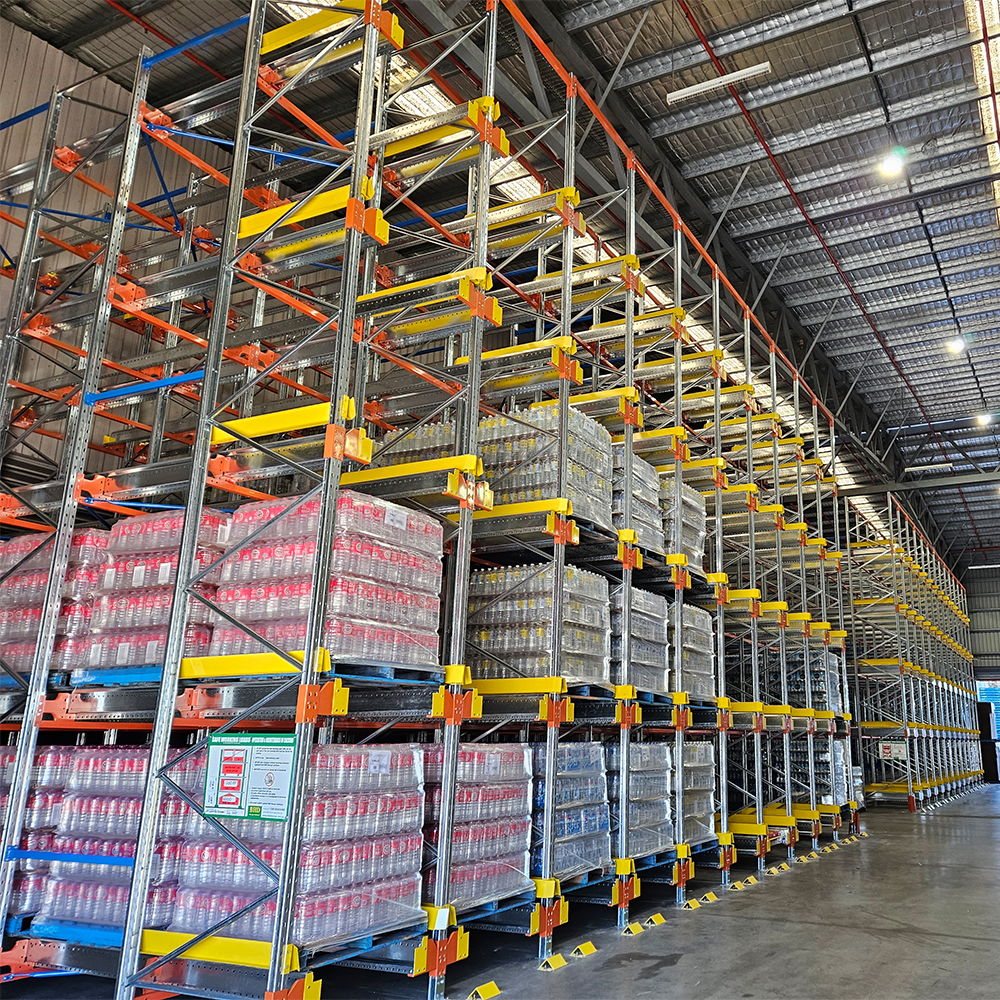

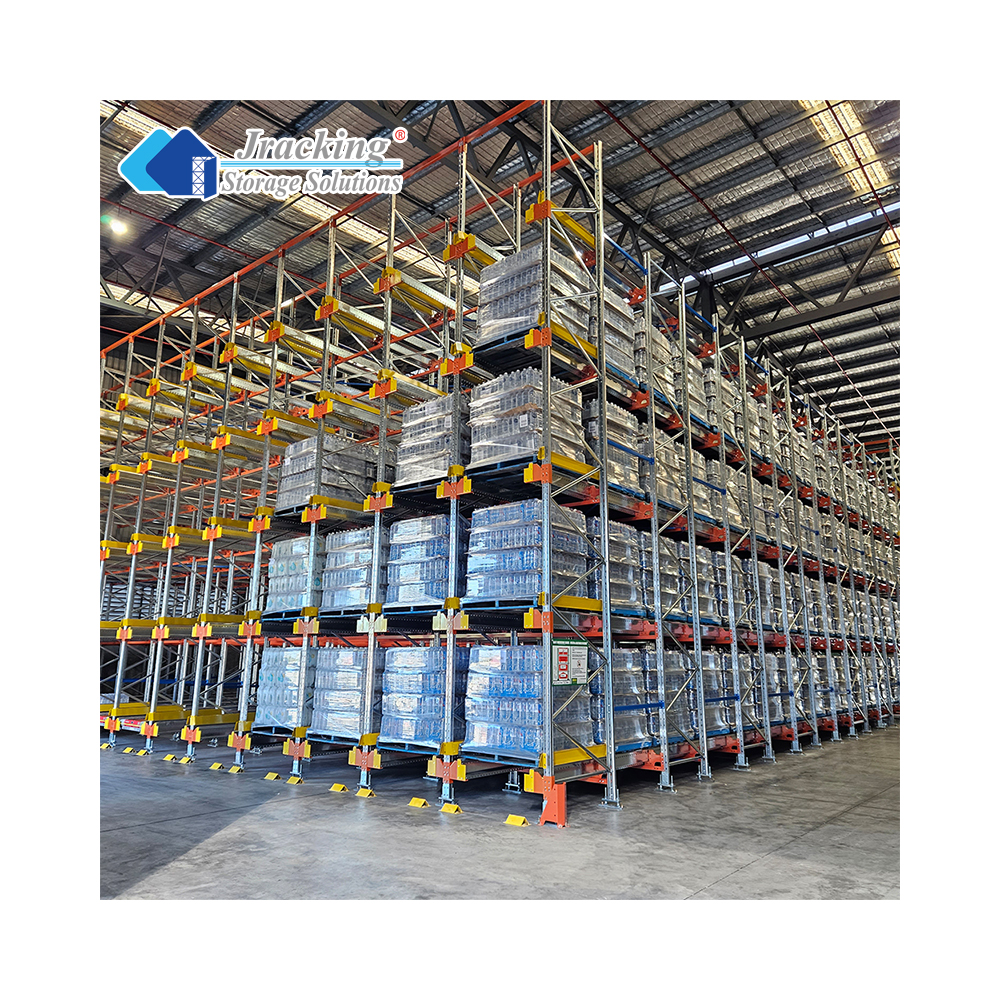

Radio Shuttle System

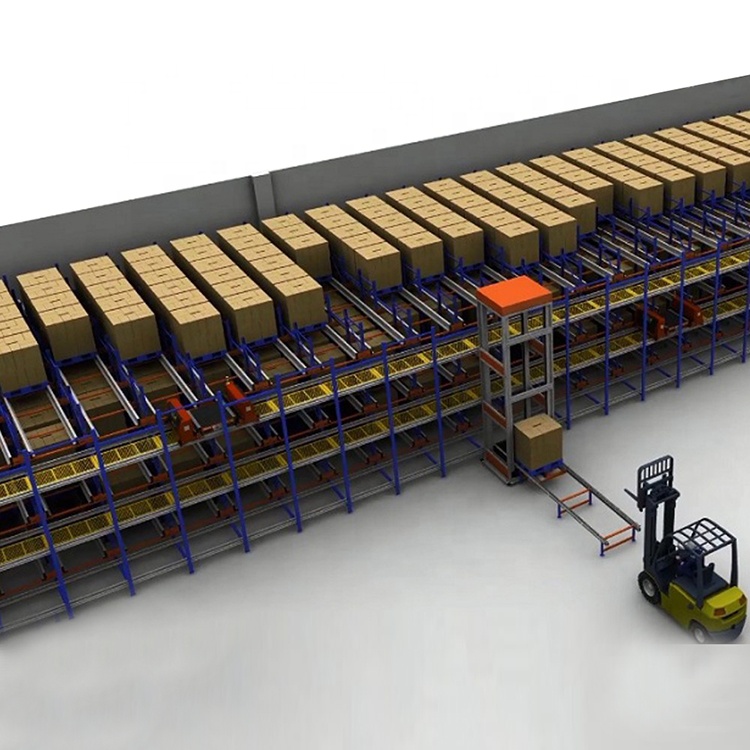

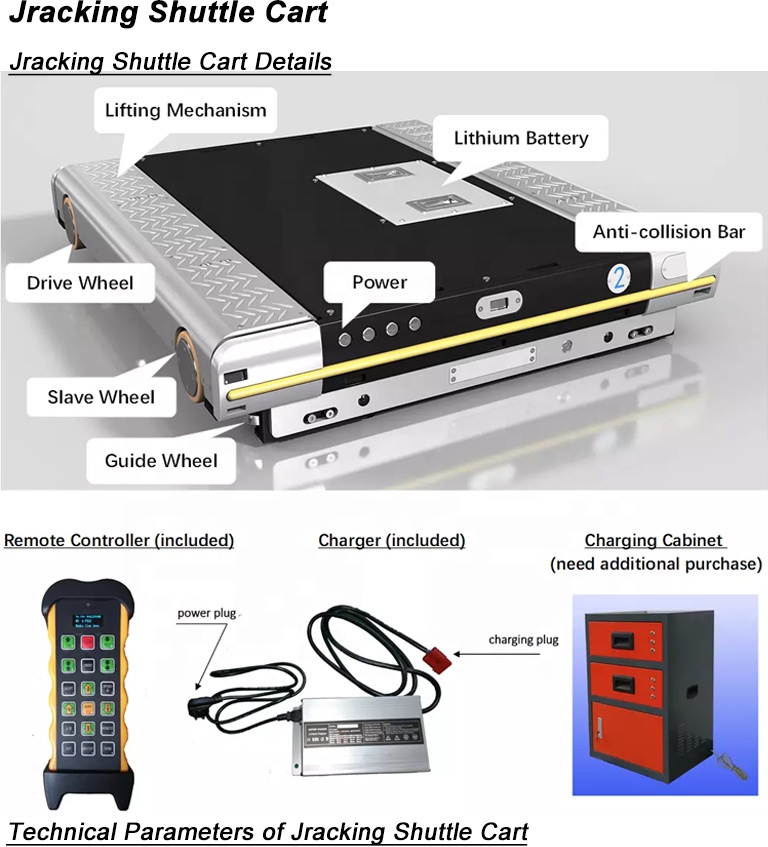

Jracking Shuttle Racking System is a high-density storage system. The shuttle cart, which is controlled by a wireless remote, takes the pallets in and out of the racking system. The forklift doesn't need to enter the storage area. The first pallet's location at either end is where the forklift loads and unloads the goods.
| Name | Radio shuttle system | Material | Q235a |
|---|---|---|---|
| Size | Customized Size | Color | Customized |
| Depth | Customized | Weight Capacity | 500~5000kg |
| Width | Customized | Height | Customized |
| Finish | Powder Coated | ||
| Usage | Warehouse Storage System | ||
| Packing | Customers' Request | ||
| Certification | AS4084-2012 / CE / ISO / RMI | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Product Introduction
| Technical Characteristic | |||
|---|---|---|---|
| Running Speed | Standard type | Low temperature type | Advanced type |
| Vmax_empty: 1.2m/s Vmax_full: 0.8m/s |
Vmax_empty: 1.0m/s Vmax_full: 0.8m/s |
Vmax_empty: 1.5m/s Vmax_full: 1.0m/s |
|
| The Highest in China | The Highest in the world | ||
| Loading | 1.5T (Heavy Load Type 2T) Leading in China | ||
| Operating Efficiency | Closed-loop control of servo system is adopted to reach faster speed, which is 1.5~2 times faster than that in other counterparts. | ||
| Rapidity & Stability | Motion parameter and curve of equipment are configured to realize both rapidity and stability. | ||
Direction for use

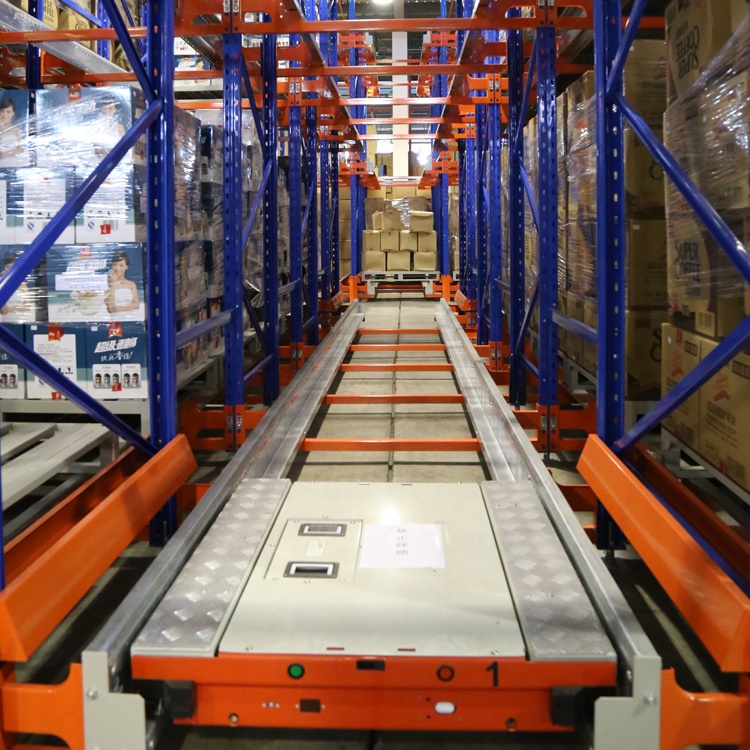

- 1. The shuttle has a high precision of parts that move along the aisles between shelves according to computer instructions.
- 2. The forklift doesn't need to enter the storage area. The first pallet's location at either end is where the forklift loads and unloads the goods.
- 3. The system could achieve both FIFO and FILO modes.
Description of application effect
- 1. Can make full use of up to 90% of the total area.
- 2. Can store with both last in first out (LIFO/FILO) and first in first out (FIFO) system.
- 3. Reduce crashes between forklift and rack, decreasing incidents and maintenance costs.
- 4. Can reach 40 meters deep.
Installation, Maintenance & Repair
Installation
Jracking will provide detailed installation drawing and on-site installation guidance for your project. Professional technician will adjust and test the shuttle cart for at least one week to ensure the shuttle racking system could work well.
Maintenance
Regular maintenance shall be made in accordance with application manual and maintenance manual. Jracking’s technician will train the responsible person in your warehouse how to do the routine maintenance. Lifelong maintenance is provided for guaranteeing customer interests. Jracking is willing to provide lifelong paid service beyond the warranty period. Spare parts for the racking or shuttle cart would be supplied at the most favorable prices.
Repair
One year warranty is promised by Jracking after successful installation and commissioning, excluding natural disaster and man-made damage. Jracking’s technician will train the responsible person in your warehouse some basic fault conditions and handling methods. If meeting difficult situations, the technician would go and solve the problems on site.
We really appreciate your trust for Jracking and Jracking’s product. Please kindly keep us posted if you have any suggestion or requirement for our products.
Product Categories
Company Profile
Certifications
Production Process
Frequently Asked Questions (FAQ)
What are your trading terms?
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: We offer good discounts for large quantities.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: We offer good discounts for large quantities.
How can I deliver my goods?
1) Sea freight: We will update sea freight rates once we know the destination seaport where goods will be delivered.
2) Agent designated by client: Please provide the contact details of your shipping agent, and we will arrange delivery accordingly.
2) Agent designated by client: Please provide the contact details of your shipping agent, and we will arrange delivery accordingly.
What is your service?
1) Your inquiry related to our products or prices will be replied to within 12 hours.
2) Well-trained and experienced staff will answer all inquiries in fluent English.
3) OEM & ODM services: We can assist with custom racking design tailored to your facility.
4) Highly experienced professional engineers available to provide optimal warehouse solutions.
2) Well-trained and experienced staff will answer all inquiries in fluent English.
3) OEM & ODM services: We can assist with custom racking design tailored to your facility.
4) Highly experienced professional engineers available to provide optimal warehouse solutions.
How to purchase your product?
Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance → Shipping.
What are your advantages?
1) Flexible payment terms: We can offer O/A 40-60 days.
2) Short lead time: Fast delivery capability for rush orders.
3) Factory price: Competitive direct factory pricing.
4) Warranty: Two-year warranty with replacement parts supplied promptly.
2) Short lead time: Fast delivery capability for rush orders.
3) Factory price: Competitive direct factory pricing.
4) Warranty: Two-year warranty with replacement parts supplied promptly.
Does Jracking have an MOQ limitation?
No, but higher order volumes secure better pricing. We recommend an order quantity for regular Jracking products to fit at least one 20ft container (approximately 15 tons).
