High Space Utilization Narrow Aisle Drive In Racking System Design
Product Description
Product Description

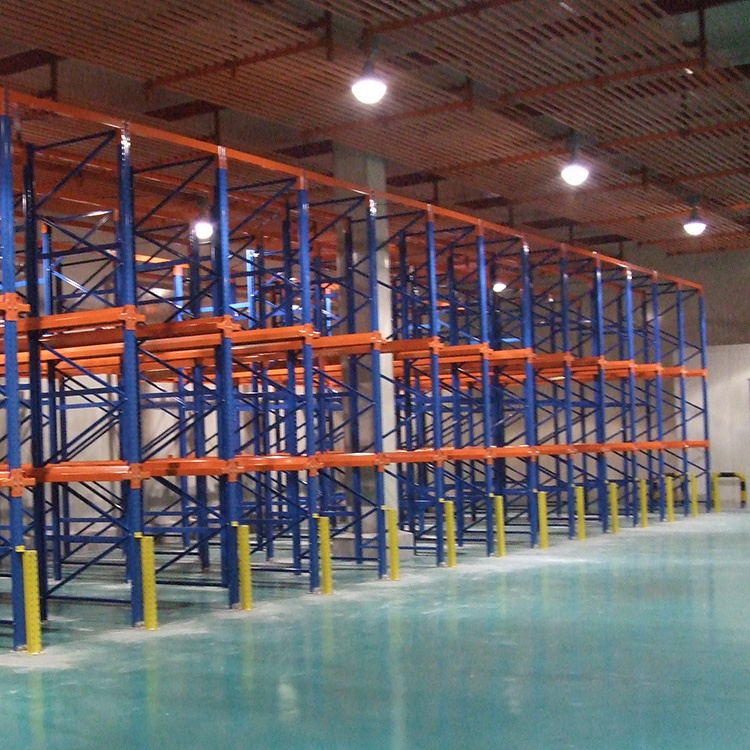

Drive In Racking
Warehouse storage drive in rack can be used for forklift to enter and access goods. It is suitable for storing goods with large quantity. In addition to the location near the channel, the forklift truck needs to enter the rack to store goods. Usually, no more than 7 location depths are recommended. In order to improve the running speed of the forklift, the configuration guide rail can be selected according to the actual needs, and the utilization rate of the storage space of the drive in rack can be increased by more than 30% compared with the normal rack.
| Name | Drive in rack | Material | Steel |
| Dimension | Customized | Color | Selective |
| Depth | Customized | Weight Capacity | According to your needs |
| Width | Customized | Height | Customized |
| Finish | Powder coated/Galvanised | ||
| Weld | Weld for automatic welding | ||
| Rust | Surface antirust | ||
| Certification | CE, AS4084, ISO9001:2008 | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||

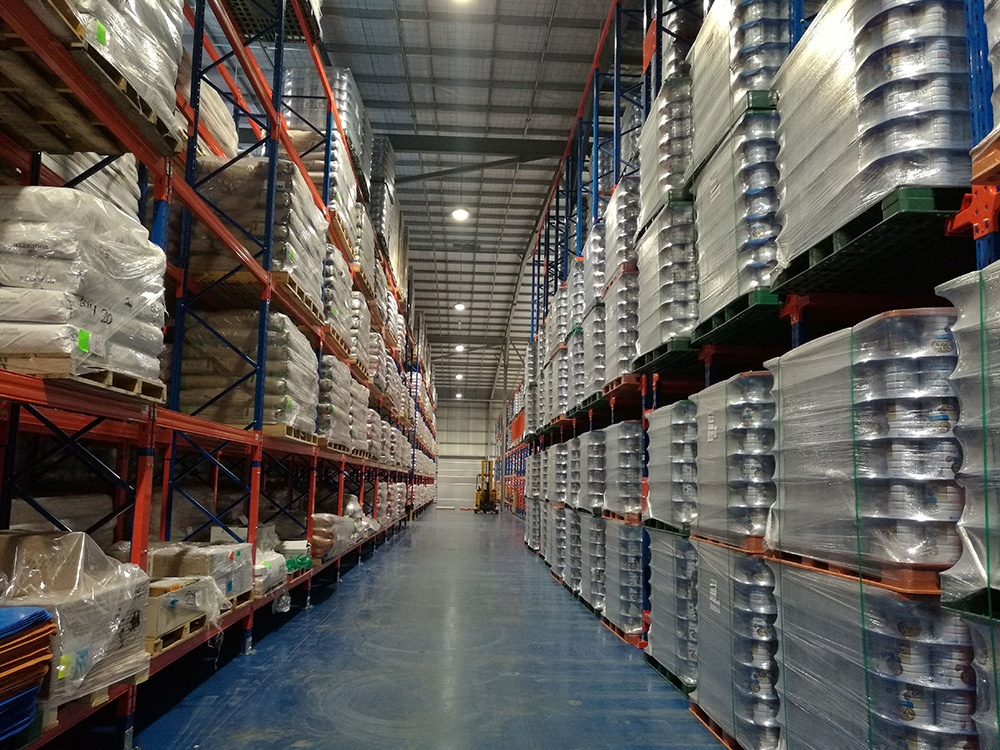

Product Display
Features:
- 1. High density storage racking system.

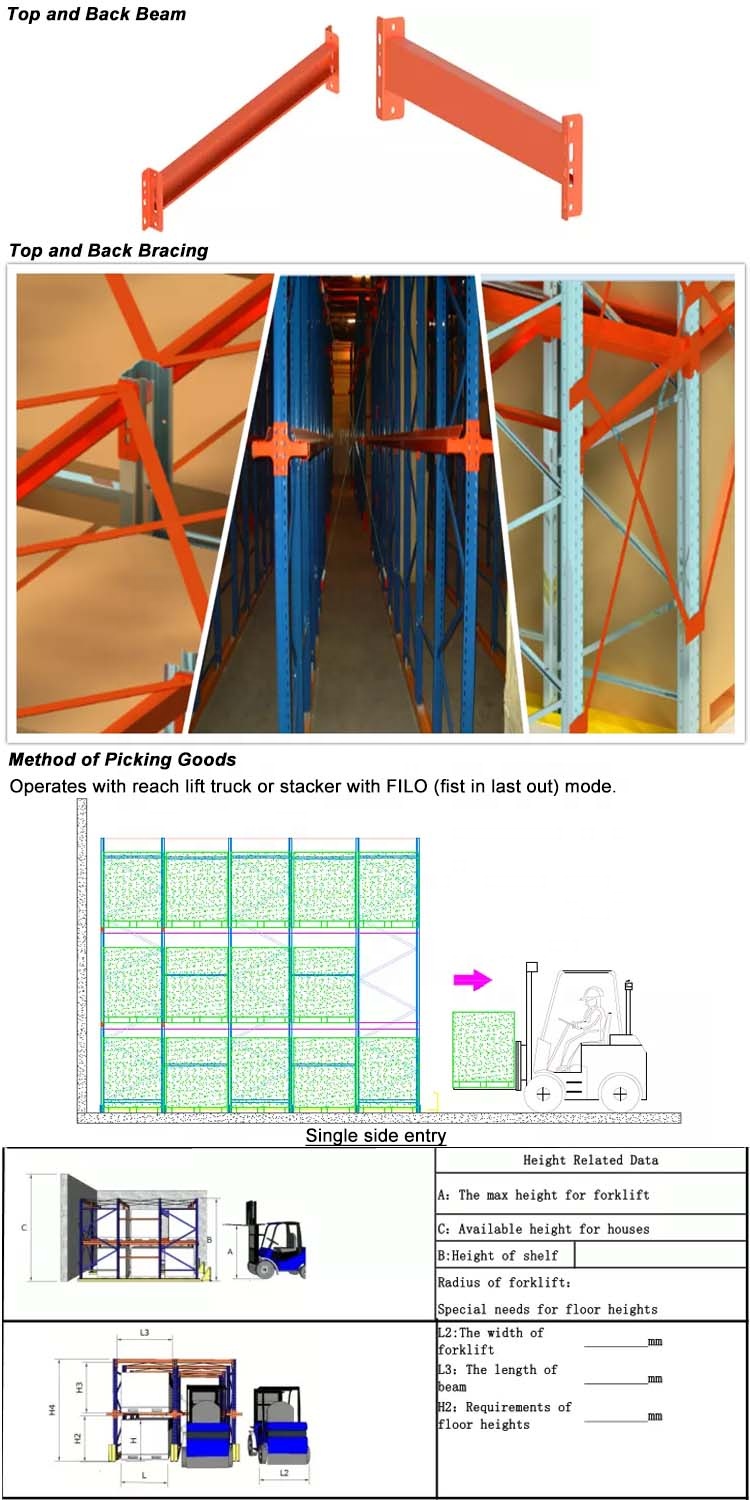

- 2. Operates with reach lift truck or stacker with FILO (first in last out) mode.
- 3. Storing goods with less variety but large inventory flow.
- 4. Especially used in cold room and food warehouse.
- 5. Available space up to 90%, available ground space up to 60%.
- 6. Narrow aisle improves space utilization.
| Loading | Thickness |
|---|---|
| Within 1t | 131*70*2.0 |
| 1-1.2t | 131*70*2.3 |
| Over 1.2t | 131*70*2.5 |
For more information or any help, please contact our team and we will reply immediately.
Product Categories
Company Profile
Certifications
Production Process
Frequently Asked Questions (FAQ)
What is a drive-in racking system and how does it function?

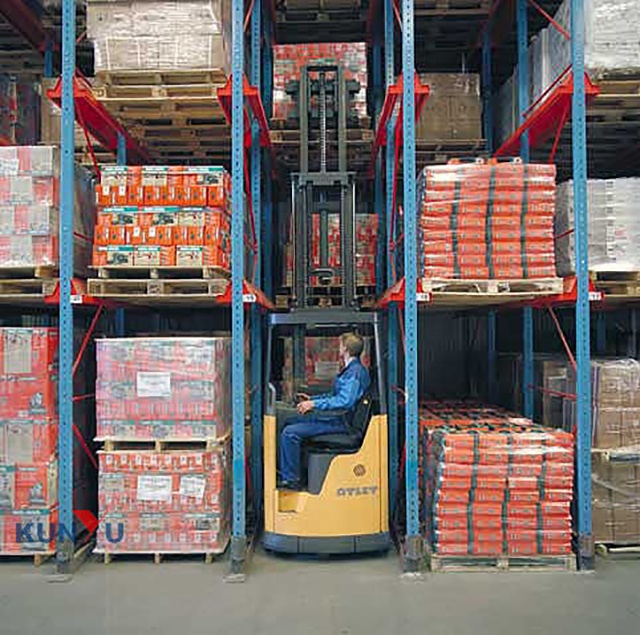

A drive-in racking system allows forklifts to enter the rack bays directly to place and retrieve pallets. Pallets rest on continuous side rails rather than horizontal crossbeams, making it ideal for high-density storage under First-In, Last-Out (FILO) inventory management.
What warehouse types benefit most from drive-in racks?
Drive-in racking is best suited for warehouses with low SKU variety but high pallet volumes, such as cold storage, freezer facilities, food and beverage manufacturing, and seasonal goods distribution.
How many pallets deep can a drive-in rack be designed for?
While configurations can accommodate multiple depths, typically no more than 7 pallet positions deep are recommended per lane to maintain structural integrity, fast handling times, and maximum forklift safety.
What safety components are available for drive-in racking?
Ground guide rails are commonly added inside lanes to help steer forklifts safely and smoothly. Column protectors, frame upright reinforcement, and back-stop beams can also be integrated to minimize equipment collision risk.
Can drive-in racking dimensions and weight capacity be customized?
Yes, all system heights, lane widths, depths, and beam profiles are custom-engineered based on your pallet dimensions, pallet weights, ceiling height, and forklift specifications.
What certifications ensure the quality of these racks?
Our storage racks comply with international manufacturing and structural standards including CE, AS4084 (Australian Standard), and ISO9001:2008 quality management certification.
