Beam Uprights Warehouse Rack Storage Racking Called Pallet Rack Racking
Product Description

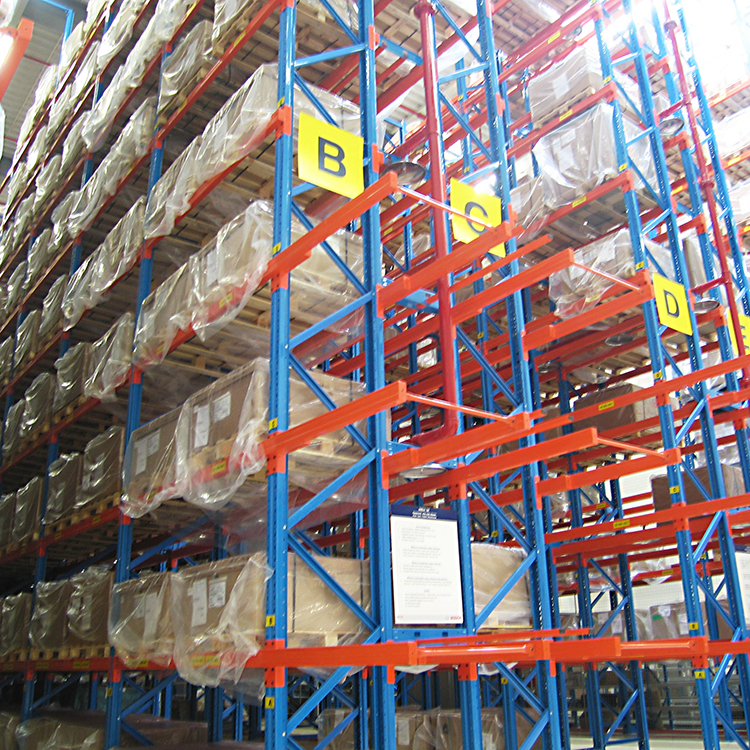

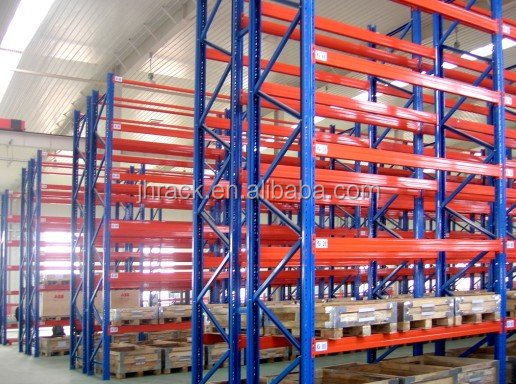

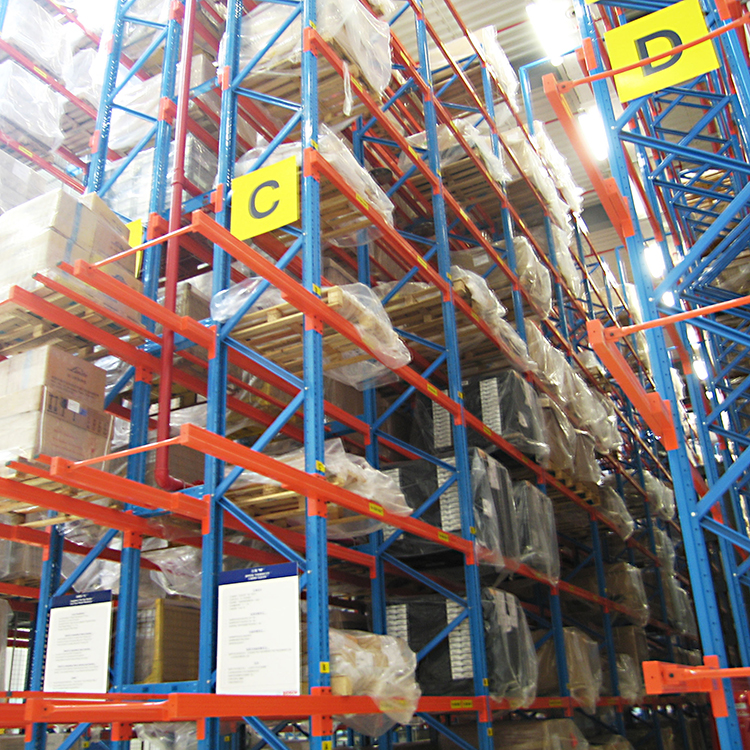

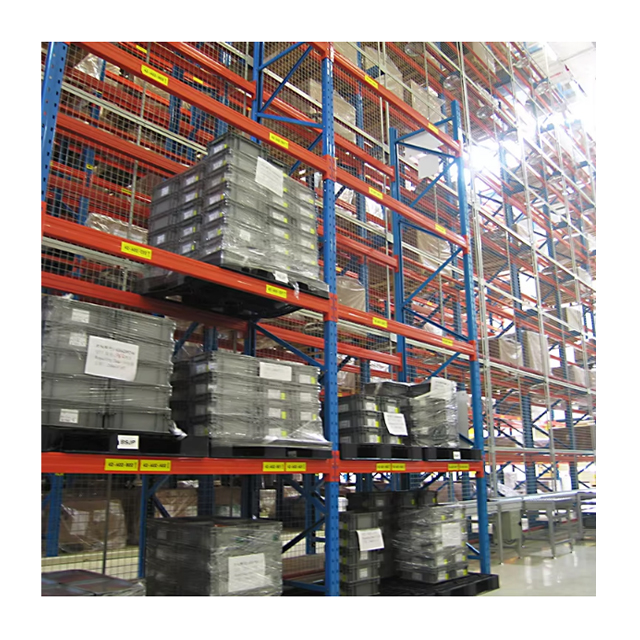

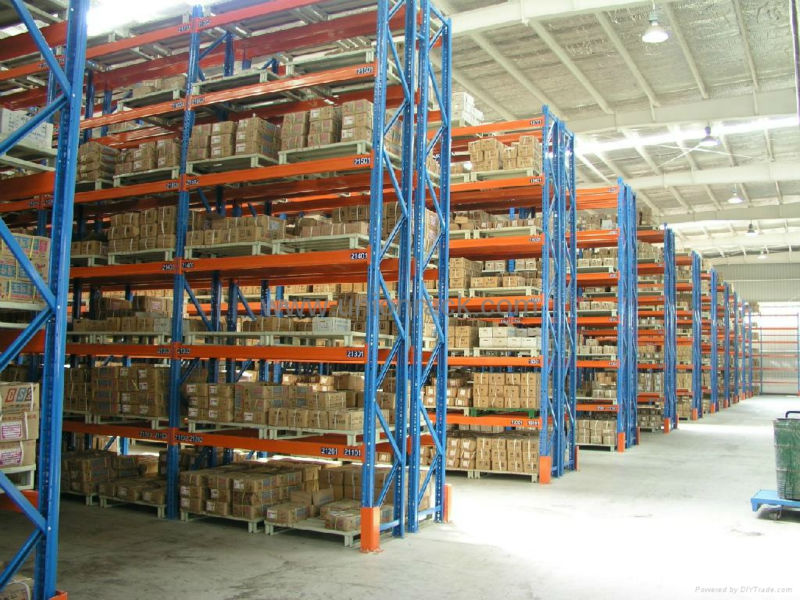

Heavy Duty Pallet Racking
Heavy duty rackings structured with pallets and beams are most widely used. This kind of steel pallet rackings are widely used together with forklifts, steel storage containers, steel pallets, and storage boxes.
Structure of Heavy Duty Racking

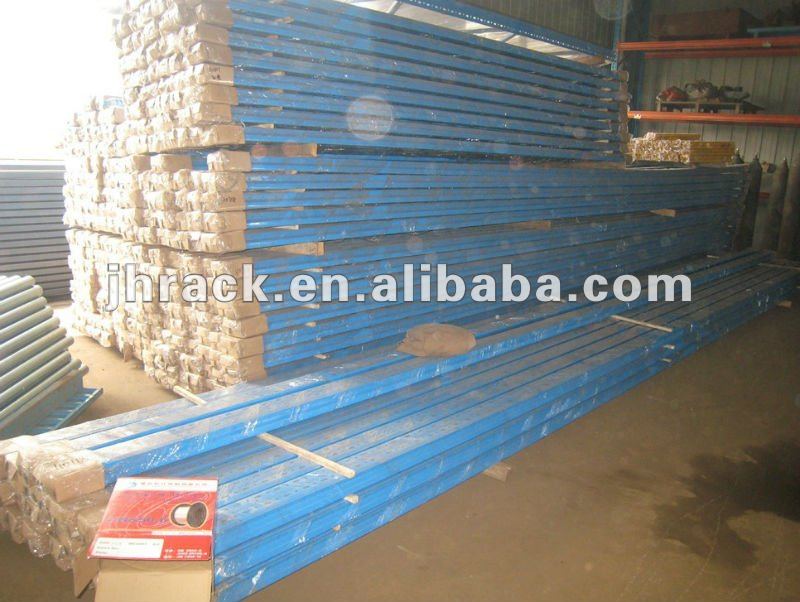

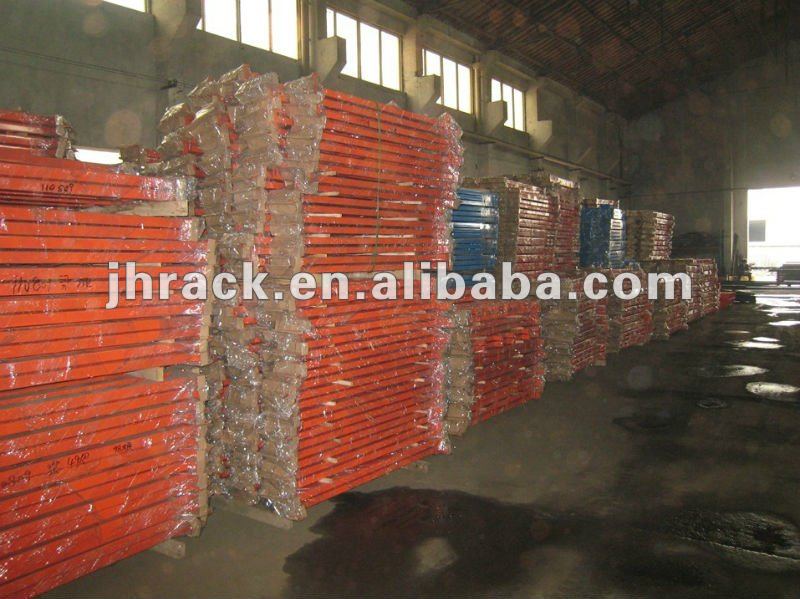

Beams
Horizontal bracing
Diagonal bracing
Uprights
Screw, safe pins
Protector
Trays
Heavy Duty Racking Design Considerations
1
The weight of your goods (trays, steel containers / boxes are included)
2
The demension of your goods together with containers (Length, Width, Height)
3
The maximum height of your forklift and the available height of your warehouse
4
The demension of your forklift
5
The fork direction
6
The demension of your warehouse
7
The direction of the transportation
Advantages of Heavy Duty Racking
1
It is suitable to be used in factories, manufactures and warehouse
2
Size(L*W*H): 1200/1500/2000*450/600/1000*1800/2000/2500mm
3
Perfect for storing categorized products in a neat and tidy way
4
Heavy-duty shelf set for warehouse shelving
5
Strong structure
6
Easy installation
7
Customization is acceptable
The Load Table of Heavy Duty Racking
| Length (mm) | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 |
|---|---|---|---|---|---|---|---|---|
| Beam Specification | Load / kg | |||||||
| 80×50 | 3000 | 2300 | 1800 | 1500 | 1200 | 1000 | 800 | 700 |
| 100×50 | 4000 | 4000 | 3000 | 2400 | 2000 | 1750 | 1400 | 1100 |
| 120×50 | 4000 | 4000 | 4000 | 3500 | 3000 | 2500 | 2000 | 1800 |
| 140×50 | 4000 | 4000 | 4000 | 4000 | 4000 | 3800 | 3000 | 2500 |
Nanjing Jinhui Storage Co. LTD Specializing in Heavy Duty Racking
Frequently Asked Questions (FAQ)
1. What primary components make up a heavy duty racking system?
The structure is composed of uprights, beams, horizontal bracing, diagonal bracing, trays, protectors, and securing hardware such as screws and safety pins.
2. What factors are essential when designing a pallet racking layout?
Design planning requires accounting for total load weight (including containers and trays), cargo dimensions (L×W×H), warehouse dimensions, maximum forklift lift height, forklift dimensions, fork operation directions, and transit routes.
3. What are standard dimensions available for heavy duty racks?
Standard sizes typically range in Lengths of 1200, 1500, or 2000 mm; Widths of 450, 600, or 1000 mm; and Heights of 1800, 2000, or 2500 mm. Custom dimensions are also fully supported.
4. How much weight can heavy duty pallet rack beams hold?
Depending on the beam profile (ranging from 80×50 mm up to 140×50 mm) and span length (from 1500 mm to 3300 mm), beam load ratings range between 700 kg and 4000 kg.
5. Can these heavy duty racks be customized for unique warehouse requirements?
Yes, customization is fully supported to match specific storage container types, forklift models, available warehouse height, and specific load capacities.
