Engineered Storage Portfolio
High-Efficiency Warehouse Racking & Protection Solutions
Explore heavy-duty adjustable selective racking, high-bay structural frameworks, automated carriers, and perimeter containment accessories built from premium Q235B/Q355B cold-rolled structural steel.
Enterprise Credentials
Guangzhou HEDA Shelves: Decades of Structural Innovation
Operating a modernized 30,000 m² production base since 2001, Guangzhou Heda Shelves Co., Ltd. delivers certified warehouse racking, automated cantilever infrastructure, and multi-tier mezzanines backed by full batch traceability.
25+
Years Engineering Experience
30,000t
Monthly Fabrication Capacity
120+
Export Destination Countries
10,000+
Global Industrial Deliveries
Certified Compliance
Full CE certification (No. 2435-CPR-8605159) and ISO 9001:2015 accreditation validating structural load reliability and safety margins under demanding international seismic standards.
Free 3D & CAD Layouts
Experienced design engineers create tailored 3D layouts, forklift turning clearance validations, and dynamic weight load computations before manufacturing commences.
Anti-Corrosive Treatment
Automated continuous pickling, phosphating pre-treatment, and electrostatic powder coating deliver long-term protection against humidity in coastal logistics hubs and cold rooms.
Global Port Logistics
Standardized modular packing with numbered sub-components streamlines clearance and lowers transit damages across major South American, European, and Asian container routes.
Technical Architecture
Structural Engineering & Cold-Formed Steel Specifications
Understanding the metallurgical strength and profile geometries that govern CE-certified adjustable pallet racking performance under cyclical industrial loads.
Finite Element Analysis (FEA) and Upright Column Mechanics

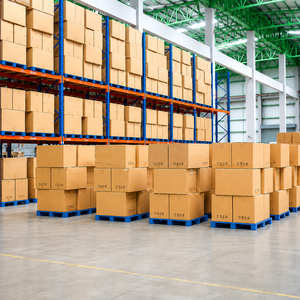

Adjustable selective pallet racking operates as a semi-rigid braced steel frame. Modern pallet storage relies on cold-formed profiles produced from certified structural steel grades Q235B (yield strength ≥ 235 MPa) and Q355B (yield strength ≥ 355 MPa), conforming to EN 10025 standards. The upright profile features an engineered 8-to-12 bend cross-section designed to resist torsional buckling and local plate instability under axial loads exceeding 20,000 kg per bay.
Columns feature precision automated punchings at 50mm or 75mm pitch intervals, enabling vertical adjustability without compromising material cross-sections. Beam end connectors utilize multi-claw interlocking hooks coupled with spring safety locks, ensuring that accidental forklift vertical impacts cannot dislodge load beams from their seated configuration.
| System Component | Material Grade | Standard Dimension Range | Load Rating Capacity | Surface Treatment |
|---|---|---|---|---|
| Upright Omega Columns | Q235B / Q355B High Tensile | 80×60mm to 140×100mm, t=1.8–3.0mm | Up to 24,000 kg / bay | Electrostatic Powder Coated (60–80μm) |
| Box Step & Interlocking Beams | Q235B Cold-Rolled Steel | 80×50mm to 160×50mm, t=1.5–2.0mm | 500 kg to 5,000 kg / tier | Pure Polyester Powder (RAL 2004 / 5015) |

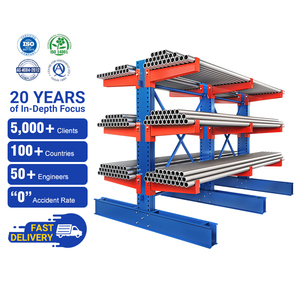

| Structural Cantilever Arms | Q235B / Hot-Rolled H-Beam | Arm length: 600mm–1800mm | 300 kg to 1,800 kg / arm | Powder Coating / Hot-Dip Galvanized |
| Heavy Wire Mesh Decking | High-Tensile Drawn Wire | Mesh grid: 50×50, 50×100mm | 300 kg to 1,500 kg UDL | Zinc Electro-Plate / Hot-Dip Galvanized |
| Seismic Base Plates & Anchors | Q355B Heavy Steel Plate | 160×140×6mm to 220×180×12mm | Engineered per Site Seismic Zone | HDG or Zinc Chromate Passivation |
Seismic Engineering for High-Risk Fault Zones
Warehouse installations in seismic regions across South America (including Chile's NCh 2369, Peru's E.030, and Colombia's NSR-10) require specialized structural dynamics. HEDA Shelves utilizes parametric structural modeling that calculates ground acceleration factors (PGA), ductility reduction coefficients, and dynamic live-load coupling.
By integrating enlarged ductile footplates, structural floor anchor arrays with high pull-out ratings, cross-aisle X-bracing, and back-to-back portal ties, the system dissipates kinetic energy during seismic shifts. This prevents catastrophic column buckling while protecting warehouse operators and inventory integrity.
Strategic Procurement
Emerging Procurement & Technology Trends in Industrial Racking
How supply chain executives, warehouse developers, and operations directors are adapting storage layouts to robotics, cold chain logistics, and supply chain volatile environments.
1. Convergence of AS/RS & Shuttle Systems
Traditional manual forklifts are steadily being replaced by automated guided vehicles (AGVs) and four-way radio shuttle systems. Procurement teams are moving toward subframe-integrated racking with tighter dimensional tolerances (±1.5mm) to facilitate automated pallet placement without jamming risks.
2. Cold Chain High-Density Imperatives
With cold storage operations commanding higher kilowatt-hour costs per cubic meter, selective racking is yielding to drive-in and multi-tier pallet flow configurations. Buyers are specifying hot-dip galvanized uprights to resist cyclical condensation, rust creep, and thermal stress embrittlement.
3. Circular Lifecycle & Total Cost of Ownership (TCO)
Procurement audits look beyond the FOB purchase price. International buyers evaluate paint millage thickness, robotic weld penetration, packaging cubing density, and field adjustability. Selecting CE-certified modular components lowers assembly downtime and increases reuse value during facility reconfigurations.
Procurement Knowledge Base
Frequently Asked Questions on Pallet Racking Sourcing
Clear, engineering-backed answers addressing structural design, sea freight logistics, lead times, and regulatory compliance.
What specific standards does CE certified adjustable pallet racking comply with?
CE certified racking systems manufactured by Guangzhou Heda Shelves Co., Ltd. operate under Construction Products Regulation (CPR) Certificate No. 2435-CPR-8605159 and ISO 9001:2015. Structural design parameters conform to EN 15512 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design), EN 15620 (Tolerances, deformations and clearances), and EN 15635 (Application and maintenance of storage equipment).
How are structural load calculations adjusted for local seismic regulations?
Our engineering team incorporates the seismic acceleration coefficient (PGA), soil subsoil class, and seismic risk tier provided by your local civil works team. We calculate dynamic racking response using static equivalent or response spectrum methods. Baseplate thicknesses are increased (up to 12mm), heavy-duty chemical anchors are specified, and structural back bracing is added to satisfy building codes such as Chile's NCh 2369, Peru's E.030, or Eurocode 8.
What parameters are required to generate a complimentary 3D layout and quote?
To prepare an accurate engineering drawing and structural calculation, we require: (1) Architectural warehouse layout showing clear building height, column grids, and doors; (2) Pallet dimensions (Length × Width × Height including goods) and maximum weight per pallet; (3) Forklift model, minimum turning aisle width requirement (AST), and maximum mast lift reach; (4) Desired inventory rotation logic (FIFO vs. LIFO); and (5) Warehouse operating temperature.
How does the manufacturing facility protect steel against corrosion in humid or coastal areas?
Every steel component undergoes an automated multi-stage pre-treatment line, including degreasing, pickling to remove scale, and phosphating to form an inert anti-corrosive conversion coating. Following this, thermosetting polyester powder coating is electrostatically applied and cured at 180°C–200°C, producing a dense 60–80 micron film. For wet environments, chemical warehouses, or sub-zero refrigeration units, pre-galvanized or hot-dip galvanized (HDG) steel options are implemented.
What is the standard production cycle and sea shipping timeframe?
Supported by our 30,000-ton monthly capacity, standard selective pallet racking orders are typically fabricated within 2 to 4 weeks after drawing sign-off. High-bay AS/RS structures and complex mezzanines require 4 to 6 weeks. Direct container ocean shipping from South China ports to South American, European, or Middle Eastern ports generally spans 25 to 45 days. We provide comprehensive load-cubing plans to maximize 40ft HQ container volumes while protecting paint coatings during ocean transit.
Certified Production Integrity: From Raw Coil to Installed System
Sourcing adjustable pallet racking from an experienced industrial manufacturer eliminates the structural hazards of unverified steel grades and uncontrolled welding. At HEDA Shelves, incoming coils undergo strict spectrophotometer composition audits and tensile testing. Every batch of rolled beam profiles and omega upright columns is checked for dimensional tolerances, locking tab clearances, and paint film hardness.
Our packaging engineers assemble tailored bundles utilizing protective foam sheeting, strapping channels, and custom wood dunnage designed for container de-stuffing without crane interference. Each project includes complete 2D assembly drawings, marked component sequences, bolt tightening torque charts, and live engineer support to ensure safe installation at your facility.
Plan Your Warehouse Racking Infrastructure with Certified Engineers
Submit your warehouse dimensions and operational load requirements. Our technical design team will develop a full CAD floor plan, 3D visualization, and structural calculation within 24 business hours.
