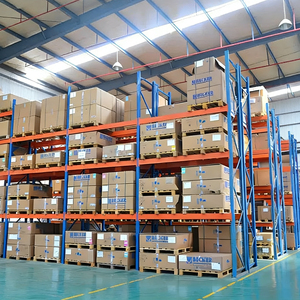

Heavy Duty Industrial Warehouse Storage Racks & Garage Shelving
Adjustable multi-tier pallet racking featuring continuous punch-formed omega uprights, 4-claw safety connector beams, and customizable bay spans for universal distribution logistics.
Industrial Steel Mezzanine Platform & Floor Grating System
Rack-supported industrial mezzanine structural systems engineered to transform unused vertical clearance into accessible manual picking walkways, consolidation zones, or offices.
CE Certified Two-Way Radio Shuttle High Density Pallet Rack System
Dynamic deep-lane pallet shuttle configuration eliminating internal forklift aisle traffic, delivering unmatched volumetric utilization for FMCG and cold storage facilities.
Aluminum FIFO Gravity Flow Lane & Roller Rail Picking Rack System
Gravity-driven inclined live storage beds fitted with aluminum tracking and integrated dynamic brake rollers, guaranteeing automatic pallet and carton replenishment with zero energy consumption.
Automated Industrial FIFO Pallet Shuttle System Warehouse Racks
High-bay intelligent carrier architecture featuring precision sub-rail alignment, optical collision avoidance, and bidirectional warehouse management software (WMS) control.
High-End Engineered Structural Radio Shuttle Pallet Racking
Export-grade heavy storage infrastructure engineered with precision-formed galvanized guide rails, suited for deep-freeze logistics, dairy storage, and mega distribution centers.
Heavy Duty Structural Channel Racking System for Extreme Loading
Constructed from hot-rolled structural steel channels to resist heavy MHE forklift collision. Ideal for heavy manufacturing, die mold storage, building supplies, and seismic fault zones.

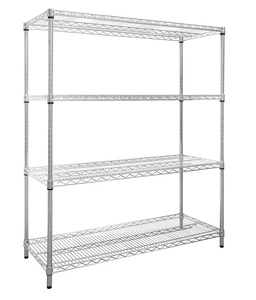

800lbs/Tier NSF Certified 4-Tier Industrial Chrome Wire Storage Shelving
Sanitary commercial wire shelving certified to NSF benchmarks. Maximizes light penetration, fire-suppression water dispersion, and dust-free ventilation in cleanrooms, pharma, and retail buffers.
Structural Mechanics, Metallurgy & Safety Engineering in High Bay Storage
A deep analysis of cold-formed steel profiles, seismic dynamic modeling, and European versus American testing standards governing modern tall-structure intralogistics.
In high-bay racking systems spanning vertical heights from 12 meters to upwards of 40 meters, storage racks function not merely as shelving fixtures, but as critical civil structural skeletons. The design demands rigorous calculation of torsional buckling, axial compression, second-order (P-Delta) structural effects, and dynamic resonant frequencies caused by Material Handling Equipment (MHE) acceleration, automatic stacker cranes, and seismic events.
As China’s foremost high bay rack storage manufacturer and exporter, Guangzhou Heda Shelves Co., Ltd. applies comprehensive finite element analysis (FEA) to simulate ultimate limit states (ULS) and serviceability limit states (SLS). Our cold-formed vertical columns utilize continuous multi-faceted omega profiles with cold work hardening properties, ensuring exceptional strength-to-weight ratios that comply with European Standard EN 15512:2020, FEM 10.2.02, and American RMI (ANSI MH16.1) protocols.
Metallurgical Chemistry & Steel Grade Integrity
We source structural hot-rolled and cold-rolled prime coils directly from state-owned Tier-1 mills (Baosteel, Shougang). Every production batch undergoes strict spectral analysis to verify chemical formulation:
- Q235B (ASTM A36 equiv.): Yield point ≥235 MPa; tensile 370–500 MPa.
- Q355B (ASTM A572 Gr 50): High-yield ≥355 MPa for high-bay uprights.
- Elongation Index ≥ 26%: Prevents brittle fracture during seismic sway.
Cold-Forming Geometry & Upright Punching
Columns feature an optimized multi-flange cross section fabricated on computer-controlled 18-stage roll-forming continuous lines. This profile geometry minimizes local buckling under high vertical loads:
- 50mm / 75mm / 76.2mm Pitches: Global interchangeability.
- Drop-shaped / Diamond Holes: Self-locking wedging beam lugs.
- Automatic Stamping Accuracy: Cumulative tolerance < 0.15mm per 10m.
Surface Pre-treatment & Coating Polymerization
Long-term resistance to flaking, impact, and oxidation relies on continuous industrial powder coating lines equipped with Swiss Gema automated application guns:
- Automated Chemical Pretreatment: Degreasing, pickling, phosphating.
- Epoxy-Polyester Hybrid Powder: 60 to 90 μm uniform thickness.
- Corrosion Endurance: 500+ hours neutral salt spray rating (ASTM B117).
High Bay System Selection by SKU Density, Throughput & CapEx
Evaluate key technical tradeoffs between vertical selective systems, dynamic shuttle lanes, gravity flow, and automated clad-rack high bay architectures.
| Storage System Type | Space Utilization | Pallet Selectivity | Stock Rotation | Throughput Velocity | MHE Forklift Requirement | CapEx Intensity |
|---|---|---|---|---|---|---|
| Standard Selective High Bay | Moderate (40–45%) | 100% Direct | FIFO or LIFO | High (Concurrent Pick) | Reach Truck / VNA Turret | Economic Entry |
| Very Narrow Aisle (VNA) High Bay | High (60–65%) | 100% Direct | FIFO or LIFO | Very High | Wire/Rail Guided VNA Man-up | Moderate-High |
| Radio Shuttle Cart System | Extreme (75–85%) | Low-Medium (By Lane) | FIFO or LIFO Configurable | High (Semi-Automated) | Standard Counterbalance/Reach | Moderate-ROI |
| Dynamic Pallet Gravity Flow | Maximum (80–90%) | Medium (Per Lane) | Strict FIFO Gravity | Continuous Replenish | Standard Forklifts | Moderate Roller Cost |
| Automated High-Bay ASRS Clad-Rack | Peak (>90%) | 100% Automated | Software Controlled | Maximum (24/7 Robotized) | Stacker Cranes / Shuttles | High Automation Capital |
Macro Trends Shaping Warehouse Storage & High Bay Racking (2025–2030)
Strategic procurement analysis for supply chain directors, industrial real estate developers, and third-party logistics (3PL) conglomerates navigating automated material handling.
1. Vertical Skyward Expansion & Clad-Rack Monoliths
Rising industrial land valuation in key trade gateways (Rotterdam, Santos, Los Angeles, Singapore) has rendered horizontal warehouse expansion economically unfeasible. Logistics facilities are trending from standard 9-meter ceiling heights to 24–40 meter automated clad-rack buildings. In rack-clad structures, the high-bay racking serves as the building’s primary structural support for wall cladding, wind loads, and rooftop snow loads, cutting traditional steel construction timelines by up to 25%.
2. Autonomous 4-Way Shuttles & AMR Co-Existence
The traditional two-way radio shuttle is rapidly transitioning into intelligent multi-level 4-way shuttle robotic platforms. Modern high bay storage channels now incorporate laser-guided Autonomous Mobile Robots (AMRs) that transition between vertical lifts and horizontal longitudinal rails without manual forklift intervention. This demands high bay rack manufacturing with sub-millimeter punching tolerances and ultra-flat roll-formed rail tracks to prevent robotic navigation faults.
3. Cold-Chain Condensation & Cryogenic Steel Metallurgy
With pharmaceutical cold chains, seafood, and fresh agro-export volumes multiplying globally, high-bay cold storage requires specialized metallurgical solutions. Standard structural carbon steels suffer ductile-to-brittle transition below -20°C. Future procurement emphasizes low-carbon micro-alloy steels with guaranteed Charpy V-notch impact toughness at -30°C, combined with continuous hot-dip galvanizing (HDG) or zinc-aluminum-magnesium (ZAM) coatings that eliminate peeling and rust under constant condensation.
4. Embodied Carbon Metrics & High-Yield Downgauging
Global supply chain carbon compliance (EU CBAM and Scope 3 disclosures) is shifting procurement away from thick, low-grade hot-rolled beams. By adopting advanced high-yield Q355B and Q460 micro-alloyed cold-formed profiles with specialized rib-stiffened geometries, manufacturers reduce the total steel mass per pallet location by 12% to 18% while maintaining identical ultimate load ratings. This lowers both ocean shipping deadweight and the project's overall embodied carbon footprint.
5. Digital Twin Racking & IoT Strain Monitoring
High bay vertical installations are integrating passive RFID tags, barcode tracking matrices, and continuous optical/strain-gauge sensors into critical upright base plates and seismic tie-beams. These sensors stream real-time deflection data directly to warehouse management systems (WMS). Safety managers receive early alerts for overloaded bays, forklift impact stress, or foundation settlement long before physical deformation leads to structural collapse.
6. Modular Reconfigurability for Omnichannel Volatility
E-commerce order profiles fluctuate rapidly between full pallets, carton picking, and single-unit order packing. Forward-looking buyers avoid welded, single-purpose structures, favoring boltless modular high-bay systems with slotted uprights and universal quick-clip safety pins. These allow selective pallet levels, carton gravity flow beds, and pick-to-light shelves to be re-spaced without structural hot-work or warehouse shutdowns.
Guangzhou HEDA Shelves: 25 Years of Global Racking Engineering
Partnering with China’s dedicated storage rack manufacturing facility gives overseas buyers predictable lead times, verified quality systems, and complete container load optimization.
Engineering Integrity from First Drawing to Final Container Seal
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a 30,000 square meter specialized manufacturing facility staffed by more than 300 experienced engineers, CNC technicians, and fabrication specialists. Our factory delivers over 30,000 metric tons of custom-engineered warehouse storage racking and mezzanine platforms each month.
Unlike commercial middlemen or export agents, HEDA Shelves maintains direct in-house control over the complete production chain: automated profile roll-forming, continuous precision punch-pressing, robotic MIG welding, multi-stage acid pickling and phosphating, and computerized electrostatic powder coating. Every export order is packaged using systematic component grouping with moisture-barrier film to guarantee rust-free arrival at destination ports worldwide.
