Engineered OEM/ODM Bulk Racking & High-Density Storage Solutions
Explore our heavy-duty warehouse shelving series, built from cold-rolled structural steel with custom seismic bracing, certified corrosion finishes, and modular interchangeability.
Radio Shuttle Electric Mobile Pallet Rack Warehouse Storage Radio Shuttle Racks
Semi-automated deep lane storage optimizing cold storage and high-throughput beverage centers with autonomous battery-powered shuttle vehicles.
Warehouse Heavy Duty Steel Loft Platform Shelf Storage Attic Rack Pallet Racking Supported Mezzanine Floor Racks System
Vertical volumetric expansion utilizing structural uprights to support intermediate steel decking, catwalks, and manual picking levels.
Industrial Heavy Duty Warehouse Granulating Racking Storage Racks with Corrosion Protection European Standard Pallet Rack
Built to FEM 10.2.02 and EN 15512 specifications with anti-corrosion epoxy finishes and precision-toleranced 50mm beam pitch adjustments.
DJ Heavy Duty Pallet Racking Storage SystemSteel Warehouse Gravity Push Back Roller Sliding Rack with Corrosion Protection
High-density 2 to 6 pallet-deep storage with inclined nested carrier carts, ensuring fast SKU access with reduced aisle occupancy.

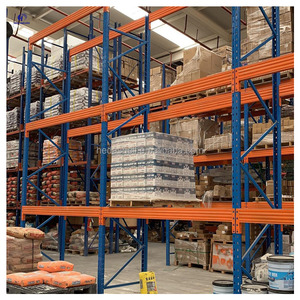

WAREHOUSE RACKING Large Capacity Selective Racking System Double Deep Pallet Racking Warehouse Storage Shelves
Two-pallet deep configuration configured for pantograph deep-reach forklifts, boosting floor utilization by 30% over single selective layouts.
Jracking Heavy Duty Warehouse Shelving Rack Steel Teardrop Pallet Racking System For Distribution Centers
Universal teardrop beam-to-column connector configuration providing tool-free pin lock assembly, compatible with major US/Americas footprints.

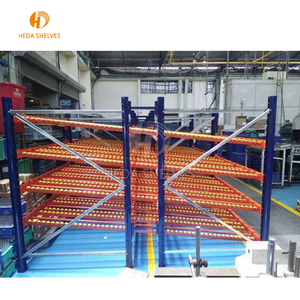

Wholesale Selective Warehouse Storage Gravity Carton Flow Racking Roller Rack/shelves System
Ergonomic roller track beds delivering seamless gravity feeding for e-commerce fulfilment, pharmaceutical carton picking, and line-side supply.
Racking System Gravity Flow Racks Pallet Flow Roller Shelving Carton Flow Industrial Warehouse Modular Metal Heavy Duty Storage
Continuous dynamic roller beds with integrated centrifugal speed brakes and separation release levers for fail-safe, heavy pallet throughput.
Structural Metallurgy & Cold-Formed Racking Engineering
A rigorous industrial perspective on custom profile roll-forming, metallurgical yield tolerances, load distribution formulas, and seismic survivability in automated bulk storage environments.
1. Metallurgical Integrity & Cold-Rolled Structural Profiling
Procuring industrial bulk rack shelving at container volume demands verifiable structural traceability. Cheap mild steel coils with erratic carbon fractions present catastrophic failure risks under cyclic dynamic loading. As an ISO 9001:2015 and CE-certified OEM/ODM manufacturer (Certificate No. 2435-CPR-8605159), our fabrication facility standardizes strictly on prime Q235B and Q355B (equivalent to ASTM A36 and ASTM A572 Grade 50) cold-rolled high-tensile structural steel strip.
The load-carrying efficiency of upright frames depends on cross-sectional geometry and cold-work hardening induced along the roll-forming axis. Our automated lines utilize multi-station continuous cold-roll forming with up to 24 progressive bending stations. This ensures uniform strain distribution across profile radii without micro-fissuring the crystalline steel lattice. Upright columns feature engineered omega or multi-flange return designs (widths from 80mm to 140mm, thicknesses from 1.5mm to 3.0mm) to provide superior second moments of area (Ix and Iy) that directly counteract torsional flexural buckling under severe vertical loads.
2. Seismic Load Engineering Across Dynamic Global Geographic Faults
Bulk warehouse racking does not operate under static equilibrium; it functions as a flexible structural framework subjected to dynamic pallet placements, forklift impacts, and planetary ground accelerations. For projects commissioned across the Pacific Rim—including seismic zones in Chile (NCh 2369 / NCh 433), Peru (E.030), Colombia (NSR-10), and the Western United States (RMI ANSI MH16.1)—our engineering team conducts site-specific 3D finite element structural analysis (FEA).
We simulate nonlinear base-shear dynamics, P-Delta secondary moments, and horizontal ground displacement accelerations ($S_s$ and $S_1$). Uprights destined for high-seismic zones are engineered with thickened heavy-duty baseplates (10mm to 16mm structural steel), specialized high-tensile chemical wedge anchors (M12 to M16 Grade 8.8), and heavy horizontal-to-diagonal cross-bracing profiles with reinforced tubular gusset inserts. This rigorous approach prevents brittle connection shearing, allowing dynamic racking to dissipate seismic kinetic energy without progressive global collapse.
Continuous Roll-Forming
Multi-stage 24-station automated rolling units produce flawless omega uprights and box step beams with cold-forming tolerances within ±0.25mm per 10-meter span.
Robotic CNC Plasma & Punching
High-speed hydraulic punching dies execute 50mm and 75mm pitch patterns (teardrop, butterfly, diamond) with zero pitch elongation, enabling rapid beam slotting.
Electrochemical Surface Pretreatment
Full 8-stage immersion pickling, degreasing, and zinc phosphating followed by electrostatic thermosetting polyester powder coating (60–90µm DFT) resisting salt-fog.
Global Bulk Procurement & Warehouse Racking Trends
How supply chain executives, system integrators, and industrial rack importers are recalibrating procurement strategies in response to automation, sustainability directives, and landed cost optimization.
1. The Rise of Hybrid Automation (ASRS, AMR, and Shuttle-Compatible Racking)
The procurement of traditional static pallet racking is rapidly transforming into integrated automated infrastructure. As warehouse logistics costs escalate globally, enterprise distribution centers are shifting toward high-density Radio Shuttle Racking, automated storage and retrieval systems (AS/RS), and Autonomous Mobile Robot (AMR) multi-level platforms.
For OEM/ODM bulk rack manufacturers, this trend shifts engineering tolerances from standard civil construction metrics (±3.0mm) to machine-tool precision tolerances (±0.5mm). Shuttle rail alignment, deflection limits under dynamic acceleration ($L/500$ or higher), and rail crown roughness are critical variables. Importers are increasingly specifying dual-gauge guide rails and laser-machined runouts to prevent autonomous vehicle derailment in high-throughput cold storage and 24/7 retail fulfillment operations.
2. Ocean Freight Container Cube Maximization & Landed Cost Engineering
In bulk pallet rack procurement, shipping empty air across ocean routes degrades operating margins. Leading supply chain directors no longer evaluate FOB pricing alone; they demand full-container load (FCL) packing plans that approach 95%+ volumetric and weight capacities within 40ft High Cube (40HC) containers.
Advanced OEM/ODM manufacturers engineer modular components with nested upright geometries, bolt-together knock-down frame architectures, and stackable interlocking beam bundles wrapped with impact-resistant protective strapping. By pre-calculating total container weights against port limits (e.g., 26–28 metric tons per container) and shipping knocked-down frames with high-speed bolt-assembly jigs for destination assembly, landed freight costs per pallet location drop by 22% to 35%.
| Storage Architecture | Space Utilization | Stock Access (FIFO/LIFO) | Forklift Requirement | Ideal Industry Application |
|---|---|---|---|---|
| Selective Pallet Racking | 40% - 50% | 100% Direct (FIFO) | Standard Counterbalance / Reach | Multi-SKU Retail, FMCG Distribution |
| Double Deep Racking | 60% - 65% | 50% Direct (LIFO) | Pantograph Deep-Reach Forklift | Dry Groceries, Paper & Packaging |
| Drive-In / Drive-Through | 75% - 85% | Lane Dependent (LIFO / FIFO) | Counterbalance Drive-In | Cold Storage, Seasonal Bulk Agricultural |
| Push Back (Cart / Roller) | 70% - 75% | Lane Dependent (LIFO) | Standard Reach / Counterbalance | Food & Beverage Wholesale, Buffer Zones |
| Radio Shuttle System | 85% - 90% | Automated Mode (FIFO or LIFO) | Standard Lift (No Lane Entry) | Frozen Meat, Seafood, High-Value Pharma |
| Rack-Supported Mezzanine | 150% - 200% Floor Area | Combined Hand & Pallet Access | Forklift Lift-Gates + Manual Cart | Automotive Parts, E-Commerce Picking |
Guangzhou Heda Shelves: The 10-Stage Controlled Production Lifecycle
Operating a 30,000 m² heavy manufacturing facility since 2001, our 300+ technical personnel guarantee complete in-house quality control from raw coil splitting to final export container staging.
Raw Materials
Mill test certified Q235B/Q355B coil testing for tensile & yield thresholds.
Precision Slitting
High-speed laser cutting & longitudinal coil slitting to exact strip widths.
Automated Punching
High-tonnage progressive CNC hydraulic punch dies for 50/75mm slot pitches.
Cold Bending
Multi-axis computerized forming creating reinforced profile returns.
Profile Roll-Forming
24-stage rolling line maintaining strict cross-sectional straightness.
Surface Polishing
Mechanical de-burring, edge radiusing, and weld slag extraction.
Robotic Welding
Automated MIG/MAG robotic weld cells ensuring deep structural beam throat penetration.
Pickling & Phosphating
Chemical pre-treatment removing microscopic mill scale and oxidation.
Electrostatic Coating
Automated powder spray booth with 200°C curing for uniform film thickness.
QC & Export Staging
Full batch deflection checks, protective bundling, and load-plan staging.
Why Global Logistics Leaders Partner with HEDA Shelves
From the initial floor plan to the final container seal, HEDA Shelves delivers structural accountability. We do not act as brokers or trading intermediaries. Every component is engineered, cold-formed, punched, welded, and coated within our own manufacturing compound in Guangzhou, ensuring that international B2B distributors and engineering contractors receive zero-defect consignments.
Custom OEM/ODM Branding
We produce customized upright column profiles, personalized connector bracket dies, and corporate brand color schemes (RAL matching) for regional racking distributors, wholesalers, and material handling dealers worldwide.
Frequently Asked Questions in Bulk Rack Shelving Procurement
In-depth technical answers addressing load calculations, seismic certifications, international maritime transit protection, and installation logistics.
To generate an optimized, code-compliant storage proposal, our engineering team requires: (1) Warehouse architectural drawings detailing clear ceiling height to lowest obstruction (sprinklers, HVAC, trusses); (2) Slab specifications, including concrete compressive strength (psi or MPa) and thickness; (3) Pallet parameters: width, depth, overall height including cargo, and maximum gross weight; (4) Material handling equipment (forklift model, maximum lift mast height, turning radius, aisle clearance requirement); (5) Desired inventory method (FIFO vs. LIFO); and (6) Project location to establish regional seismic risk coefficients ($S_s, S_1$).
Every steel component undergoes an automated 8-stage chemical pretreatment, including degreasing, ultrasonic cleaning, acid pickling to eliminate mill scale, and zinc phosphate conversion coating. After drying, components receive an electrostatic thermoset epoxy-polyester powder coating cured at 200°C, producing a dense film thickness of 60 to 90 microns. For extreme environments—such as marine ports, tropical distribution centers, or blast-freezer cold storage facilities—we offer continuous hot-dip galvanized (HDG) steel complying with ASTM A123 / ISO 1461, ensuring over 20 years of rust-free service life.
Yes. As a full-tier OEM/ODM manufacturer, we engineer drop-in compatible racking solutions matching proprietary profiles. Whether you supply the North American market requiring classic 2-inch punch Teardrop uprights with universal safety-pin step beams, or the European/Latin American markets requiring 50mm/75mm European pitch profiles, Dexion-compatible diamond slots, or Speedlock-style hooks, our tooling department fabricates custom punch dies and roll tooling to ensure complete dimensional interchangeability.
Our Guangzhou facility processes over 30,000 metric tons of structural steel per month across automated rolling lines. Standard project orders (1 to 5 forty-foot containers) are manufactured within 2 to 4 weeks after drawing approval. For mega-projects requiring 20 to 100+ containers, production is staged in progressive batches aligned with ocean booking schedules. Every shipment includes container packing manifests, color-coded component tagging, and detailed 3D step-by-step assembly drawings to facilitate fast unloading and straightforward local installation.
Need an Engineered Floor Plan & Factory-Direct Quote?
Send your warehouse dimensions and storage requirements directly to our senior structural engineering team. We deliver custom 3D CAD drawings and structural calculations within 24 hours.
