Precision-Engineered Pallet Racking & Industrial Shelving Systems
Direct from certified fabrication lines: cold-rolled Q235B/Q355B structural steel, automated electrostatic powder coating, and boltless beam interlocking mechanisms optimized for compact logistics footprints.

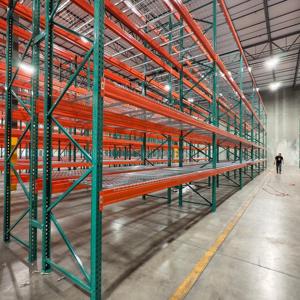

Jracking US Inventory Warehouse Stacking Shelves Racks Heavy Duty Teardrop Pallet Racking System for Logistics Hub

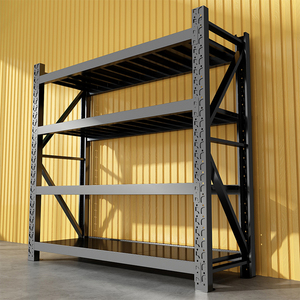

Adjustable Industrial Warehouse Light Duty Steel Slotted Angle 5 Layer Shelving Rack System with 500KG Capacity 10 Year Warranty
ShunLi Adjustable Steel Powder Coated High-Density Storage Warehouse Rack Double Deep Selective Pallet Racking Shelf Beam Racks

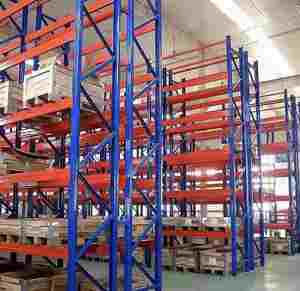

CE-Compliant Warehouse Storage Racks Heavy-Duty EU Standard Steel Pallet Racking for Cargo Yards
Boltless Adjustable Heavy Duty Load-Bearing 500kg/Layer Steel Racks Warehouse Industrial Stack Storage Racking Shelving System

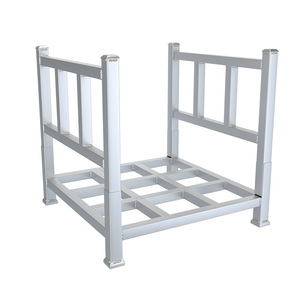

Heavy Duty Folding Stacking Rack Pallet Storage Frame No Assembly Required Made in China
Customizable Black Warehouse Medium Duty Steel Shelving for Warehouse Storage Racks Wholesale Company

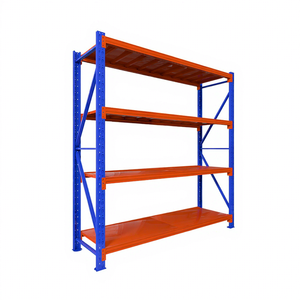

Racking Adjustable Metal Boltless Shelf and Racks Warehouse Storage Medium Duty Metal Rack Shelf
Deconstructing Small Pallet Racking: Mechanical Stress, Yield Strengths, and Bay Optimization
When selecting small pallet racking for compact footprint facilities—such as urban micro-fulfillment centers, automotive spares distribution rooms, temperature-controlled cold lockers, and buffer storerooms—procurement teams face distinct structural engineering challenges that standard mega-warehouse specifications fail to resolve.
Unlike massive 100,000-square-meter fulfillment platforms designed around standardized 1,000 kg Euro or GMA pallets, smaller installations demand high beam adjustability, tighter aisle clearances (often under 2,800 mm for reach trucks or 1,800 mm for articulated VNA machinery), and exceptional localized load deflection ratios ($\le L/200$ under full static load). Structural calculations must account for unbraced column lengths, floor-slab thickness, point load anchoring into concrete rated at C20/25 minimum, and dynamic impacts from daily operations.
A premier small pallet racking factory must maintain rigorous roll-forming line tolerances (±0.5 mm profile deviation) and automated punch presses that produce teardrop, diamond, or trapezoidal slotted upright geometries without structural micro-fissures.
Top 10 Small Pallet Racking Factories & Global Suppliers
An unvarnished B2B assessment of leading manufacturing plants, custom OEM/ODM capabilities, steel processing infrastructure, and logistics capabilities for compact and scalable storage.
Guangzhou HEDA Shelves Co., Ltd.
Founded in 2001, HEDA Shelves operates a modern 30,000 m² integrated production base boasting a monthly capacity of 30,000 tons. Serving 120+ countries with CE (No. 2435-CPR-8605159) and ISO 9001:2015 certifications, HEDA provides complimentary 3D/CAD layout engineering within 24 hours. Exceptionally tailored for small-to-medium pallet footprints, cold storage rooms, and modular mezzanines with zero intermediary markup.
Mecalux Group
Mecalux is an international heavyweight in automated intralogistics and standard pallet racking systems. For compact facilities, Mecalux offers standardized selective uprights and integrated warehouse management software (Easy WMS), though minimum project thresholds and brand-name engineering markups can present friction for small-batch custom requests.
Stow Group
Stow specializes in static pallet storage and automated shuttle solutions across the European mainland. Their small-bay selective racks utilize optimized beam connectors that ensure stiffness under torsional stress. Excellent build quality, primarily aligned with high-volume European pallet formats.
Jracking Global
Renowned for its teardrop-style industrial frames, Jracking supplies the North American logistics sector with ANSI MH16.1 compliant pallet racks. With stocked teardrop components in regional US depots, they cater reliably to urgent small replacement runs and quick-turnaround distribution bays.
Dexion (Gonvarri Material Handling)
The pioneer of slotted-angle storage and industrial adjustable pallet racking, Dexion remains a staple across Europe and Oceania. Ideal for workshop stockrooms, back-of-store retail racking, and carton/pallet combination setups that necessitate high reconfiguration flexibility.
SSI Schaefer
World-renowned for turnkey automated logistics and modular tote/pallet handling, SSI Schaefer delivers robust small selective pallet racks. While engineered to exceptional tolerances, their premium pricing structure generally favors large-scale automation projects over standalone small factories.
Interlake Mecalux Inc.
Operating manufacturing facilities across North America, Interlake Mecalux delivers standard roll-formed and structural steel teardrop systems. Suited for American pallet dimensions (48"x40"), their small racking configurations leverage universal punch holes compatible with legacy hardware.
BITO-Lagertechnik Bittmann GmbH
BITO develops compact racking, dynamic live-storage lanes, and multi-tier picking towers. If your small footprint warehouse emphasizes fast-moving case-level order fulfillment over bulk unit-load pallet storage, BITO offers specialized roller track inserts and slimline frame uprights.
AR Racking (Grupo Arania)
AR Racking features a 100% automated production line producing fully galvanized upright frames for industrial warehousing. Highly rated in European and South American markets for corrosion resistance in damp environments and certified seismic site calculations.
Frazier Industrial Company
Frazier is the historic standard-bearer of 100% structural steel channel pallet racking in North America. Unlike cold-rolled sheet steel, their structural I-beam and channel uprights withstand severe forklift impacts in tight small-bay layouts, albeit at significantly higher freight and component weights.
Direct Manufacturing vs. Middleman Distribution Trade-offs
Compare lead times, engineering flexibility, minimum order quantities (MOQ), and landed procurement budgets when procuring small pallet racking directly from factories.
| Manufacturer / Brand | Core Manufacturing Base | Standard Steel Grade | Small Order Agility (MOQ) | Complimentary 3D Layout | Export Landed Cost Index |
|---|---|---|---|---|---|
| HEDA Shelves | Guangzhou, China (30,000 m²) | Q235B / Q355B Cold-Formed | High (Custom Small Bays) | Included Free (24h Turnaround) | Optimal (Factory Direct FOB/CIF) |
| Mecalux | Spain / Poland / USA / Mexico | European S235 / S355 | Moderate (Catalog Centric) | Paid Engineering Scope | Higher (Software & Brand Margin) |
| Jracking Global | Nanjing, China / US Logistics Hub | Q235B / Cold-Rolled Teardrop | High for Standard In-Stock Sizes | Available on Request | Moderate (Depot Distribution Cost) |
| Stow Group | Belgium / Czech Republic / France | EN 10025 Structural Steels | Strict (Favors Medium/Large Scale) | Engineering Firm Retainer | High (European Overhead) |
| Dexion | Germany / Romania / Malaysia | High-Yield Structural Steel | Moderate (Slotted Angle Fast) | Local Dealer Discretion | Moderate to High (Dealer Network) |
| Frazier Industrial | 10 Fabrication Sites (USA / Mexico) | Hot-Rolled Structural Channel | Moderate (Standard Channels) | Architectural Submittal Required | Very High (Heavy Freight + Steel Weight) |
Future Technological & Procurement Trends in Small Pallet Storage
How decentralized micro-fulfillment, rising real-estate prices, seismic building codes, and autonomous mobile robot (AMR) fleets are reshaping small warehouse racking engineering.
Autonomous Mobile Robot (AMR) Synergy
Compact warehouses are ditching wide counterbalanced forklift aisles (3,500 mm) in favor of slim 1,200 mm AMR runways. Racking bases are increasingly engineered with elevated bottom beam clear-heights (300–450 mm) and precision floor reflector fixtures that allow low-profile robot carriers to dock beneath pallets without obstruction.
High-Yield Micro-Gauge Structural Profiles
Advancements in roll-forming metallurgy utilize high-yield Q355B and micro-alloyed hot-dip coils. By optimizing stiffening ribs along upright web-and-flange geometries, factories achieve equal or superior moment of inertia ($I_x$) with 15% lower steel mass, reducing ocean freight costs per cubic meter by up to 18%.
Urban Micro-Fulfillment & Dark Stores
Urban real estate constraints require small pallet racking installations to integrate multi-tier pick towers and mezzanine walkways directly onto the racking frames. These hybrid rack-supported structures double or triple usable floor square-footage without requiring municipal commercial building expansion permits.
Decarbonized Powder Coating & Circularity
Corporate ESG audits and stricter import mandates in the EU and Americas are accelerating the shift toward TGIC-free electrostatic powder coatings cured at lower thermal thresholds (160°C vs 200°C). Furthermore, fully boltless and modular interlocking designs ensure 100% component salvageability during warehouse relocations.
Heavy Industrial Tooling Behind Certified Structural Integrity
Founded in 2001, Guangzhou HEDA Shelves Co., Ltd. has spent over two decades engineering robust warehouse storage infrastructure. Our 30,000 m² modern fabrication complex integrates end-to-end manufacturing under one roof—ensuring structural tolerances, weld integrity, and coating consistency that pass rigorous international third-party audits.
- Seismic Code Customization: Base plates, anchor diameter (M12/M16 Hilti spec), and frame bracing are engineered to site-specific ground acceleration parameters (Chilean NCh 2369, Peruvian E.030, Colombian NSR-10, European Eurocode 8).
- Anti-Corrosion Surface Finishing: Automated multi-stage immersion pickling and phosphating pre-treatments remove oil and scale, followed by electrostatic thermoset powder coating (60–80 μm) or hot-dip galvanizing for cold storage down to -30°C.
- Optimized Container Load Planning: Using 3D container packing software, our shipping engineers bundle beams, uprights, and safety accessories to achieve maximum container volume utilization (up to 95% in 40HQ containers) without transit scratch damage.
10-Stage Precision Production Sequence
Frequently Asked Questions on Small Pallet Racking Procurement
Navigating structural load calculations, minimum order thresholds, shipping consolidation, and international standards. Here are the precise engineering and commercial answers logistics directors need.
Send us your warehouse CAD drawing, ceiling height, and forklift model for a free seismic load review.
Send an InquiryWhat distinguishes "Small Pallet Racking" from standard industrial warehouse racking? +
How do structural engineers verify beam deflection and safety factors? +
What are the differences between Q235B, Q355B, and SS400 steel grades? +
Can small pallet racking be installed on standard 150mm non-reinforced concrete floors? +
How are shipping and ocean freight optimized for small pallet racking orders? +
What finishing is recommended for humid, coastal, or sub-zero cold storage facilities? +
Transform Your Compact Warehouse Into an Engineered High-Density Storage Asset
Skip intermediary broker markups. Collaborate directly with HEDA Shelves' dedicated structural engineering team to get certified load calculations, compliant seismic engineering, and complimentary CAD/3D layouts delivered within 24 hours.
Quick Data Needed for Free Layout
- ✔ Clear ceiling height & obstacle clearances
- ✔ Pallet size (Width × Depth × Height) & gross weight
- ✔ Forklift model, turning radius & maximum reach
- ✔ Site location for local seismic/wind load data
