Engineered Heavy-Duty Commercial Racking Systems
High-density structural systems certified for European safety compliance, specifically dimensioned for EPAL-1 (800×1200 mm) and EPAL-2 (1000×1200 mm) load formats operating within French automated distribution hubs.
Custom OEM Storage Rack Frame | Heavy Duty Steel Welded Fabrication for Warehouse Pallet Racking
- Cold-rolled certified Q235B/Q355B steel
- EN 15512 European deflection standard
- Frame loading capacity up to 24,000 kg
Jracking Heavy Duty Warehouse Shelving Rack Steel Teardrop Pallet Racking System For Distribution Centers
- Pitch adjustability with 50mm / 75mm increments
- Direct 100% pallet accessibility
- Optimized for reach trucks & counterbalanced

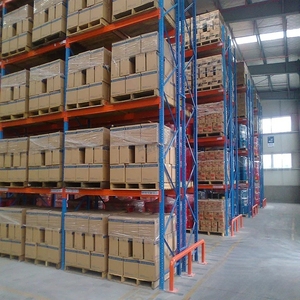

Heavy Duty 5-Layer High-Capacity Drive-In Selective Warehouse Storage Pallet Rack Adjustable Steel Durable Metal Anti-Rust ISO
- Up to 85% warehouse space optimization
- Heavy structural guide rails for forklifts
- Ideal for cold rooms & batch SKU storage
China Factory Direct SunLi SL-MR018 Warehouse Storage Steel Heavy Duty Rack Shelving Adjustable Pallet Stacking Double-Deep
- 50% fewer operating aisles required
- 3,000 kg capacity per pair of box beams
- Integrates with pantograph deep-reach trucks
JZA Adjustable Boltless 5 Layer Stainless Steel Storage Rack 100-500kg Capacity Corrosion Protection 2000*600*2000mm
- Grade 304/316 Stainless Steel fabrication
- Washdown, chemical & deep-freeze resistant
- Boltless interlocking rapid installation
Customized Powder Coating Metal Steel Light Duty Shelving Racking
- Electrostatic epoxy thermoset powder coating
- Modular bin & divider system ready
- Engineered for e-commerce picking lines
900x450x1830mm Steel 5 Layer Light Duty Cheap Warehouse Rack Easy Mobile Pallet Rack
- High-grade caster wheels with locking brakes
- Flexible buffer storage for assembly workstations
- Zinc-plated & scratch-resistant finish
Heavy-Duty Steel Warehouse Racks with Automated Radio Shuttle Racking Equipment Movable Pallet System Automatic rack
- Fully autonomous radio-controlled shuttle carts
- Integrated WMS / PLC automated dispatching
- FIFO & LIFO versatility for high turnover
Commercial Racking Infrastructure in the French Logistics Spine ("La Dorsale")
France serves as one of the pivotal logistics axes across continental Europe. The domestic French supply chain network is concentrated along the celebrated Dorsale Européenne—a high-density logistics corridor running from the northern hub of Lille through the Île-de-France (Grand Paris) basin, southward via the Rhône-Alpes valley (Lyon) toward the Mediterranean maritime hub of Marseille-Fos. With Class A warehouse rents escalating substantially throughout Greater Paris and Lyon Saint-Exupéry logistics parks, commercial rack shelving factories face a critical engineering imperative: maximizing vertical cubic capacity while complying with French stringent building and occupational safety codes.
As French logistics operators and 3PL contractors (such as Geodis, ID Logistics, and CEVA Logistics) accelerate fulfillment speed for omnichannel retail (Carrefour, Auchan, E.Leclerc) and global e-commerce, commercial racking systems cannot be treated as passive steel furniture. Racking is a mission-critical, dynamic load-bearing structure subject to severe cyclic fatigue, seismic considerations in seismic zones (such as the Alsace plain, the Pyrenees, and the Alps), and automated handling stresses. As a direct manufacturer, our facility engineers bespoke heavy-duty steel solutions that bridge the gap between factory direct economics and European regulatory stringency.
French Regulatory Standards & Quality Certifications
Structural integrity in French industrial installations demands total alignment with European Committee for Standardization (CEN) codes and French occupational health mandates.
NF EN 15512:2020 & FEM 10.2.02
European standard governing structural design calculation of steel adjustable pallet racking. Every column perforation, beam hook connector, and baseplate anchorage is mathematically modeled for limit-state safety factors and load-induced torsional stability under full rated capacity.
INRS ED 771 & CRAM Directives
Mandated by the French National Research and Safety Institute (INRS) for rack accident prevention. Specifies safety locking pins (withstanding 5 kN vertical upward thrust), heavy column upright protectors at aisle intersections, and clear identification load notice plates (Plaques de charge).
Eurocode 8 (NF EN 1998) Seismic
France's updated seismic zoning map designates Zone 1 (very low) through Zone 4 (medium) seismicity. In zones such as Auvergne-Rhône-Alpes and the Grand Est, our engineering team executes modal dynamic finite element analysis (FEA) to upgrade baseplate thickness, chemical anchors, and diagonal bracing assemblies.
Commercial Racking Systems: Engineering Performance Matrix
Selecting the optimal topology balances storage density, accessibility, and throughput efficiency across diverse French warehouse operational models.
| Racking Topology | Pallet Accessibility | Floor Space Utilization | Stock Rotation | Ideal French Application Scenarios | Compliance Grade |
|---|---|---|---|---|---|
| Standard Selective Racking | 100% Direct Access | 40% – 50% | FIFO (First-In, First-Out) | Multi-SKU 3PL facilities, Paris retail consolidation hubs | EN 15512 / INRS ED 771 |
| Double-Deep Pallet Rack | 50% Direct Access | 60% – 65% | LIFO (Last-In, First-Out) | FMCG, automotive components in Hauts-de-France | FEM 10.2.02 / CE |
| Drive-In / Drive-Through | Low (Aisle-restricted) | 75% – 85% | LIFO / FIFO | Cold storage & deep-freeze warehouses in Brittany & Normandy | EN 15512 / ISO 9001 |
| Radio Shuttle Automation | High Batch Selectivity | 85% – 90% | FIFO or LIFO Automated | Food processing, beverage bottlers, wine estates in Bordeaux/Champagne | CE / EN 60204 / Machinery Directive |
| Heavy Duty Cantilever | 100% Free Longitudinal | 55% – 70% | Flexible | Timber yards, aluminum extrusions, PVC piping, builders' merchants | Eurocode 3 / EN 1993 |
| Industrial Multi-Tier Mezzanines | 100% Manual Picking | Up to 300% (Vertical Multiplier) | FIFO Piece-Picking | E-commerce fashion, pharmaceutical distribution, micro-fulfillment | Eurocode 1 / NF EN 1090-2 |
Tailored Storage Implementations Across French Industries
Each sector in France presents distinct material handling challenges, from cold-chain temperature thresholds to seismic and hygienic prerequisites.
Agro-Alimentary & Viticulture Logistics
France is the world's premier fine wine producer and a European agricultural titan. In Bordeaux, Burgundy, and Reims, storage requirements focus on bottle maturing and barrel storage on high-density shuttle racking or heavy-duty selective bays with heavy pallet loads up to 1,500 kg per pallet position, maintaining absolute mechanical stability without vibration.
Grande Distribution & Retail Hubs
The French hypermarket and supermarket model demands extreme throughput speed. Selective racking and carton flow racking equipped with drop-in galvanized wire mesh decks and beam safety retainers accommodate varied pallet formats, allowing fast case-picking at ground levels while replenishing overstocks above.
Cold Chain & Controlled Atmosphere
From seafood processing centers in Brittany to central cold storage facilities in Rungis International Market (MIN de Rungis), deep-freeze warehouses operating at -28°C experience severe thermal contraction. Our factory delivers low-temperature impact-resistant alloy steels and hot-dip galvanized components resistant to heavy condensation and frost corrosion.
Factory-Direct Quality: 10 Controlled Stages of Production
With over 25 years of fabrication expertise since 2001, our facility executes every metalworking and surface treatment phase in-house to guarantee strict structural reliability.
1. Certified Coil Sourcing
Batch mill test certificates (EN 10204 3.1) verifying tensile yield strengths (≥235 MPa to 355 MPa) across high-grade structural coil inventory.
2. High-Speed CNC Punching
Precision pitch multi-die automated presses create standardized perforations without internal micro-cracks or burrs, ensuring snug connector locking.
3. Progressive Roll-Forming
Multi-station roll-forming lines continuously shape open and closed profiles, ensuring dimensional precision along continuous upright profiles up to 14 meters.
4. Multi-Stage Chemical Pre-Treatment
Comprehensive immersion degreasing, hot acid pickling, rinsing, and zirconium phosphating eliminate mill scale, creating maximum molecular bonding adhesion.
5. Electrostatic Powder Coating
Automated Swiss Gema powder application booths cure durable thermosetting epoxy-polyester coatings (60–90μm thickness) resistant to industrial wear and impact.
6. Robotic Seam Welding
Full-penetration automated robotic MIG/MAG welding on beam connector brackets ensures complete load distribution and weld consistency without slag porosity.
7. Destructive & Load Testing
In-house mechanical hydraulic test rigs conduct continuous bend, compression, shear, and connector stiffness testing to validate calculation limits.
8. Optimized Export Packing
Customized bundle blocking, steel banding, corrugated cushioning, and waterproof wrapping ensure pristine transit directly to Grand Port Maritime du Havre or Marseille-Fos.
Emerging Trends Reshaping France's Intralogistics Ecosystem
The French warehousing landscape is undergoing rapid transformation under dual pressures: stringent land usage policies (such as the Loi Climat et Résilience targeting Zéro Artificialisation Nette (ZAN) by 2050) and rising operational costs. Consequently, building new horizontal warehouse footprints has become heavily restricted across French administrative regions, pushing logistics planners upward and inward.
1. Vertical High-Bay AS/RS Integration: As brownfield expansions replace greenfield projects, clad-rack warehouses (bâtiments autoportants) where the racking structure itself supports the roof and wall envelopes are gaining significant adoption across northern France and the Île-de-France belt. Reaching working heights beyond 30 meters, these systems require ultra-tight tolerances under EN 15620 classes 100 and 200.
2. Semi-Autonomous Radio Shuttle Fleets: Warehouse operators in the French food and beverage sectors are rapidly replacing traditional drive-in racks with 2D and 4D radio shuttle platforms. Shuttles significantly reduce forklift operating hours, lower warehouse lighting requirements, protect structural uprights from forklift collision impacts, and optimize thermal retention in chilled environments.
3. Carbon Footprint Accounting & Circularity: In accordance with French ESG reporting mandates, supply chain executives increasingly scrutinize the embodied carbon of their logistics infrastructure. Our manufacturing facilities utilize low-carbon electric arc furnace (EAF) steel sourcing options, solvent-free non-toxic epoxy coatings (RoHS compliant), and demountable, modular geometries that facilitate lifelong reconfiguration and recycling.
Frequently Asked Questions by French Buyers & Logisticians
Essential technical, regulatory, and logistics answers for procurement managers, structural consultants, and logistics directors throughout France.
Are your commercial racking systems compliant with French INRS ED 771 and European EN 15512 standards?
How do you handle shipping, customs clearance, and container logistics to French ports?
How are beam spans dimensioned for standard European EPAL wooden pallets?
Can your engineering team calculate structural racks for French seismic zones?
What is the standard production timeline and engineering lead time?
How do you support on-site installation and periodic maintenance audits in France?
Engineer Your French Warehouse Layout with Factory-Direct Precision
Connect directly with our senior structural racking engineers today. Receive a complimentary 3D warehouse layout, finite element load calculation check, and a transparent factory-direct quotation delivered within 24 hours.
