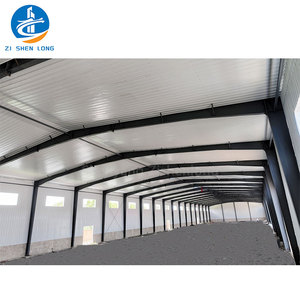

Hot Selling Prefabricated Steel Structure Warehouse Factory Modular Metal Frame Industrial Building Customization
DJ Heavy Duty Pallet Racking Storage SystemSteel Warehouse Gravity Push Back Roller Sliding Rack with Corrosion Protection
Heavy Duty Multi Tier Steel Grating Floor Mezzanine Platform Mezzanine Racking System Pallet Rack Supported Mezzanine
The Malaysian Logistics Shift: Navigating High Land Costs, Halal Integrity, & Dense Cubic Storage
Strategic analysis of industrial warehousing drivers across Selangor, Johor, and Penang under the New Industrial Master Plan (NIMP 2030) and National Transport Policy.
Malaysia is rapidly solidifying its geostrategic position as the premier intralogistics bridgehead of ASEAN. Bolstered by extensive digital economy investments, cross-border fulfillment demands, and major infrastructure enhancements around Port Klang and Tanjung Pelepas, industrial real estate metrics have shifted irrevocably. In key industrial clusters such as Shah Alam, Bukit Raja, Subang, and Kota Damansara, industrial prime land rents and capital values have surged significantly over the past five years. Consequently, warehousing operators, 3PL logistics corporations, and FMCG manufacturers can no longer afford the capital inefficiency of conventional low-clearance, horizontal floor-stacking operations.
The contemporary imperative for Malaysian warehouse managers is the aggressive optimization of cubic utilization ratios. Expanding vertically from traditional 6-meter clear-height eaves to 12-meter, 16-meter, and even 24-meter automated high-bay envelopes demands structural racking assemblies fabricated to uncompromising deflection, torsional stiffness, and dynamic impact resilience standards. At HEDA Shelves, our engineering methodology directly addresses the complex interplay of Malaysian building codes (Uniform Building By-Laws 1984), concrete slab loading thresholds, and high-turnover inventory dynamics.
Specialized Mandate: The Halal Intralogistics Ecosystem (MS 2400-2:2019)
As Malaysia leads the global Halal benchmark via JAKIM certifications, modern distribution centers handling food, cosmetics, and pharmaceuticals must maintain complete physical segregation, pristine hygiene, and zero risk of cross-contamination. Traditional porous timber pallets are increasingly prohibited in high-tier Halal distribution corridors. HEDA engineers address this by designing heavy-duty pallet racks integrated with electro-galvanized wire mesh decking, flame-retardant steel pallet supports, and non-flaking antimicrobial thermoset powder finishes that withstand severe CIP (Clean-In-Place) chemical washdown cycles without surface oxidation.
Furthermore, the manufacturing resurgence under the New Industrial Master Plan (NIMP 2030) is propelling demand for specialized racking across high-value sectors, including semiconductor fabrication auxiliary warehouses in Penang, automotive assembly parts feeder hubs in Tanjung Malim, and chemical processing facilities in Kuantan and Pengerang. Each sector presents distinct spatial bottlenecks: heavy concentrated loads, irregular long-span structural components, high SKU variability, or hazardous chemical drum segregation requirements.
Klang Valley & Selangor
Focal point of regional e-commerce sorting centers and multinational 3PLs (Shah Alam, Telok Panglima Garang, Port Klang). Characterized by high-bay VNA pallet racking and multi-tier picking mezzanines to counter peak land acquisition costs.
VNA & MezzaninesJohor & Iskandar Region
Cross-border spillover nexus connecting Singapore logistics to Peninsular Malaysia (Senai, PTP, Pasir Gudang). Massive adoption of automated radio shuttle racks and drive-in systems supporting regional FMCG and cold chain corridors.
Radio Shuttle & Cold StoragePenang & Northern Corridor
Precision electronics, semiconductor backend, and medical technology cluster (Batu Kawan, Bayan Lepas). Requires modular cleanroom-grade adjustable shelving, ESD-safe finishes, and heavy-duty tool and die racking systems.
Cleanroom & Heavy ToolingEast Malaysia (Sabah & Sarawak)
Resource, energy, and localized consumer FMCG supply chains (Bintulu, Kuching, Kota Kinabalu). Demands robust cantilever racks for timber/pipes and structural steel prefab buildings engineered against seismic micro-tremors and remote site assembly.
Cantilever & Heavy FramingTropical Rainforest Climate Resilience: Corrosion Resistance in C3/C4 Environments
How advanced multi-stage chemical pre-treatment and electrostatic powder coating prevent premature structural oxidation under Malaysia's persistent 80%-95% relative humidity.
A critical engineering failure observed in imported industrial racking across coastal Malaysian regions (such as Port Klang, Pasir Gudang, and Penang Port) is accelerated micro-crack corrosion at beam-to-column connector welds and base plate floor interfaces. Malaysia's tropical rainforest climate (Köppen climate classification Af) is characterized by uniform high temperatures, frequent heavy precipitation, and year-round ambient relative humidity frequently exceeding 85% to 95%. In non-climate-controlled ambient distribution centers, cyclic condensation (dew point formation) acts as an aggressive electrolyte, attacking inferior single-coat dip paints within 12 to 18 months.
HEDA Shelves eliminates this vulnerability through a rigorous 10-stage automated surface conversion process. Prior to powder application, every cold-formed upright and beam profile undergoes immersion alkaline degreasing, ultrasonic rust removal, dual cascade rinses, and a micro-crystalline zinc-iron phosphating treatment. This chemical conversion creates an insoluble passivation layer that permanently bonds with the steel matrix, preventing creep oxidation even if physical forklift impact gouges the topical coating.
For standard ambient warehouses, we apply an electrostatic polyester-epoxy hybrid powder coat cured at 190°C–200°C to achieve a minimum dry film thickness (DFT) of 75 to 90 microns. For aggressive sub-zero cold rooms (-25°C to -30°C) and coastal open-shed industrial storage, we supply components hot-dip galvanized in accordance with EN ISO 1461 standards, delivering a durable 65–85µm zinc barrier that withstands salt spray tests exceeding 1,000 continuous hours.
| Racking Technology | Floor Space Utilization | Direct Pallet Accessibility | Inventory Rotation | Standard Load / Level | Optimal Malaysian Industry Fit |
|---|---|---|---|---|---|
| Standard Selective Pallet Rack | 35% - 40% | 100% Direct Access | FIFO (First-In, First-Out) | 1,000 kg – 4,500 kg | General FMCG, Retail Fulfillment, Multi-SKU 3PL |
| Very Narrow Aisle (VNA) System | 55% - 65% | 100% Direct Access | FIFO (First-In, First-Out) | 1,500 kg – 4,000 kg | Shah Alam & Subang Mega DCs, High-Bay Pharma |
| Double Deep Pallet Racking | 50% - 60% | 50% Direct Access | FILO (First-In, Last-Out) | 1,000 kg – 3,500 kg | Dry Food Processing, Paper Converting, Packaging |
| Drive-In / Drive-Through Racks | 65% - 75% | Low / Batch Access | LIFO / FIFO by Lane | 1,000 kg – 2,000 kg | Cold Storage Facilities, Beverage Bottling, Raw Grain |
| Radio Shuttle Automation Racks | 75% - 85% | High Dynamic Throughput | Programmable FIFO/LIFO | 1,500 kg – 2,000 kg | Johor Cold Chain Corridors, Port Free Trade Zones |
| Rack-Supported Mezzanines | Up to 200% Gain | Full Split-Level Picking | Multi-Channel Sortation | 300 kg – 1,200 kg/m² | E-commerce Parcel Hubs, Spare Parts, Light Assembly |
Compliance with Malaysian DOSH (JKKP) & Global Structural Codes
Designing safe static and dynamic loading parameters under Malaysian occupational safety laws, Uniform Building By-Laws, and international racking benchmarks.
In Malaysia, industrial warehouse safety governance falls under the rigorous oversight of the Department of Occupational Safety and Health (DOSH / JKKP - Jabatan Keselamatan dan Kesihatan Pekerjaan) in alignment with the Occupational Safety and Health Act (OSHA 1994). Factory inspectors routinely audit logistics facilities for structural integrity, load rating verifications, aisle clearances, and certified column impact protection. Uncertified, substandard racking systems with ambiguous load testing represent an acute legal liability for facility operators.
Every heavy-duty racking assembly engineered by HEDA Shelves for the Malaysian market conforms strictly to the structural calculation principles stipulated by EN 15512:2020 (European Racking Code), FEM 10.2.02, and AS 4084-2023. Crucial engineering parameters include:
-
Beam Deflection Limit: Strictly maintained below 1/200th of the clear span length under maximum rated safe working load (SWL).
-
5-Claw Mechanical Locking Pin: Hardened spring-loaded locking clips boasting shear resistance exceeding 5.0 kN per connector point.
-
High-Impact Column Protectors: Heavy gauge 4.0mm wrap-around steel guards anchored to floor slabs to dissipate direct forklift collisions.
-
DOSH-Ready Load Signboards: High-visibility aluminum plaques specifying maximum unit load, bay capacities, and configuration drawings.
Furthermore, under the Malaysian Uniform Building By-Laws (UBBL 1984), concrete floor slab capacity must be cross-verified against racking baseplate point loads. Our engineering team calculates concentrated foot pressures (in kN/mm²) and custom-sizes heavy-duty spreader footplates with dual anchor studs (M12 to M16 chemical or mechanical wedge anchors) to safeguard warehouse floor slabs from punching shear failures.
Why Malaysian Enterprises Partner Directly with HEDA Shelves
Over 25 years of engineering mastery, in-house roll forming, and structural fabrication serving tier-one distributors, contractors, and intralogistics providers worldwide.
30,000 m² Integrated Manufacturing Base
Founded in 2001, our state-of-the-art facility operates automated cold roll-forming lines, automated punching centers, robotic laser welders, and environmentally certified powder coating facilities. We eliminate middleman markup, providing direct factory cost efficiencies to Malaysian importers.
Free 3D Layout & Structural CAD Simulation
Send our senior engineering team your warehouse architectural DWG drawings. Within 24 to 48 hours, we deliver optimized 3D layout renderings, aisle clearance calculations, and forklift turning radius simulations tailored specifically to your chosen material handling equipment (Reach truck, Counterbalance, or VNA turret).
ISO 9001:2015 & CE Certified Production
Every production batch undergoes strict quality control protocols: mill test steel certification verification, ultrasonic weld penetration checks, 100% thread gauge inspections, and destructive load batch testing. Our certificates provide full audit compliance for Malaysian enterprise insurance and safety bodies.
From Factory Floor to Port Klang: Four-Step Streamlined Delivery
How Malaysian buyers capitalize on 0% Form E tariffs, ultra-fast 5-day maritime transit, and precision container loading layouts.
Site Survey & 3D Design Approval
Analysis of your clear height, column grid spacing, floor slab rating, pallet dimensions (1200x1000mm standard Malaysian pallet), and SKU rotation velocities before final engineering sign-off.
CNC Roll-Forming & Finish Coating
Automated manufacturing with high-grade Q235B steel coils. Precision robotic welding followed by 10-stage phosphating and anti-corrosive powder coating with real-time photographic quality updates.
Optimized Packing & Form E Clearance
Bundled with steel banding, edge protectors, moisture barrier wraps, and container weight balance modeling. Issuance of ASEAN-China Free Trade Certificate (Form E) for 0% Malaysian import duty.
Transit & Local On-Site Erection
Direct maritime routing: 4-6 days sailing to Port Klang (Northport/Westport) or Tanjung Pelepas (Johor). Clear component numbering and comprehensive CAD manuals for fast local installer assembly.
Frequently Asked Questions by Malaysian Warehouse Operators
Direct engineering and commercial answers addressing structural parameters, custom clearance, installation, and climate adaptation.
Optimize Your Malaysian Warehouse Floor Space Today
Submit your architectural layout DWG or PDF floor plan. Our structural engineering team will deliver a comprehensive 3D layout, CAD racking blueprint, bill of materials (BOM), and factory-direct quotation within 24–48 hours.
