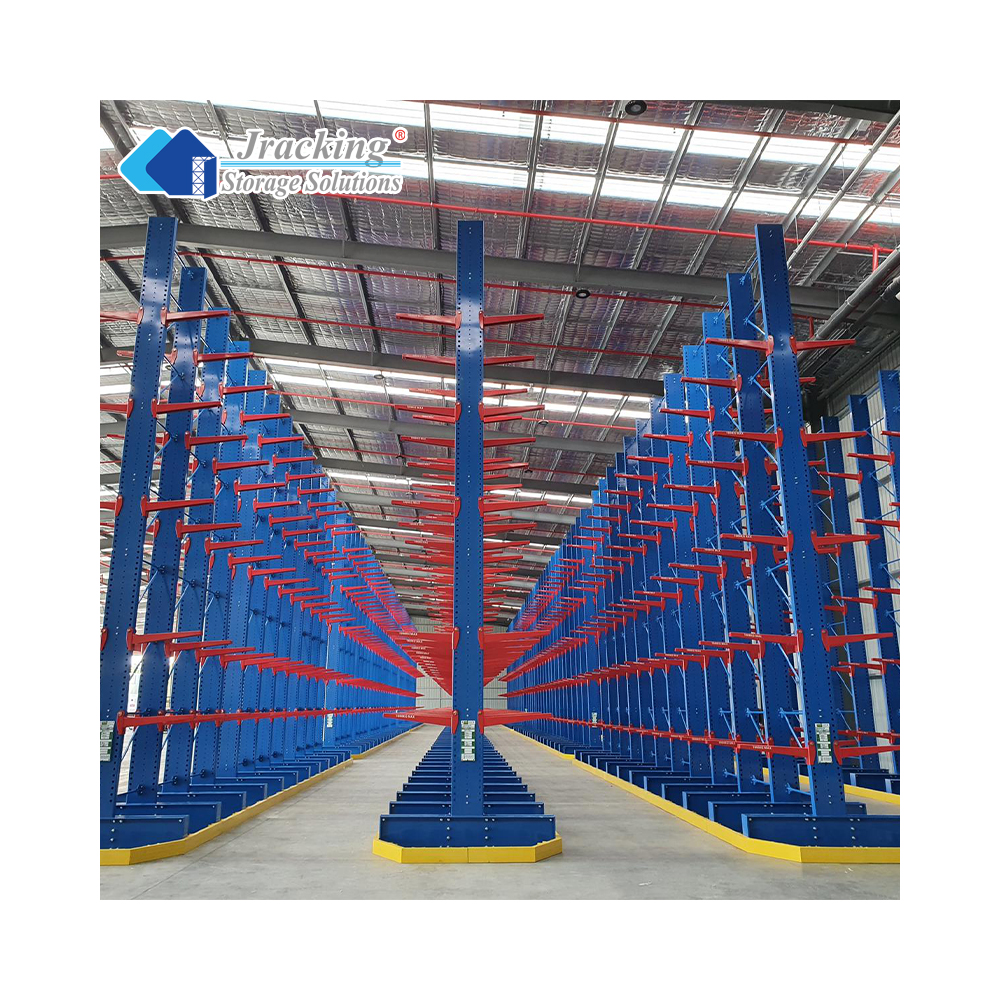

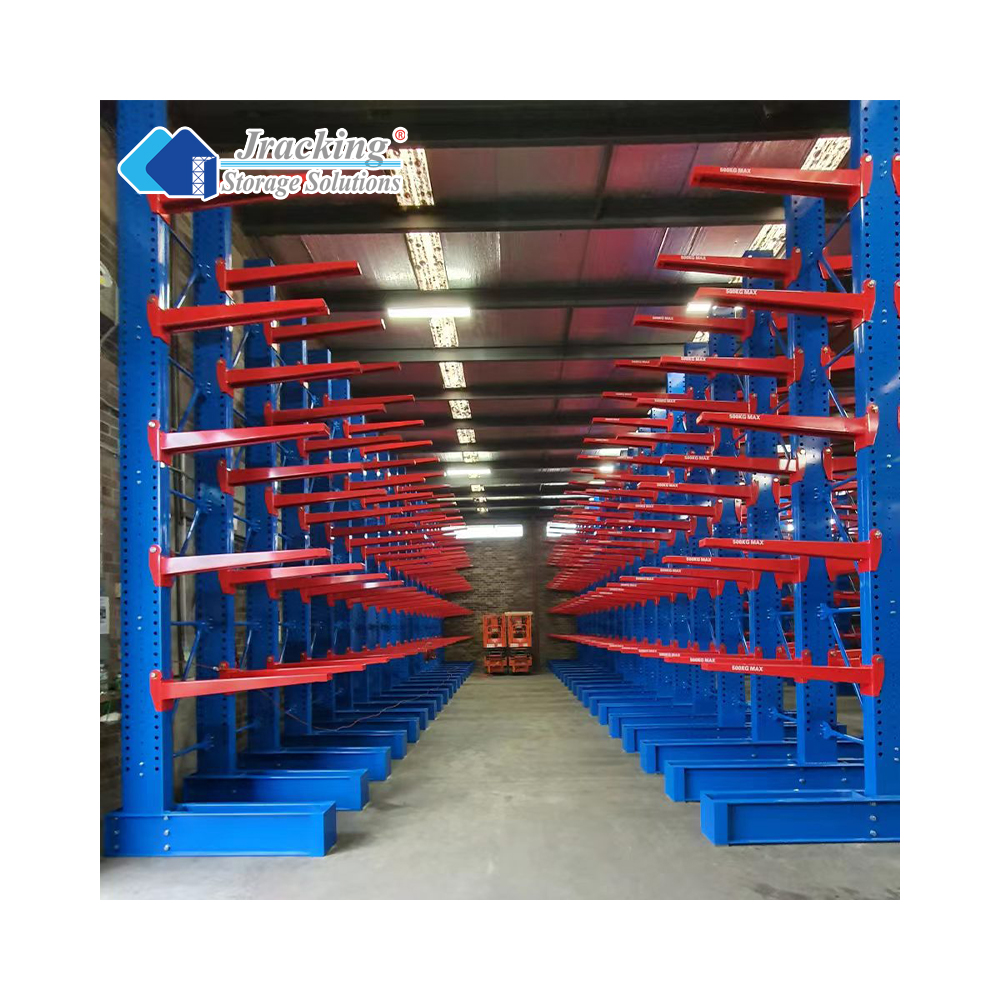

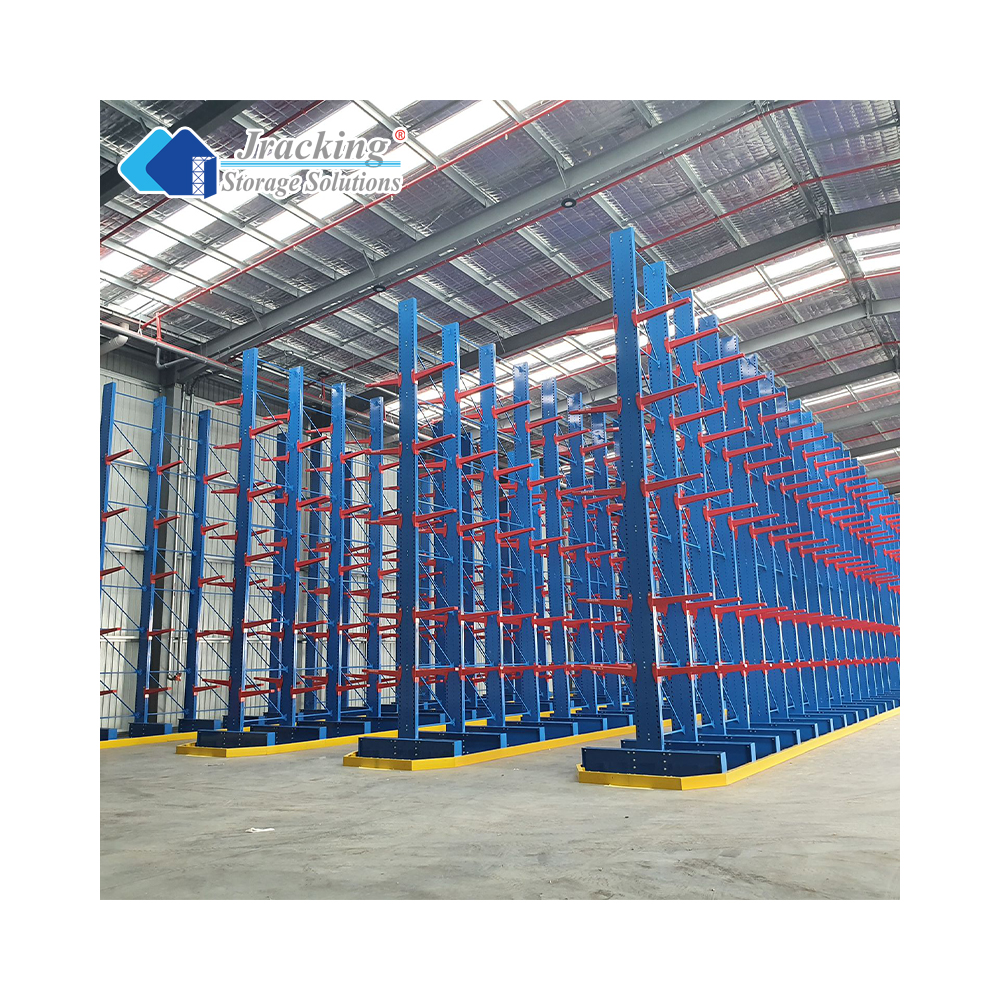

Jracking Industrial Shelving Warehouse Racks Heavy Duty Steel Cantilever Storage Rack System For Steel Pipe Storage
Product Description
Product Specifications
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI/CE/ISO/TUV/AS4084-2012 | ||
| MOQ | One 20ft/40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Component Details & Structure
Step-by-Step Installation Guide
Step 1
Connect 1 row of MK bracing brackets at the inside of columns positioned at ends, meanwhile connect 2 rows of brackets at both sides of columns in intermediate, as shown.
Step 2

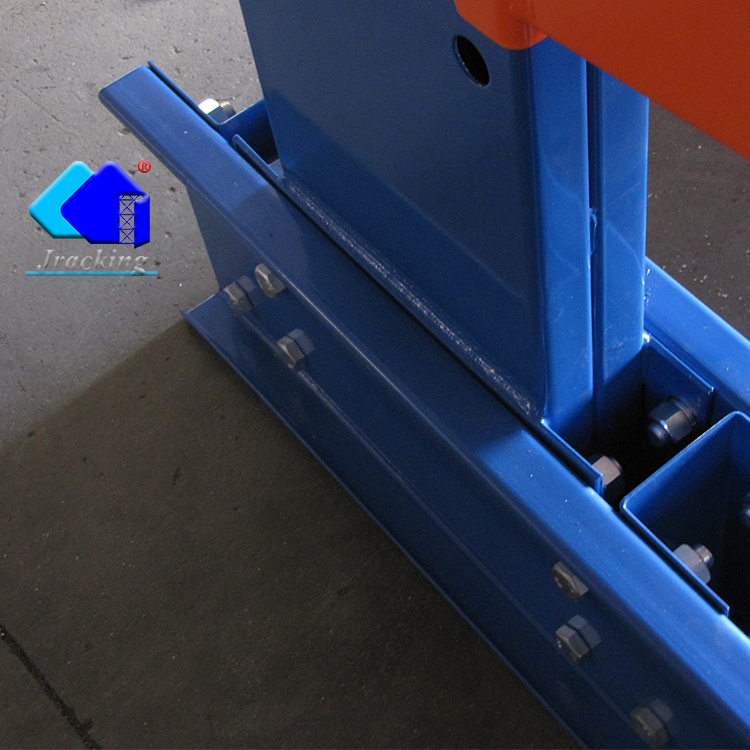

Position the column (1) vertically into the fixing MK base, as shown. Connect the column and the base with M20x40 bolts (7). Fastening the other M20x40 bolts (7) on the base. Recommended torque: 86~103N.M
Step 3
The standard composition of the vertical bracing, after it has been fastened to the columns, is as shown in the illustration.
Step 4
The bases must be leveled with metal leveling plates if necessary. Then, fully tighten the M20x40 bolts (7) on the base front as indicated in step 2. Using the drill-holes in the bases for fastening them to the floor, use a Ø14 bit and drill a hole with a minimum depth of 100 mm. Remove the drilling remains and carefully hammer in the fastening M10x160 anchors (11). Firmly bolt the fastening plate in place. Recommended torque: 50 N.M
Step 5

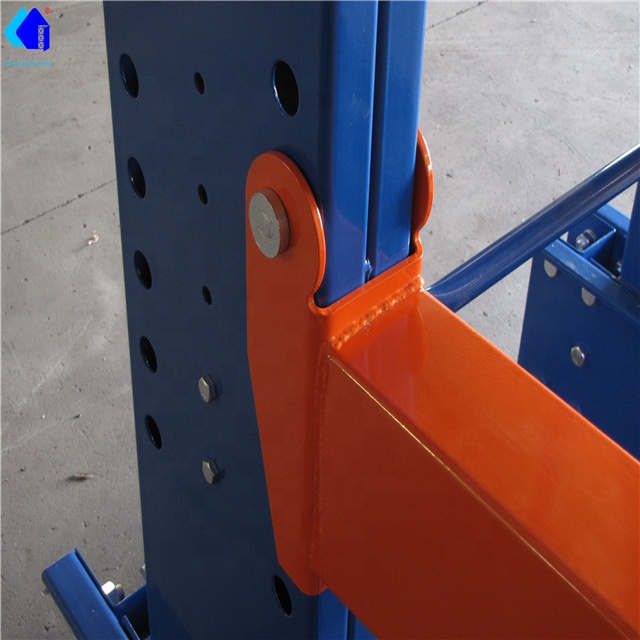

The arm (12) is fastened to the column (1) using safety pins Ø29x140 (13). Fit the arms (11) according to the heights and distribution shown on the corresponding project drawing, where applicable.
Step 6
Finally, the completed structure should look like the illustration.
Manufacturing & Engineering Quality
Frequently Asked Questions (FAQ)
Q1
What are your trading terms and policies?
- Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
- Lead time: Normally in 20-25 days after deposit received.
- Sample policy: Samples are always available for each model and can be ready in 7-15 days once payment is received.
- Shipping port: Shanghai / Nanjing, China.
- Discounts: We offer attractive discounts for large volume orders.
Q2
How can my goods be delivered?
- Sea freight: We will provide real-time sea freight updates once your destination seaport is confirmed.
- Client-designated agent: Provide us with your shipping agent's contact details, and we will coordinate direct delivery.
Q3
What customer services and engineering support do you provide?
- Rapid response: Inquiries related to products or pricing are answered within 12 hours.
- Professional communication: Fluent English support from well-trained and experienced staff.
- Customized solutions: Full OEM & ODM capabilities to design customized racking solutions.
- Engineering expertise: Highly experienced professional engineers deliver tailored layout designs.
Q4
What is the standard product purchasing process?
Design drawing → Confirm drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% deposit → Manufacturing → QC inspection → Pay balance → Shipping arrangement.
Q5
What are your core manufacturing and commercial advantages?
- Flexible payment: O/A 40-60 days available.
- Fast delivery: Rapid turnarounds for urgent rush orders.
- Direct factory price: Competitive pricing direct from the manufacturer.
- Comprehensive warranty: Two-year warranty with free replacement parts dispatch for damaged components.
Q6
Does Jracking have MOQ limitations and how are tooling fees handled?
There is no strict MOQ limitation; however, volume orders offer significant cost benefits. We recommend ordering at least one 20ft container (approx. 15 tons) for regular items. For custom tooling requirements, mold development costs are charged upfront before the initial order and will be partially or fully refunded once specified order quantity thresholds are reached.
