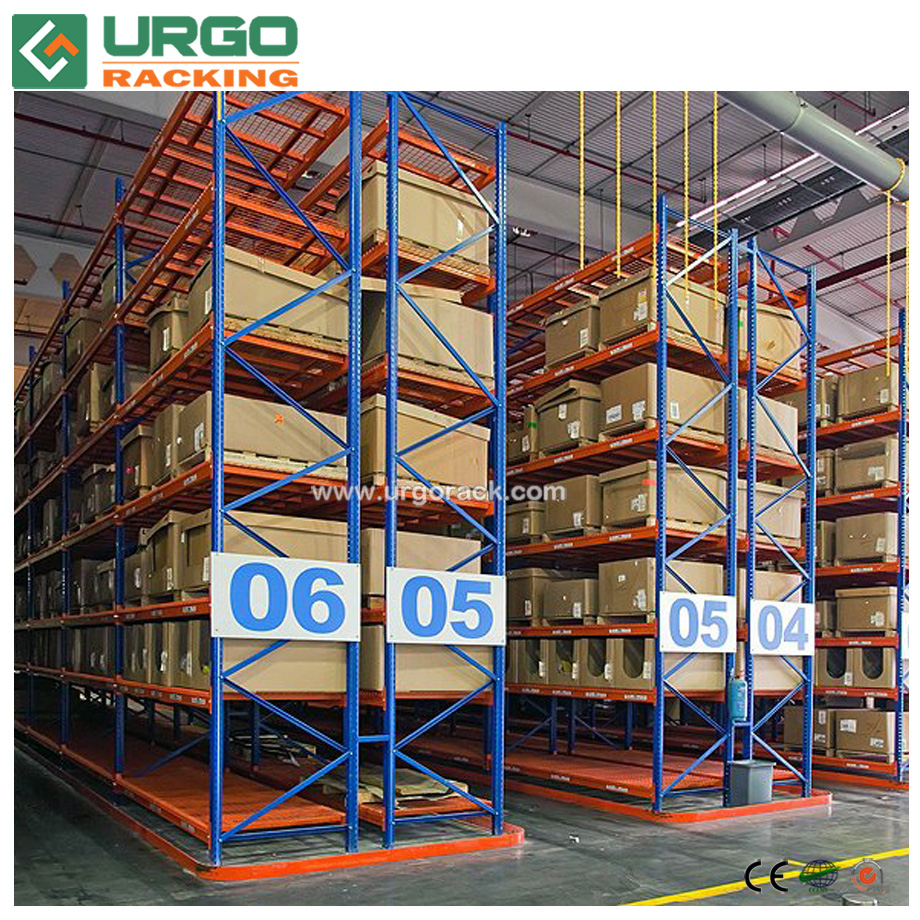

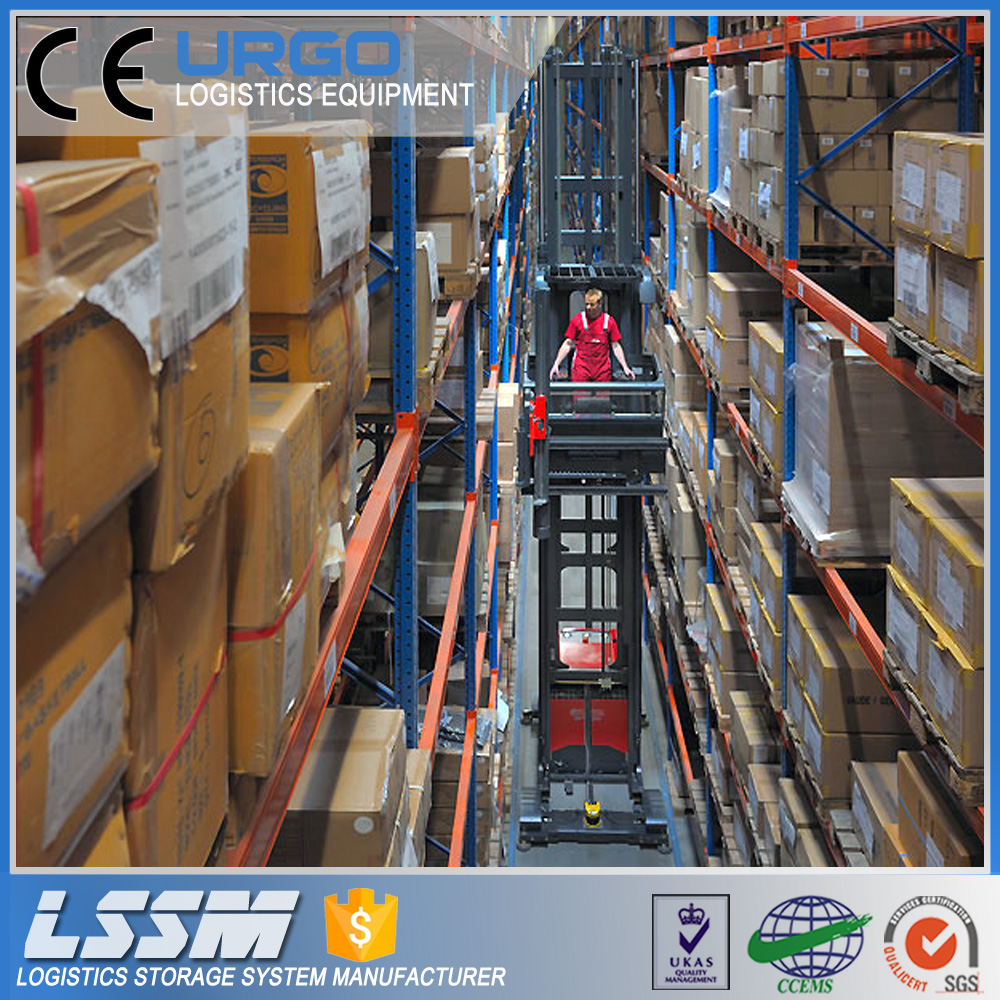

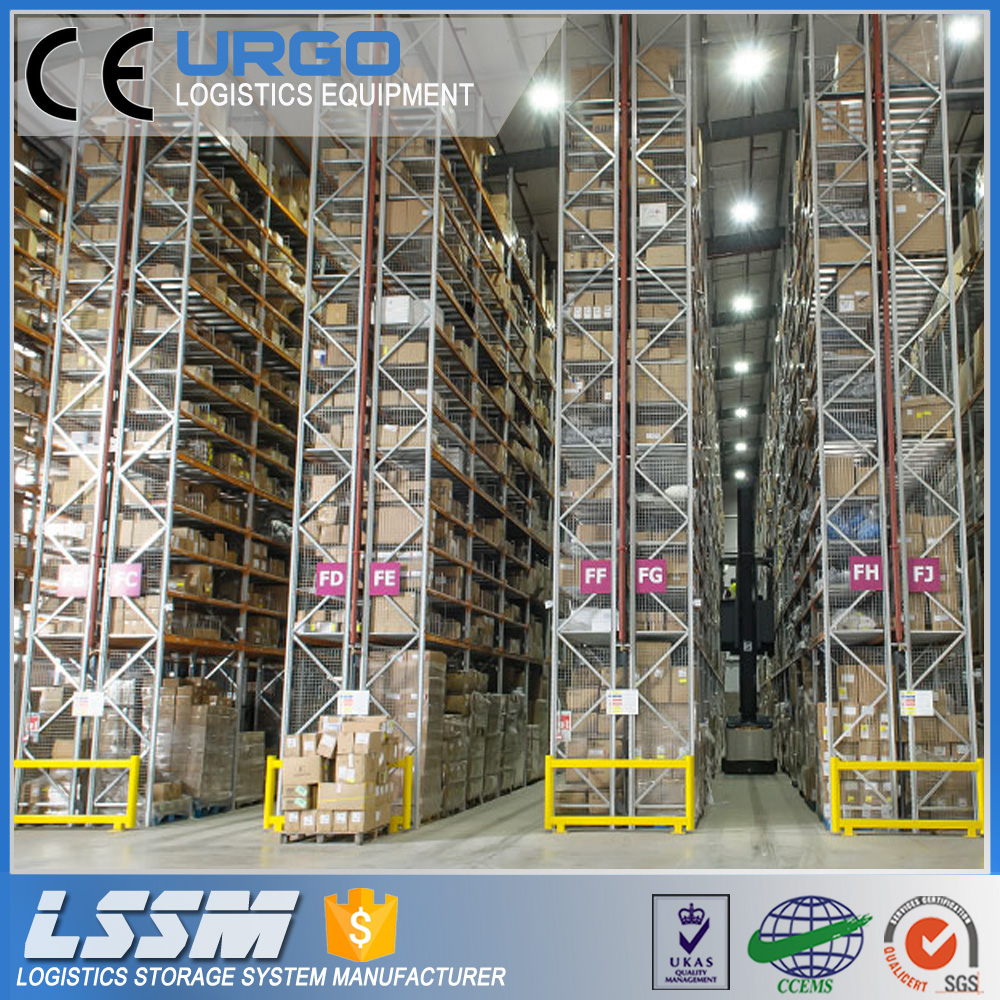

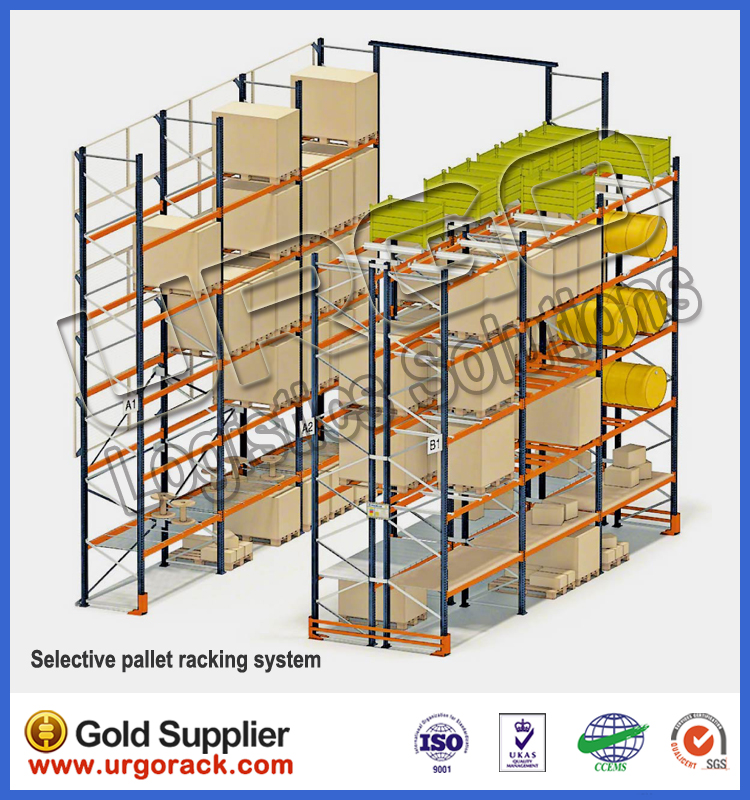

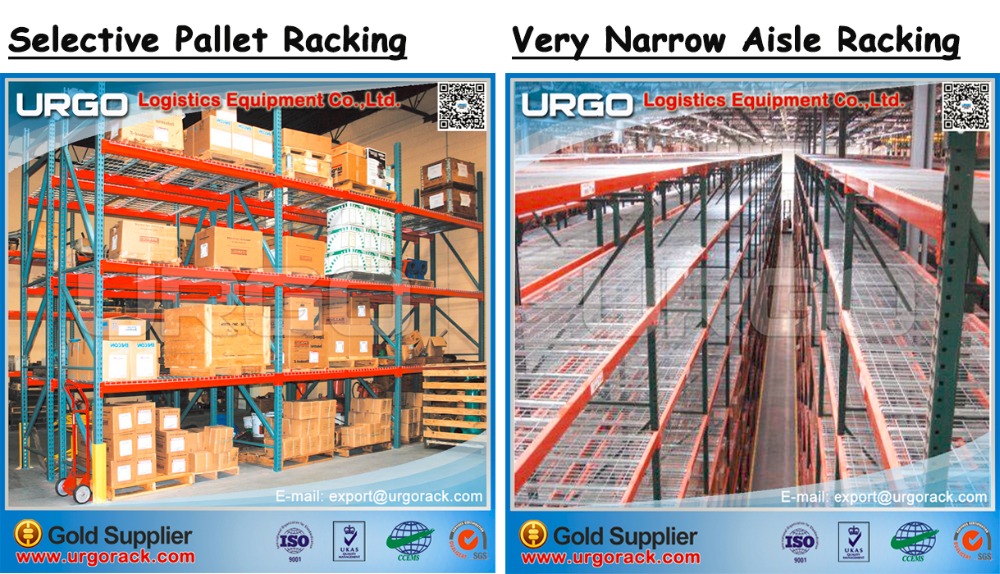

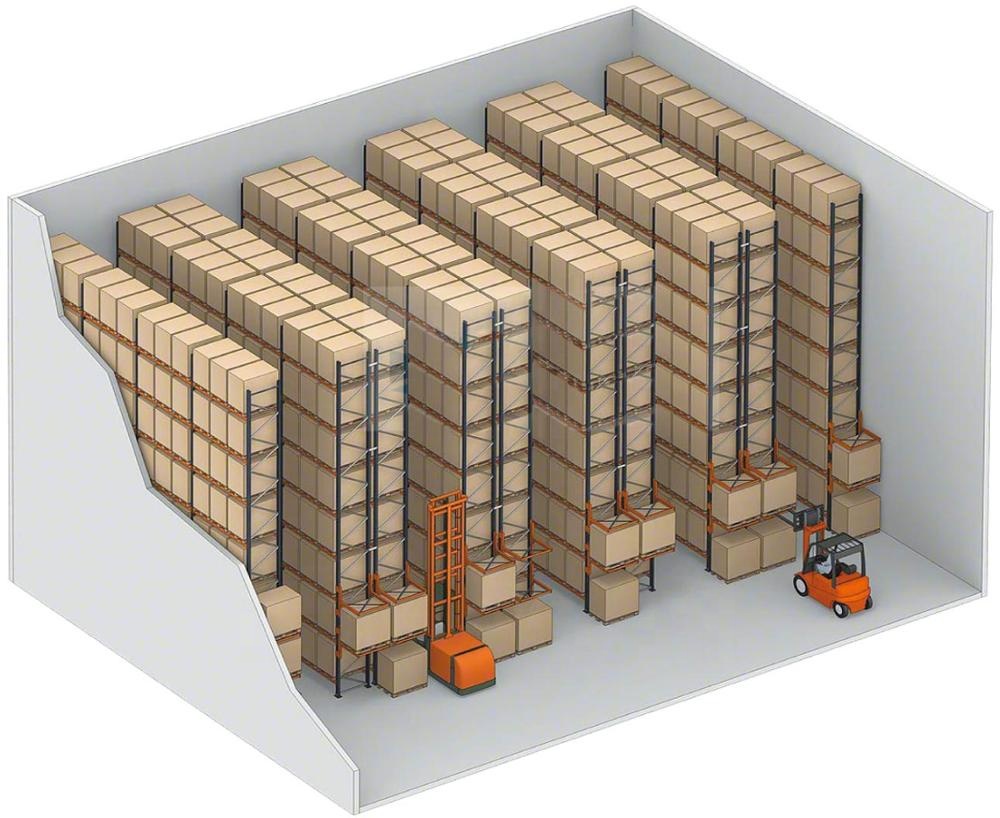

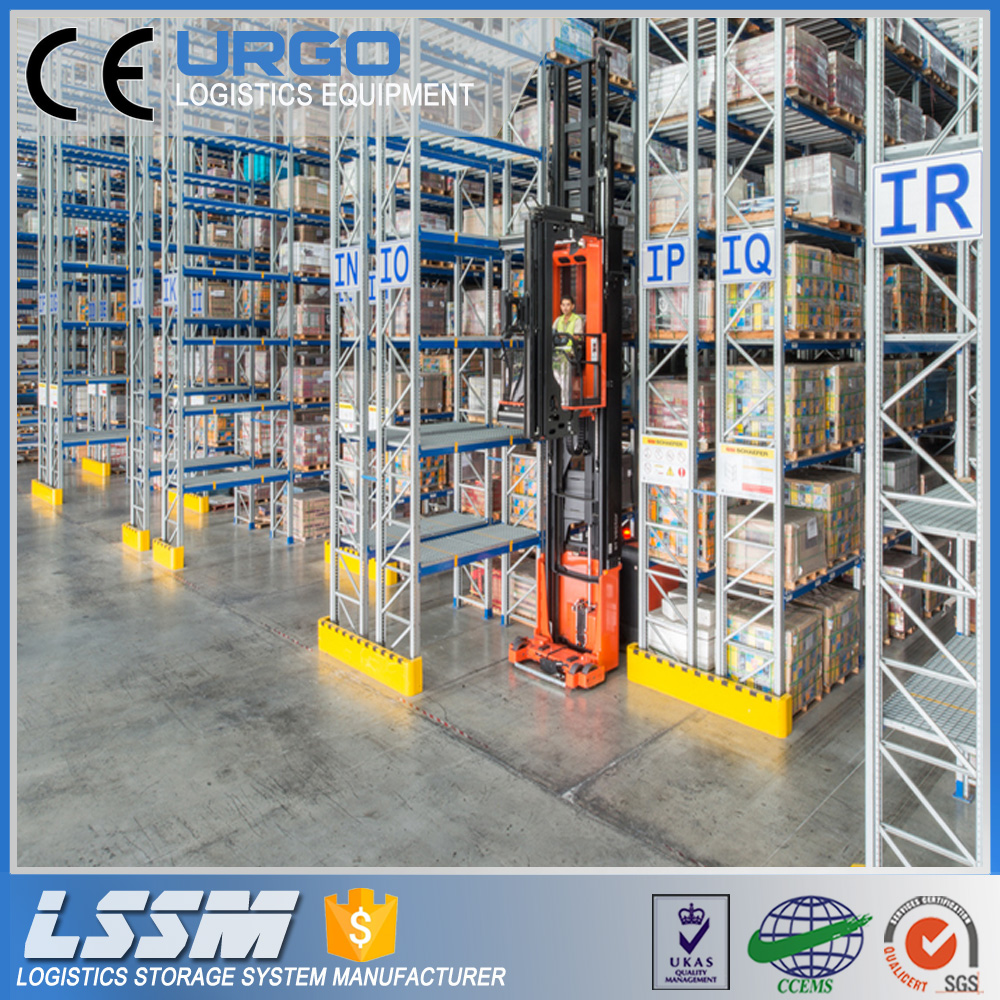

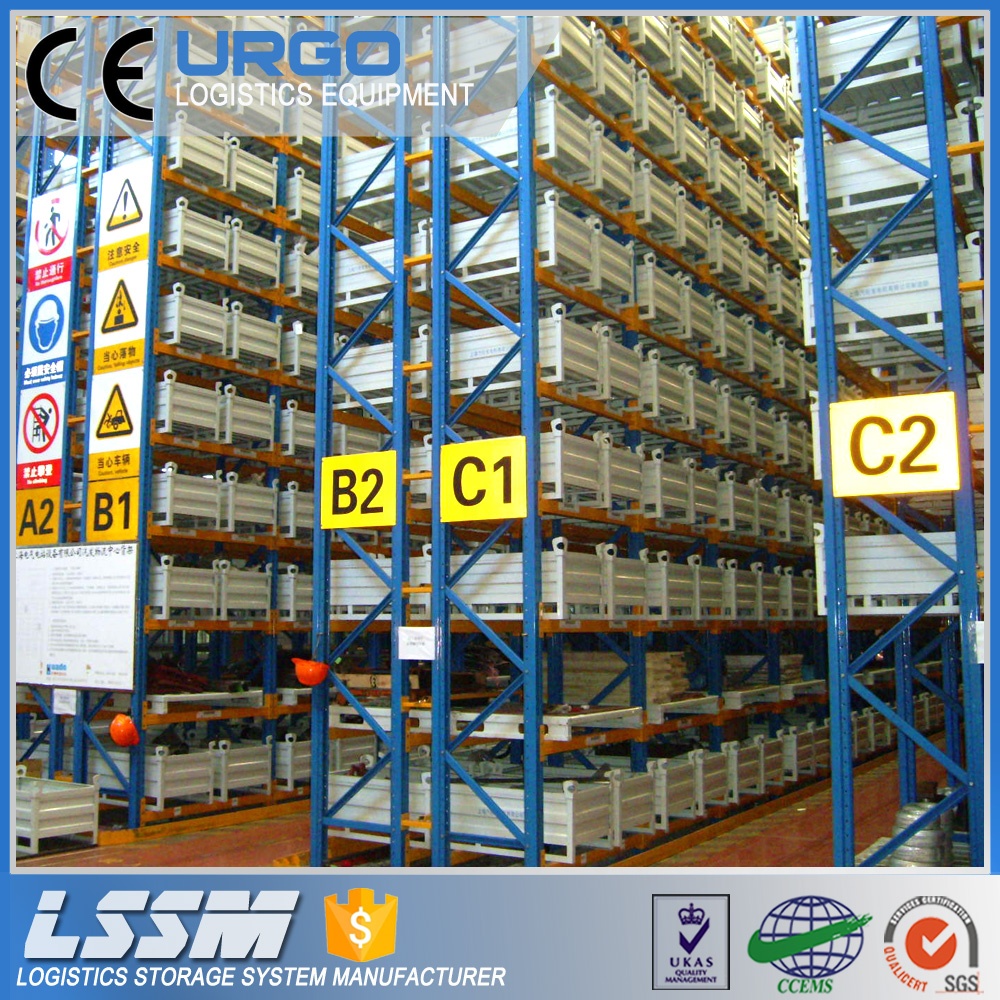

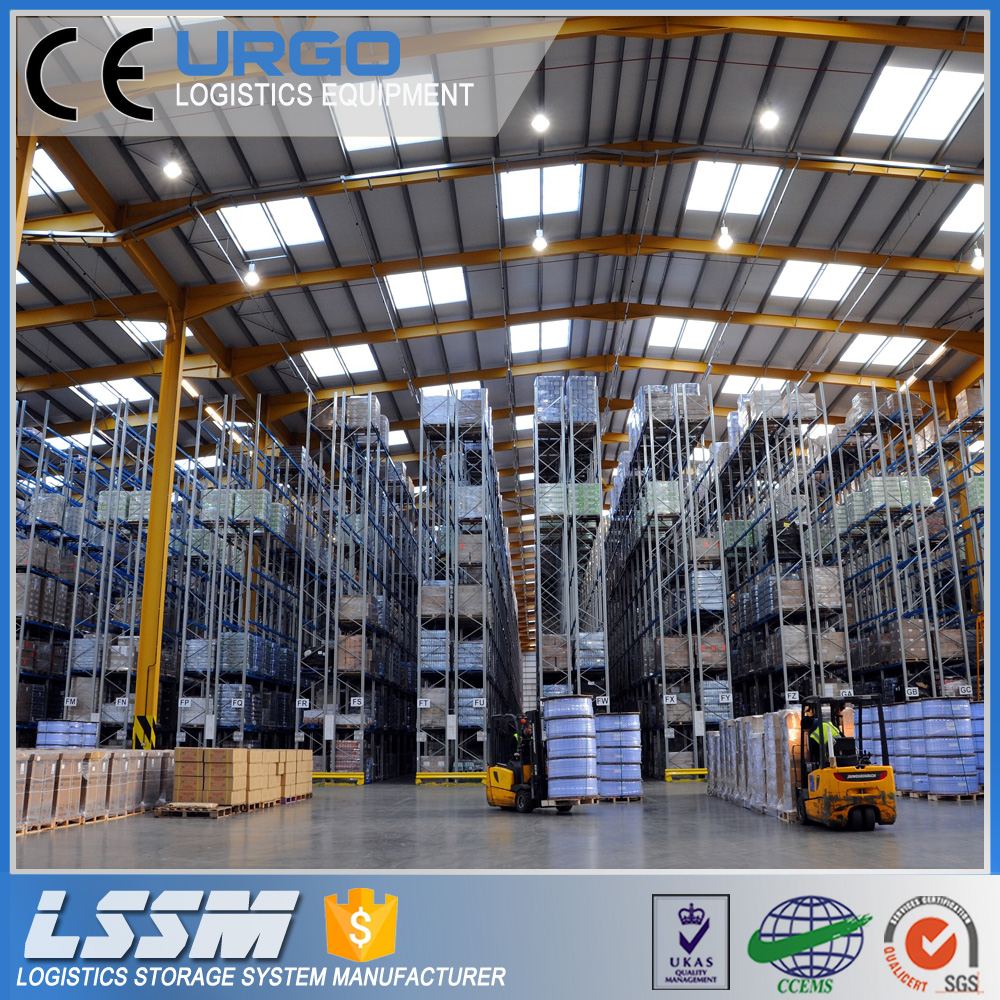

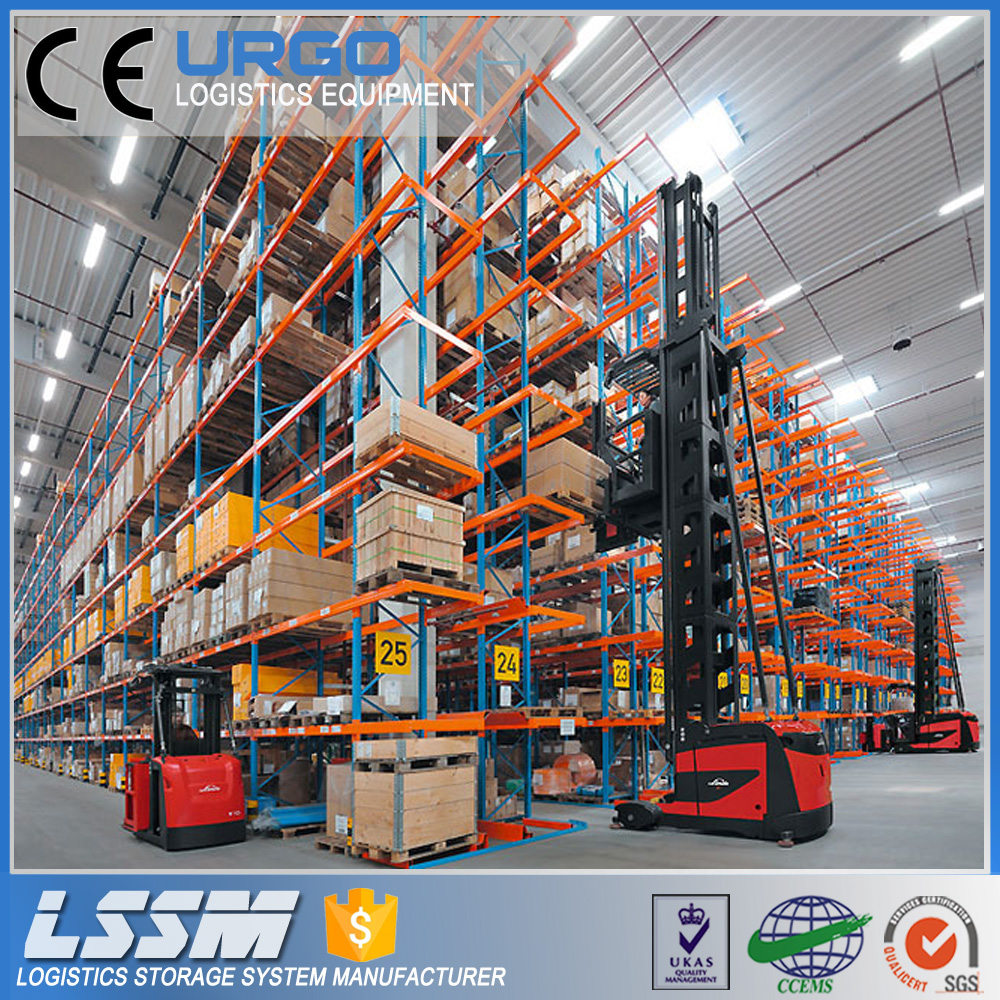

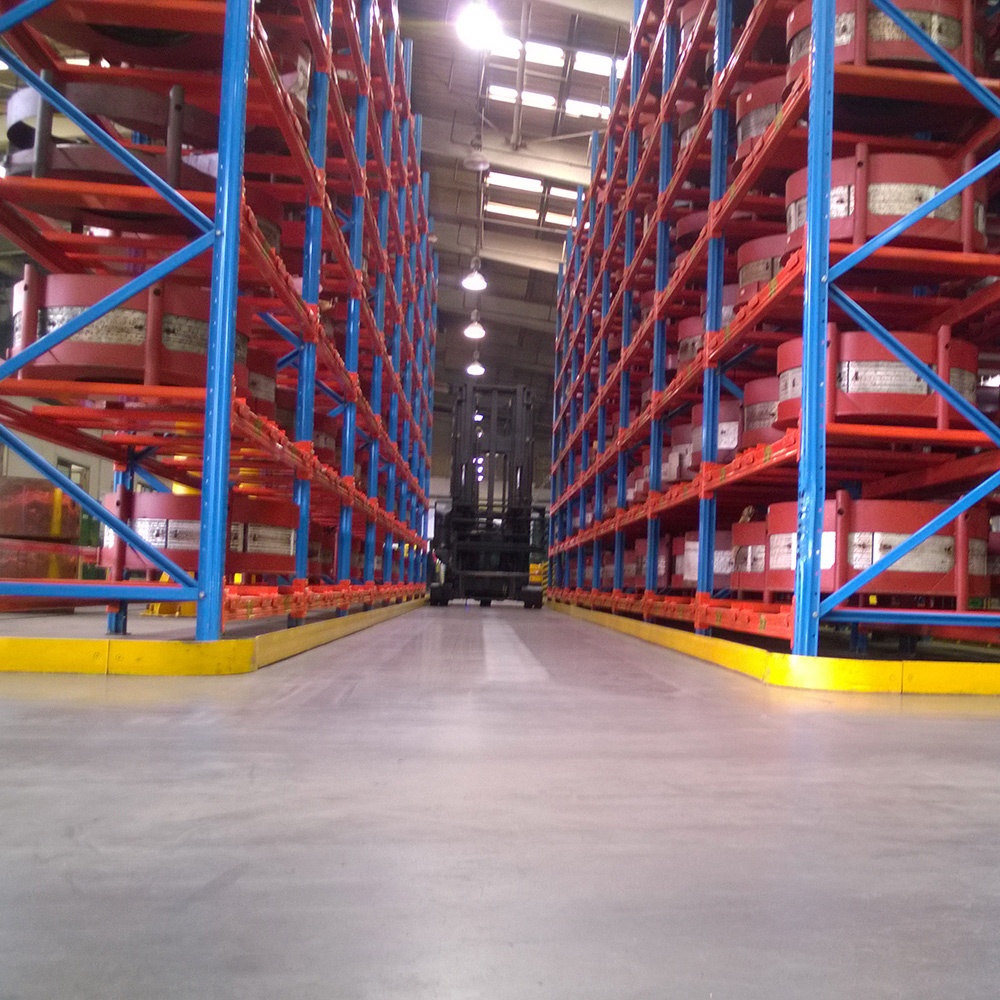

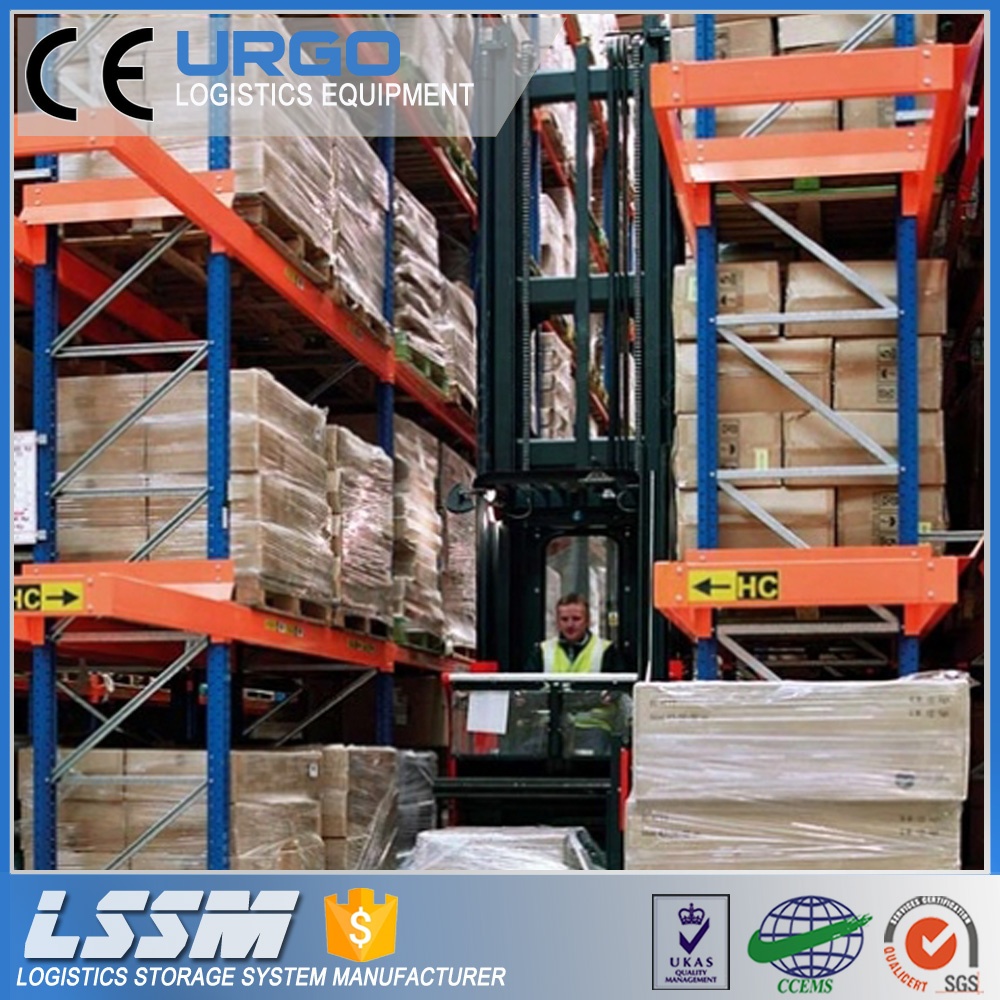

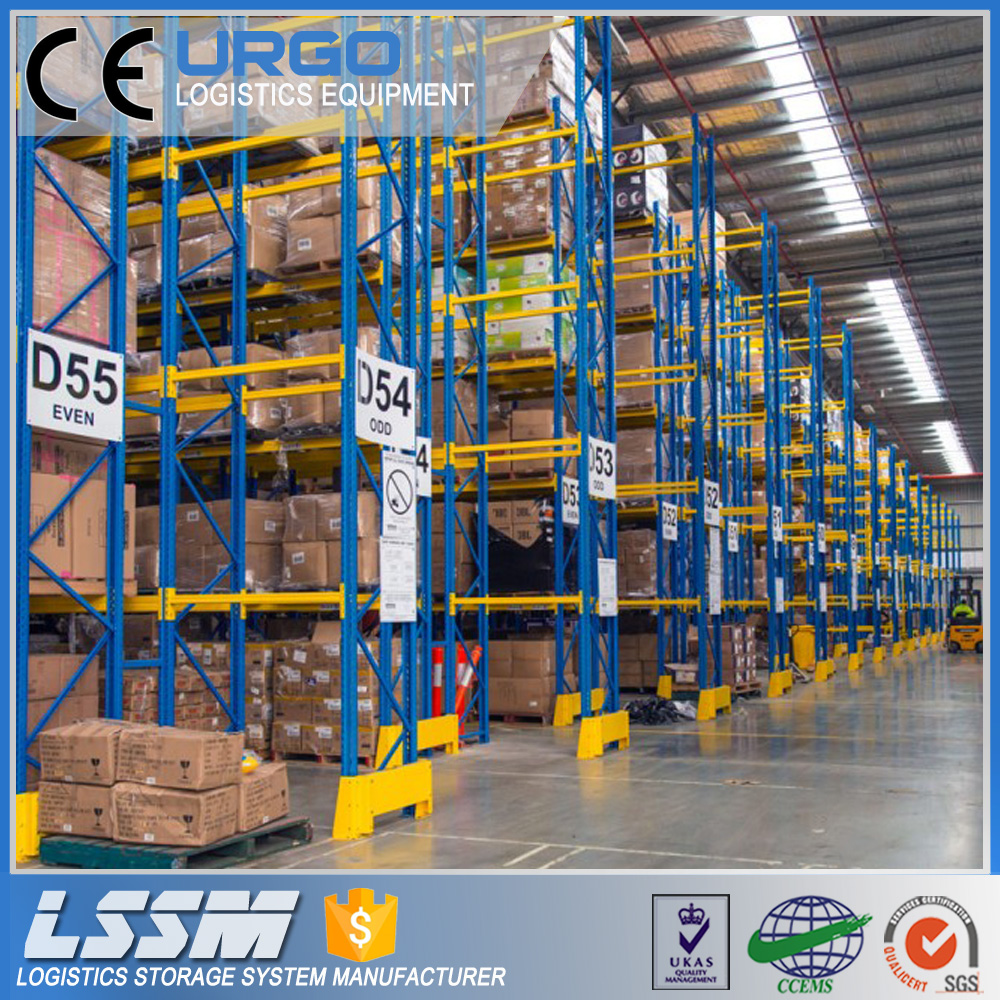

URGO Very Narrow Aisle Pallet Rack / VNA Racking System
Product Description
Product Structure
The structure of URGO heavy duty pallet rack includes uprights and beams. According to the customer's actual pallet load capacity and warehouse size, column and beam specifications are carefully selected, and racking accessories can be incorporated for maximum adaptability.

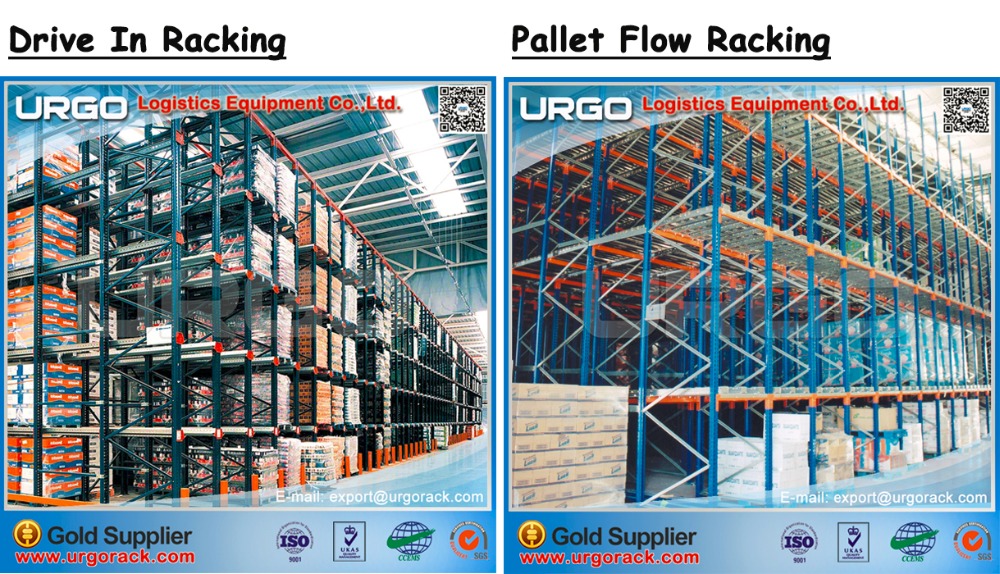

Warehouse Rack Use and Customized Width Drive-in Pallet Racking
| Features |
1. 90% picking efficiency, and appropriate for picking heavy goods by pallet. 2. Surface finishing with araldite static powder coating. 3. High strength and durability, easy for complete installation. 4. Pallets can be located, accessed, and moved individually. 5. Rapid handling of almost all types of palletised goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. 7. Strength and rigidity prevents compression damage to goods. 8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. |
|---|---|
| Beam & Frame |
1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is from 2200-3800mm depends on operating truck. |
| Main Parts Specs |
1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc. 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Load Capacity & Dimension |
1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Special sizes also available to specific storage needs. |
| Delivery Time | Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery. |
Upright Specifications
- High load capacity up to 21000kg.
- Frames include all the elements needed for assembly: bracing, feet, and nuts & bolts.
- Blue epoxy coated (RAL 5012/5015/5017).
- Standard heights: From 2 to 11.5m.
- Adjusted by 50/75mm pitch.

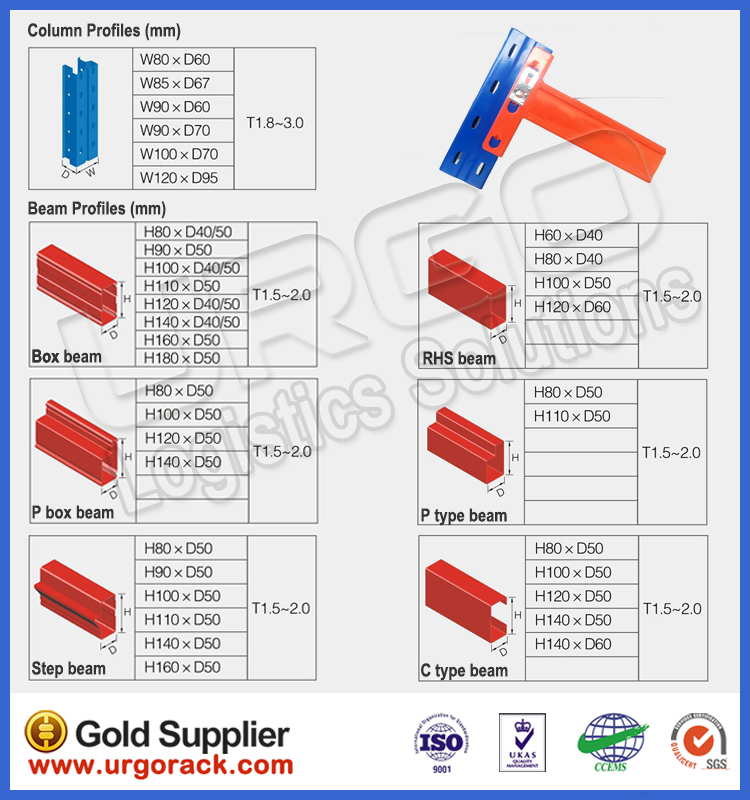

Column Profiles
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000 KG |
Beam Specifications
- High load capacity up to 5000kg.
- Manufactured with highest quality steel Q235.
- Orange epoxy coated (RAL 2004).
- Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm.
- Boltless connection with 3/4/5 connector hooks.
- A security pin per beam to prevent accidental dislodgement.
- Powder coating finish.
Beam Profiles
| Loading (kg) Specification (mm) |
The Length of Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
| Loading (kg) Specification (mm) |
The Length of P Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |

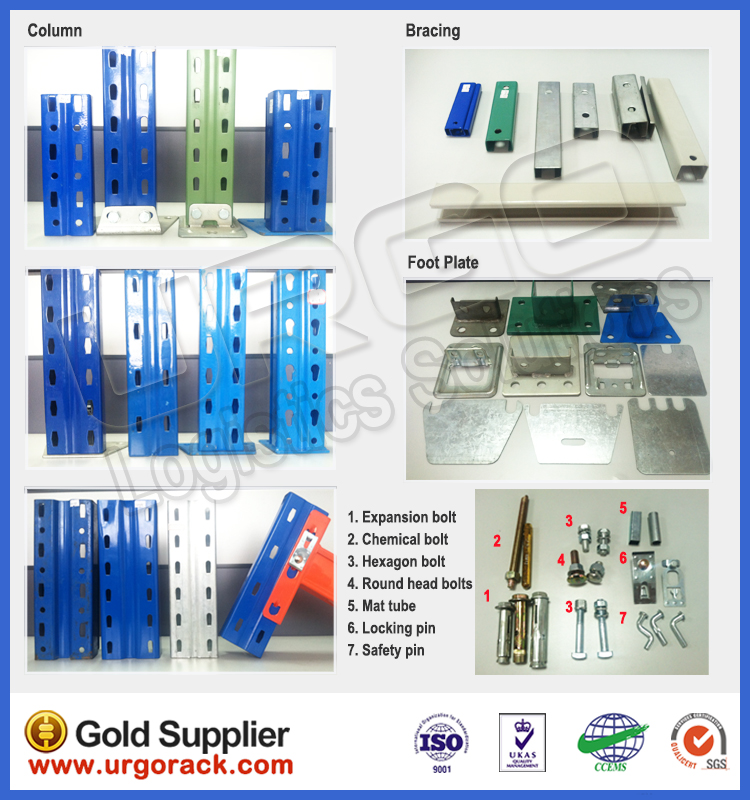

Main Spare Parts Profiles
Optional Accessories

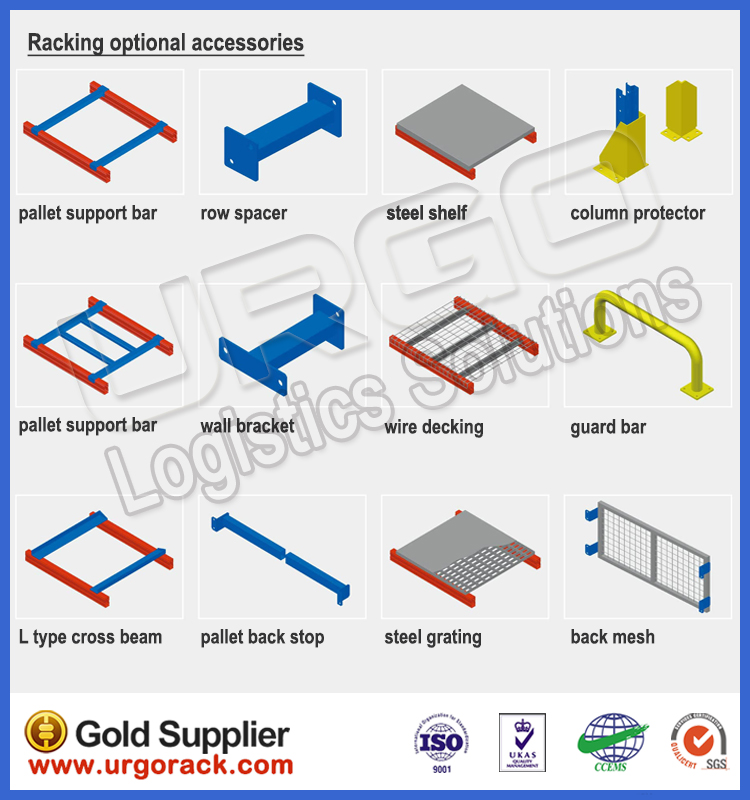

URGO heavy-duty pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar, etc.
Packaging & Shipping

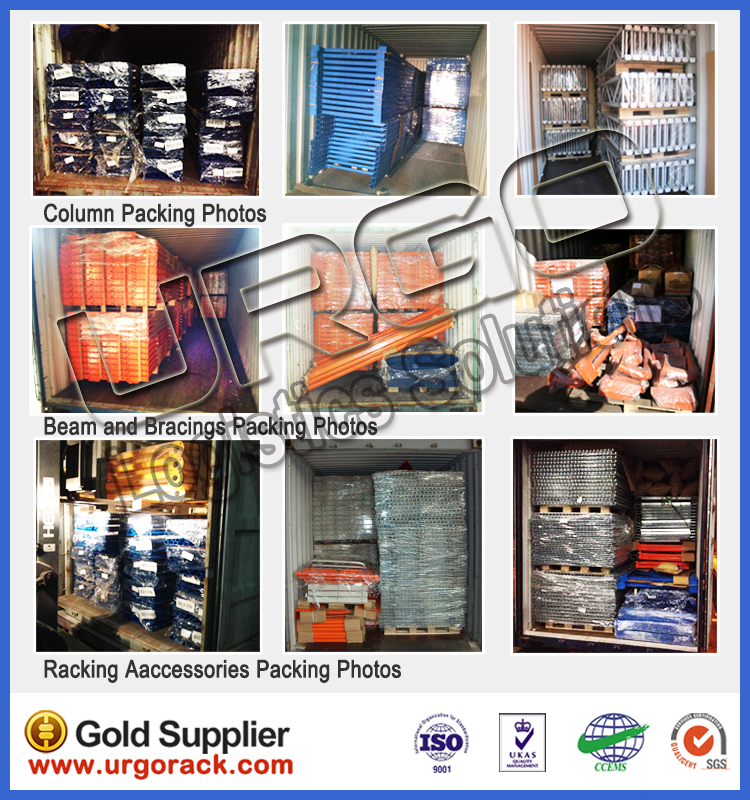

URGO Packaging and Shipping Are Your Cargo's Safeguard.
We operate a professional logistics team. First-class packaging techniques meet your customized packing plan. Every step of the logistics progress is strictly monitored and controlled under our protocol. We ensure your order arrives safely within the agreed duration. On-time delivery is our supreme promise.
Company Honor
Frequently Asked Questions
Q1 What makes you different from other suppliers?
1) Our Excellent Service: For a quick, no-hassle quote, email us and we promise to reply within 12 hours.
2) Quick Manufacturing: Selective pallet racking orders are guaranteed to be manufactured within 15 days as specified in formal contracts.
3) Secure Export Packaging: Beams are safeguarded by protective plastic clips, and entire upright frames are wrapped with transparent plastic film.
4) 10-Year Warranty: Rigorous standard production allows us to support products with a comprehensive 10-year warranty for normal use.
2) Quick Manufacturing: Selective pallet racking orders are guaranteed to be manufactured within 15 days as specified in formal contracts.
3) Secure Export Packaging: Beams are safeguarded by protective plastic clips, and entire upright frames are wrapped with transparent plastic film.
4) 10-Year Warranty: Rigorous standard production allows us to support products with a comprehensive 10-year warranty for normal use.
Q2 What are standard delivery times?
Delivery time depends on the product specifications. Standard models are typically delivered within 15 to 25 days, while customized solutions rely on the production schedule and tooling cycle.
Q3 What payment terms are accepted?
We generally accept 30% T/T advance deposit with balance payment clear prior to shipping, or 100% LC at sight.
Q4 How can I monitor my order progress?
We provide transparent progress updates and step-by-step production photos across multiple manufacturing phases so you remain up-to-date in real time.
Q5 What ports are used for export shipping?
Nanjing Port is our nearest port and strongly recommended for faster dispatch. Shanghai Port is also available, though inland freight transportation involves additional handling fees.
Q6 What information is required to get a fast quotation?
To evaluate storage planning accurately, please specify:
- Required Pallet Racking Dimensions (Height × Depth × Length)
- Number of storage beam levels
- Loading capacity per beam level (kg)
- Total quantity of racks required
Other Main Products
