Warehouse Storage Metal Shelf Stacking Racks & Shelves Pallet Racking System Steel Shelving Vna Racking System Narrow Aisle Rack
Product Description
Product Description
| Product Name | Storage Racking | Style | VNA Pallet Rack |
| Brand | Peterack | Colour | Blue, white, orange, green, etc. |
| Material | Steel | Place of Product | Jiangsu Province, China |
| Feature | Corrosion Protection | Packing | Export Package |
| Size | Customizable | Application | Widely used in heavy industries |

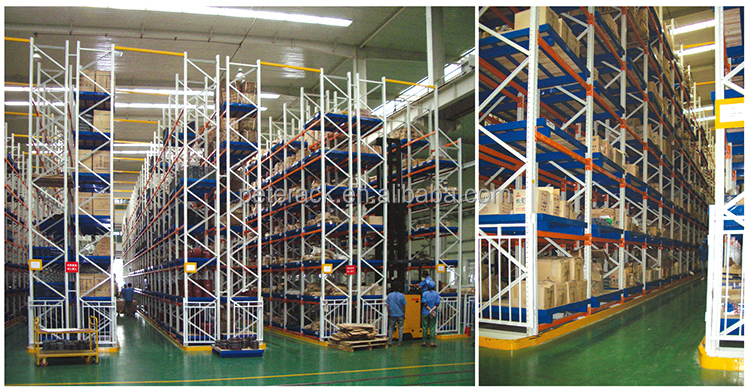

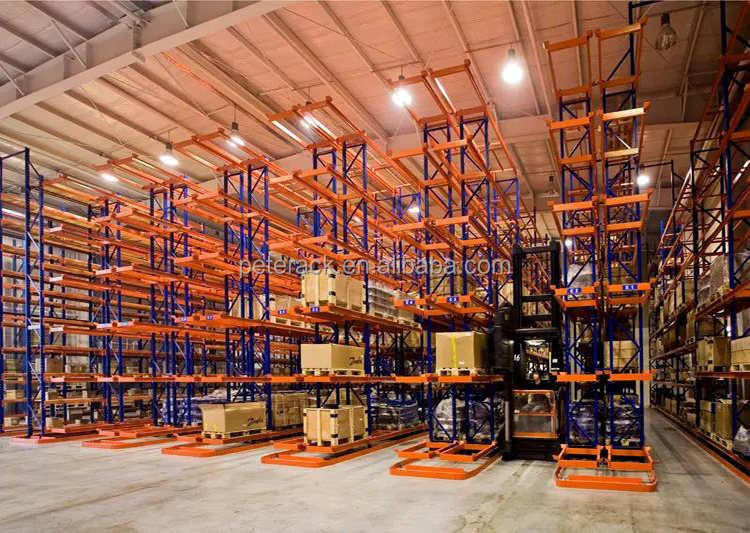

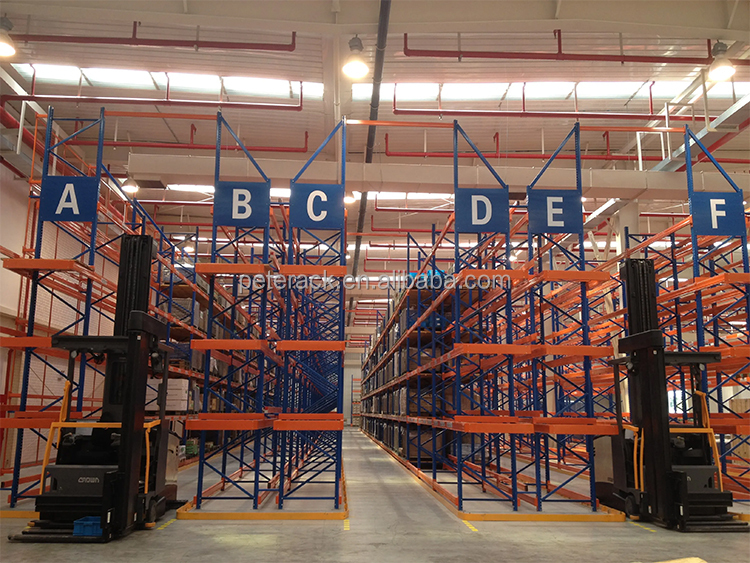

VNA pallet rack is a kind of high-density storage rack, which adopts unitized pallet access method and uses three-way forklift access. The width of forklift channel is generally 1500-2000mm, and the utilization rate of warehouse space is very high.
Maximum Space Utilization & High-Density Storage
Creates aisles as narrow as 1.5m (5-6 ft), significantly increasing storage density compared to conventional wide-aisle racking (up to 60% more pallet positions in the same footprint). Ideal for expensive real estate.
Optimized Warehouse Cube
Typically utilizes the full available building height (often 12m+/40ft+), maximizing vertical storage space.
Improved Storage Capacity
Allows storing significantly more SKUs and pallets within the existing warehouse footprint without expanding the building.

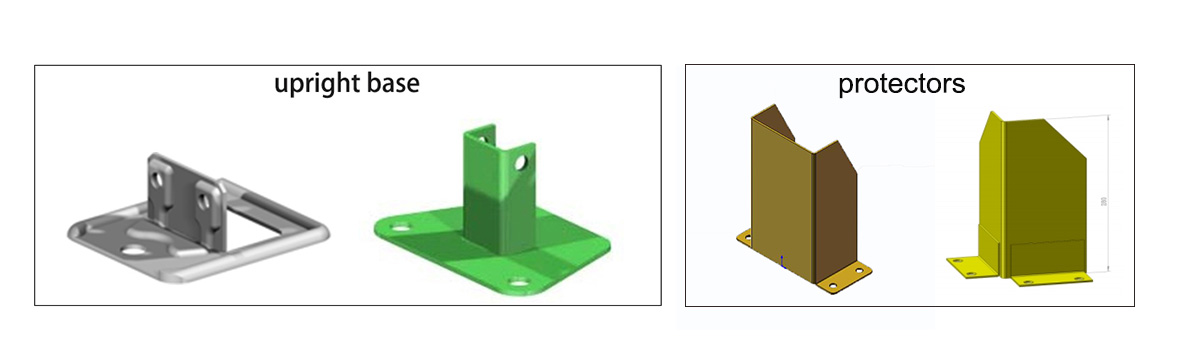

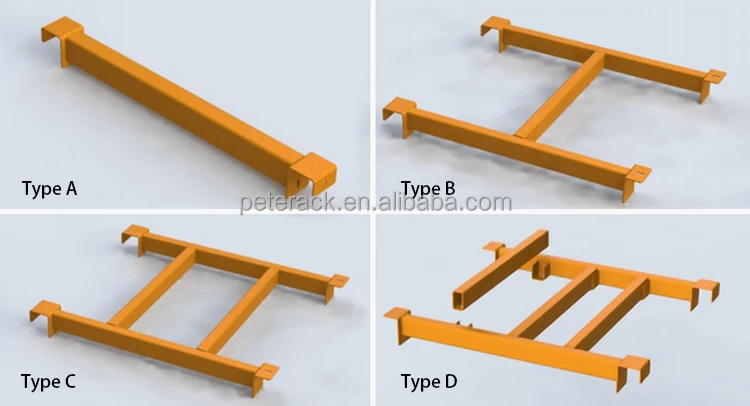

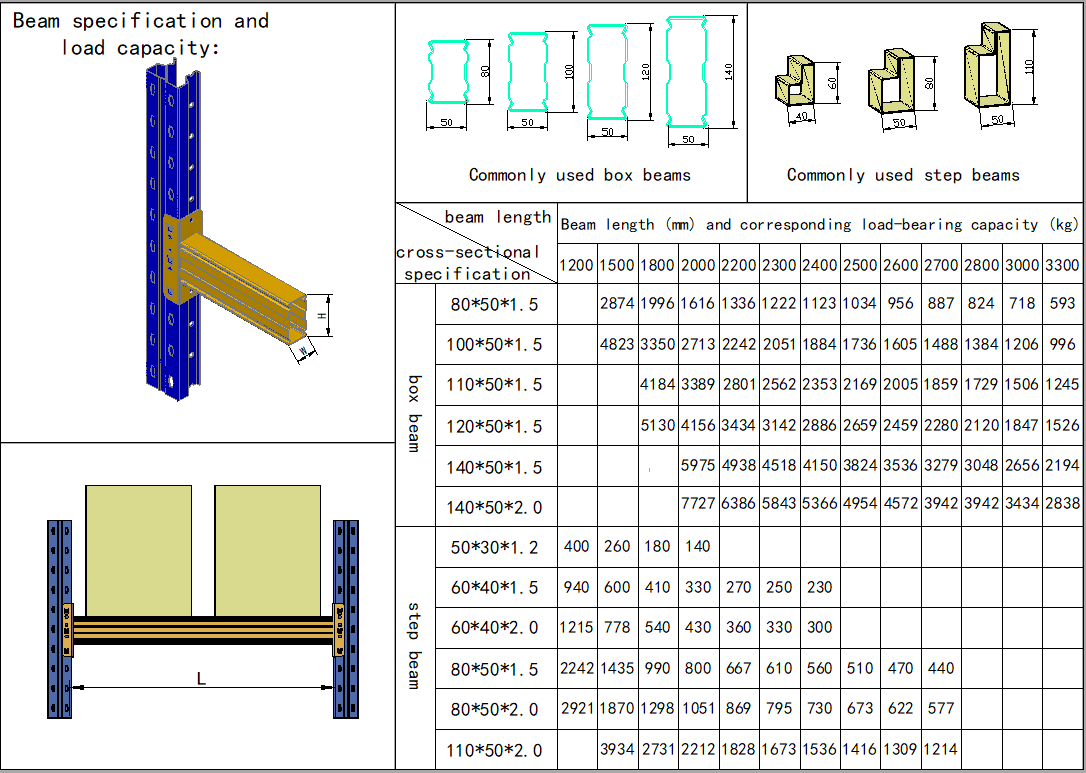

Details Images
| Upright Parameters | ||
|---|---|---|
| Specification (mm) | Thickness (mm) | Loading (kg) |
| W80×D60 | 1.8-2.0 | 4000-6000 |
| W90×D68 | 1.8-2.3 | 7500-12500 |
| W100×D68 | 2.0-2.5 | 11000-14000 |
| W100×D95 | 2.0-3.0 | 13000-18000 |
| W120×D95 | 2.3-3.0 | 17000-21000 |
Company Profile
Nanjing Peter Logistics Equipment Co., Ltd
We are a comprehensive enterprise specializing in storage shelves and logistics equipment, encompassing research, development, production and installation. Nanjing Peterack have great R&D capability, advanced production equipment and well-established quality assurance system. We are committed to designing tailored solutions to meet our customers' specific requirements.
Packaging & Shipping
Customer Visit
Our Partner
Company Certification
Click here for free design plans and quotes
We Are Looking for Partners Who:
- Have experience in warehouse equipment, logistics, or building materials
- Possess local customer resources and sales capabilities
- Are committed to long-term cooperation and shared growth
Frequently Asked Questions
Q1
Are you a factory or trading company?
We are manufacture. Our factory has been specializing in warehouse racks and different kinds of display stands.
Q2
Where is your factory located?
Our factory is located in Nanjing, near by SHANGHAI.
Q3
What is your delivery time?
In general, within 20 days, but it also depends on the order quantity and shelves design.
Q4
What is the trade term?
In generally, we will use EXW, FOB or CIF. Other terms can be negotiated.
Q5
Could you produce according to customers' design?
Sure, we have very rich experience in customizing shelves, can provide DRAWING for free.
Q6
What are main rack and add on rack?
The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright. For example, if there are 10 wall racks against the wall, the structure will be 1 main rack + 9 add on racks.
