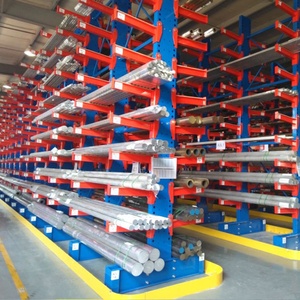

Heavy Duty Cantilever Racks for Pipe & Bar Storage
Free-standing structural columns engineered for non-palletized long stock, steel bars, timber, and PVC conduits with load capacities reaching up to 3,000 kg per arm.

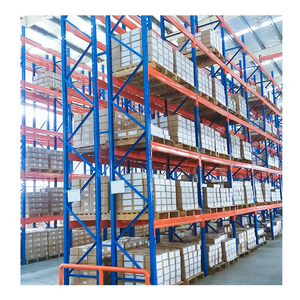

Heavy Duty Selective Steel Pallet Racking System
Versatile selective pallet framework providing 100% direct access to individual pallet locations. Manufactured with reinforced omega uprights and teardrop beam connectors.
Foldable Metal Pallet Stacking Frame Rack
Collapsible post-pallet system engineered for seasonal inventory flex and bulk handling. Eliminates dedicated aisle footprint with rapid 4-high dynamic nesting capability.

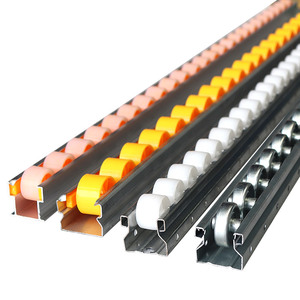

Aluminium Roller Track Fluent Strip Flow Rack
High-density gravity feeding rack built on precision slotted profiles with high-impact polymer/aluminum roller beds. Ideal for lean manufacturing lines and order-picking cells.
Heavy Duty Storage Industrial Steel Shelving
Reinforced cold-rolled steel industrial shelving combining robust slotted angle posts and ribbed steel deck panels, delivering stable manual picking up to 800 kg per shelf.

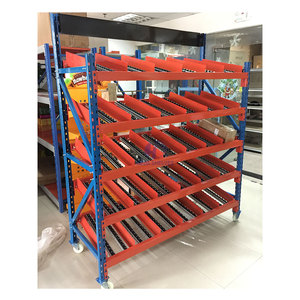

Customized Warehouse Pallet & Carton Gravity Rack
Gravity-driven dynamic roller bed rack separating picking and replenishment aisles. Eliminates picker idle travel time across FMCG, automotive, and pharmaceutical retail fulfillment.
Semi-Automated FIFO Pallet Radio Shuttle System
High-density smart shuttle storage running autonomous cart carriers inside deep storage channels. Maximizes cube capacity without requiring forklifts to enter structural storage tunnels.
Hybrid Heavy Duty Cantilever & Pallet Storage System
Multi-purpose dual structural matrix combining heavy cantilever outriggers with palletized bay levels. Solves mixed storage profiles where palletized cartons and oversized timber coexist.
Structural Mechanics, Metallurgy & CE EN 1090-1 Certification Standards
A rigorous engineering analysis of roll-formed slotted angle profiles, perforated hole geometry, dynamic moment capacity, and regulatory conformity required by international procurement inspectors.
In commercial intralogistics and industrial manufacturing, the industrial slotted angle rack remains the global benchmark for reconfigurable, high-density manual storage systems. Unlike welded light shelves that cannot adapt to evolving operational parameters, engineered slotted angle frameworks rely on precision cold-roll-formed structural steel angles perforated at calibrated 50mm or 75mm intervals. When coupled with corner gusset plates and high-tensile Grade 8.8 hex fasteners, these assemblies form semi-rigid unbraced or cross-braced moment frames capable of sustaining extreme axial and lateral loadings under demanding industrial conditions.
Cold-Rolled Metallurgy (Q235B / SPCC)
Our slotted angle profiles are fabricated exclusively from certified hot-rolled pickling and oiled (HRPO) or cold-rolled mild steel coils (Q235B per GB/T 700, equivalent to EN 10025 S235JR and ASTM A1011). This metallurgy provides a minimum yield strength of 235 MPa and ultimate tensile strength exceeding 370–500 MPa, delivering optimal ductility for in-line punching without residual micro-fractures along punch margins.
Perforation Pitch & Flange Geometry
The profile geometry utilizes asymmetric or symmetric L-shaped configurations (e.g., 38×38mm, 40×40mm, 60×40mm, and 80×40mm) with nominal wall thicknesses from 1.5mm to 3.0mm. Oval and circular perforation slots are CNC-stamped with tooling tolerances controlled to ±0.15mm, guaranteeing instantaneous fastener alignment and eliminating field reaming during multi-tier installations.
CE Factory Production Control (FPC)
Guangzhou Heda Shelves Co., Ltd. holds CE Certification No. 2435-CPR-8605159 under the European Union Construction Products Regulation (CPR 305/2011) and EN 1090-1:2009+A1:2011 (Execution of steel structures and aluminium structures). All batch production undergoes rigorous destructive tensile tests, weld penetrant inspection (where applicable), and strict dimensional verification to Execution Class EXC2.
| Profile Designation | Dimensions (mm) | Wall Gauge (mm) | Section Modulus (Wx, cm³) | Max Post Axial Load (kg)* | Recommended Industrial Application | CE Structural Class |
|---|---|---|---|---|---|---|
| SAR-3838L | 38 × 38 | 1.5 – 1.8 | 0.72 – 0.85 | 750 kg | Commercial archives, retail backroom, lightweight tote shelving | EN 1090 EXC1 |
| SAR-4040M | 40 × 40 | 1.8 – 2.0 | 0.94 – 1.12 | 1,200 kg | Automotive spare parts, carton lineside bins, workshop racking | EN 1090 EXC2 |
| SAR-6040H | 60 × 40 | 2.0 – 2.5 | 2.15 – 2.68 | 2,200 kg | Heavy hardware stores, industrial tooling dies, battery charging bays | EN 1090 EXC2 |
| SAR-8040XT | 80 × 40 | 2.5 – 3.0 | 4.32 – 5.10 | 3,500 kg | Multi-tier catwalk mezzanines, structural rack-supported platforms | EN 1090 EXC2 |
*Note: Maximum axial load ratings reflect an unbraced height (Le) of 1,000mm between horizontal shelf planes, calculated with a factor of safety (FoS) γM = 1.4 per EN 15512 specifications. Proper bracing and corner gusset torque (minimum 22 N·m) are mandatory.
Strategic Procurement Trends Shaping Slotted Storage Systems
Data-driven insights for procurement officers, facility engineers, and supply chain directors navigating shifting labor costs, real estate constraints, and stringent safety codes through 2030.
1. Multi-Tier Mezzanine Vertical Integration
With industrial warehousing land lease costs climbing globally at 7.2% CAGR, facilities can no longer afford single-level manual storage. Slotted angle frameworks are increasingly specified as multi-level rack-supported mezzanines (2-tier and 3-tier catwalk systems). By utilizing high-moment structural angle posts (60×40mm and 80×40mm) connected directly to cold-formed galvanized steel grating or tongue-and-groove decking, operators double or triple usable pick-face area without expanding the building slab.
2. Total Landed Cost (TLC) Optimization
Global procurement teams are shifting away from evaluating simple FOB unit prices to analyzing Total Landed Cost (TLC). Slotted angle profiles deliver exceptional shipping density; upright angles nest inside each other, and pressed steel shelves stack flat. A standard 40-foot high-cube (40HQ) container can accommodate up to 26 metric tons of slotted angle components—yielding up to 45% lower freight cost per cubic meter stored compared to welded shelving.
3. Seismic Resilience & Dynamic Base Anchoring
Seismic compliance is no longer limited to high-bay automated racking. Building inspectors across Latin America (NCh 2369 in Chile, NSR-10 in Colombia), Southern Europe (Eurocode 8), and the Pacific Rim now demand certified baseplate connections for manual shelving over 2.4 meters in height. Modern slotted angle installations utilize laser-cut 6.0mm structural footplates anchored with M10/M12 wedge expansion bolts into 28-day cured C25/30 concrete foundations.
4. Hybridization with Automated Mobile Robots (AMR)
As e-commerce fulfillment adopts autonomous mobile robots (AMRs) and automated guided carts (AGCs), slotted angle racks are being customized with standardized under-chassis drive clearances (180–220mm) and integrated barcode/QR code navigation targets. Modular angle systems provide the rigid dimensional accuracy required for robotic docking while preserving manual picking access on upper levels.
5. Strict Anti-Corrosion Finishing Standards
Industrial storage systems operating in tropical distribution centers (e.g., Southeast Asia, coastal Latin America) face high ambient humidity and salt mist. Procurement specifications are transitioning from basic air-dried paints to continuous 9-stage pre-treatment (zinc-iron phosphating) paired with lead-free, TGIC-free electrostatic epoxy-polyester thermosetting powder coatings rated for 500+ hours of ASTM B117 salt spray exposure.
6. Circular Economy & Reconfiguration Agility
Sustainability mandates require equipment that adapts rather than heads to scrap heaps. Slotted angle systems offer 100% disassembly and reuse capability. Shelving levels can be re-spaced in minutes, bays expanded into longspan benches, or frames retrofitted into safety wire partitions, drastically slashing total capital expenditure (CapEx) across long-term lease cycles.
10-Stage Precision Fabrication & Quality Control Pipeline
Every slotted angle beam and shelf deck undergoes fully automated in-house manufacturing at our Guangzhou production base to maintain uncompromising structural tolerances.
Certified Raw Material Sourcing
Direct supply contracts with Tier-1 steel mills (Baosteel/Ansteel). Prime Q235B cold-rolled steel coils verified for tensile yield, chemical composition, and strict thickness tolerance (±0.05mm).
High-Speed CNC Slitting & Leveling
Automated uncoiling, multi-roll precision tension leveling, and strip slitting to exact section widths, eliminating internal residual coil stresses that cause profile camber or twisting.
Continuous In-Line Hydraulic Punching
Computer-synchronized high-tonnage multi-station punch presses cut oval slots, pinholes, and circular perforations at exact 50mm/75mm intervals with zero thermal distortion or edge burrs.
14-Stand Progressive Cold Roll Forming
Profile forming across 14 progressive hardening roller stands gradually bends the strip into a razor-straight 90° angle, maintaining uniform material thickness across outer radius corners.
Flying Shear Precision Cut-to-Length
Servo-driven flying die cutoff knives trim finished angle posts at operational speeds without stopping the line, maintaining precise length tolerances within ±1.0mm per 6-meter span.
Shelf Deck Triple-Fold Stamping
Automated sheet metal stamping lines notch corners and form double/triple box edges on all shelf decks, introducing structural ribs that prevent sagging under heavy point-loads.
Automated Robotic Corner Gusset Welding
Multi-axis Panasonic robotic MIG/MAG welders attach heavy-duty baseplates and bracket gussets where custom rigid frames are specified, achieving uniform weld penetration (AWS D1.1 standard).
Multi-Stage Pickling & Phosphating
Complete immersion chemical bath process: alkaline degreasing, industrial acid pickling to eliminate scale, water rinse, and micro-crystalline zinc-iron phosphating for coating adhesion.
Electrostatic Powder Coating Line
GEMA automatic spray guns deposit 60–90 microns of ultra-durable epoxy-polyester powder inside a pressurized cleanroom booth, followed by high-temperature baking at 200°C for 25 minutes.
Seaworthy Export Bundling & Nesting
Automated nesting of angle bars into high-density steel-banded bundles. Corner guards, bubble film wrapping, and timber dunnage prevent scuffing and moisture ingress during ocean transit.
Why Global Logistics Leaders Partner with HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. combines heavy manufacturing scale with deep engineering consulting to support over 10,000 installations across 120+ countries.
Free 3D Layout & Static FEA Calculations
Our in-house structural engineering department generates comprehensive AutoCAD architectural floor plans, 3D realistic rendering visualizations, and Finite Element Analysis (FEA) deflection calculations before project sign-off. We verify load distributions, aisle clearances, and egress regulations at zero cost to your planning team.
Turnkey OEM / ODM Contract Manufacturing
We supply regional racking distributors, equipment importers, and building contractors with tailor-made OEM profile roll-forming, custom punch patterns, private label embossing, client-specified RAL color formulations, and customized assembly installation hardware packs for direct job-site dispatch.
Optimized Ocean Logistics & Landed Cost Control
Shipping direct from major southern China ports (Guangzhou / Shenzhen / Foshan). Every container load is engineered using advanced 3D packing software to maximize container volume utilization (98%+), securing heavy structural angle components against dynamic ocean transit forces.
Frequently Asked Questions by Industrial Storage Buyers
Direct technical answers addressing structural compliance, gauge tolerances, seismic considerations, bolt torques, and international container load protocols.
What European and international standards govern your slotted angle rack production?
+
How is structural load capacity calculated for a slotted angle bay?
+
Why are corner gusset plates critical in slotted angle installations?
+
What steel thickness and profile gauges do you offer for heavy industrial storage?
+
- Light-Duty: 38×38mm in 1.5mm and 1.8mm gauge (for archiving, retail, and light parts up to 100 kg/shelf).
- Medium-Duty: 40×40mm in 1.8mm and 2.0mm gauge (standard industrial stock up to 200 kg/shelf).
- Heavy-Duty: 60×40mm in 2.0mm, 2.3mm, and 2.5mm gauge (high-density storage up to 350 kg/shelf).
- Extra-Heavy Catwalk: 80×40mm in 2.5mm and 3.0mm gauge (multi-tier mezzanines up to 500 kg/m² floor load).
Can your slotted angle racking be engineered for high seismic risk zones?
+
How does your electrostatic powder coating resist corrosion in coastal or tropical warehouses?
+
What is the typical factory production lead time for full container orders?
+
How are slotted angles packaged to prevent transport damage and optimize container volume?
+
Can slotted angle racks be transformed into multi-tier mezzanines in the future?
+
What documentation do you provide for tender submissions and customs clearance?
+
- Commercial Invoice & Detailed Itemized Packing List (with net/gross weights and itemized CBM).
- Original Bill of Lading (Clean on Board).
- Certificate of Origin (Form A, Form E, Form F, or RCEP Certificate as applicable for preferential tariffs).
- CE Declaration of Performance (DoP per EN 1090-1 CPR 305/2011).
- ISO 9001:2015 Manufacturer Compliance Certificate.
- Raw Material Mill Test Certificates (EN 10204 Type 3.1).
- Numbered AutoCAD Structural Assembly & Maintenance Manual.
