Precision-fabricated pallet lanes, fluency bar conveyors, and heavy-duty carton flow channels built to streamline inventory rotation and eliminate forklift bottlenecks.
Engineered dynamic roller beds that utilize controlled gravity slope to auto-feed deep-lane pallet inventory seamlessly from load face to pick face.

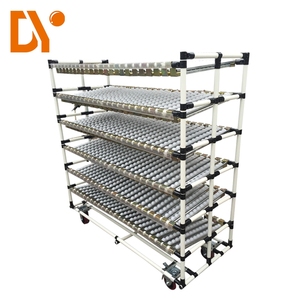

Flexible modular pipe racking built with carbon steel channels and heavy-load slide wheels, designed for lean assembly lines and kitting operations.
Abrasion-resistant polyethylene rolling wheels secured in galvanized or aluminum side guides for continuous low-friction feeding in carton flow channels.
Multi-tier adjustable incline carton storage engineered with divided roller beds to optimize split-case picking speed and replenishment productivity.
Cold-formed structural steel roller channels integrated with precision entry guides and heavy-duty load stops for drop-in retrofits on existing racking.
Anodized aluminum alloy rail structure with plastic rollers and integrated omnidirectional ball transfer units, purpose-built for ergonomic packing tables.

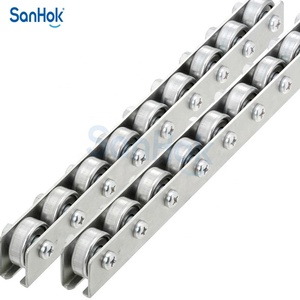

Corrosion-resistant grade 304/316 stainless steel roller tracks configured for food-processing environments, pharmaceutical fulfillment, and freezer rooms.
Quick-assembly lean gravity flow structures configured with lightweight aluminum rails, reinforced connectors, and shock-dampening entry bumpers.
In dynamic gravity flow racking, operational reliability depends directly on coefficient-of-friction management, centrifugal braking consistency, and frame torsional rigidity under full live loads.
Flow rail lanes demand exact gradient calibration. For industrial pallet loads ranging from 500 kg to 1,500 kg, a 2.5% to 3.5% downward pitch guarantees consistent movement without runaway acceleration. For carton flow, a 3.0% to 5.0% gradient prevents stalls while avoiding box crush at pick faces.
Long deep-lane flow runs (exceeding 4 pallets deep) require inline mechanical centrifugal speed controllers. As the pallet rolls, internal governor weights generate proportional resistance, maintaining a terminal velocity of 0.25 to 0.3 m/s regardless of pallet weight variations.
At the discharge end, dynamic back-pressure from accumulating pallets can pin the front pallet against the stop. Heavy-duty mechanical pallet separators isolate the leading unit from trailing pallet forces, allowing forklifts to lift cleanly without mast strain or pallet damage.
| System Classification | Typical Lane Depth | Rollers / Wheels Construction | Load Rating Capacity | Primary Industrial Application |
|---|---|---|---|---|
| Full-Width Roller Pallet Flow | 2 – 25 Pallets Deep | Ø60mm / Ø76mm Galvanized Steel with Precision Bearings | Up to 1,800 kg / Pallet | Cold Storage, Beverage Fast-Moving Distribution |
| Dual/Triple Track Poly Wheel Flow | 2 – 10 Pallets Deep | Reinforced High-Impact Polymer Wheels on Steel Rail | Up to 1,200 kg / Pallet | Automotive Staging, Standard GMA/Euro Wood Pallets |
| Carton Flow Heavy Duty | 1.5m – 6.5m Runs | PE Fluency Bar / Staggered Polypropylene Rollers | 30 – 100 kg / Linear Meter | E-commerce Split Case, Fast Picking Mezzanines |
| Stainless Steel Sanitary Flow | 2 – 12 Positions | SUS 304/316 Rollers with Sealed Food-Grade Bearings | Up to 1,000 kg / Pallet | Pharmaceutical Packaging, Meat & Fishery Blast Freezers |
Our structural engineering division verifies static deflection, seismic moment resistance (per NCh 2369, NSR-10, E.030, and RMI standards), and acceleration dampening for custom project drawings.
How global supply chain volatility, multi-temperature storage demands, and robotic integration are reshaping the requirements for warehouse flow racking.
Procurement teams are shifting away from traditional forklift-only interfaces. Modern flow rail pick faces feature sensor-ready mechanical stops, optical interlocks, and chamfered entries designed for automated guided vehicles (AGVs) and autonomous mobile robots (AMRs) to retrieve tote bins and pallets automatically.
Expanding cold chain networks in Latin America, Southeast Asia, and North America necessitate dynamic rails capable of unyielding performance at -30°C. Standard bearings seize in low temperatures; the latest procurement trend mandates self-lubricating low-temp polymer housings and stainless axles to avoid brittle fracture.
Cross-border logistics requires handling GMA (48"x40"), Euro (1200x800mm), and South American (1200x1000mm) pallet footprints on the same track. Future-ready flow racks utilize full-width split rollers or triple continuous poly tracks that support varying runner configurations without bottom-board wedging.
Combining over two decades of heavy structural manufacturing with precision OEM/ODM customization for demanding logistics hubs across South America, North America, Europe, and beyond.
Our facility operates under rigorous CE Certificate (No. 2435-CPR-8605159) and ISO 9001:2015 certified quality systems. Every coil of high-strength structural carbon steel undergoes yield testing, automated punching, roll forming, and electrostatic powder coating in-house.
Spanning 30,000 m² of modern workshops equipped with automated robotic welding cells, continuous roll form lines, and high-speed punching stations, our 300+ engineering and fabrication personnel ensure reliable 2-4 week lead times for multi-container deployments.
From custom roller track thicknesses and non-standard fluency bar guides to turnkey warehouse layout 3D renderings and CAD drawings, our technical team supplies unbranded or private-label solutions tailored to distributors' exact tender requirements.
Clear, engineering-backed answers addressing the practical challenges of flow rail procurement, installation tolerances, seismic safety, and international container logistics.
Pallet hang-ups typically occur due to poor-quality pallets with broken or warped bottom runners, inadequate slope calibration (less than 2.5%), or missing roller count underneath contact points. We solve this by engineering dynamic track arrays that guarantee a minimum of three rollers in contact with each pallet runner at all times, paired with high-concentricity bearings.
Yes. Our OEM/ODM engineers provide universal drop-in bracket clips, beam-mounting brackets, and heavy-duty clamp assemblies that fit standard teardrop, slotted, or structural box beams. This allows warehouse managers to convert static selective racking bays into dynamic FIFO carton or pallet flow lanes without replacing upright frames.
We incorporate regional seismic coefficients into the finite element structural model based on local codes (such as Chile NCh 2369 / NCh 433, Peru E.030, or Colombian NSR-10). Upright column steel thickness, footplate anchor surface area, top portal ties, and diagonal back-bracing are scaled specifically to dissipate lateral kinetic forces without dynamic dislodgement.
For ambient warehouses, all components undergo 7-stage pre-treatment (including degreasing, pickling, and phosphating) followed by electrostatic polyester powder coating. For cold storage (-30°C) or humid coastal environments (such as Santos, Callao, or Guayaquil), we provide hot-dip galvanizing (HDG) or pre-galvanized roller track frames with stainless steel axle shafts.
To produce an exact structural and architectural drawing, please provide: building clear height, slab load-bearing capacity, forklift mast reach, pallet footprint (length, width, height including overhang), gross pallet weight range, required lanes and levels, and target inventory rotation cycle (FIFO/LIFO).
Roller rails and upright frames are nested with custom interlocking dunnage, while small components, brackets, and fluency tracks are palletized in high-density bundles. Our load-planning software simulates 20GP, 40GP, and 40HQ container cube utilization to reach over 95% space efficiency while safeguarding powder-coated surfaces from transit chafing.
Whether you require full-container shipments of customized PE fluency bars, heavy-duty carton flow beds, or complete turnkey FIFO gravity flow pallet racking systems, our engineering desk delivers precision layout drawings and factory-direct commercial bids within 24 hours.
